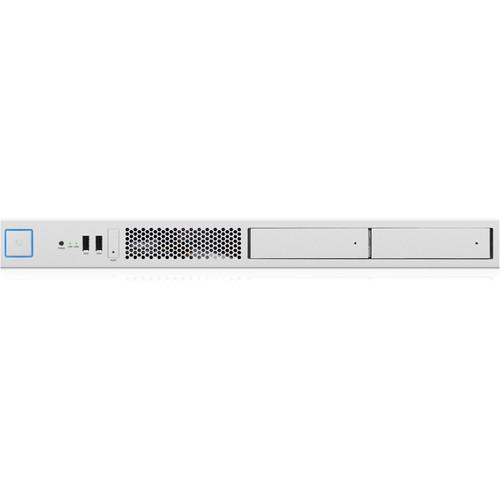

User Manual for Ubiquiti Networks UniFi Application Server XG with 4TB HDD & 120GB SSD Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Application Server XG
- Product category: Network Video Recorders (NVRs) Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Video Recorders (NVRs)
|
User manual for the Ubiquiti Networks UniFi Application Server XG contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The 1 RU UniFi Application Server XG from Ubiquiti Networks is a rack-mountable application server that is preinstalled with UniFi and UniFi Video software for managing your UniFi devices. This Ubuntu-based server has two 3.5" hard drive bays with two 2TB drives preinstalled for a total of 4TB to store video recordings, as well as a 120GB SSD for the OS and application software. This server features dual 10 Gb/s Ethernet ports with high-bandwidth connectivity and an Intel Xeon D-1521 processor with 32GB DDR4 memory. Initial setup of this device can be performed via Bluetooth 4.0 using the UniFi mobile app. - Preinstalled UniFi and UniFi Video controller software applications
- Preinstalled software enables centralized management of your UniFi devices, with features such as live feeds, motion detection & security alerts, statistical reporting & analytics, event recording, maps, monitoring of multiple sites across remote locations, dashboard, topology, and a mobile app for iOS and Android devices
- Bluetooth Low Energy (Bluetooth 4.0) technology
- UniFi mobile app for initial setup via Bluetooth to configure the application server
- Rackmount hardware included
UPC: 810354026553 In the Box Ubiquiti Networks UniFi Application Server XG with 4TB HDD & 120GB SSD (1 RU) Rackmount Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Application Server XG with 4TB HDD & 120GB SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UAS-XG Specs | Processor | Intel Xeon D-1521 | | System Memory | 32 GB DDR4 | | Number of Solid State Drive Installed | 1 x M.2 SSD 120 GB | | Hard Drive Capacity | 2 x 3.5" HDD bays (2 x 2 TB HDD preinstalled) | | Connectors | 2 x RJ45, 1/10 Gb/s Ethernet ports
1 x RJ45, IPMI 1 Gb/s Ethernet port
1 x VGA port
2 x USB 3.0 ports on rear panel
2 x USB 2.0 ports on front panel | | Bluetooth | BLE: Bluetooth 4.0 | | LEDs | System: Bootup, Reset, Locate
Data Ports: Link, Activity
HDD Bays: Activity, Error | | Power Consumption | 150 W maximum, 60 W typical | | Power Method | 100-240 VAC, 50-60 Hz, universal input | | Power Supply | 100-240 VAC, 2-4 A, 50-60 Hz | | Supported Voltage | 100-240 VAC | | Certifications | CE, FCC, IC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5-90%, non-condensing | | Dimensions | 17.42 x 1.72 x 12.03" / 44.24 x 4.37 x 30.55 cm | | Rack Mount Dimensions | Height: 1 RU, 1.75" / 44.5 mm
Depth: 12" / 305 mm | | Weight | 14.33 lb / 6.5 kg
With Brackets: 14.55 lb / 6.6 kg | | | | Package Weight | 17.25 lb | | Box Dimensions (LxWxH) | 22.5 x 14.7 x 3.6" |
