User Manual for Ubiquiti Networks UniFi Cloud Key Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Cloud Key
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
 |
User manual for the Ubiquiti Networks UniFi Cloud Key contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

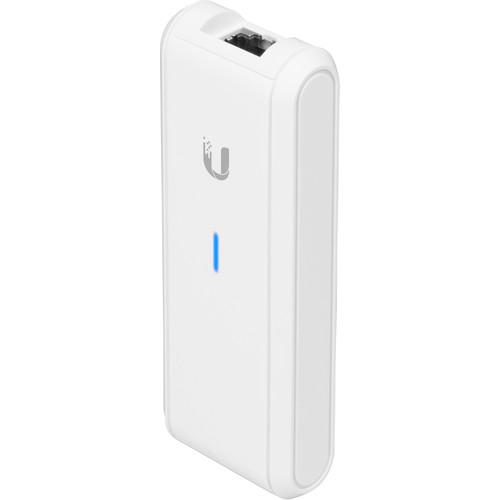

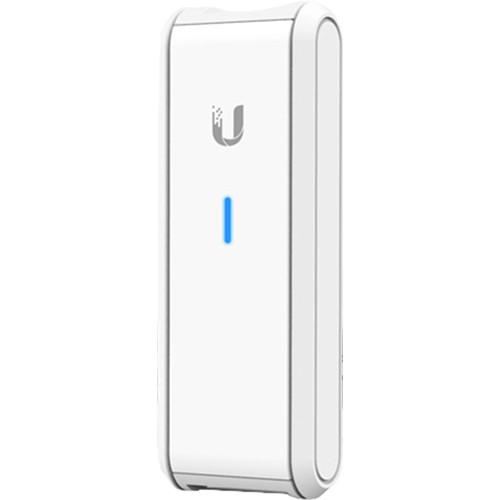

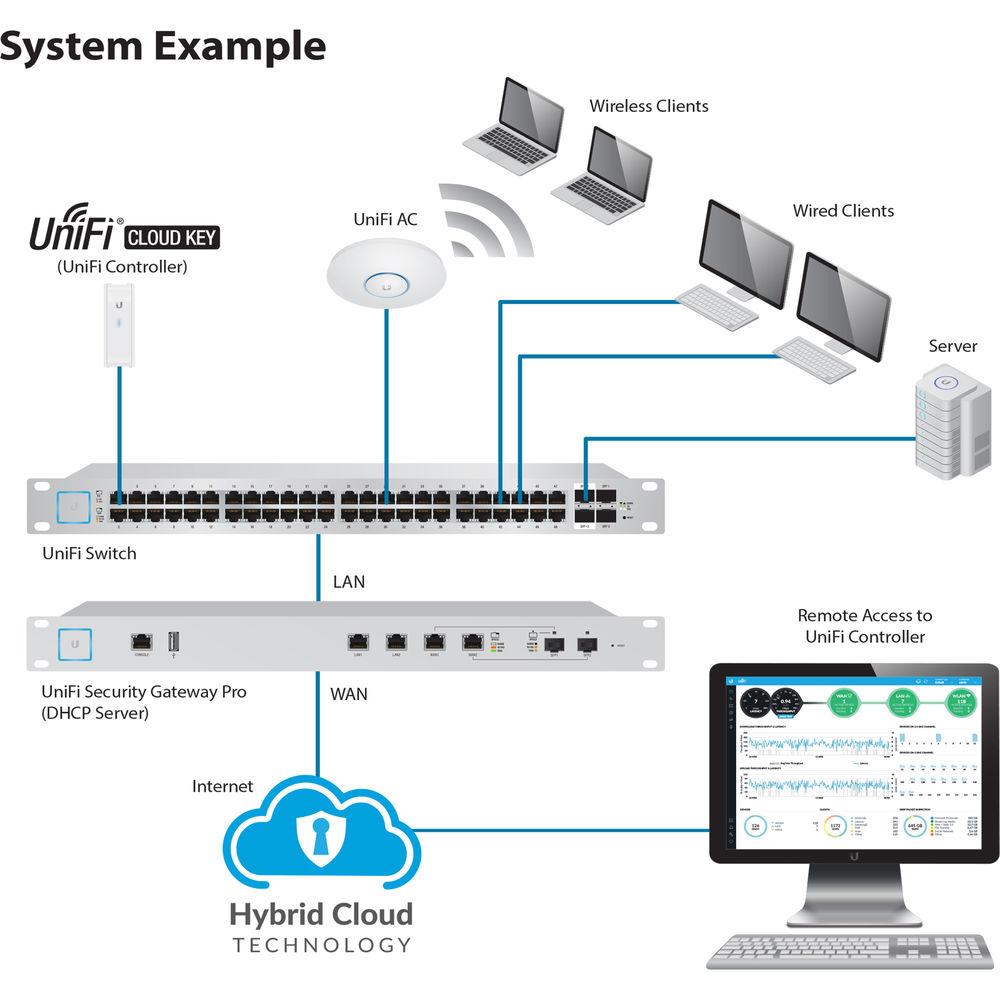

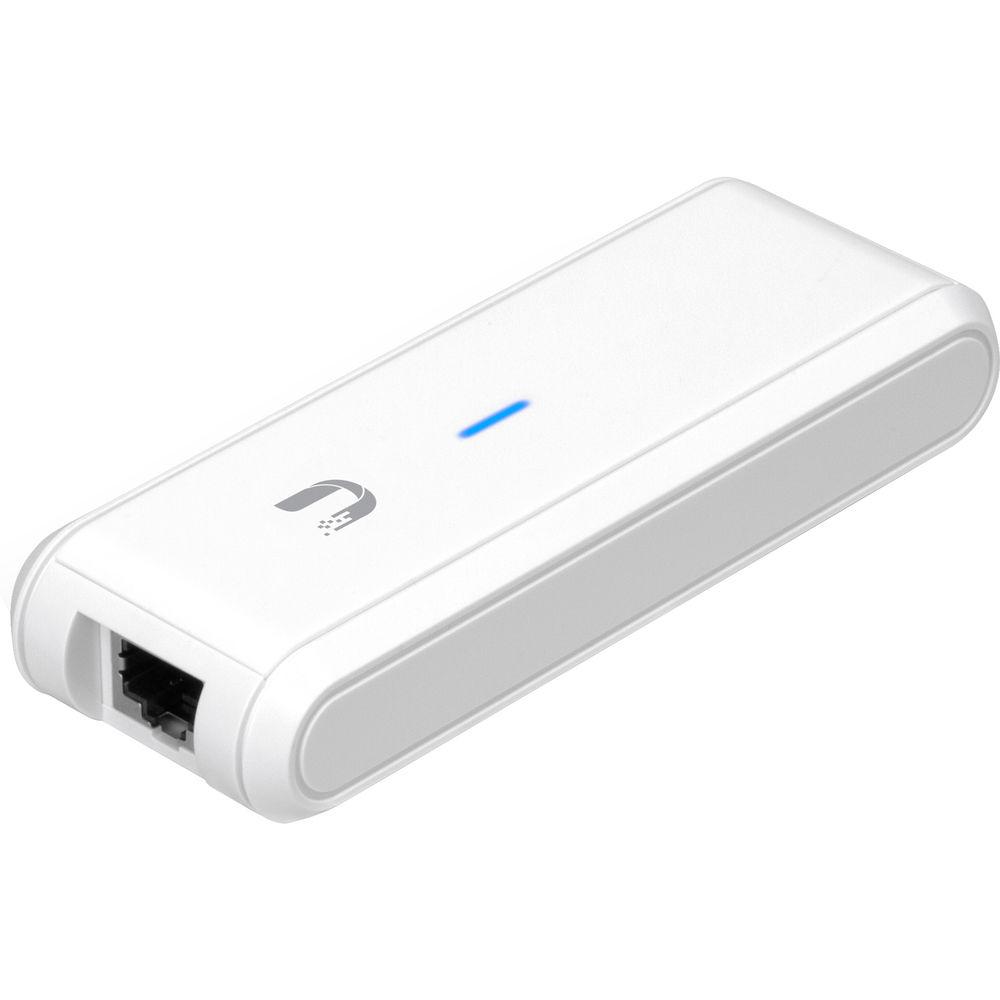

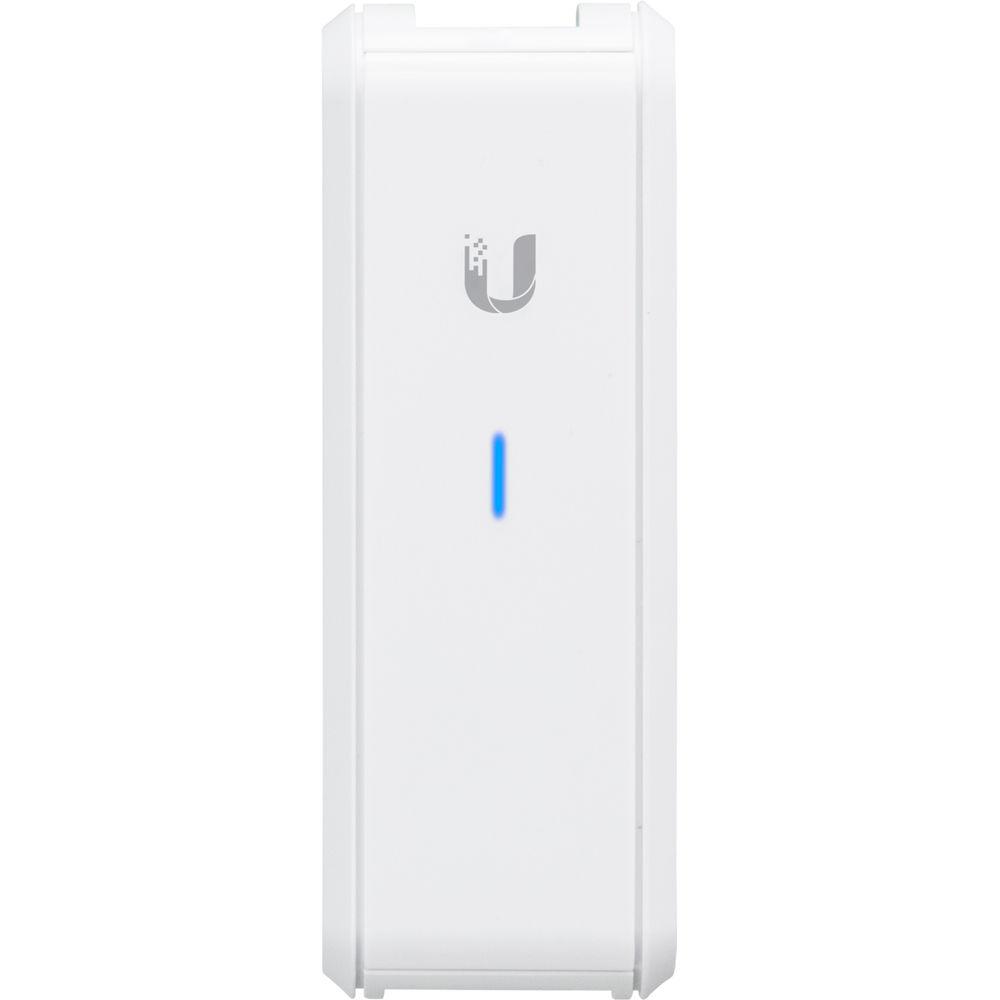

Product description The UniFi Cloud Key from Ubiquiti Networks combines local network security with convenient remote access. It runs a local instance of the UniFi Controller software, and features single sign-on for remote, secure access to all of your UniFi devices from anywhere in the world. The UniFi Cloud Key is fully capable of configuring and managing dozens of UniFi devices, and serves as an ultra-low energy solution, replacing a dedicated server or computer. With plug-and-play installation, simply connect the Cloud Key to a UniFi Switch and remotely access it through any computer connected to the internet. - Multi-Site Management
- A UniFi Cloud Key provides an always-on, private UniFi cloud service. Every site is accessible through its assigned secure SSO (single sign-on). Each UniFi Cloud Key is independent with its own network monitoring, configuration, maps, statistics, and administration accounts.
- Network Overview
- A comprehensive overview of your network health is readily available in the dashboard. Monitor your network's vitals and make on-the-fly adjustments as needed.
- Detailed Analytics
- Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting.
- LAN/WLAN Groups
- The UniFi Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.
- Wi-Fi Management
- Use the UniFi Controller to manage UniFi APs, configure wireless networks, map out networks, and quickly manage system traffic. Wi-Fi management features include:
- RF monitoring and device mapping
- Detailed RF performance analysis
- Band steering support
- Guest portal/hotspot support
- Router and Switch Management
- Use the UniFi Controller to manage UniFi Security Gateways and Switches. Configure a variety of features:
- WAN/LAN/VLAN configuration
- Operation mode (switching, mirroring, or aggregate) per port
- PoE setting per port (device-dependent)
- Jumbo frame and flow control services
- Monitor and analyze performance of each port

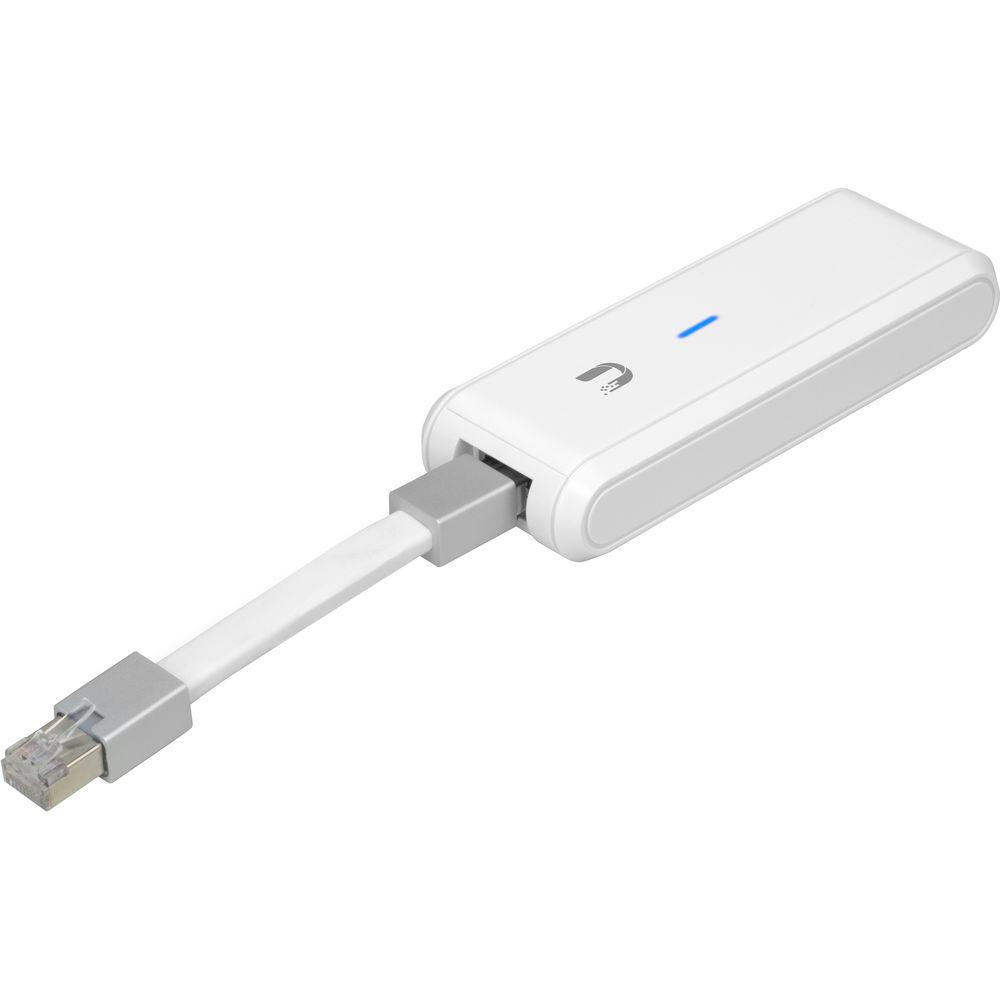

UPC: 810354024146 In the Box Ubiquiti Networks UniFi Cloud Key Ethernet Cable 8GB Micro-SD Card Limited 1-Year Warranty Brochure PDF 2.9mbtzazertyaxydftxxd Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Cloud Key in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

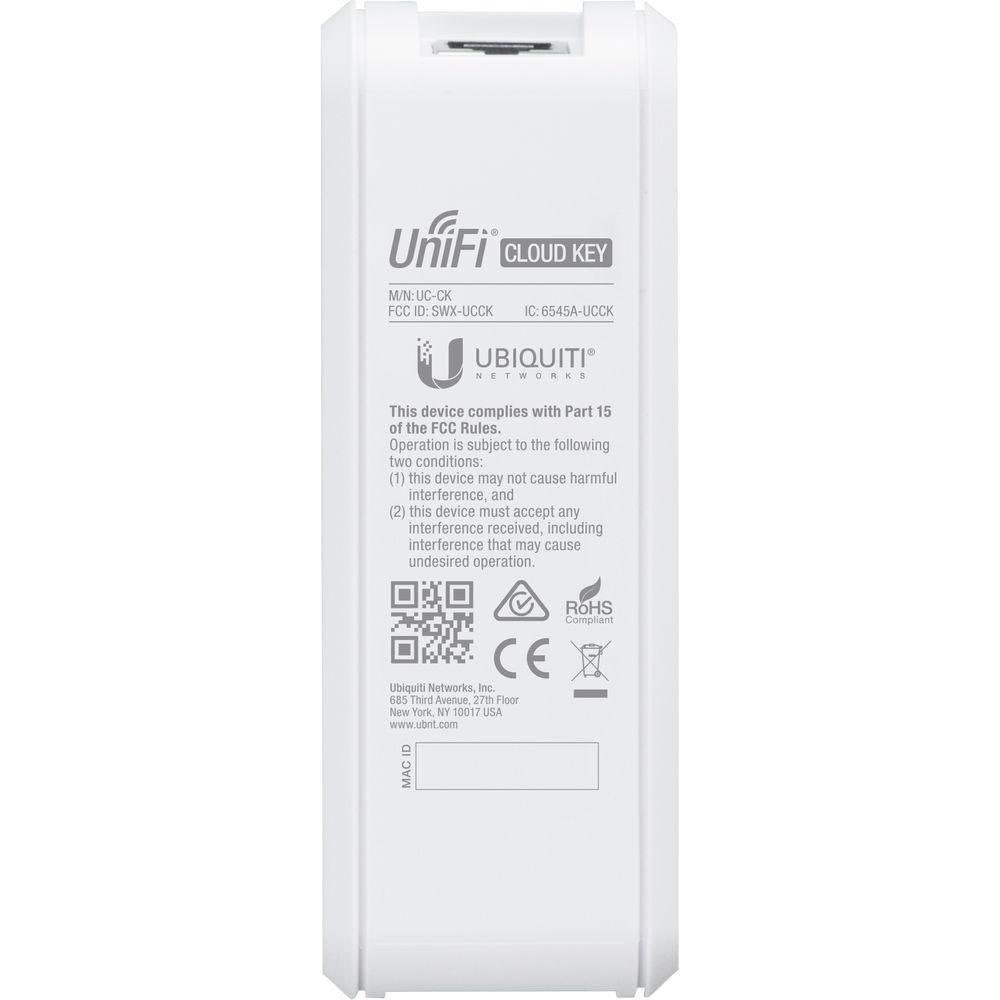

Technical parametersUbiquiti Networks UC-CK Specs | Processor | Quad-Core SoC | | Memory | 1 GB DDR | | Networking Interface | 10/100/1000 Ethernet Port | | Buttons | 1 x Reset | | Power Method | PoE: 48 V 802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return)
Micro-USB: 5 V | | Power Supply | 802.3af PoE or Micro-USB 5V, Minimum 1 A | | Max Power Consumption | 5 W | | Certifications | CE, FCC, IC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 20 to 90% Non-condensing | | Dimensions | 0.9 x 1.7 x 4.8" / 21.7 x 43.4 x 121.9 mm | | Weight | 3.88 oz / 110 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.35 x 2.9 x 1.9" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
