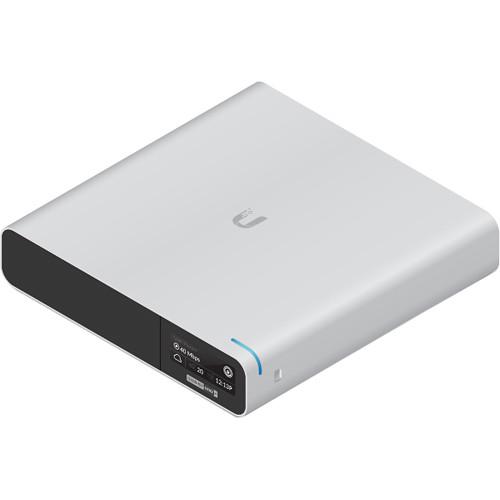

Product description The UniFi Cloud Key Gen2 Plus from Ubiquiti Networks is an integrated hardware controller and self-contained application server designed to monitor and manage your UniFi network devices and camera surveillance system. The UniFi Cloud Key Gen2 Plus features an eight-core processor with 3GB of RAM, a 1TB 2.5" SATA hard drive (user-upgradeable), and 32GB eMMC flash storage. There is a 10/100/1000 Mb/s Gigabit Ethernet port, which supports 802.3af PoE. You can also power the device via the USB Type-C port with QuickCharge 2.0 technology. The UniFi Cloud Key Gen2 Plus can configure and manage up to 20 UniFi cameras in UniFi Protect mode. It can also manage and configure up to 15 UniFi cameras and 50 UniFi devices in UniFi SDN + UniFi Protect mode. The Ubiquiti hybrid cloud configuration provides a secure, private SSO (Single Sign-On) to access all of your UniFi deployments from anywhere in the world. With the hybrid cloud, a third-party hosted cloud service is not required, so all your personal data remains local and secure. UniFi Protect - Easy Setup
- Using a standard web browser or Bluetooth setup from your mobile device, deployment of your UniFi Protect controller can be set up and configured in a matter of minutes.
- User Interface
- Accessible from a web browser, the UniFi Protect was designed to be easy-to-use yet packed with advanced features. The UniFi Protect interface is intuitive and loaded with powerful features, such as statistical reporting, multiple live views options, versatile camera settings, advanced analytics, and customizable event recordings.
- Plug and Play Installation
- Automatic camera detection in UniFi Protect makes it easy to install and deploy cameras. All of the camera settings are integrated into the software. You can also configure, reboot, or upgrade the firmware on any camera from within the UniFi Protect interface.
- Additional Live Views
- Playlists can be created with a configurable live camera feed rotation. Define the cameras you want included in the playlist and how long you want them to appear on the screen before moving on to the next live feed.
- Mobile App
- The downloadable app provides free remote cloud access to your UniFi Protect system. It also allows you to securely access video recordings that are privately stored on the Cloud Key Gen2 Plus and not a third-party server or internet cloud.
- Live View
- View up to 20 live camera feeds in a single window. With basic and advanced template options available, choose the live view template that's right for you.
- Time Lapse
- The Time Lapse feature allows you to scroll through video events and recordings quickly and efficiently. Now you can sift through hundreds of hours of video in just minutes.
- Events
- Video recordings are stored privately on the Cloud Key Gen2 Plus. With a built-in 1TB HDD, you can retain hundreds of recording hours without third-party storage or online digital footprints.
UniFi SDN Controller - Multi-Site Management
- A UniFi Cloud Key Gen2 Plus installed at each deployment site provides an always-on, private UniFi cloud service. Every site is accessible through its assigned secure SSO. Each Cloud Key Gen2 Plus is independent with its own network monitoring, configuration, maps, statistics, and admin accounts.
- Improved User Experience
- Redesigned to be more intuitive and easier to navigate, the UI raises the bar for enterprise network management efficiency. Important network details are logically organized for a simplified, yet powerful, interface.
- Network Overview
- A comprehensive overview of your network health is readily available in the dashboard. Monitor your network's vitals and make on the fly adjustments as needed.
- Detailed Analytics
- Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting.
- LAN/WLAN Groups
- The UniFi SDN Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.
- Wi-Fi Management
- Use the UniFi SDN Controller to provision UniFi APs, configure wireless networks, map out networks, and quickly manage system traffic. Powerful Wi-Fi management features include:
- RF monitoring and device mapping
- Detailed RF performance analysis
- Band steering support
- Guest portal/hotspot support
- Router and Switch Management
- Use the UniFi Controller to provision UniFi Security Gateways and Switches. Configure a variety of features:
- WAN/LAN/VLAN configuration
- Operation mode (switching, mirroring, or aggregate) per port
- PoE setting per port (device dependent)
- Jumbo frame and flow control services
- Monitor and analyze performance of each port
- Dashboard
- UniFi provides a visual representation of your network's status and delivers basic information about each network segment.
- SDN Mobile App
- The downloadable app provides free remote cloud access to your UniFi Controller. It also allows you to analyze and manage the health and traffic of your UniFi network from anywhere in the world using your single sign-on Ubiquiti account.
- Statistics
- The Statistics tab provides a visual representation of the network clients and network traffic carried by your managed UniFi Switches and APs.
UPC: 817882024532 In the Box Ubiquiti Networks UniFi Cloud Key Gen2 Plus Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Cloud Key Gen2 Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UniFi Cloud Key G2 Specs | Hard Drive | 1 TB 2.5" SATA HDD (user-upgradeable) | | Enclosure | Anodized aluminum | | Management Interface | UniFi Management Portal
UniFi SDN
UniFi Protect | | Device Capacity | UniFi Protect Mode
Up to 20 UniFi cameras
UniFi SDN + Protect

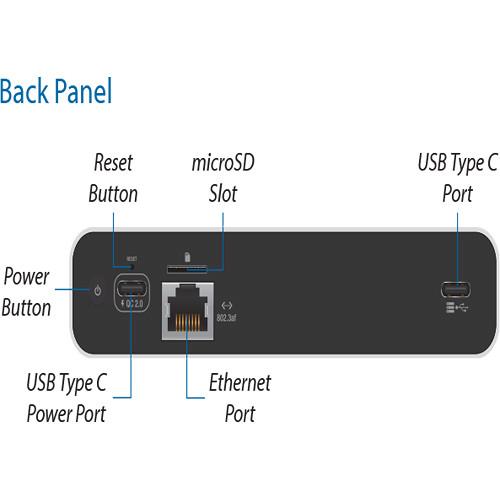

Up to 15 UniFi cameras and 50 UniFi devices | | Processor | APQ8053 8-Core with 3 GB of RAM | | Storage Capacity | 32 GB (eMMC) | | Ports | 2 x USB Type-C
1 x 10/100/1000 Mb/s Gigabit Ethernet RJ-45 LAN | | Media Card Slots | 1 x MicroSD | | Buttons | 1 x Power
1 x Reset | | LED Indicators | 1 x Power (White/Blue) | | Power | Power Method
Standard 802.3af PoE
Quick Charge 2.0/3.0 power adapter
Supported Voltage Range
9 VDC, 2 A
Power Consumption (max)
12.95W (PoE)
USB Type-C Power | | Operating Temperature | 32 - 104°F / 0 - 35°C | | Operating Humidity | 20 - 80% (non-condensing) | | Certifications | CE, FCC, IC | | Dimensions | 5.16 x 1.07 x 5.28" / 131.16 x 27.10 x 134.20 mm | | Weight | 1.28 lbs / 0.58 kg | | | | Package Weight | 1.845 lb | | Box Dimensions (LxWxH) | 6.45 x 6.35 x 1.55" |
