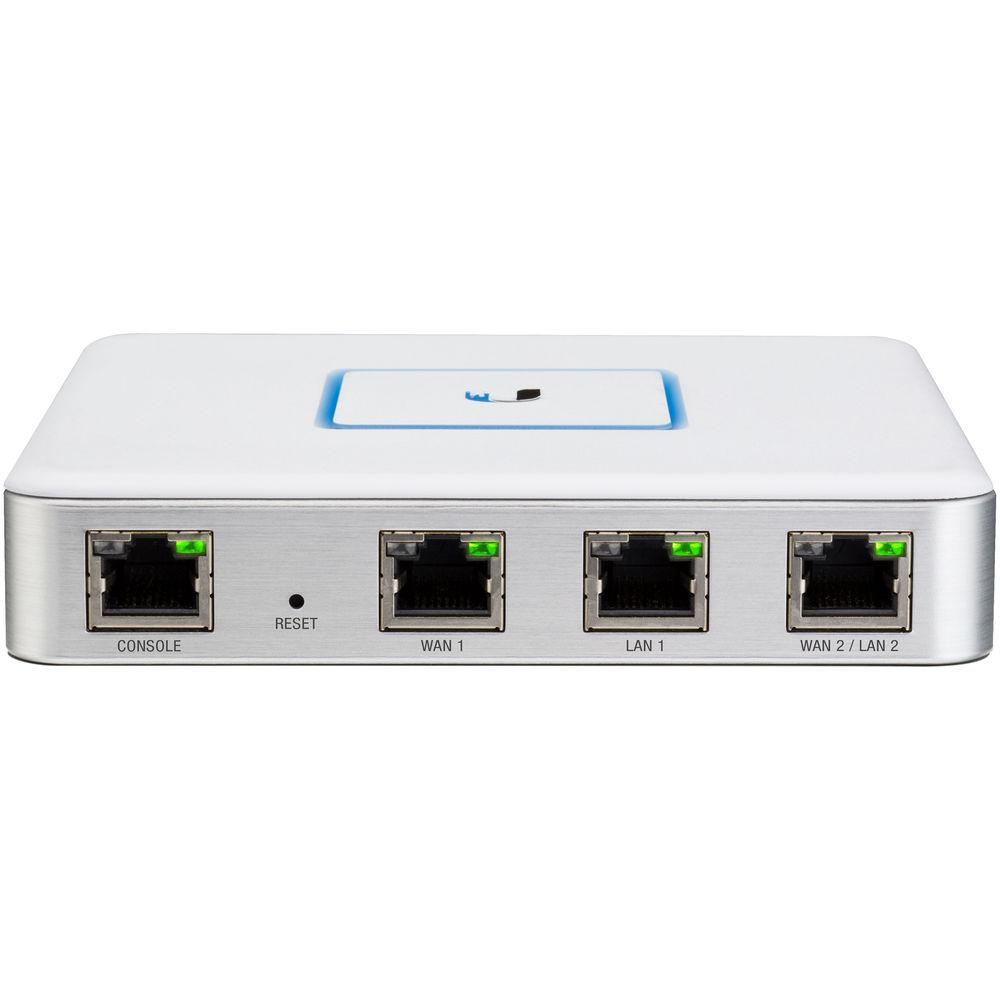

User Manual for Ubiquiti Networks UniFi Enterprise Gateway Router with Gigabit Ethernet Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Enterprise Gateway Router
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
 |
User manual for the Ubiquiti Networks UniFi Enterprise Gateway Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The UniFi Enterprise Gateway Router with Gigabit Ethernet from Ubiquiti Networks is designed to be implemented with compatible UniFi Enterprise Systems to provide routing and security to your local area network. With three Gigabit Ethernet ports and the ability to route up to 1 million packets per second this gateway is a versatile networking tool. Features such as an improved user experience and the ability to obtain an overview of your network allow you to manage nearly every aspect from mapping out subnets to provisioning additional UniFi devices. You can even create LAN & WLAN groups per UniFi device for greater control over large network deployments. - Deployment
- As part of the UniFi Enterprise System, the UniFi Security Gateway is deployed in the same manner as UniFi APs. Detection, provisioning, and management are all conducted from the UniFi Controller.
The UniFi Controller may reside on a management station located either on‑site and connected to the same Layer-2 network, or off-site in a cloud or NOC. - Improved User Experience
- Redesigned to be more intuitive and easier to navigate, the revised UI raises the bar for enterprise network management efficiency. Important network details are logically organized for a simplified, yet powerful, interface.
- Packed with Features
- Use the UniFi Controller to provision thousands of UniFi APs and UniFi Security Gateways, map out networks, quickly manage system traffic, and provision additional UniFi devices.
- Network Overview
- A comprehensive overview of your Network Health is readily available in the dashboard. Monitor your network's vitals and make on‑the‑fly adjustments as needed.
- Detailed Analytics
- Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting.
- Multi-Site Management
- A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
- LAN/WLAN Groups
- The UniFi Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.
- Additional Features
- • 3 Gigabit Ethernet ports
• 1 million packets per second for 64-byte packets
• 3 Gb/s total line rate for packets 512 bytes or larger
• Integrated and managed with UniFi Controller v4.x
• Secure off-site management and monitoring
• CLI management for advanced users

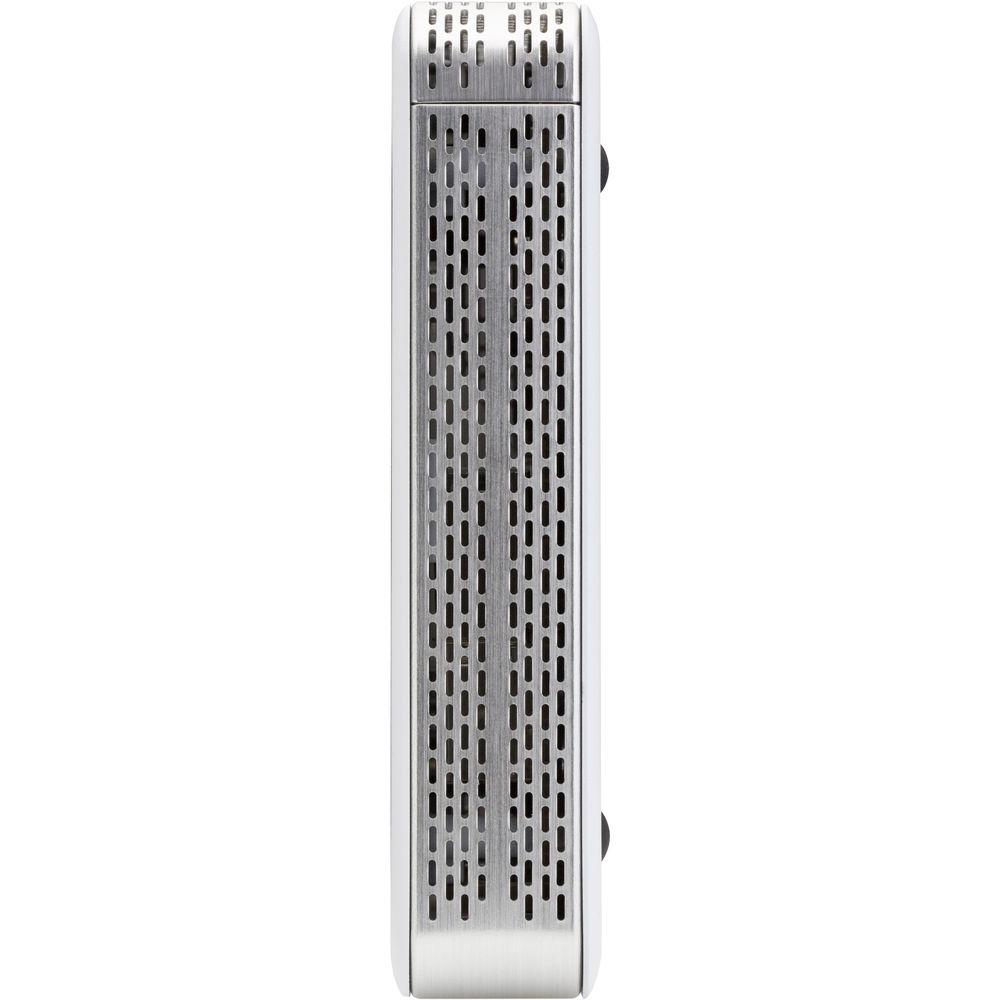

• Silent, fanless operation UPC: 810354020803 In the Box Ubiquiti Networks UniFi Enterprise Gateway Router with Gigabit Ethernet Power Adapter Power Cord 2 x M2.9 x 20 Screws 2 x M2.9 Screws Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Enterprise Gateway Router with Gigabit Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks USG Specs | Processor | Dual-core 500 MHz, MIPS64 | | System Memory | 512 MB DDR2 RAM | | On-Board Flash Storage | 2 GB | | Max Power Consumption | 7 W | | Power Supply | 12 VDC, 1 A power adapter (included) | | Power Input | 9 to 24 V DC, supported voltage range | | Certifications | CE, FCC, IC | | Wall-Mount | Yes | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Operating Humidity | 10 to 90% non-condensing | | | | Packet Size | 64 bytes - 1,000,000 pps

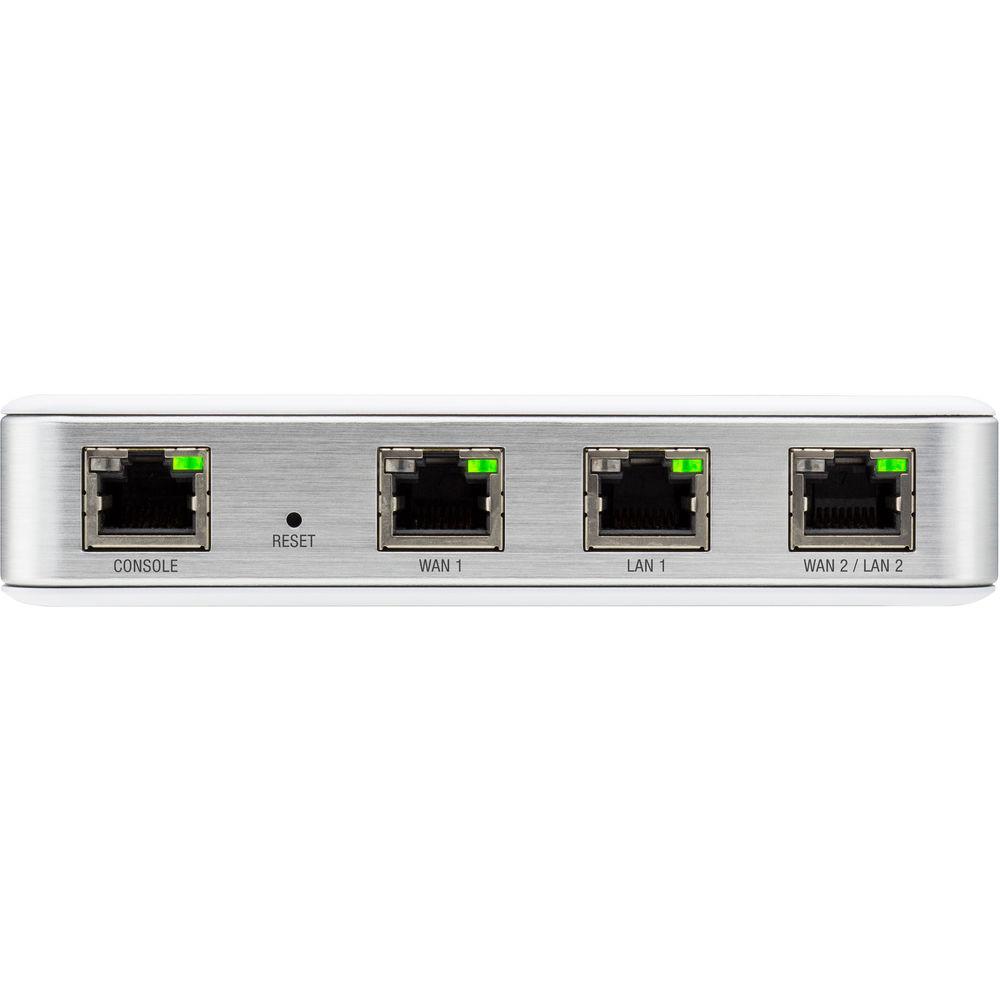

512 bytes or larger - 3 Gb/s (line rate) | | | | Serial Console Port | 1 x RJ-45 serial port | | Data Ports | 3 x 10/100/1000 Ethernet ports
Please note VOIP port is disabled and reserved for future use | | | | Dimensions | 5.32 x 5.32 x 1.11" / 135.0 x 135.0 x 28.3 mm | | Weight | 12.9 oz / 366 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.05 x 6.55 x 3.25" |
