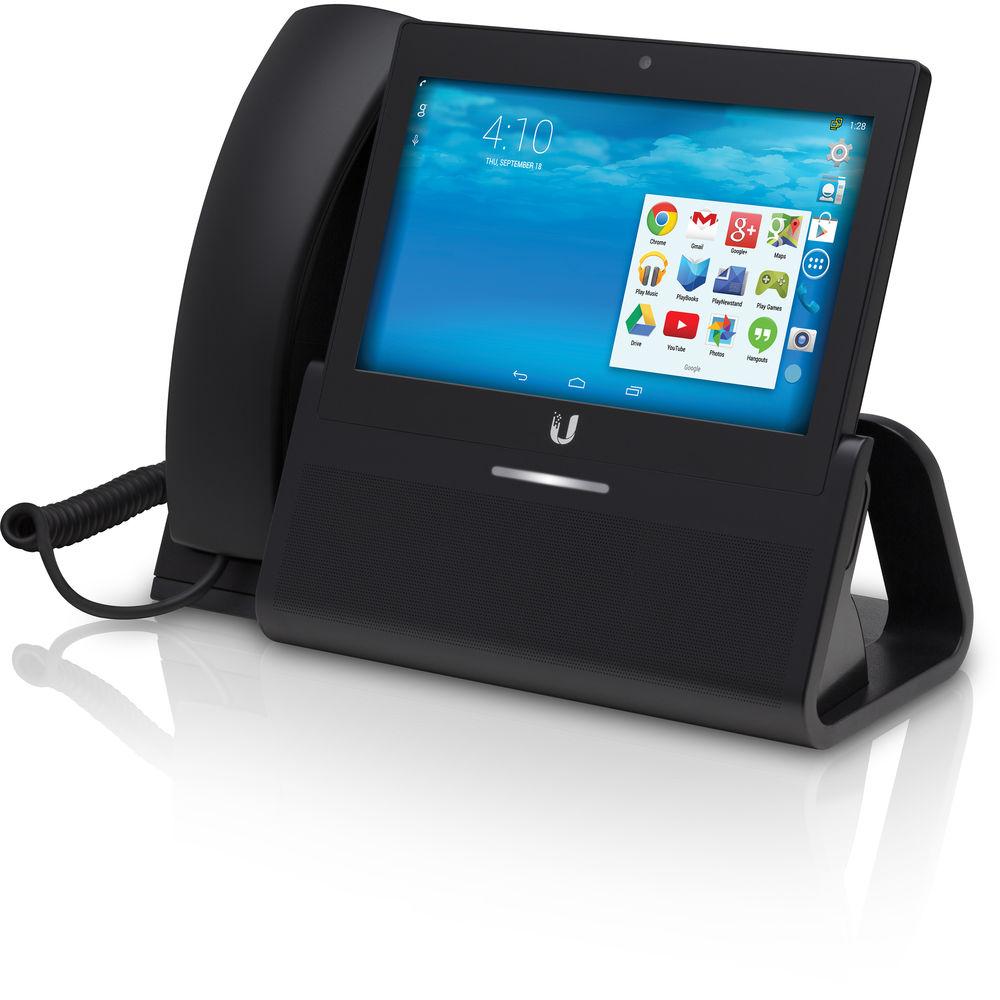

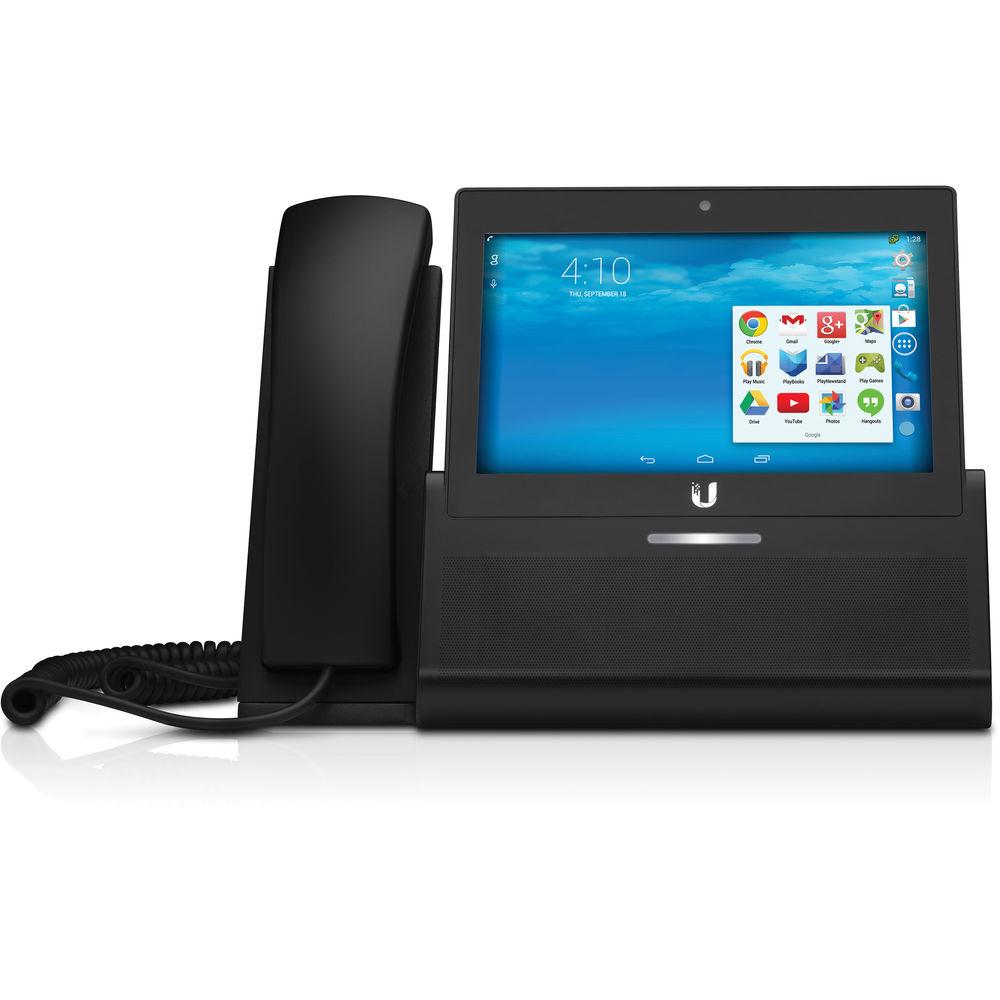

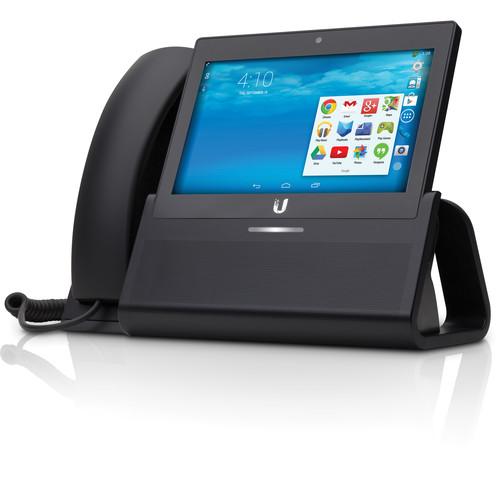

User Manual for Ubiquiti Networks UniFi Enterprise VoIP Phone with 7" Touchscreen Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Enterprise VoIP Phone
- Product category: Telephones Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Telephones
 |
User manual for the Ubiquiti Networks UniFi Enterprise VoIP Phone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Conduct business and much more with the Android powered UniFi Enterprise VoIP Phone with 7" Touchscreen from Ubiquiti Networks. This VoIP desk phone comes equipped with a 7" high-definition, multi-touch display and features Android 4.4.2 Kit Kat allowing you to integrated your Google account directly with the phone. By doing so you can access email, media content, browse the web, and even visit the Google Play store right on the display. With plug-and-play functionality this phone can be readily integrated with a scalable PBX phone system. Additionally, the UniFi VoIP phone is designed to be compatible with the UniFi Controller and UniFi Security Gateway for automatic provisioning.
The UniFi Enterprise VoIP Phone also comes equipped with a list of connectivity features. You benefit from two Gigabit Ethernet ports, one micro-USB port, one USB 2.0 Type A host port, along with Bluetooth 4.0 and 802.11a/b/g/n Wi-Fi connectivity. You can connect a headset to the 3.5 mm audio jack or utilize the 4.0 W hands-free speaker. The handset also features echo detection and ambient noise reduction for crystal-clear phone calls. - Smartphone Technology for Corporate Environments
- The UniFi VoIP Phone is an enterprise desktop smartphone solution with a high-definition color display designed for modern communication, organization, and productivity. Built on Android and integrated into Ubiquiti's UniFi Enterprise System, the UniFi VoIP Phone is the perfect solution for the corporate communications environment.
Download and install your favorite apps, stream media, browse the Internet, and access content created and stored in your Google accounts. Each phone can be uniquely personalized, while all the phones are easily deployed and managed with UniFi software. - Plug and Play Installation
- Use a standard Ethernet cable to connect and power the UniFi VoIP Phone with a UniFi Switch (or other 802.3af compliant switch). The UniFi VoiP Phone is designed to integrate with the UniFi Controller and UniFi Security Gateway, so the phone is automatically provisioned for fast deployment.
- PBX Integration
- Ubiquiti's proprietary SDN software, the UniFi Controller, readily integrates with a scalable PBX system for management of features such as call logging, auto‑attendant, voicemail, and mass configuration. Such ease of use makes the UniFi VoIP Phones ideal for quick deployment in small businesses, corporate locations, schools, and hotels.
- Powered by Android
- The UniFi VoIP Phone is powered by the Android operating system. Access media content, browse the web, and visit the Google Play store to download and install a variety of apps.
- 7" High-Definition, Multi-Touch Color Display
- Navigate the UniFi VoIP Phone using the touchscreen display.
UPC: 810354021589 In the Box Ubiquiti Networks UniFi Enterprise VoIP Phone with 7" Touchscreen Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Enterprise VoIP Phone with 7" Touchscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UVP-EXE Specs | Display | 7" (diagonal), 1024 x 600, 170 ppi, multi-touch, full color | | Camera | 1.0 MP (HD720p) | | LED | Power: White, Glowing | | Handset | Dynamic Receiver 32 ohm / 101 dB / 30 mW
Microphone Omnidirectional /-36 dB / 2.2K ohm | | Echo Cancellation | DSP removing ambient noise and acoustic echo | | Power Input | PoE 802.3.at (26 W) | | Hands-Free Options | Hands-Free Speaker: Stereo 4.0 W
Hands-Free Microphone: Omnidirectional / SNR 61 ± 5 dB / sensitivity -38 ± 3 dB analog silicon microphone | | Connectivity | 2 x 10/100/1000 Ethernet ports
1 x USB 2.0 micro-USB port
1 x USB 2.0 Type A USB host port
Bluetooth 4.0
Wi-Fi 802.11 a/b/g/n | | Headset Compatibility | 3.5 mm audio jack
270 mW CTIA (LRGM) | | Accessory Detection | Volume up/down and media detection | | Processor | 1.2 GHz dual-core Cortex A9 | | Storage | 4 GB (shared with other applications) | | RAM | 1 GB | | | | OS | Android Kit Kat (version 4.4.2) | | Voice Codecs | G.722 / Speex / iLBC / PCMU / PCMA / GSM | | Communication Software | UniFi phone app | | Management Features | Auto-provisioning | | Protocol | SIP / SDP / RTP / RTCP / VLAN / DHCP | | | | Dimensions | 10.02 x 5.31 x 7.19" / 254.6 x 135.0 x 182.5 mm | | Weight | 3.35 lb / 1.52 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 12.3 x 9.6 x 6.0" |
