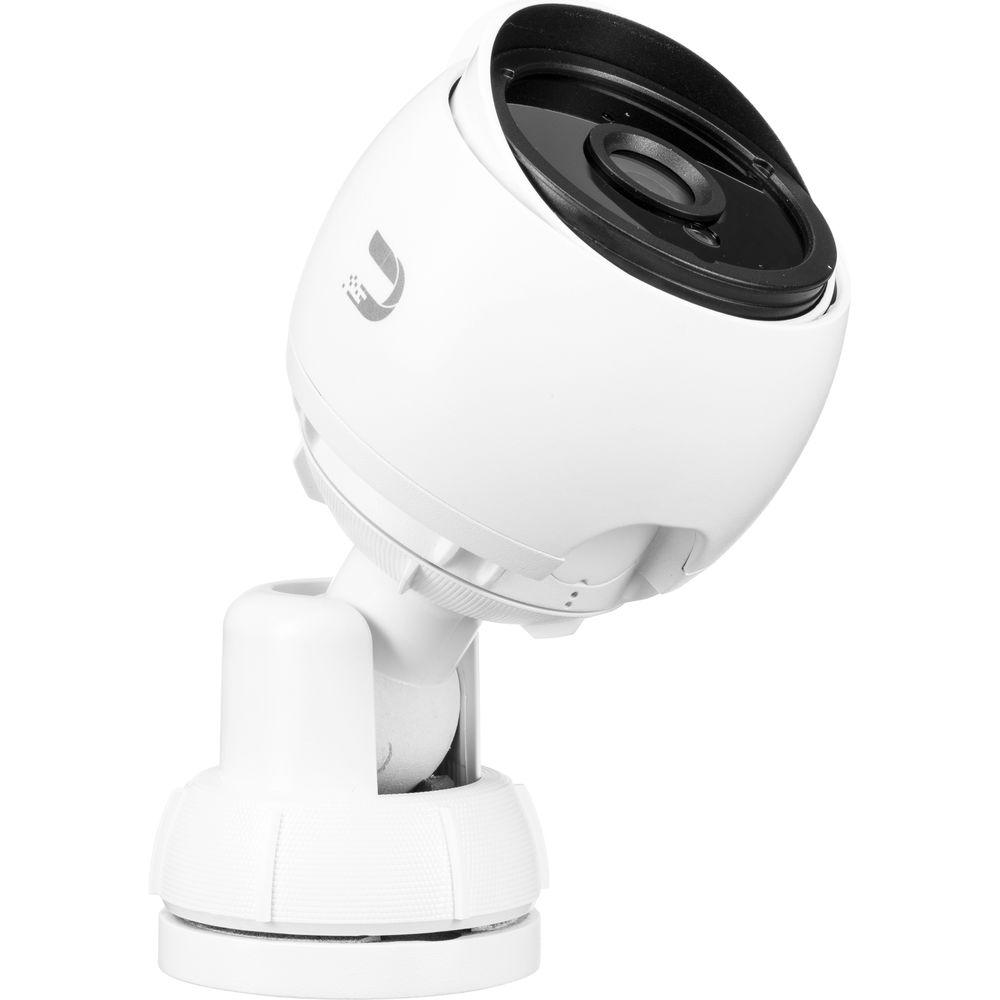

User Manual for Ubiquiti Networks UniFi G3 Series 1080p Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi G3 Series 1080p
- Product category: Wired IP Cameras Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wired IP Cameras
 |
User manual for the Ubiquiti Networks UniFi G3 Series 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

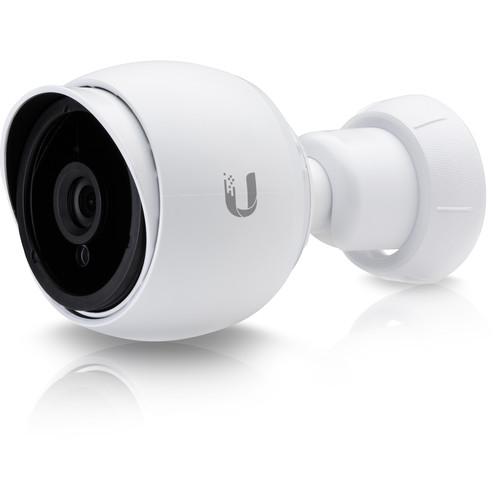

Product description With indoor and outdoor wall, ceiling, and pole mounting options, the UniFi G3 Series 1080p Outdoor Bullet Camera from Ubiquiti features multiple mounting options for flexible placement. Additionally, the camera uses a ball joint mount which offers 3-axis angle adjustments for capturing various angles of your viewing area. A 1/3" 4MP HDR sensor provides 1920 x 1080 resolution at 30 fps, and a 3.6mm fixed lens enables the camera to cover an 85° horizontal field of view (72° after lens correction). Equipped with integrated IR LEDs, the camera can be used at night, and a mechanical IR cut filter will automatically switch from color to black and white for clear detail at all times. The camera offers brightness, contrast, sharpness, saturation, and noise reduction image settings for configuration based on different environments, and built-in microphone allows you to listen to those you are monitoring. An Ethernet port features PoE technology for a minimum of wires during installation, and H.264 compression maximizes your bandwidth for fast data transmission. - 1920 x 1080 video resolution at 30 fps for high-quality video in real time
- Mechanical IR cut filter provides True Day/Night functionality

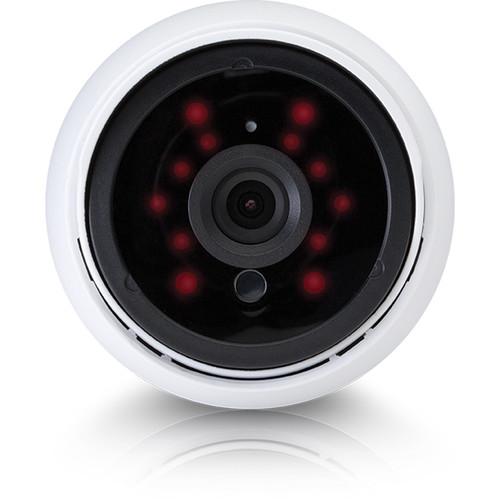

- Integrated IR LEDs offer night vision for use in a wide variety of circumstances
- Built-in microphone allows you to listen to those you are monitoring
- H.264 video compression maximizes bandwidth usage for fast data transmission
- Brightness, contrast, sharpness, saturation, and noise reduction image settings
- PoE technology enables a clean installation with a minimum amount of wires
- Supports UniFi Video 3.2 (or newer) software for additional features and mobile access
- Ball joint mount can be attached to a wall, ceiling, or pole and provides 3-axis flexibility
- Injection-molded polycarbonate and die-cast aluminum housing for use outdoors
UPC: 817882021333 In the Box Ubiquiti Networks UniFi G3 Series 1080p Outdoor Bullet Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi G3 Series 1080p Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UniFi G3 Specs | Image Sensor | 1/3" 4 MP HDR sensor | | Lens | EFL 3.6mm | | Aperture | f/1.8 | | Day/Night | Mechanical IR cut filter | | Night Vision | IR LEDs | | Field of View | Before Lens Correction:
Horizontal: 85°
Vertical: 44.8°
Diagonal: 98.1°
After Lens Correction:
Horizontal: 72°
Vertical: 42.9°
Diagonal: 80.4° | | Resolution | 1920 x 1080 at 30 fps | | Compression | H.264 | | Image Settings | Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz | | Audio | Built-in microphone | | Buttons | Factory reset button | | Processor | Ambarella S2L66 (816 MHz ARM Cortex-A9) | | Memory | 512 MB DDR3L | | System Requirements | 64-bit Microsoft Windows 10/8/7
Ubuntu 12.04 or 14.04
Debian 7.0 System with an Intel or Compatible 1.86 GHz (or above) processor
2 GB RAM (minimum) | | Supported Video | UniFi Video 3.2 (or newer) | | Network Interface | 1 x 10/100 Ethernet port | | Power | 802.3af PoE | | Power Supply | 802.3af PoE switch | | Power Consumption | 4 W (max) | | Operating Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 20 to 90% non-condensing | | Mounting | Wall / Ceiling / Pole
Ball joint mount for 3-axis adjustment | | Housing | Injection-molded polycarbonate die-cast aluminum | | Dimensions |
