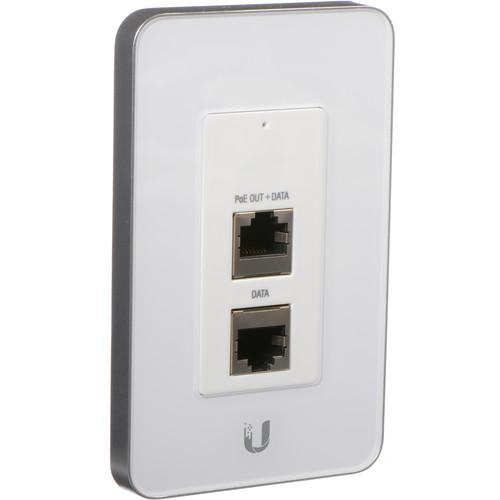

User Manual for Ubiquiti Networks UniFi In-Wall Wi-Fi Access Point Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi In-Wall Wi-Fi Access
- Product category: Wall Plates & Installation Boxes Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wall Plates & Installation Boxes
|
User manual for the Ubiquiti Networks UniFi In-Wall Wi-Fi Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Retrofit an existing in-wall wired Ethernet jack to a wireless access point with the UniFi In-Wall Wi-Fi Access Point. It provides one RJ45 data port and one PoE port to connect devices like a VoIP phone, and is capable of speeds of up to 150 Mbps with a range of 82'. - Quick Deployment
- Transform any existing Ethernet outlet into a UniFi AP, with no additional wiring needed.
- Easy Installation
- Upgrade any single-gang Ethernet outlet to the UniFi In-Wall Wi-Fi AP.
- Power Over Ethernet
- The UniFi In-Wall Wi-Fi AP works with a UniFi Switch or any third-party 802.3af PoE switch.
- Versatile Data and PoE Output
- An integrated PoE pass-through port conveniently connects and powers a security camera, VoIP phone, or high-end AP.
UPC: 810354024412 In the Box Ubiquiti Networks UniFi In-Wall Wi-Fi Access Point Cover Plate Limited 1-Year Warranty Brochure PDF 4.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi In-Wall Wi-Fi Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UAP-IW-US Specs | | | Outlets | 1 x 10/100 Ethernet in (rear)
1 x 10/100 Ethernet data out (front)
1 x PoE out (front) | | Operating Bandwidth | 2.4 GHz | | Antenna Gain | 1 dBi | | Wi-Fi Standards | 802.11 b/g/n | | Wireless Range | 82.0' / 25.0 m | | Supported Data Rates | 802.11n: 6.5 to 150 Mbps (MCS0 - MCS7, HT 20/40)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | | Maximum Power Consumption | 6 W | | Maximum TX Power | 17 dBm | | BSSID | Up to 4 per radio | | Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) | | Certifications | CE, FCC, IC | | | | VLAN | 802.1Q | | Advanced QoS | Per-user rate limiting | | Guest Traffic Isolation | Supported | | WMM | Voice, Video, Best Effort, and Background | | Concurrent Clients | 100+ | | | | Buttons | 1 x Reset | | Mounting | 1-Gang electrical wall box (not included) | | Power Method | PoE 802.3af | | Power Save | Supported | | Operating Environment | Temperature: 14 to 158°F / -10 to 70°C
Humidity: 5 to 95% non-condensing | | Dimensions (W x H x D) | 2.78 x 4.51 x 1.12" / 7.06 x 11.46 x 2.84 cm | | Weight | 4.13 oz / 117.0 g | | | | Package Weight | 0.465 lb | | Box Dimensions (LxWxH) | 5.45 x 3.9 x 1.9" |
