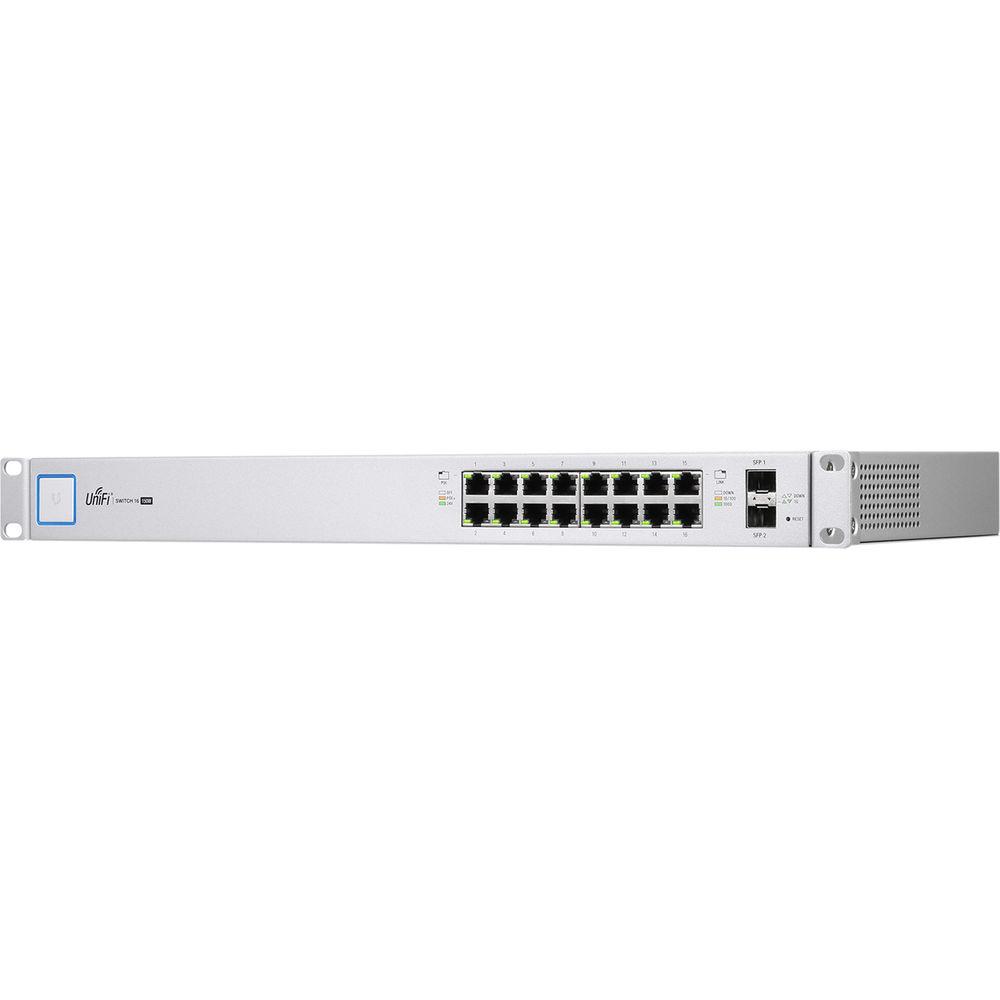

User Manual for Ubiquiti Networks UniFi Managed PoE 16-Port Gigabit Switch with SFP Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Managed PoE 16-Port
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks UniFi Managed PoE 16-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

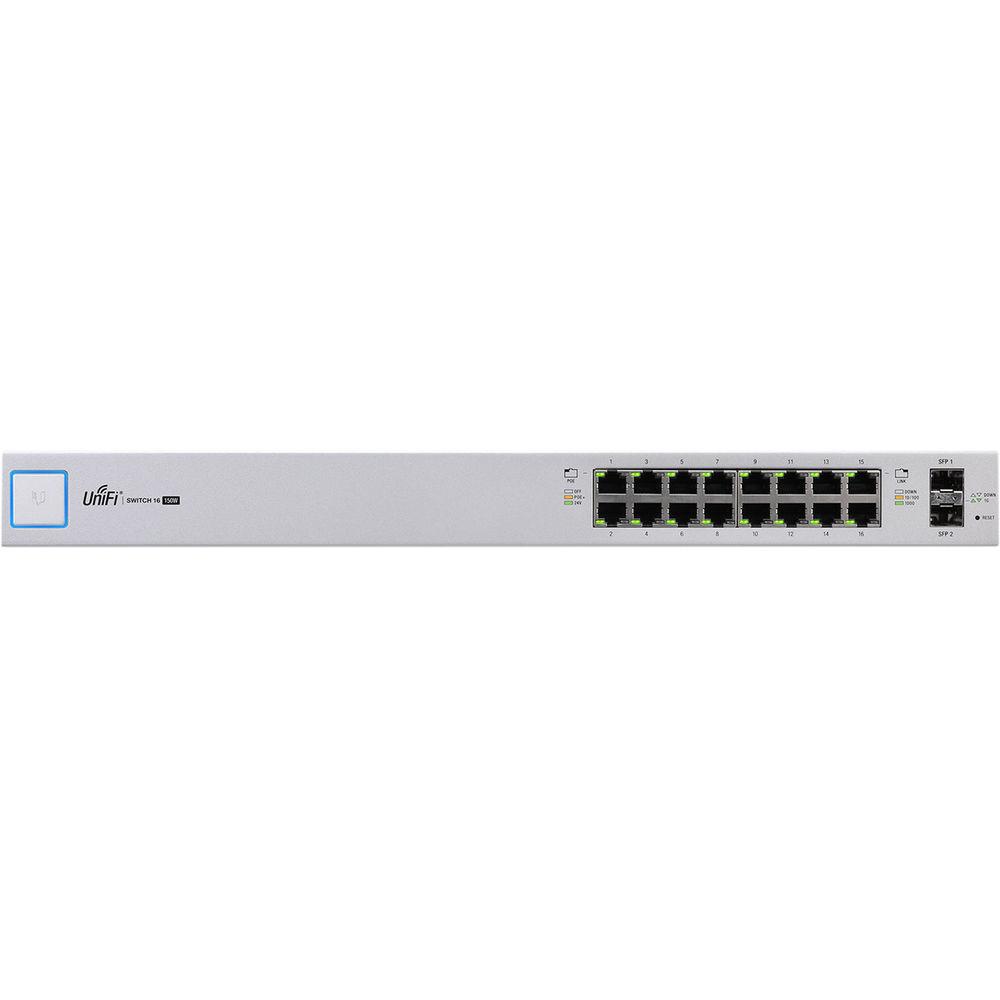

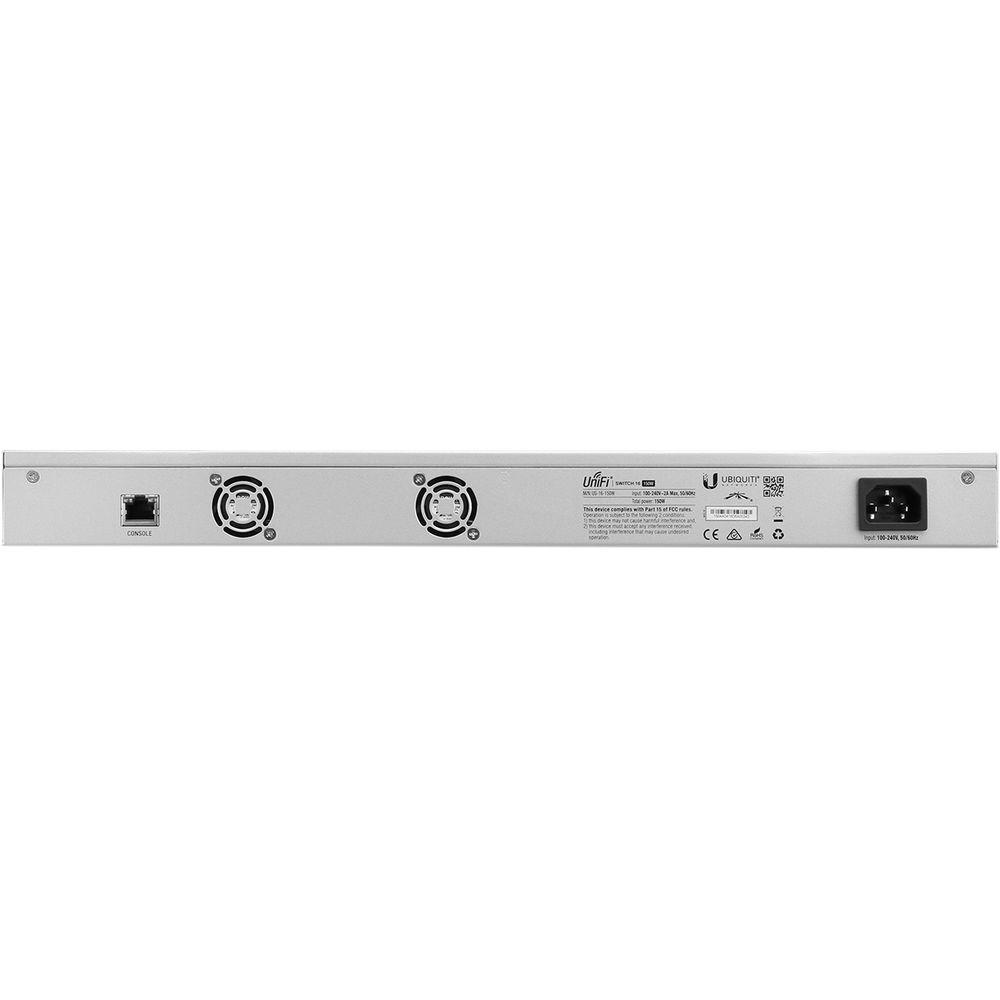

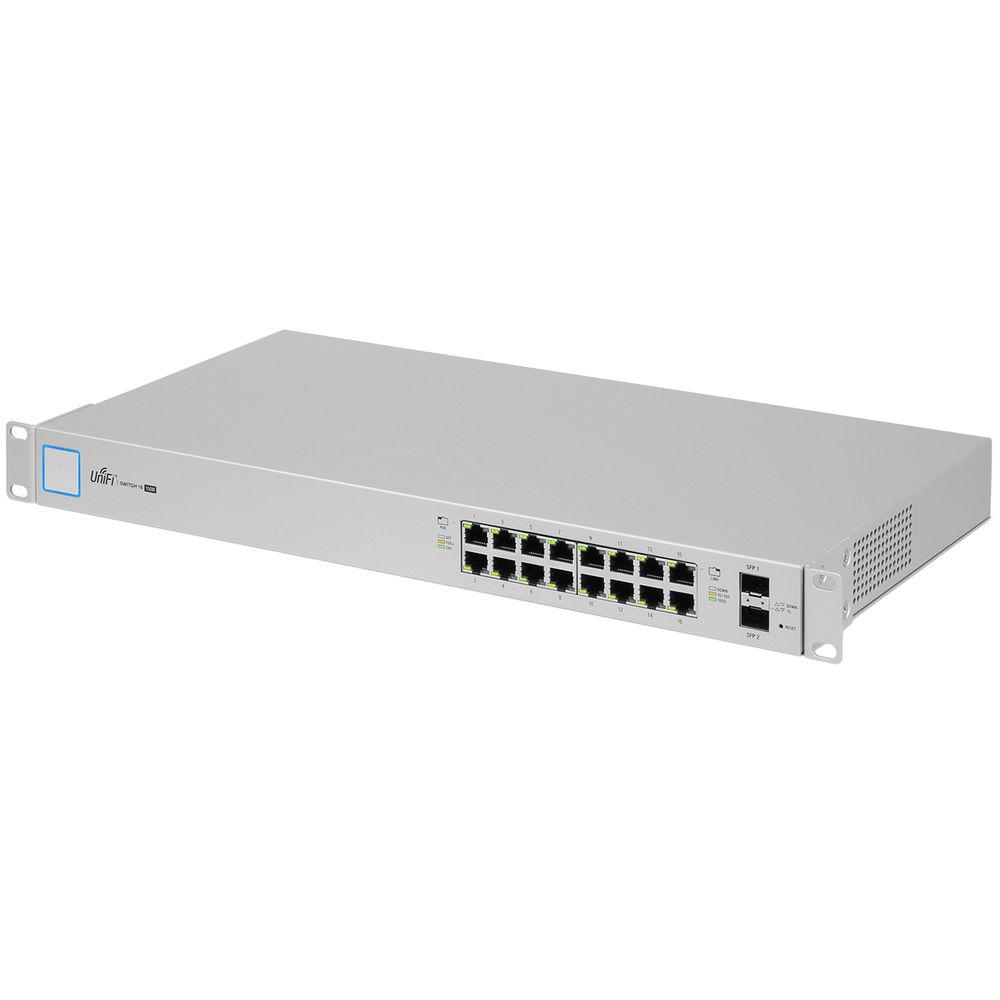

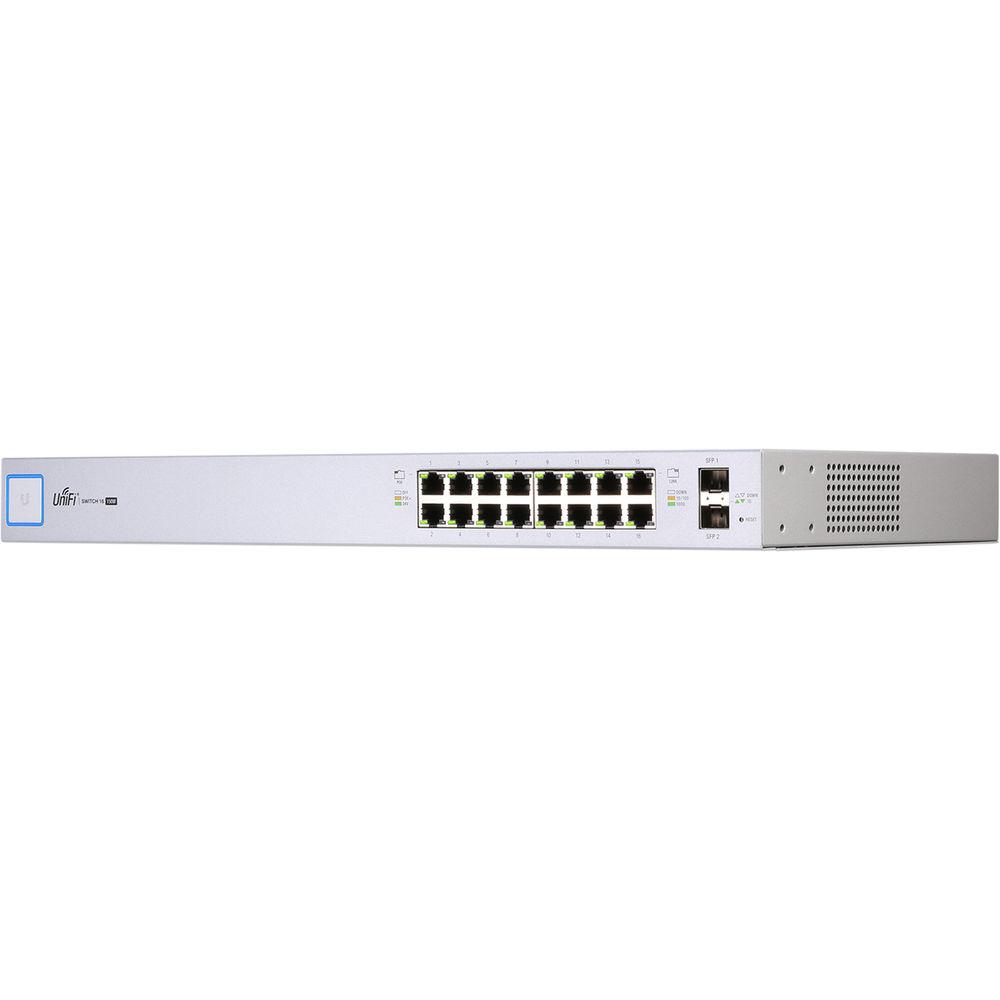

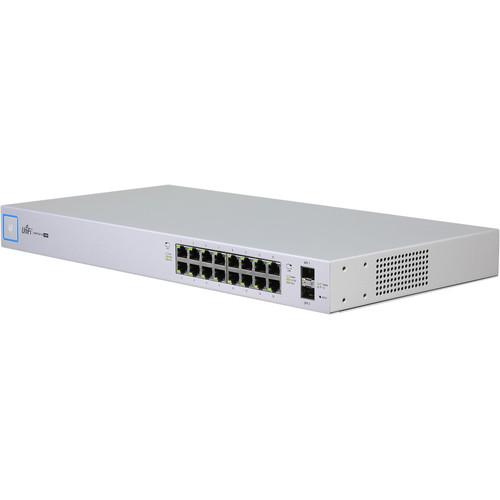

Product description With 16 auto-sensing Gigabit Ethernet ports, the UniFi Managed PoE+ Gigabit 16 Port Switch with SFP from Ubiquiti Networks is capable of providing a stable, reliable network connection to a large number of Ethernet enabled devices. Add in 802.3af/at PoE compatibility and 150W of available power, and this managed PoE+ switch is capable of powering a variety of PoE compatible network components such as access points, VoIP phones, and much more. Along with Gigabit Ethernet connectivity users can connect high speed storage devices to either of the two SFP ports. Once configured, Ubiquiti's own UniFi controller software makes network configuration and management simple as you can manage PoE settings, operation modes, VLAN configuration, storm control settings per port, and much more. - Auto-sensing IEEE 802.3af/at PoE
- 16 x Gigabit RJ-45 ports, 2 x SFP ports
- 1 Serial console port (reserved for future use)
- Non-blocking throughput of up to 18 Gbps
- Switching capacity: 36 Gbps
- Forwarding rate of up to 26.78 Mpps
- Maximum power consumption of 150W
- Supports POE+ IEEE 802.3af/at and 24V Passive PoE
- Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. 1
Please Note: UniFi Controller software can be downloaded from Ubiquiti Network website at no extra charge. close UPC: 810354023231 In the Box Ubiquiti Networks UniFi Managed PoE+ 16-Port Gigabit Switch with SFP (150W) Power Cord 2 x Rack-Mount Brackets 8 x Bracket Screw (M4) 4 x Mounting Screw (#10-32 x 5/8") 4 x Cage Nut (#10-32 x 5/8") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Managed PoE 16-Port Gigabit Switch with SFP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks US-16-150W Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP
1 x Ethernet (RJ45) (Console) | | | | Forwarding Rate | 26.78 Mpps | | Switching Bandwidth | 36 Gb/s
18 Gb/s (Non-Blocking) | | | | OS Compatibility | Windows 7 or Later
macOS
Linux | | | | Power Draw | 150.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE per Port | 17 to 34.2 W | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 5 to 95% | | | | Indicator Lights | Link/Activity/Speed, PoE | | Rack Form Factor | 1 RU | | Dimensions | 17.4 x 8.7 x 1.7" / 44.1 x 22.1 x 4.4 cm | | Weight | 6 lb / 3 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 21.4 x 10.5 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
