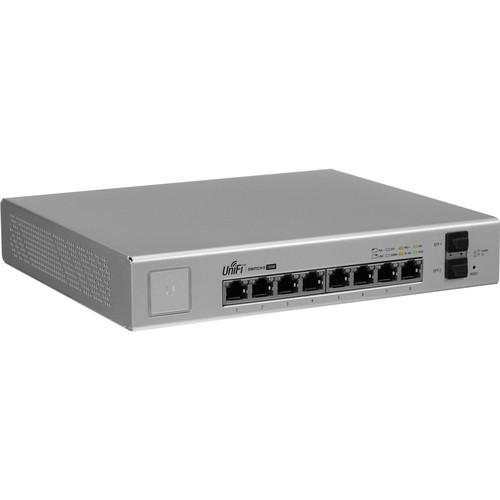

User Manual for Ubiquiti Networks UniFi Managed PoE Gigabit 8 Port Switch with SFP Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Managed PoE Gigabit
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks UniFi Managed PoE Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

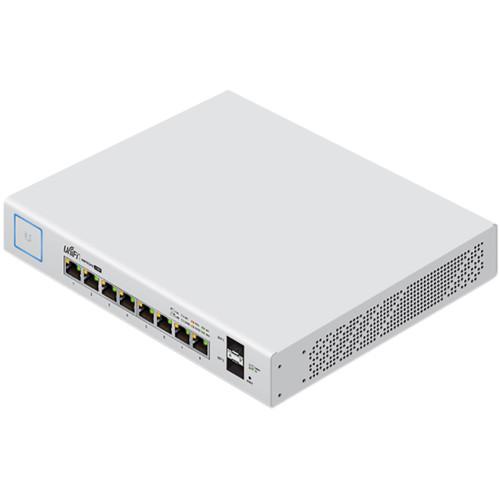

Product description With the UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more. Once installed, this switch supports Ubiquiti's own UniFi Controller simplifying the process of managing network resources, switch configurations, port statuses, and much more. - Auto-sensing IEEE 802.3af/at PoE

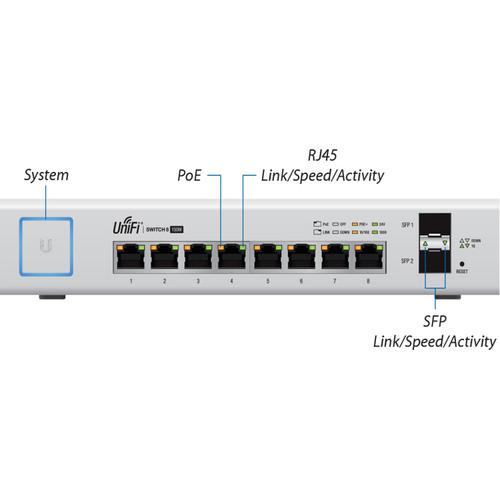

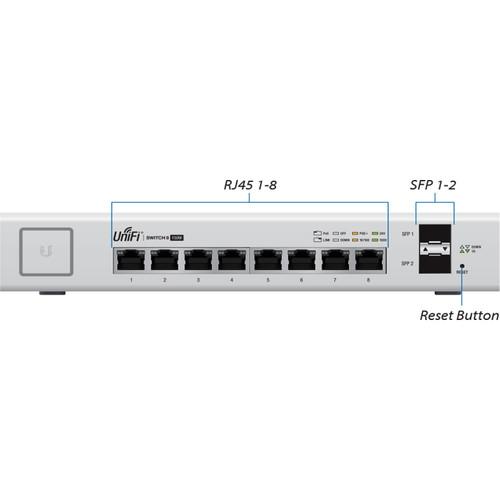

- 8 x Gigabit RJ45 ports, 2 x SFP ports
- Non-blocking throughput of up to 10 Gb/s
- Switching capacity: 20 Gb/s
- Forwarding rate of up to 14.88 Mp/s
- Maximum power consumption of 150 W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.

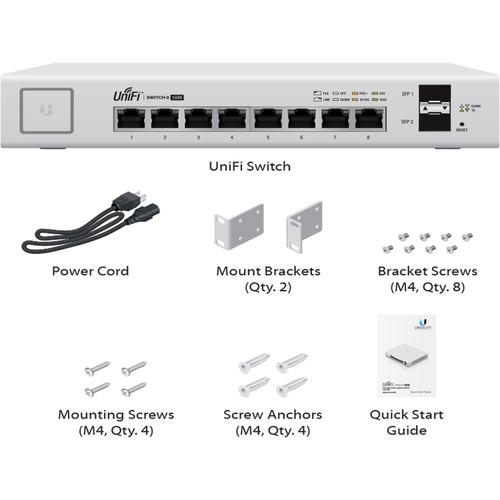

UPC: 810354024450 In the Box Ubiquiti Networks UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Managed PoE Gigabit 8 Port Switch with SFP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks US-8-150W Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP | | | | Forwarding Rate | 14.88 Mpps | | Switching Bandwidth | 20 Gb/s

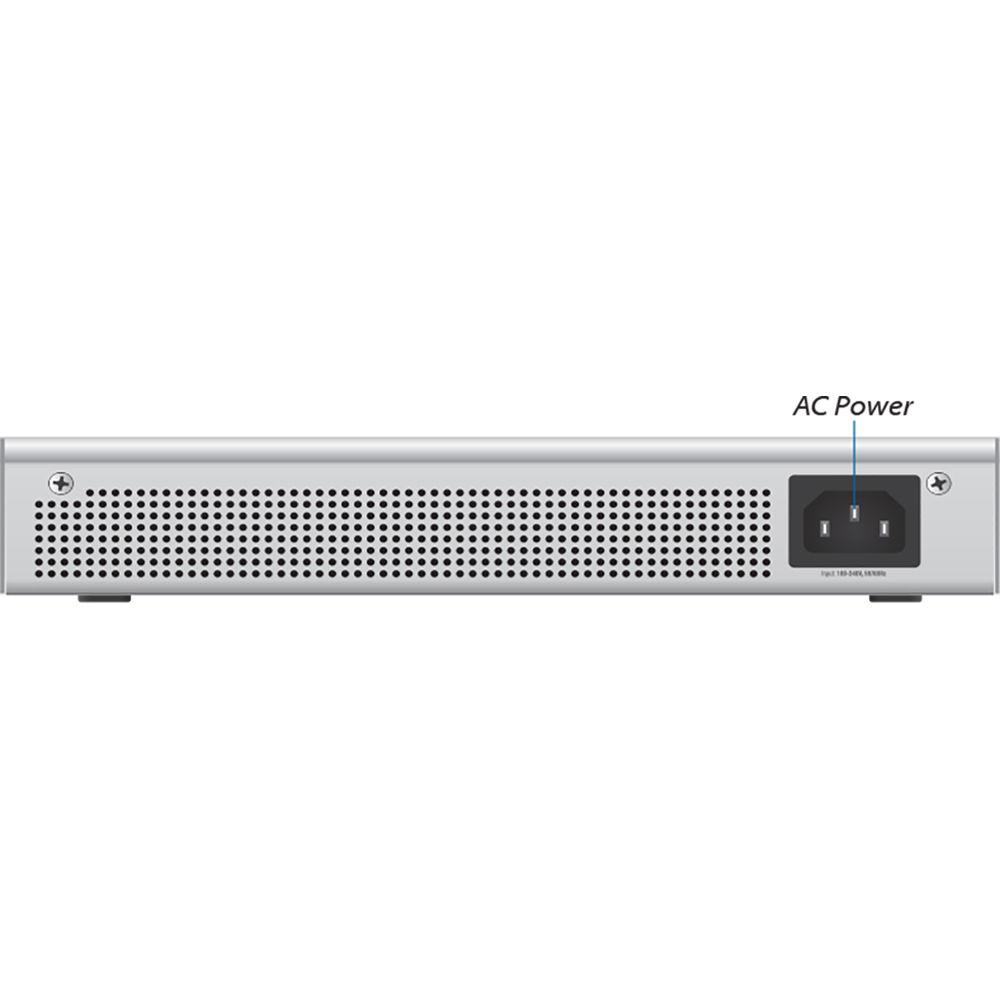

10 Gb/s (Non-Blocking) | | | | Power Draw | 150.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE per Port | 17 to 34.2 W | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 5 to 95% | | | | Indicator Lights | Link/Activity/Speed, PoE | | Dimensions | 9.3 x 8 x 1.7" / 23.5 x 20.4 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 5.205 lb | | Box Dimensions (LxWxH) | 13.45 x 9.4 x 2.95" |
