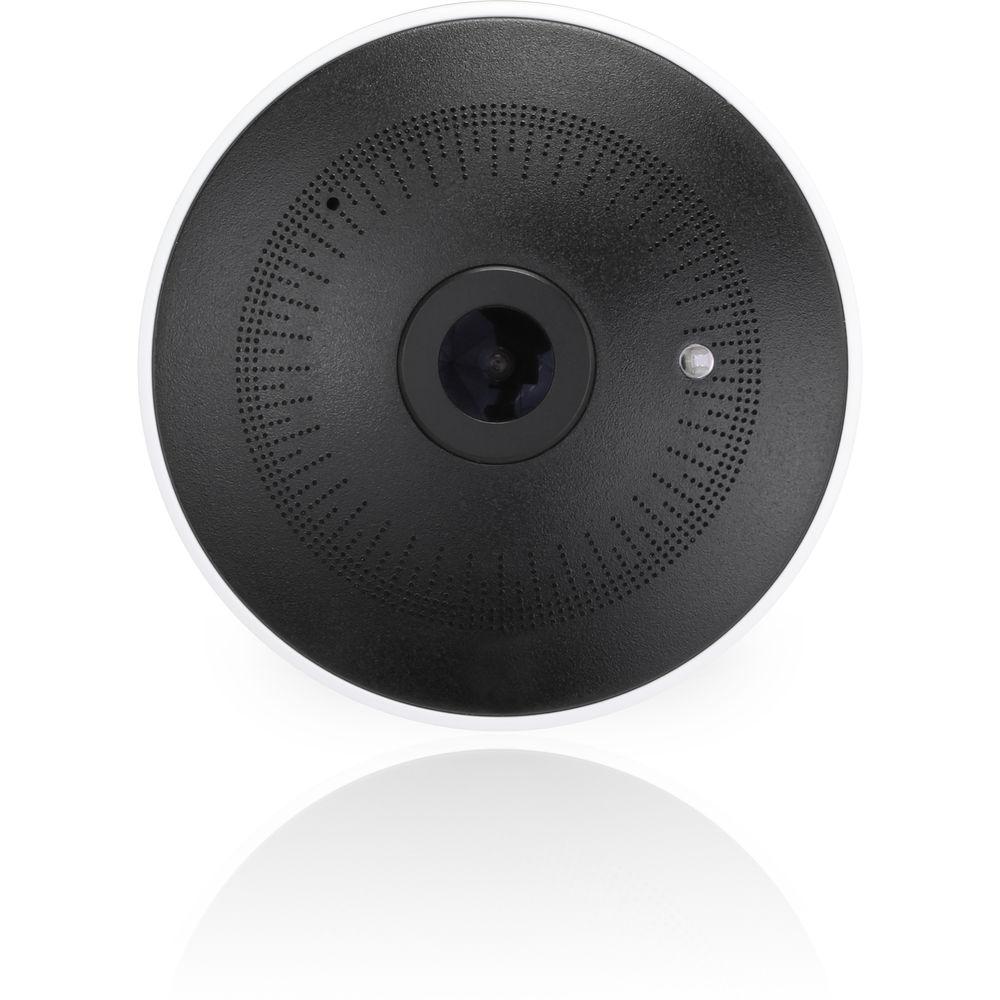

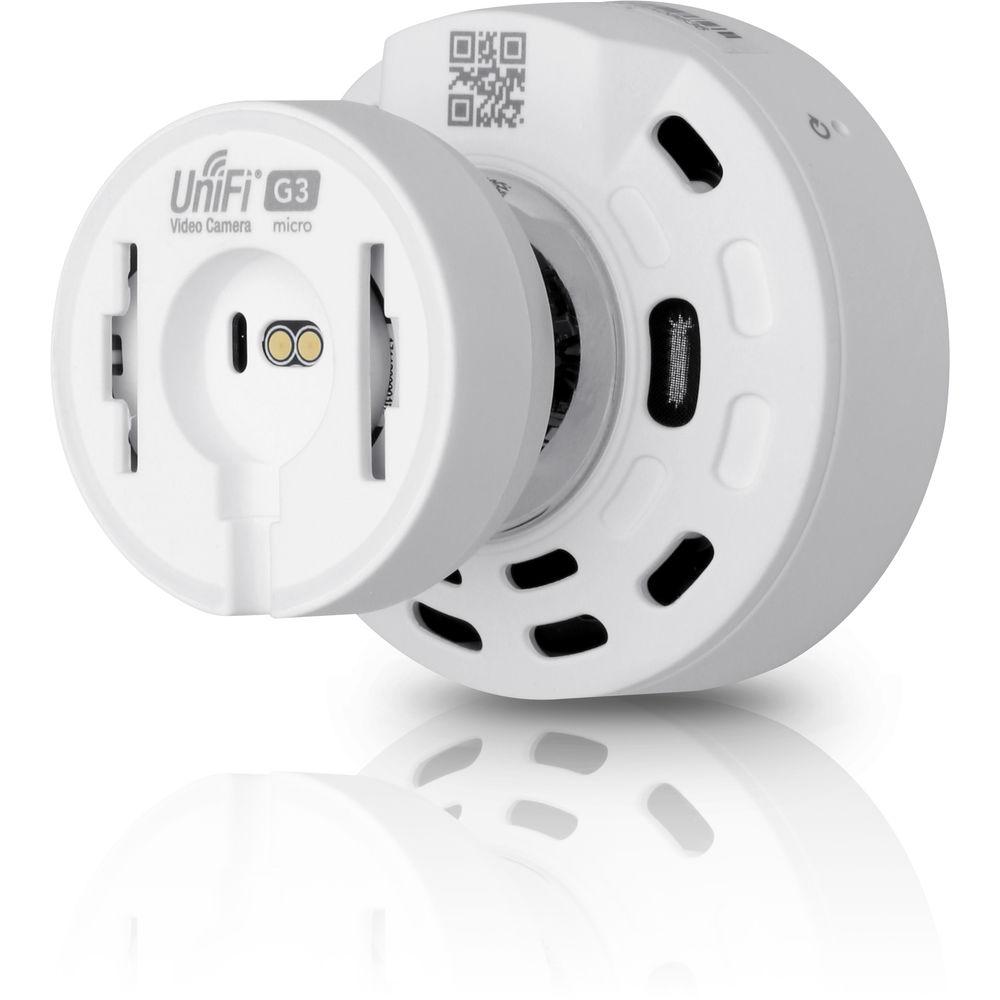

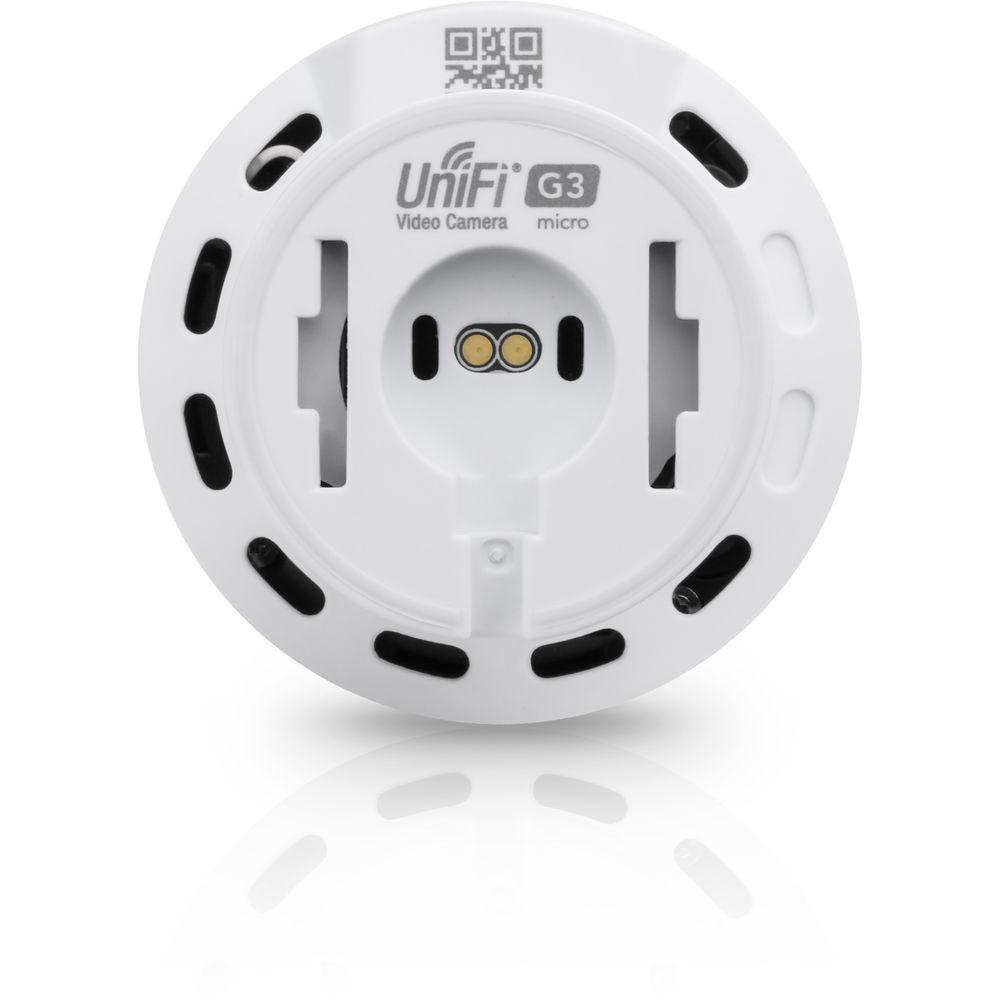

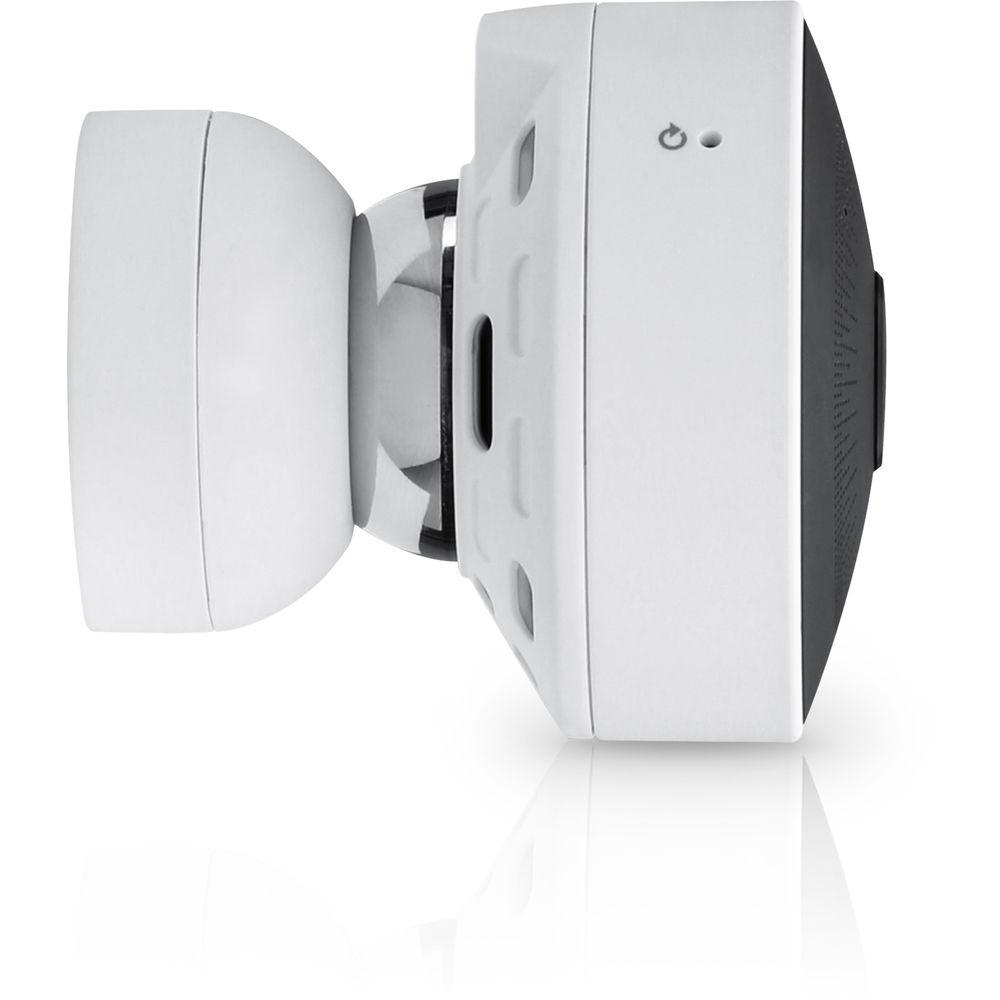

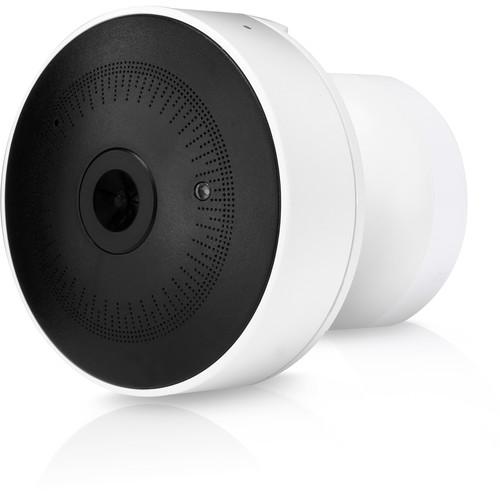

Product description Mount the UVC-G3-MICRO from Ubiquiti Networks in any indoor space you want to monitor. This diminutive Wi-Fi camera captures 1080p resolution video at up to 30 fps. IR LEDs provide up to 82' of night vision. The 2.7mm fixed lens delivers horizontal field of views of 124° with LDC (lens distortion correction) turned off, and 92° with LDC turned on. Two-way audio is possible thanks to an integrated speaker and microphone. The microphone can be disabled at the time of installation in areas where it is prohibited by law.
This device supports 2.4 and 5 GHz 802.11a/b/g/n networks. It includes AC and 802.3af PoE power adapters. - Included mounting accessories and magnetic base allow for versatile indoor installation options
- IR cut filter for day and night functionality
- Image settings include flip, brightness, contrast, AE mode (60/50 Hz), wide dynamic range, hue, infrared, sharpness, saturation, noise reduction
- Built-in web user interface for RTSP (real-time streaming protocol)
- Free UniFi video control software and UVC-NVR appliance enables this camera to be used in conjunction with the UniFi G3 network video recorder (UVC-NVR)
UPC: 810354025822 In the Box Ubiquiti Networks UniFi Series UVC-G3-MICRO 1080p Wi-Fi Network Bullet Camera with Night Vision AC Power Adapter 802.3af PoE Power Adapter Magnetic Base Flat Wall Mount with Wall Anchors Angled Wall Mount with Wall Anchors Desktop Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Series UVC-G3-MICRO 1080p Wi-Fi Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks G3 Micro Specs | Image Sensor | 1/3" 4 MP sensor with WDR | | Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps, user configurable | | Video Compression | H.264 | | Lens | EFL 2.7mm | | Aperture | f/2.2 | | Field of View | With LDC (lens distortion correction) off
Horizontal: 124°
Vertical: 65°
Diameter: 150°
With LDC (lens distortion correction) on
Horizontal: 92°
Vertical: 60°
Diameter: 100° | | Night Vision Range | 82' / 25 m | | IR Cut Filter | IR LEDs with removable IR cut filter, built-in light sensor | | IR LED Type | Dual integrated high-power infrared illuminators | | Minimum Illumination | 0 lux with IR on | | Image Settings | Flip, brightness, contrast, AE mode (60/50 Hz), WDR, hue, infrared, sharpness, saturation, noise reduction | | Wi-Fi Connectivity | Dual-band 802.11a/b/g/n | | Audio | Integrated microphone (can be disabled at time of installation)
Integrated speaker for 2-way audio | | Buttons | Factory reset | | Power Supplies | 100-240 V 60/50 Hz universal AC adapter
Ethernet 802.3af PoE adapter (power only) | | Power Consumption | With IR LEDs On: 3.5 W
With IR LEDs Off: 2 W | | Management Interfaces | Free UniFi video control software (version 3.8 or newer)
Ubiquiti UVC-NVR appliance
Built-in web UI for standalone RTSP streaming | | System Requirements | 64-bit Microsoft Windows 10, 8, and 7, Ubuntu 14.04 or 16.04, or Debian 7.0 system with an Intel or compatible 1.86 GHz or above processor, and 4 GB RAM minimum | | Mounting Options | Magnetic base, wall, table | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 20 to 90%, non-condensing | | Dimensions | Body: Ø2.02 x 1.65" / Ø51.38 x 41.97 mm
Base: Ø1.42 x 0.68" / Ø36 x 17.3 mm | | Weight | Body: 2.29 oz / 65 g
Base: 1.09 oz / 31 g | | | | Package Weight | 1.38 lb | | Box Dimensions (LxWxH) | 6.55 x 6.55 x 3.95" |
