User Manual for Ubiquiti Networks UniFi Series UVC-G3-MICRO-5 1080p Wi-Fi Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi Series UVC-G3-MICRO-5 1080p
- Product category: Wireless Cameras Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Cameras
 |
User manual for the Ubiquiti Networks UniFi Series UVC-G3-MICRO-5 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

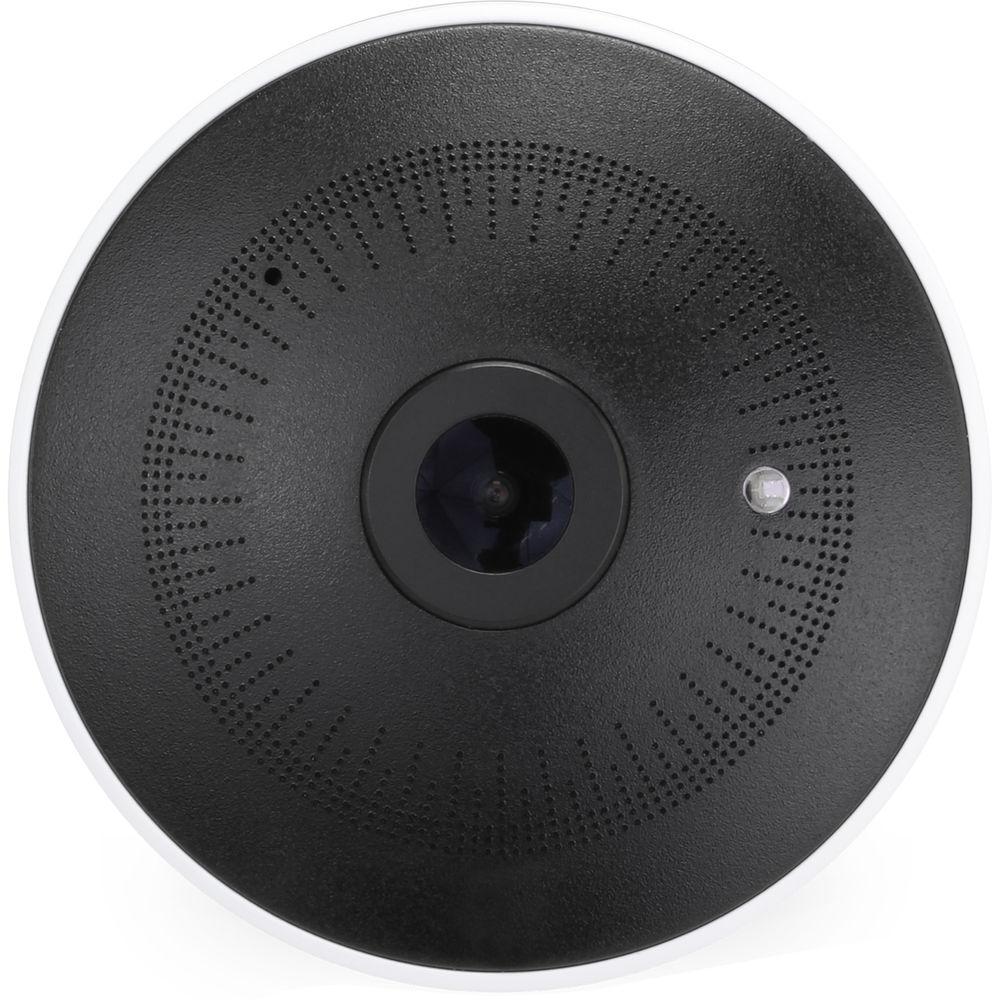

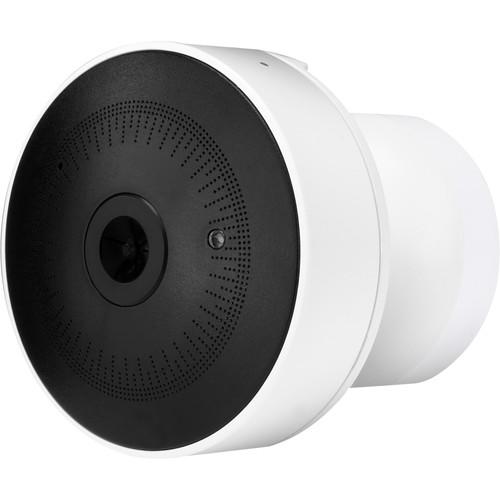

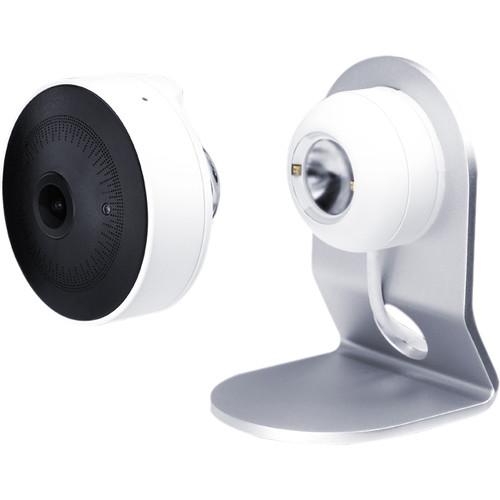

Product description Monitor your indoor space with the 5-pack UVC-G3-MICRO-5 from Ubiquiti Networks. - UniFi Series UVC-G3-MICRO 1080p Wi-Fi Network Bullet Camera with Night Vision Mount the UVC-G3-MICRO from Ubiquiti Networks in any indoor space you want to monitor. This diminutive Wi-Fi camera captures 1080p resolution video at up to 30 fps. IR LEDs provide up to 82' of night vision. The 2.7mm fixed lens delivers horizontal field of views of 124° with LDC (lens distortion correction) turned off, and 92° with LDC turned on. Two-way audio is possible thanks to an integrated speaker and microphone. The microphone can be disabled at the time of installation in areas where it is prohibited by law.

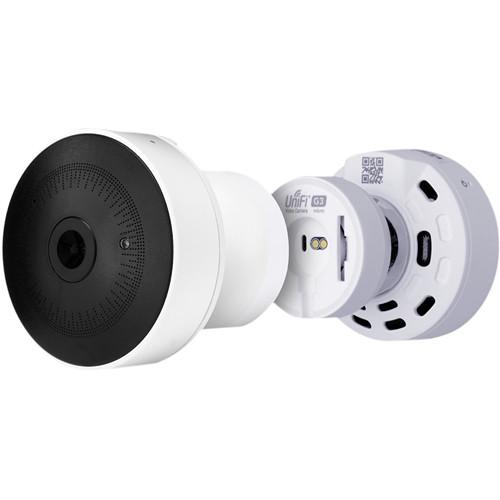

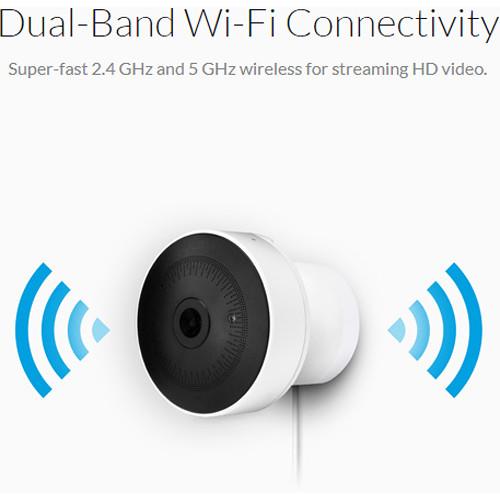

This device supports 2.4 and 5 GHz 802.11a/b/g/n networks. It includes AC and 802.3af PoE power adapters. - Included mounting accessories and magnetic base allow for versatile indoor installation options
- IR cut filter for day and night functionality
- Image settings include flip, brightness, contrast, AE mode (60/50 Hz), wide dynamic range, hue, infrared, sharpness, saturation, noise reduction
- Built-in web user interface for RTSP (real-time streaming protocol)
- Free UniFi video control software and UVC-NVR appliance enables this camera to be used in conjunction with the UniFi G3 network video recorder (UVC-NVR)
UPC: 810354025822 In the Box Bundle Items 5 x UniFi Series UVC-G3-MICRO 1080p Wi-Fi Network Bullet Camera with Night Vision - 802.3af PoE Power Adapter
- Flat Wall Mount with Wall Anchors
- Angled Wall Mount with Wall Anchors
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi Series UVC-G3-MICRO-5 1080p Wi-Fi Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - UniFi Series UVC-G3-MICRO 1080p Wi-Fi Network Bullet Camera with Night Vision
| Image Sensor | 1/3" 4 MP sensor with WDR | | Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps, user configurable | | Video Compression | H.264 | | Lens | EFL 2.7mm | | Aperture | f/2.2 | | Field of View | With LDC (lens distortion correction) off
Horizontal: 124°
Vertical: 65°
Diameter: 150°
With LDC (lens distortion correction) on
Horizontal: 92°
Vertical: 60°
Diameter: 100° | | Night Vision Range | 82' / 25 m | | IR Cut Filter | IR LEDs with removable IR cut filter, built-in light sensor | | IR LED Type | Dual integrated high-power infrared illuminators | | Minimum Illumination | 0 lux with IR on | | Image Settings | Flip, brightness, contrast, AE mode (60/50 Hz), WDR, hue, infrared, sharpness, saturation, noise reduction | | Wi-Fi Connectivity | Dual-band 802.11a/b/g/n | | Audio | Integrated microphone (can be disabled at time of installation)
Integrated speaker for 2-way audio | | Buttons | Factory reset | | Power Supplies | 100-240 V 60/50 Hz universal AC adapter
Ethernet 802.3af PoE adapter (power only) | | Power Consumption | With IR LEDs On: 3.5 W
With IR LEDs Off: 2 W | | Management Interfaces | Free UniFi video control software (version 3.8 or newer)
Ubiquiti UVC-NVR appliance
Built-in web UI for standalone RTSP streaming | | System Requirements | 64-bit Microsoft Windows 10, 8, and 7, Ubuntu 14.04 or 16.04, or Debian 7.0 system with an Intel or compatible 1.86 GHz or above processor, and 4 GB RAM minimum | | Mounting Options | Magnetic base, wall, table | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 20 to 90%, non-condensing | | Dimensions | Body: Ø2.02 x 1.65" / Ø51.38 x 41.97 mm
Base: Ø1.42 x 0.68" / Ø36 x 17.3 mm | | Weight | Body: 2.29 oz / 65 g
Base: 1.09 oz / 31 g | | | | Box Dimensions (LxWxH) | 6.55 x 6.55 x 3.95" |
