Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network

Search your instruction manual in PDF to download

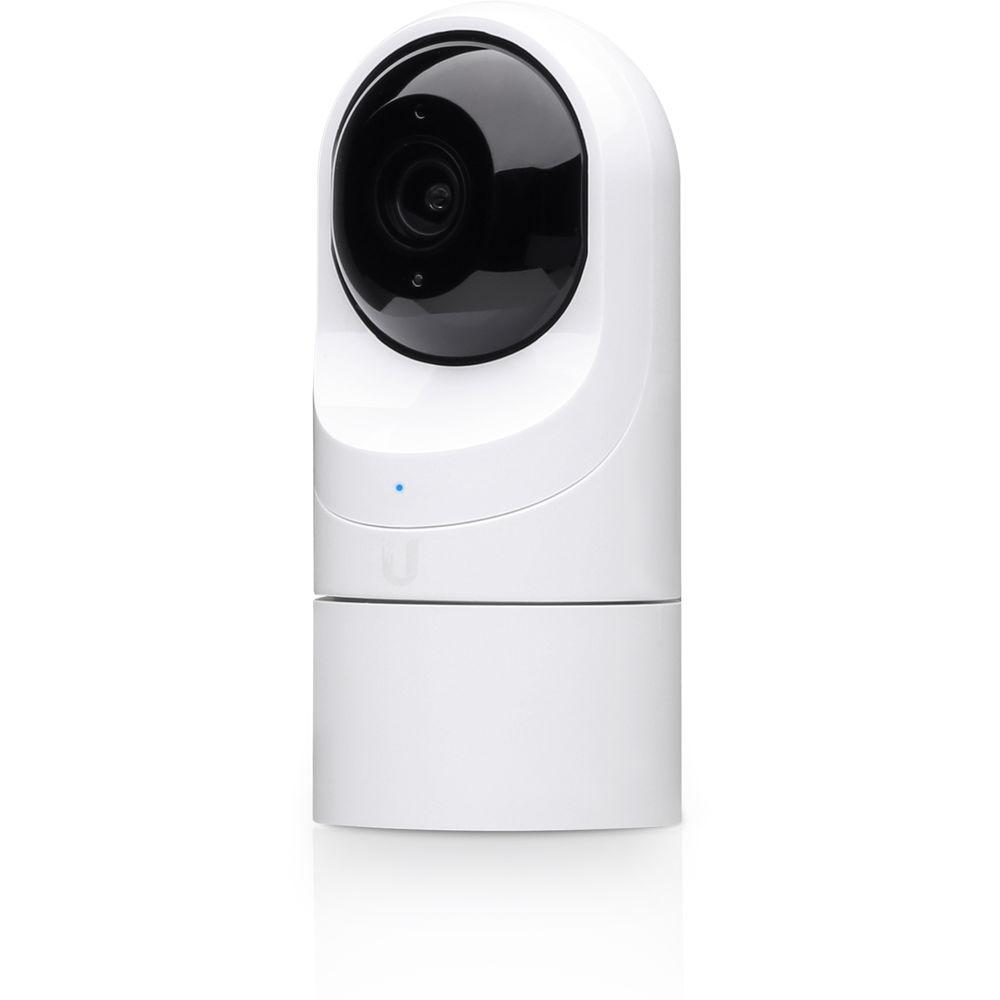

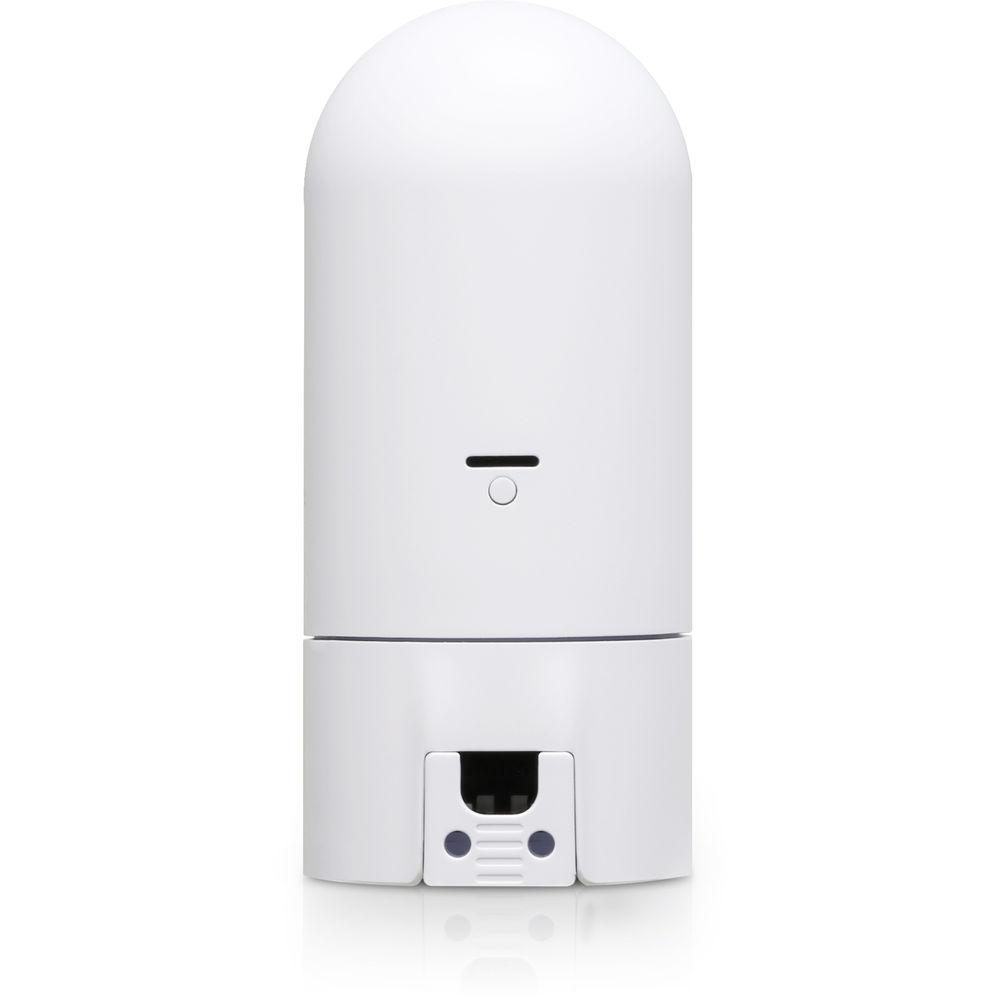

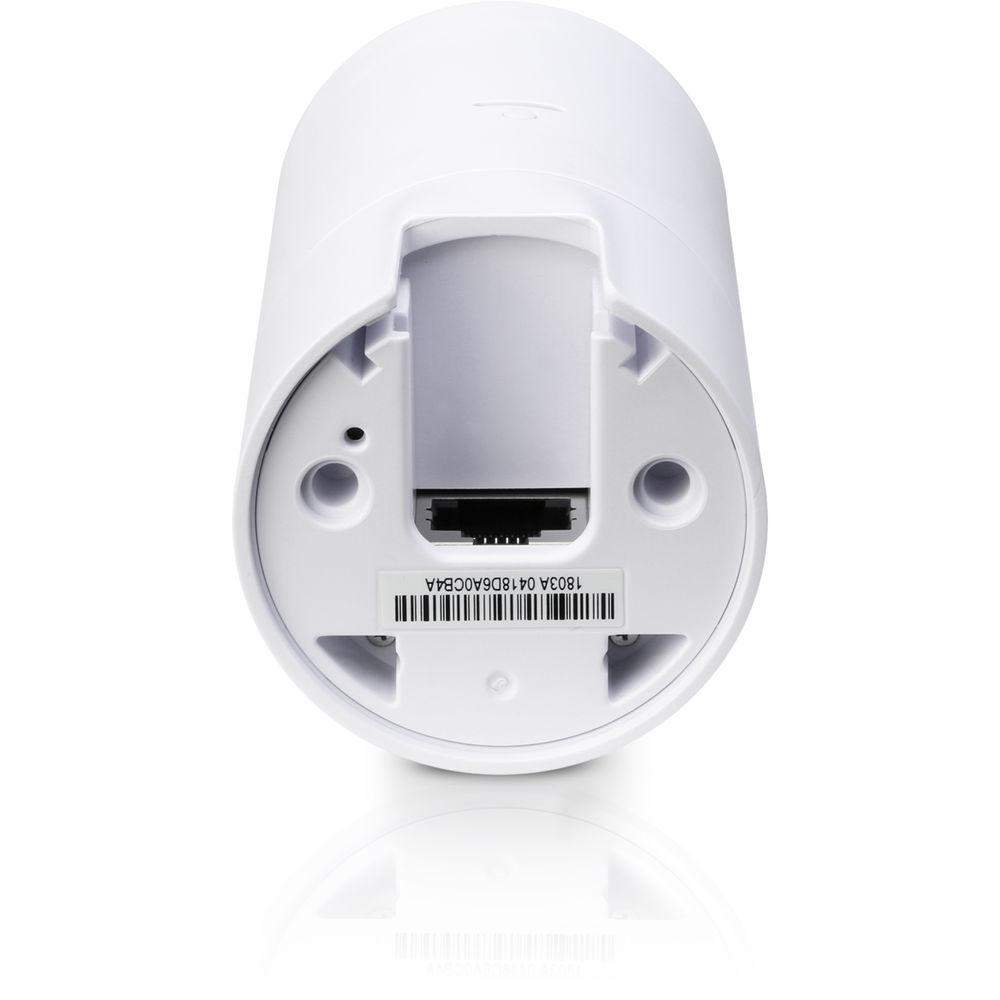

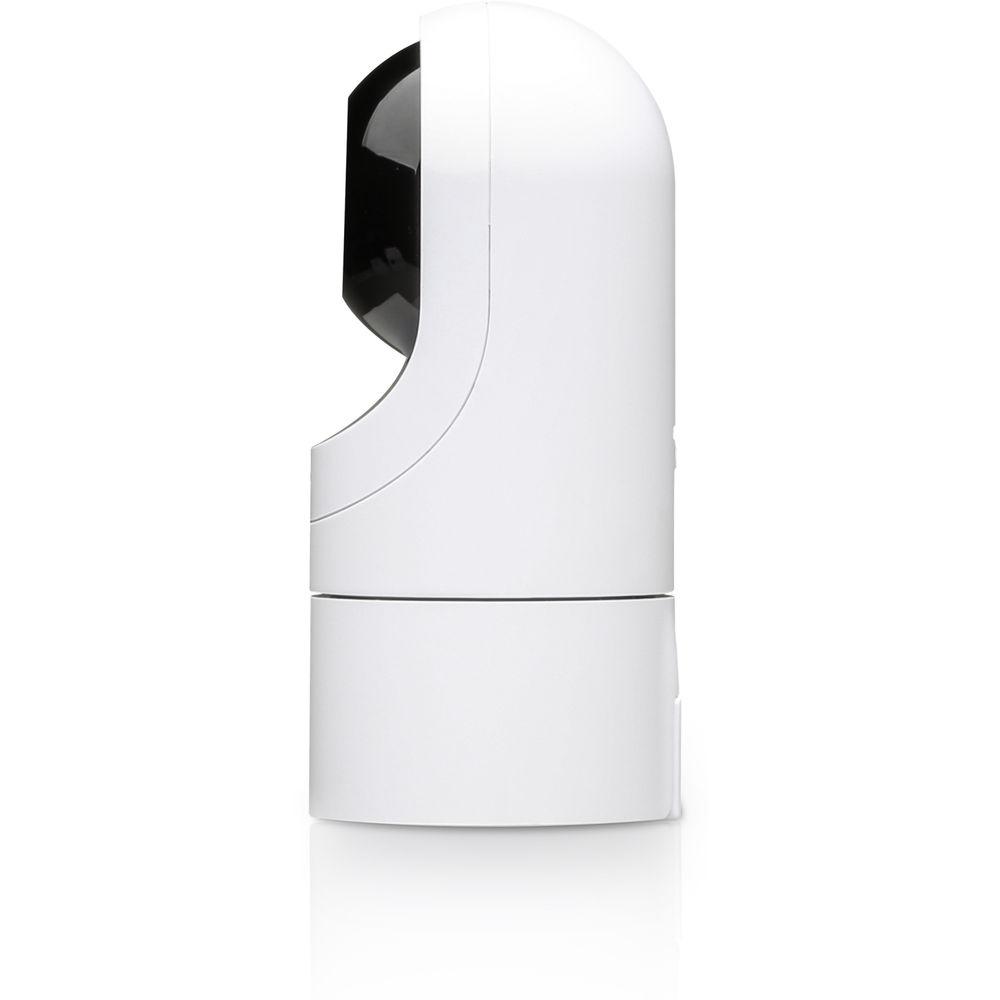

User Manual for Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision

Click to enlarge the picture
Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision Contents of the user manual for the Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network
  • Product category: Wired IP Cameras Ubiquiti Networks
  • Brand: Ubiquiti Networks
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ubiquiti Networks Wired IP Cameras

Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision
User manual for the Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ubiquiti Networks product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!



Product description

The 5-pack UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision from Ubiquiti Networks use a 1/3" HDR sensor to capture 1920 x 1080 resolution video at 25 fps. IR LEDs provide night vision functionality. A 3.4mm fixed lens delivers an 87.4° horizontal field of view. Audio recording is possible thanks to a built-in microphone. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The UniFi mobile app enables camera management and live viewing from your iOS or Android device.

The cameras are weather resistant and suitable for outdoor use. Indoor and outdoor mounts are included for flexible installation.
  • 10/100M Ethernet port
  • Mechanical IR cut filter for day and night functionality
  • H.264 video compression
  • Adjustable lens and swivel base for vertical and horizontal viewing angle adjustments
  • LDC (lens distortion correction)
  • Can be mounted on a table, wall, or pole
  • Image settings include brightness, contrast, sharpness, saturation, noise reduction, and 60/50 Hz
  • LED status indicators
  • Factory reset button
  • Optional skin covers available separately
  • Supports UniFi Video 3.9.2 or newer
    UniFi Video System Requirements
  • 64-bit Microsoft Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 system with an Intel or compatible 1.86 GHz or above processor and a minimum of 4GB RAM
In the Box Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision (5-Pack)
  • 5 x Indoor Mounts
  • 5 x Pole Mounts
  • 5 x Outdoor Covers
  • 5 x Security Screws
  • 15 x Screws
  • 15 x Screw Anchors
  • 10 x Zip Ties
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ubiquiti Networks UniFi UVC-G3-FLEX 1080p Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ubiquiti Networks UVC-G3-FLEX-5 Specs

    Sensor 2 MP 1/3"
    Focal Length 3.4mm
    Maximum Aperture f/1.2
    Lens Field of View Horizontal: 87.4°
    Vertical: 47°
    Diagonal: 104°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination B&W: 0 Lux
    Streaming Resolution 1920 x 1080 at 25 fps (H.264)
    Supported Video Compression H.264
    Streaming Single
    Built-In Mic Yes
    Event Trigger None
    Windows OS Support Windows 7, 8, 10
    Mobile Operating Systems iOS, Android
    Linux OS Support Yes
    Recording Media None
    Pan/Tilt None
    Alarm I/O None
    I/O Connections 1 x RJ45
    Video Management Software UniFi Video 3.9.2 or Newer
    Internal Storage None
    Power Source PoE 802.3af (15 W)
    Power Consumption 4 W
    Operating Temperature -4 to 122°F / -20 to 50°C
    Operating Humidity 20 to 90%
    Dimensions H: 4.2 x W: 1.9 x L: 1.9" / H: 107.5 x W: 48.0 x L: 48.0 mm
    Weight 6 oz / 170 g
