User Manual for Ubiquiti Networks UniFi UVC-G3-PRO 1080p Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UniFi UVC-G3-PRO 1080p Outdoor
- Product category: Wired IP Cameras Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wired IP Cameras
 |
User manual for the Ubiquiti Networks UniFi UVC-G3-PRO 1080p Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

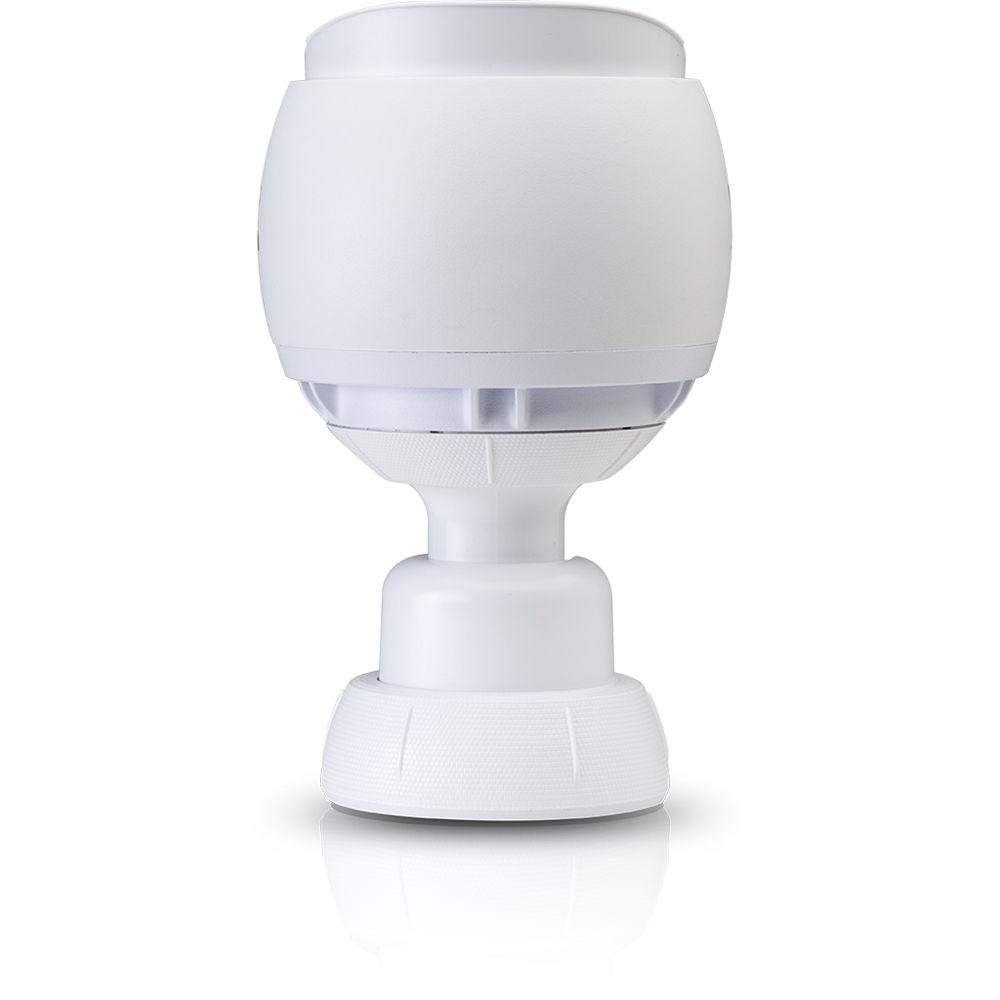

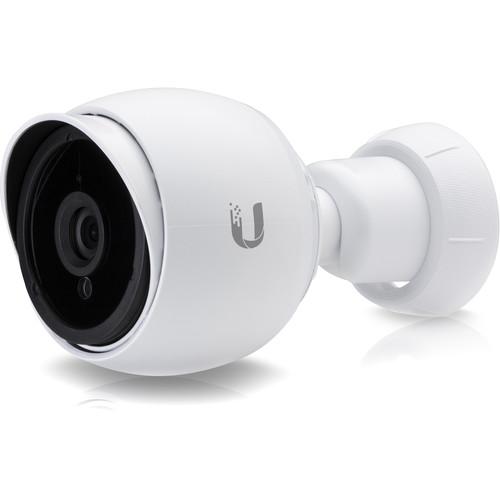

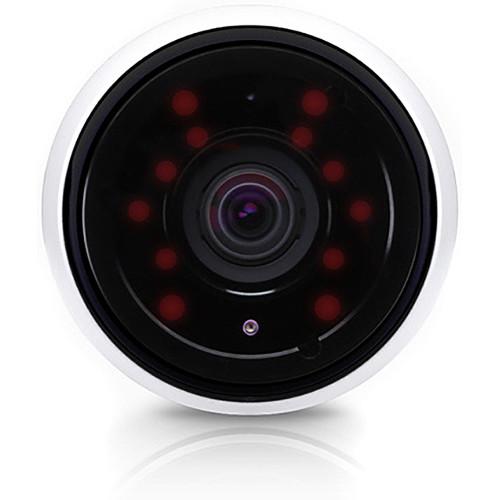

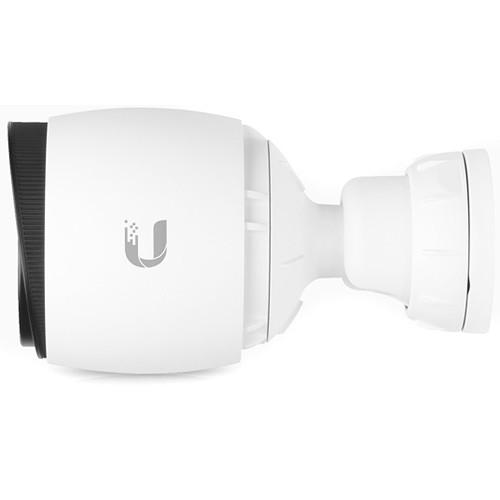

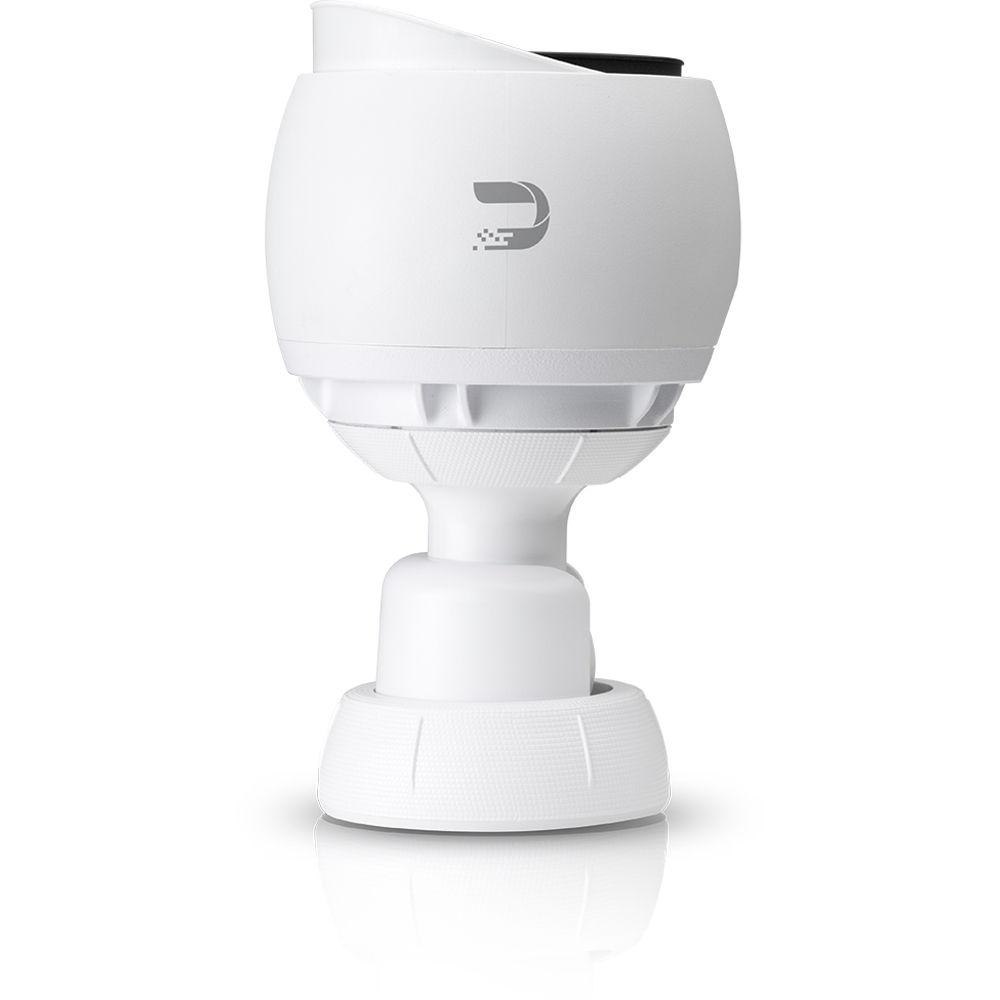

Product description The UniFi UVC-G3-PRO 1080p Outdoor Network Bullet Camera with Night Vision from Ubiquiti Networks has a 1/2.8" image sensor to capture 1920 x 1080 resolution video at 30 fps. 8 IR LEDs provide night vision functionality. The 3-9mm varifocal lens delivers a 108-37° horizontal field of view and 3x optical zoom. Audio is possible thanks to a built-in microphone. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The UniFi mobile app enables camera management and live streaming from the convenience of your iOS or Android device. Additionally, hybrid cloud technology offers secure local and cloud storage management with remote access and no maintenance fees.
This device is housed in an IP67-rated enclosure that is suitable for outdoor use. - 1/2.8" Sony IMX290 image sensor
- Image settings include flip, brightness, contrast, 60/50 Hz flicker reduction, WDR, hue, sharpness, saturation, and noise reduction
- Can be mounted on a wall, ceiling, or pole
- UV-stabilized polycarbonate and aluminum die-cast enclosure is IP67-rated for outdoor use
- Supports UniFi Video 3.9 or newer
- UniFi Video System Requirements:
64-bit Microsoft Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 system with an Intel or compatible 1.86 GHz or above processor and a minimum of 4GB RAM UPC: 817882021425 In the Box Ubiquiti Networks UniFi UVC-G3-PRO 1080p Outdoor Network Bullet Camera with Night Vision Tightening Tool 2 x Screw Anchors 2 x Self-Tapping Screws Pole Mount Bracket 2 x Machine Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UniFi UVC-G3-PRO 1080p Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UVC-G3-PRO Specs | | | Sensor | 2 MP 1/2.8" | | Focal Length | 3 to 9mm | | Maximum Aperture | f/1.2 - f/2.1 | | Zoom | Optical: 3x | | Lens Field of View | Horizontal: 108 to 37°
Vertical: 58 to 20°
Diagonal: 125 to 43° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | B&W: 0 Lux | | | | Streaming Resolution | 1920 x 1080 at 30 fps (H.264) | | Supported Video Compression | H.264 | | | | Streaming | Single | | Built-In Mic | Yes | | Built-In Speaker | No | | | | Windows OS Support | Windows 7, 8, 10 | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x RJ45 | | Video Management Software | UniFi Video 3.9 or newer | | Internal Storage | None | | External Storage Options | Cloud | | Power Source | PoE 802.3af (15 W), PoE 802.3at (30 W) | | Power Consumption | 12.5 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP67 | | Dimensions |
