Ubiquiti Networks UniFi UVC-NVR with 2TB

Search your instruction manual in PDF to download

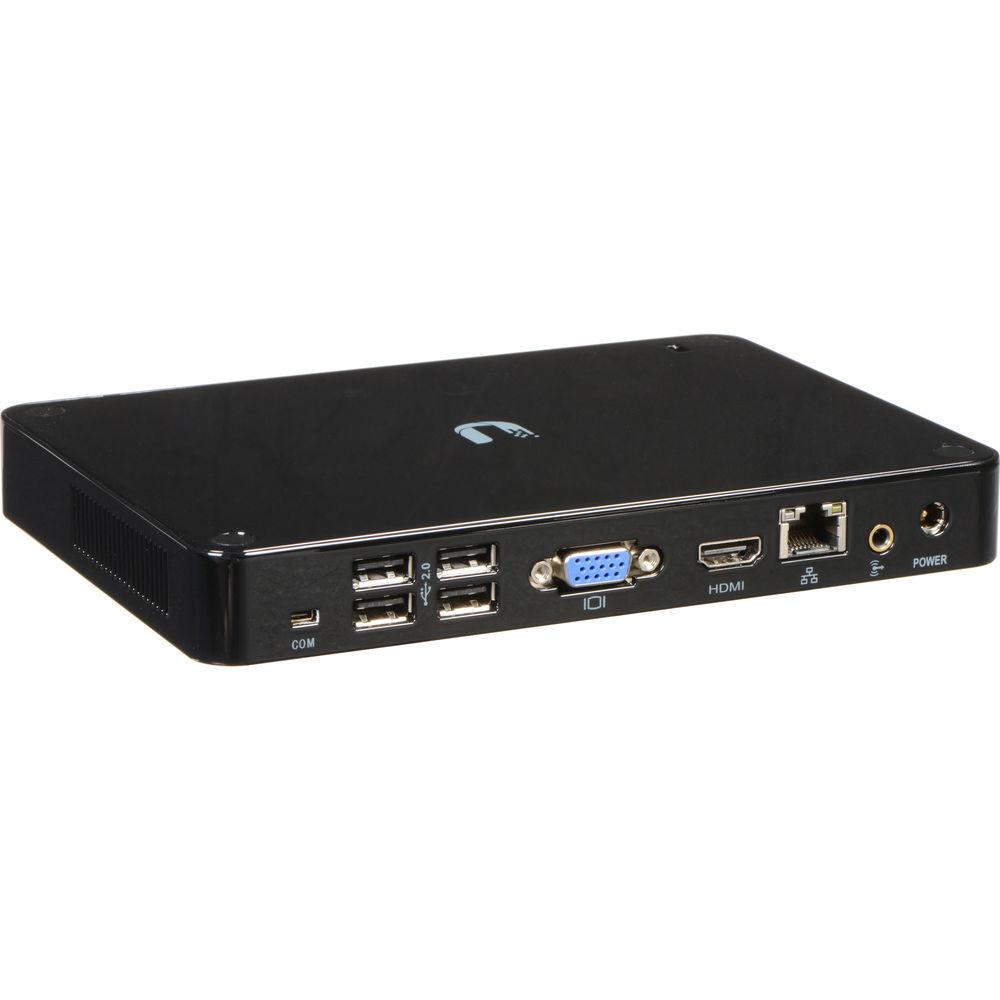

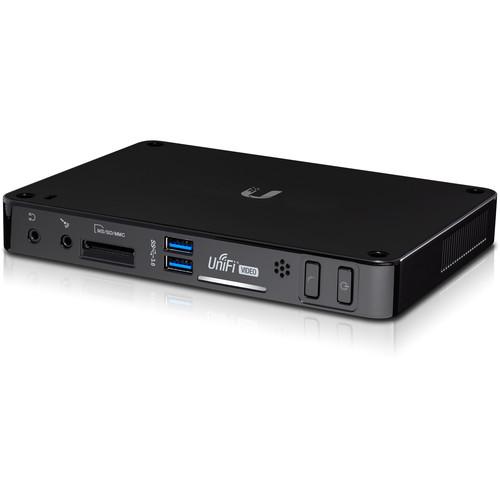

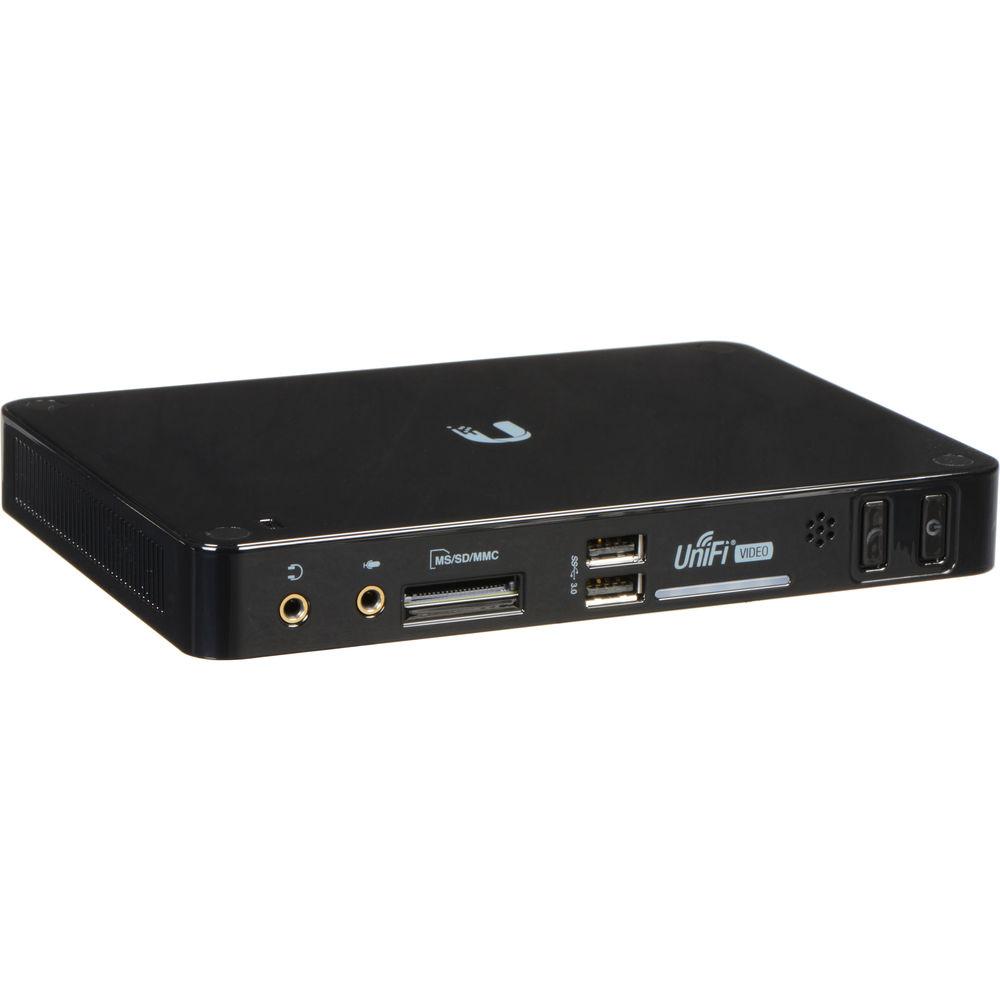

User Manual for Ubiquiti Networks UniFi UVC-NVR with 2TB HDD

Click to enlarge the picture
Ubiquiti Networks UniFi UVC-NVR with 2TB HDD Contents of the user manual for the Ubiquiti Networks UniFi UVC-NVR with 2TB
  • Product category: Network Video Recorders (NVRs) Ubiquiti Networks
  • Brand: Ubiquiti Networks
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ubiquiti Networks Network Video Recorders (NVRs)

Ubiquiti Networks UniFi UVC-NVR with 2TB HDD Ubiquiti Networks UniFi UVC-NVR with 2TB HDD
User manual for the Ubiquiti Networks UniFi UVC-NVR with 2TB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ubiquiti Networks product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!



Product description

The UniFi NVR with 2TB HDD from Ubiquiti Networks is capable of managing and recording from up to 50 cameras. The NVR is plug-and-play and the setup wizard automatically detects cameras for quick setup. It features the Intel D2550 Processor and 4GB of RAM, as well as a preinstalled 2TB hard drive to allow you to store recorded video.

The software features an advanced UI with functions such as custom motion detection zones, event recordings, email alerts, live view monitoring, disk management, and analytics. The UI can be accessed via a web browser on a Windows PC or on an iOS or Android device. It also features detailed statistical reporting, multiple views, versatile camera settings, advanced analytics, and customizable event recordings.

Additional live views playlists can be created with a configurable live camera feed rotation. The software allows you to define the cameras you want included in the playlist and for how long you want them to appear on the screen before moving on to the next live feed. The NVR features automatic recording management to free up disk space. User-definable disk space and date-based auto purge allow you to keep a set amount of free disk space or automatically delete recordings after a certain number of days.

Note: HDMI, VGA, USB, SD slot, and audio input/output ports come factory disabled. They may be activated at future times via firmware updates.

Key Features

  • Capable of managing and recording video footage from up to 50 cameras (20 recommended)
  • Plug-and-play installation
  • Preinstalled 2TB HDD to record video
  • H.264 compression
  • User interface accessible from a web browser on a Windows system
  • Automatic camera detection for easy and quick setup
  • Video web interface is accessible on iOS and Android devices
UPC: 817882022279 In the Box Ubiquiti Networks UniFi UVC-NVR with 2TB HDD
  • Vertical Support Stand
  • Power Adapter (19V, 3.42A)
  • Power Cord
  • 4 x Magnetic Rubber Feet
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ubiquiti Networks UniFi UVC-NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ubiquiti Networks UVC-NVR Specs

    Software Browser-based interface, tablets, and smartphones supported
    System Setup Plug-and-play installation, automatic camera detection
    Camera Support Recommended for up to 20 UniFi video cameras, supports up to 50
    Supported Devices Operating Systems: 64-bit Microsoft Windows 8/7, Ubuntu 12.04 (or above), or Debian 7.0 (or above)
    Browsers: Chrome
    Smartphones: iOS and Android
    Minimum System Requirements Intel or compatible 1.86 GHz (or above) processor
    2 GB RAM
    Scheduling Day/Time/Camera/Scheduled Video Recording/Motion Detection/Email Alerts
    Video Previews Custom views of multiple cameras, full screen capability
    Video Formats MP4 (H.264/AAC)
    Video Resolution Supported 1080p, 720p, 480p
    Processor Intel D2550
    Memory 4 GB
    Hard Drive 2 TB preinstalled
    Networking Interface 1 x 10/100/1000 Ethernet (Cat 5 cable or above)
    Power Supply 65 W, 19 V, 3.42 A
    Dimensions 5.3 x 7.5 x 1" (13.5 x 19 x 2.5 cm)
    Weight (Approximate) 17 oz (483 g)
    Package Weight 2.525 lb
    Box Dimensions (LxWxH) 8.7 x 6.25 x 3.55"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 55 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Ubiquiti Networks UniFi UVC-NVR with 2TB HDD

    Subject: How to install uvc unifi NVR and cameras
    Date: 15.01.2022 11:26:44Name: Joseph
    I find it difficult to setup the system , firstly do I have to plug all the cameras into a network switch and then I connect from the NVR also to the same switch and I connect a vga cable to a monitor , after I power on and all the cameras will come ? This is my question
