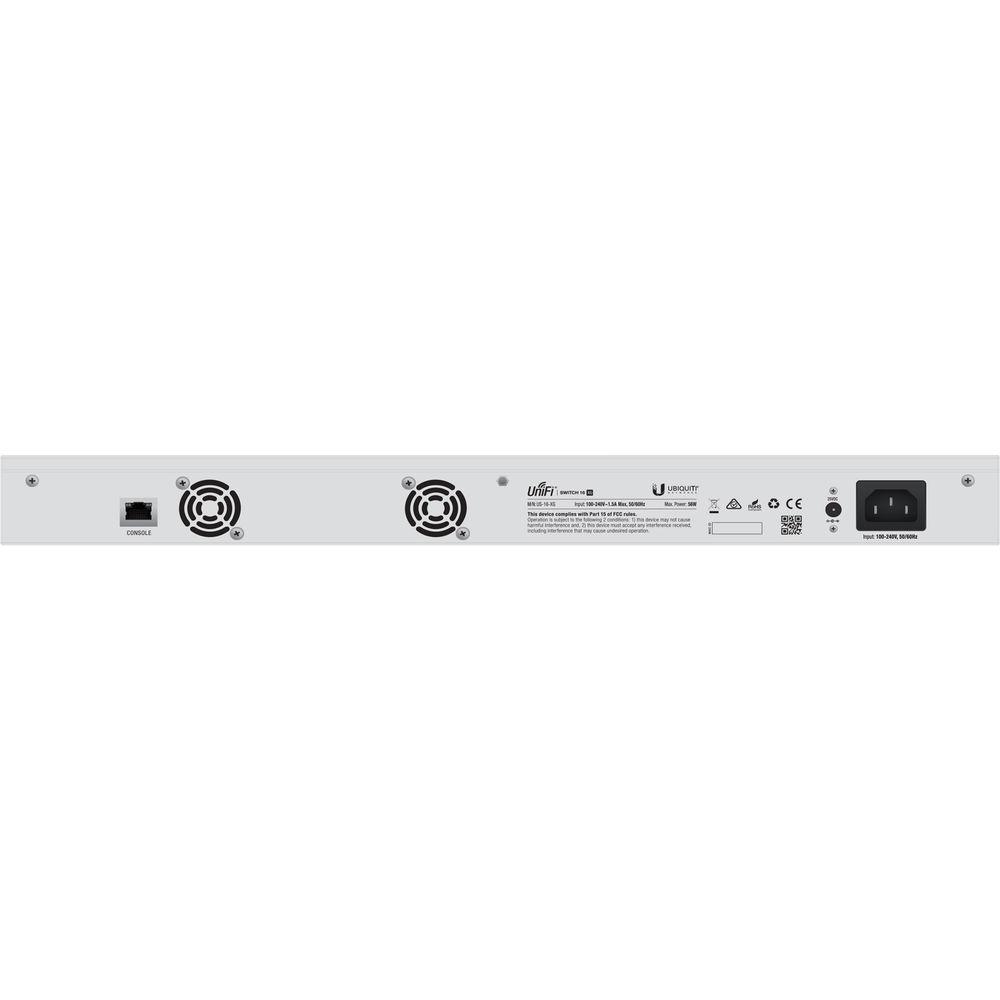

User Manual for Ubiquiti Networks US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks US-16-XG Unifi Switch 16
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks US-16-XG Unifi Switch 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Provide high-bandwidth aggregation connectivity to multiple switches in your network with the US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch from Ubiquiti Networks. The switch comes equipped with twelve 10G SFP+ ports, four 10G RJ-45 Ethernet ports, and a single RJ-45 serial console port making it easy to connect multiple switches directly to the US-16-XG switch. Once configured, users benefit from a non-blocking throughput of 160 Gbps, a switching capacity of 320 Gbps, and a forwarding rate of 238.10 Mpps to ensure the Ubiquiti Networks Aggregation Switch can handle even the most demanding network environments.
Included with this Ubiquiti Networks switch is their own UniFi Controller software designed to simplify the management of everything from site management to switch configuration. A single network administrator can manage multiple sites from a single location using a centralized interface. The UniFi Controller software also makes it easy to access any managed UniFi Switch and configure settings including network/VLAN configuration, operating modes, storm control settings per port, 802.1x control and RADIUS VLAN, and much more. It is also possible to see the status of each port including connection speeds, Tx/Rx data rates, and network/VLAN settings. Hardware - Switching Performance
- The US‑16‑XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The total non-blocking throughput is up to 160 Gbps.
- 10G High-Capacity Links
- The US‑16‑XG offers maximum performance and low latency as an aggregation switch.

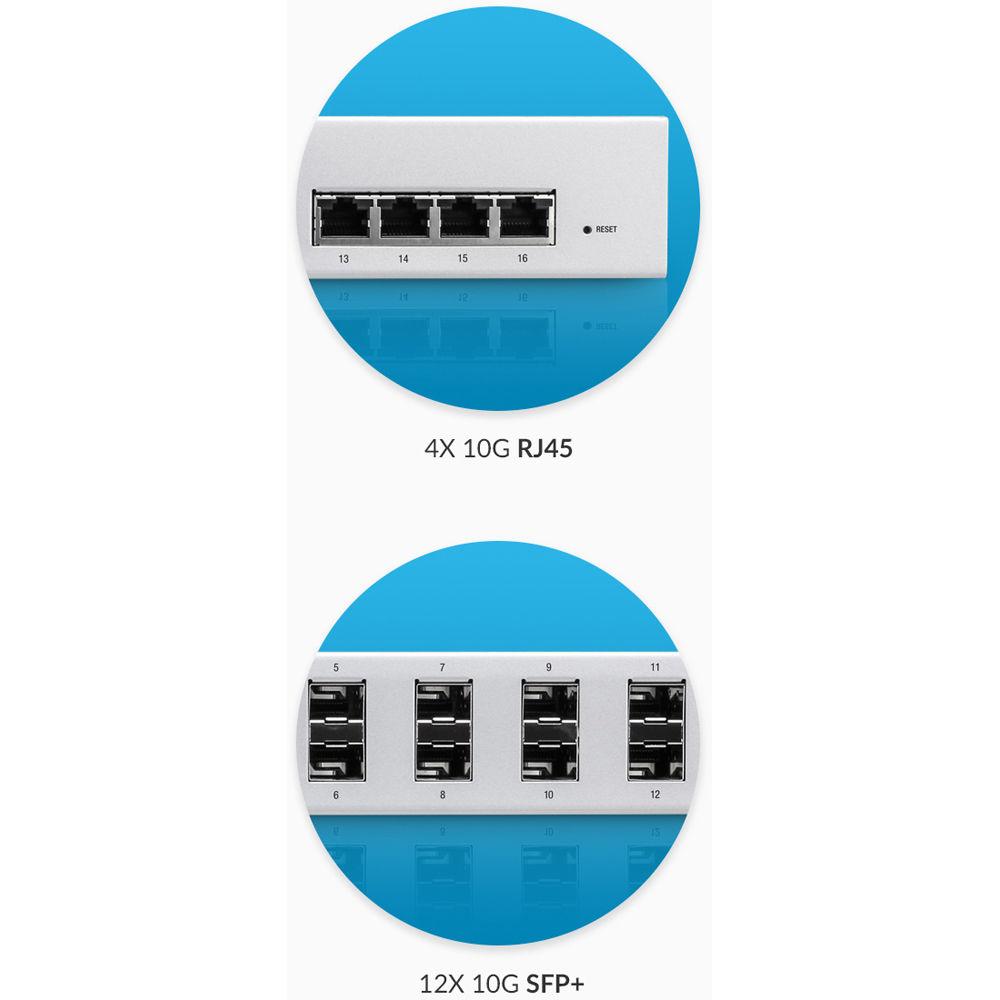

For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the US‑16‑XG offers four RJ-45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ-45 connectors. UniFi Controller - Multi-Site Management
- A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
- Switch Configuration
- You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface - Switch Port Status
- You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting UPC: 810354026072 In the Box Ubiquiti Networks US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks US-16-XG Specs | | | Ports | 12 x 10Gb SFP
4 x 10Gb Ethernet (RJ45)
1 x Ethernet (RJ45) (Console) | | | | Forwarding Rate | 238.1 Mpps | | Switching Bandwidth | 320 Gb/s
160 Gb/s (Non-Blocking) | | | | Power Draw | 56.00 W (Active) | | DC Input Power | 16 to 25 VDC | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 5 to 95% | | | | Material of Construction | Steel | | Indicator Lights | Link/Activity/Speed | | Rack Form Factor | 1 RU | | Dimensions | 17.4 x 8.7 x 1.7" / 44.1 x 22.1 x 4.4 cm | | Weight | 6 lb / 3 kg | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 21.5 x 10.4 x 3.0" |
