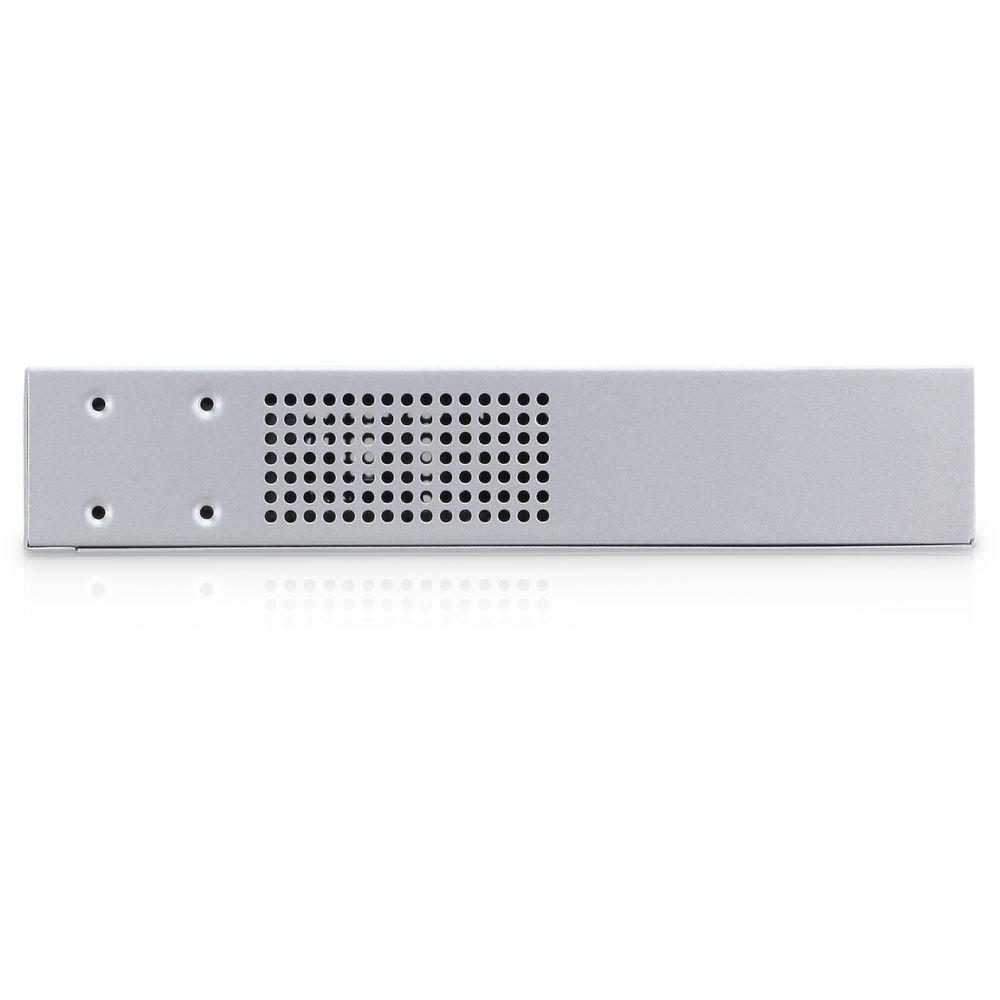

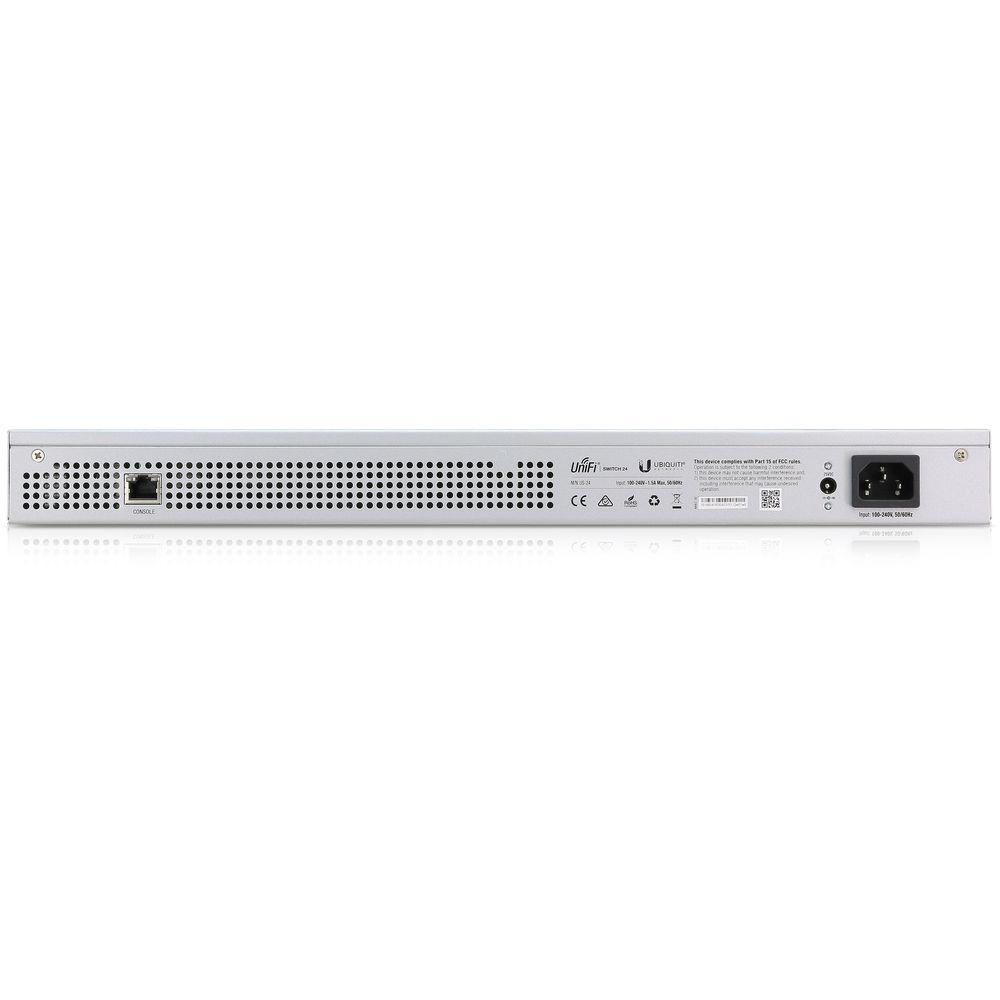

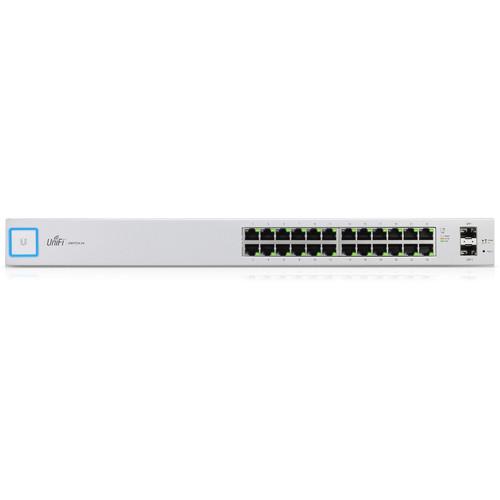

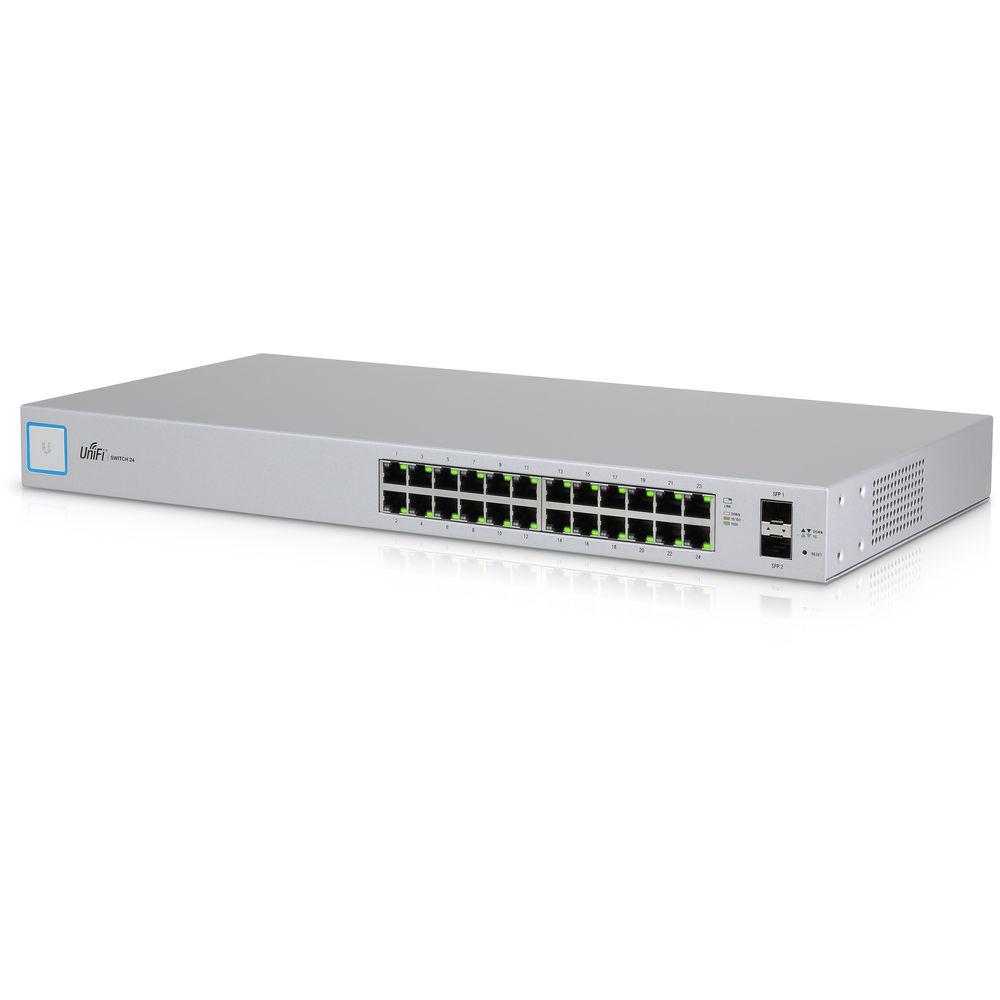

User Manual for Ubiquiti Networks US-24 24-Port UniFi Managed Gigabit Switch with SFP Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks US-24 24-Port UniFi Managed
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks US-24 24-Port UniFi Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description With 24 Gigabit Ethernet ports, the US-24 UniFi Managed Gigabit Switch with SFP is designed to simplify the process of expanding your network. In addition to Gigabit Ethernet connectivity, this fully managed switch offers SFP connectivity for uplinks of up to 1 Gbps for ultra-fast connections to other switches or network attached storage devices. This UniFi switch also features a 26 Gbps non-blocking throughput, 52 Gbps switching capacity, and a forwarding rate of 38.69 Mpps to ensure connected devices have the necessary bandwidth and network performance to operate smoothly. Installation of the US-24 switch has also been simplified thanks to the rackmount design making it easy to integrate this switch into an existing device rack or cabinet. - Switching Performance
- The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
- Fiber Connectivity
- This UniFi Switch features SFP ports to provide ultra-fast uplinks for long distance network connections and storage server to switch functionality.
- UniFi Controller
- Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.
- Multi-Site Management
- A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
- Switch Configuration
- You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface - Switch Port Status
- You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting UPC: 810354024740 In the Box Ubiquiti Networks US-24 24-Port UniFi Managed Gigabit Switch with SFP Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks US-24 24-Port UniFi Managed Gigabit Switch with SFP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks US-24 Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP
1 x Ethernet (RJ45) (Console) | | | | Forwarding Rate | 38.69 Mpps | | Switching Bandwidth | 52 Gb/s
26 Gb/s (Non-Blocking) | | | | Power Draw | 25.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 5 to 95% | | Noise Level | 34.0 dB | | | | Indicator Lights | Link/Activity/Speed | | Rack Form Factor | 1 RU | | Dimensions | 17.4 x 8.7 x 1.7" / 44.1 x 22.1 x 4.4 cm | | Weight | 6 lb / 3 kg | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 21.5 x 10.4 x 3.0" |
