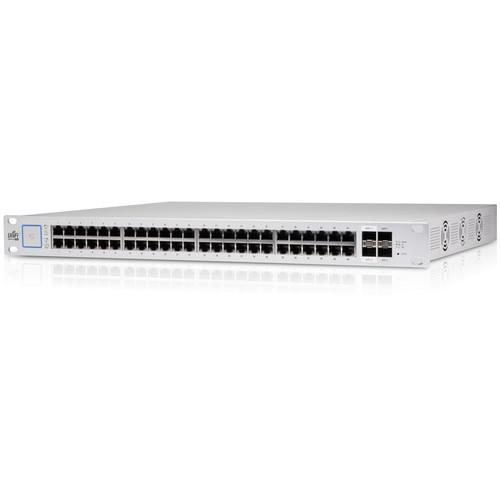

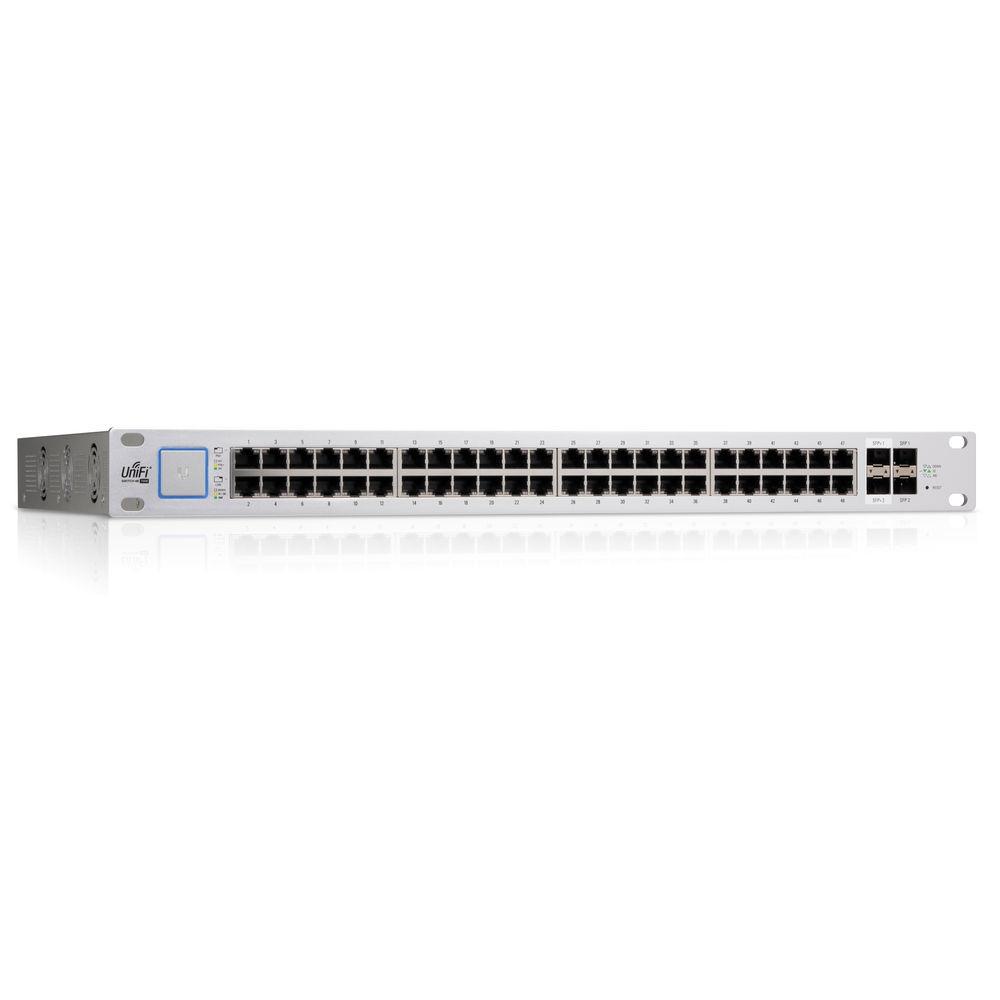

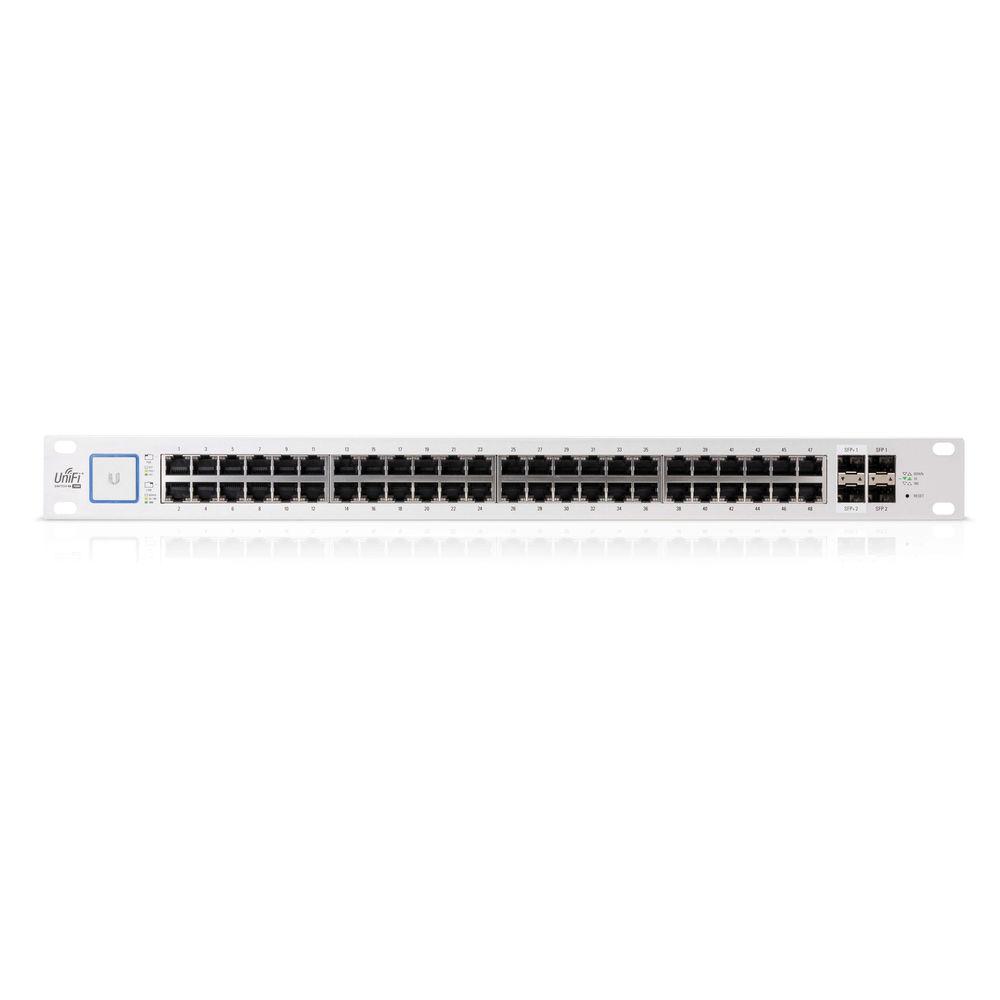

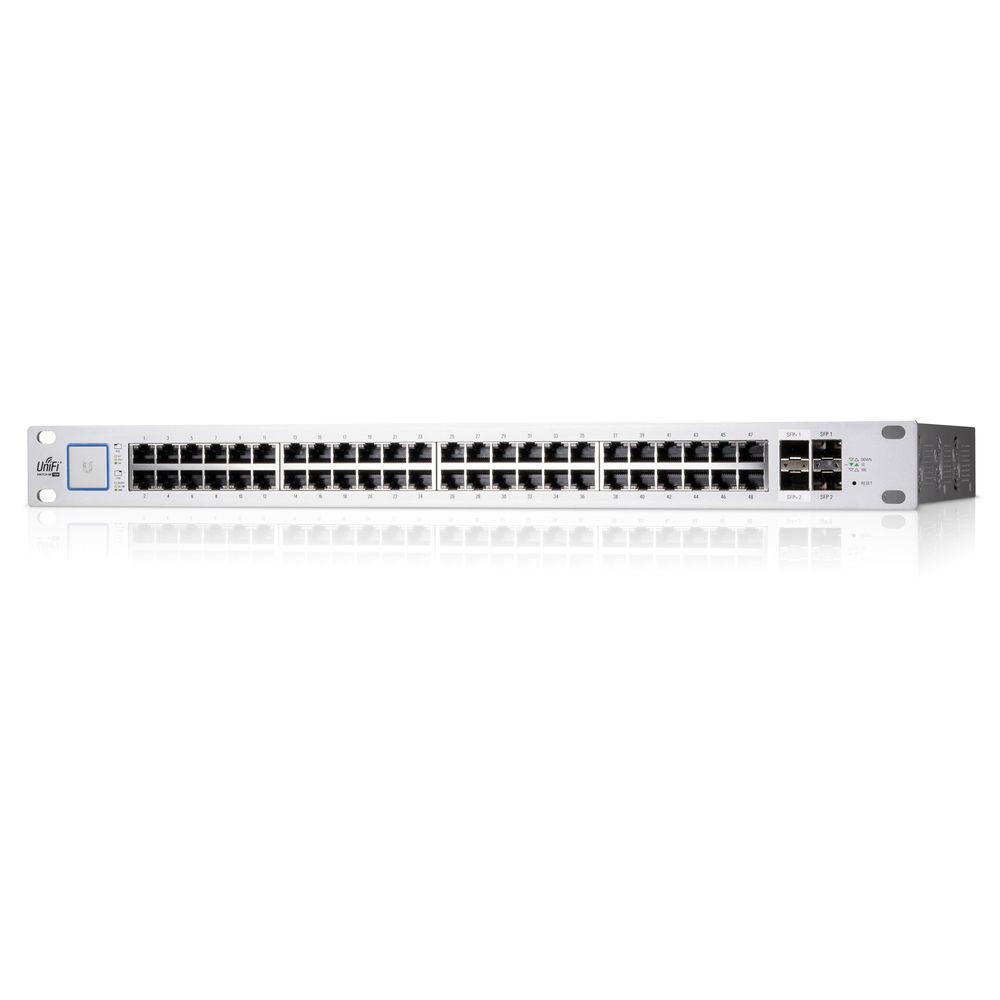

Product description The US-48-750W UniFi Managed PoE+ Gigabit 48 RJ45 Port 750W Switch from Ubiquiti Networks offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. It provides a total non-blocking throughput of up to 70 Gb/s.The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch includes two SFP ports for uplinks of up to 1 Gb/s. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE and 24V passive PoE to power multiple devices on the network. The 48-port switch adds two SFP+ ports for high-capacity uplinks of up to 10 Gb/s, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.The switch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. It integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface. - Auto-sensing IEEE 802.3af/at PoE
- 48 x Gigabit RJ45 ports, 2 x SFP+ ports, 2 x SFP ports
- 1 Serial console port (reserved for future use)
- Non-blocking throughput of up to 70 Gb/s
- Switching capacity: 140 Gb/s
- Forwarding rate of up to 104.16 Mp/s
- Maximum power consumption of 750W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. 1
Please Note: UniFi Controller software can be downloaded from Ubiquiti Network website at no extra charge. close UPC: 810354020797 In the Box Ubiquiti Networks US-48-750W UniFi Managed PoE+ Gigabit 48 RJ45 Port 750W Switch with SFP+ Ports Power Cord 4 x Mounting Screw (#10-32 x 5/8") 4 x Cage Nut (#10-32 x 5/8") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks US-48-750W UniFi Managed PoE Gigabit 48 RJ45 Port 750W Switch with SFP Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks US-48-750W Specs | | | Ports | 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10Gb SFP
2 x 10/100/1000 Mb/s Gigabit SFP
1 x Ethernet (RJ45) (Console) | | | | Forwarding Rate | 104.16 Mpps | | Switching Bandwidth | 140 Gb/s
70 Gb/s (Non-Blocking) | | | | OS Compatibility | Windows 7 or Later
macOS
Linux | | | | Power Draw | 750.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE per Port | 17 to 34.2 W | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 5 to 95% | | | | Indicator Lights | Link/Activity/Speed, PoE | | Rack Form Factor | 1 RU | | Dimensions | 19.1 x 13.7 x 1.8" / 48.5 x 34.8 x 4.5 cm | | Weight | 12 lb / 5 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 22.3 x 16.9 x 3.6" |
