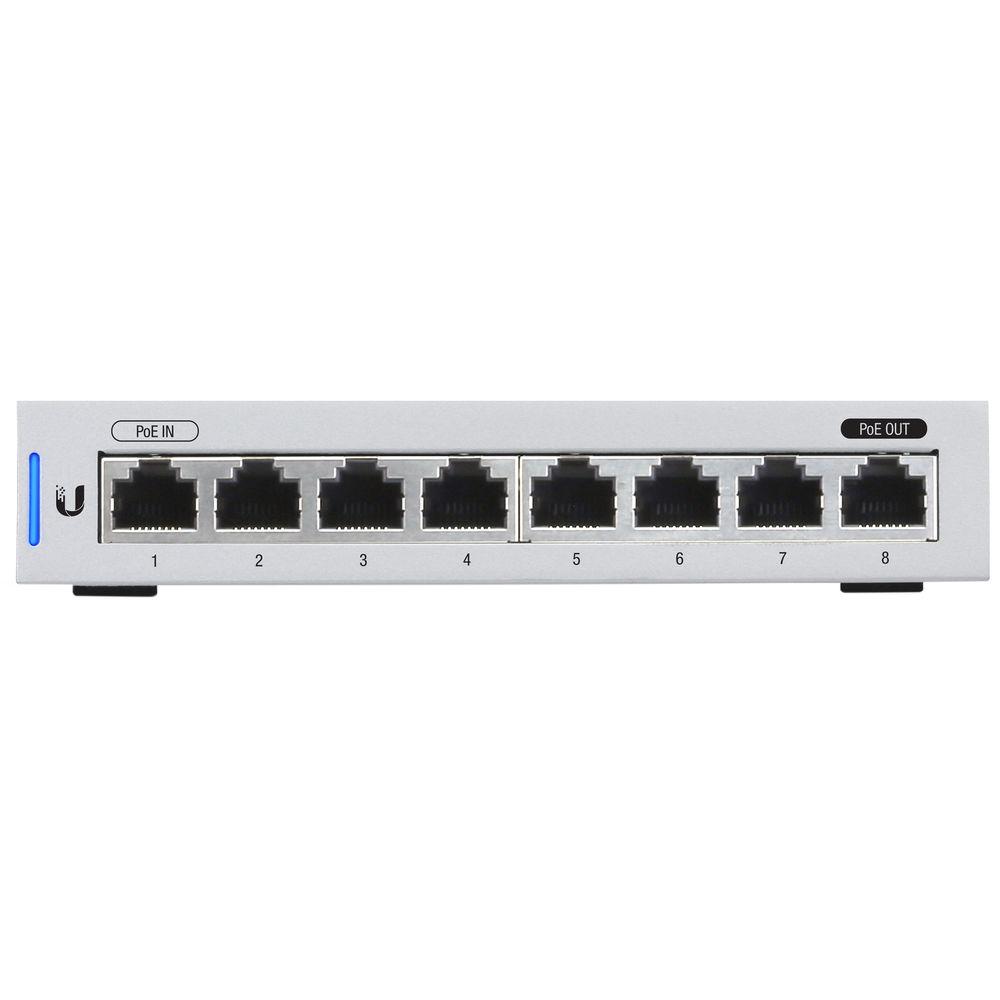

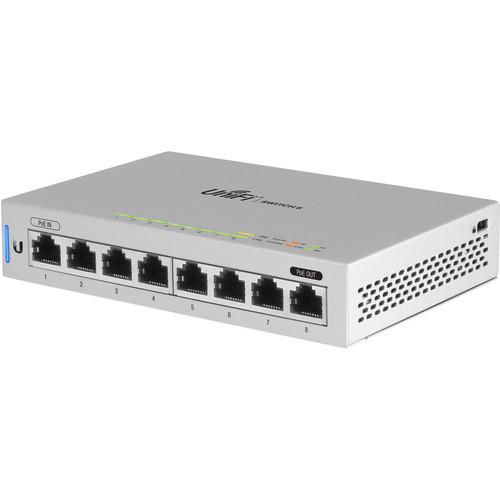

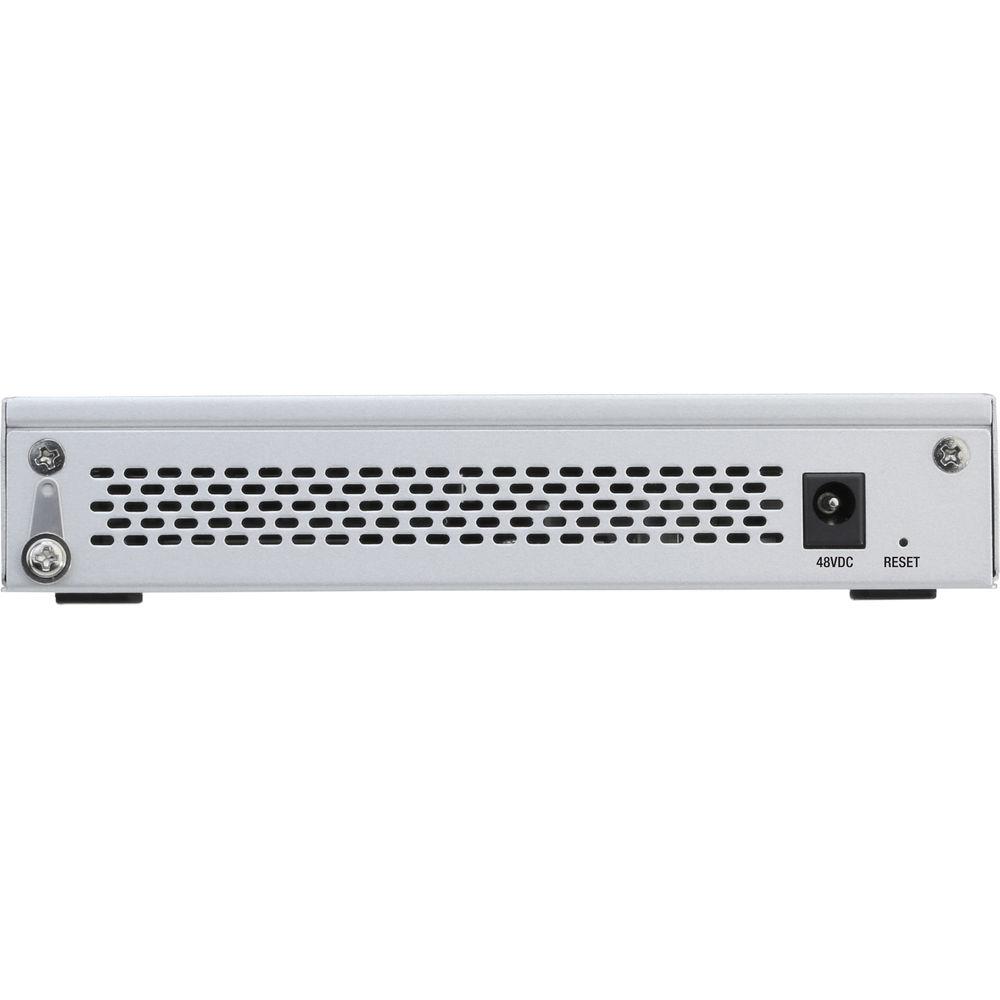

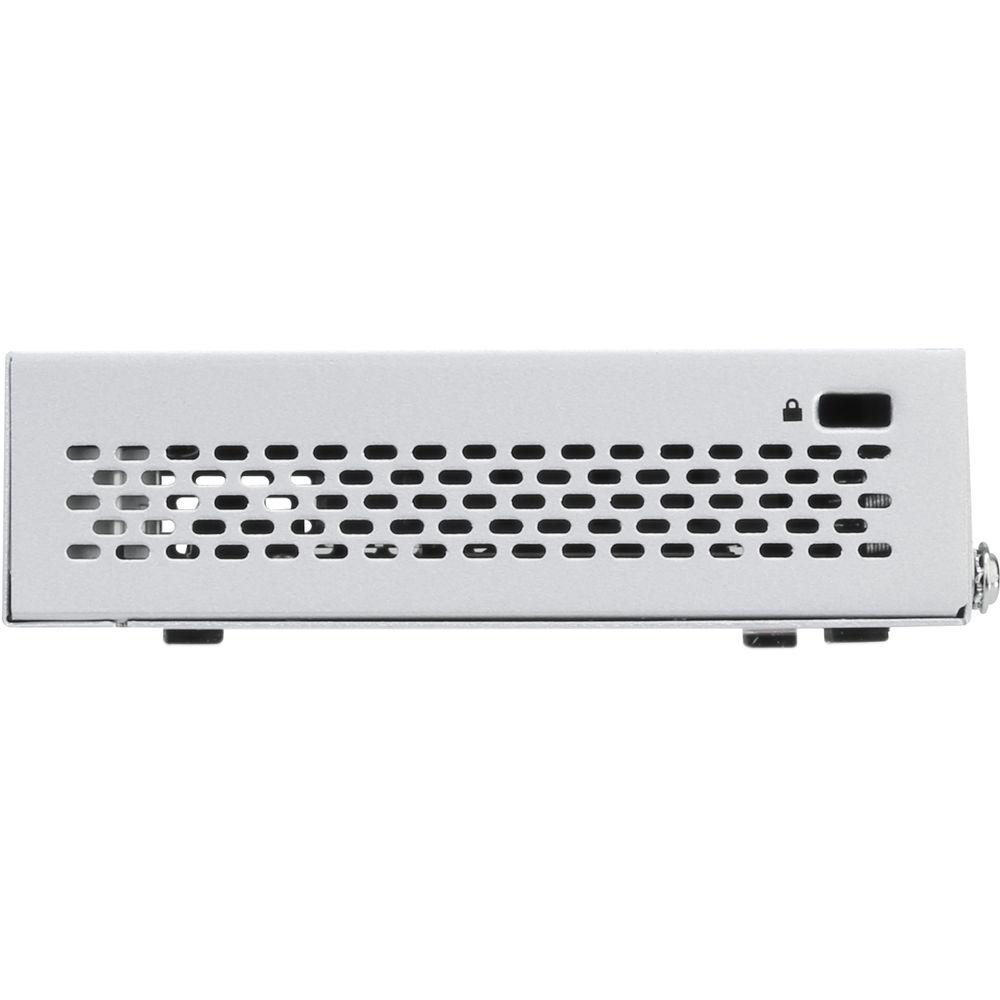

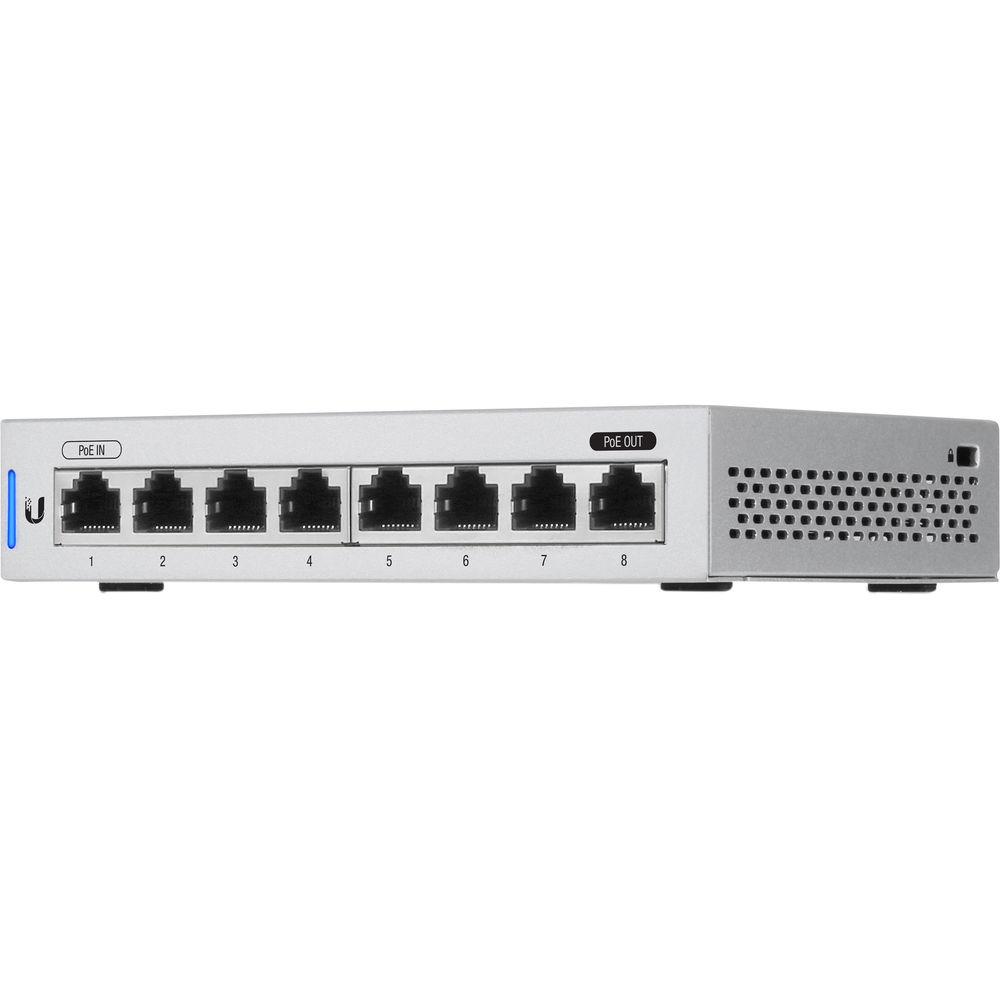

User Manual for Ubiquiti Networks US-8 UniFi 8-Port Gigabit PoE Compliant Managed Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks US-8 UniFi 8-Port Gigabit
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks US-8 UniFi 8-Port Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The fully manageable US-8 UniFi 8-Port Gigabit PoE Compliant Managed Switch from Ubiquiti Networks features 8 Gigabit Ethernet ports in a small form factor offering improved performance and intelligent switching capabilities for expanding networks. In addition to the 8 Gigabit Ethernet ports, this switch offers 8 Gbps non-blocking throughput, a 16 Gbps switching capacity, and a 11.9 mpps forwarding rate.
Once installed, this UniFi switch can be managed using Ubiquiti's own UniFi Controller software giving network administrators the ability to manage multiple sites from a single interface. Network admins have full access to various Ubiquiti devices within the network with the ability to change operating modes, monitor the status of each device, manage spanning tree configuration, and much more. - Hardware Features
- • 8 x Gigabit RJ-45 ports
• 1 x PoE Passthrough Port
• Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Maximum Power Consumption: 12W
• PoE or DC Input Option - Switching Performance
- The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. UniFi Controller - Multi-Site Management
- A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
- Switch Configuration
- You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface - Switch Port Status
- You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting - Statistics
- The Switch Statistics screen displays a graphical overview of all LAN throughput for each port on the selected switch. Under the same pane of glass, it also shows LAN, WLAN, and Internet traffic, including the breakdown of protocols being used (requires a UniFi Security Gateway, sold separately).
UPC: 810354026157 In the Box Ubiquiti Networks US-8 UniFi 8-Port Gigabit PoE Compliant Managed Switch 2 x Mounting Screws 2 x Screw Anchors Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks US-8 UniFi 8-Port Gigabit PoE Compliant Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks US-8 Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Forwarding Rate | 11.9 Mpps | | Switching Bandwidth | 16 Gb/s
8 Gb/s (Non-Blocking) | | | | Power Draw | 12.00 W (Active) | | DC Input Power | 48 VDC at 0.5 A | | PoE Power Budget | 12 W | | | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Operating Humidity | 5 to 95% | | | | Material of Construction | Steel | | Indicator Lights | Link/Activity/Speed | | Dimensions | 5.8 x 3.9 x 1.2" / 14.8 x 10 x 3.1 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 2.175 lb | | Box Dimensions (LxWxH) | 8.7 x 5.45 x 3.4" |
