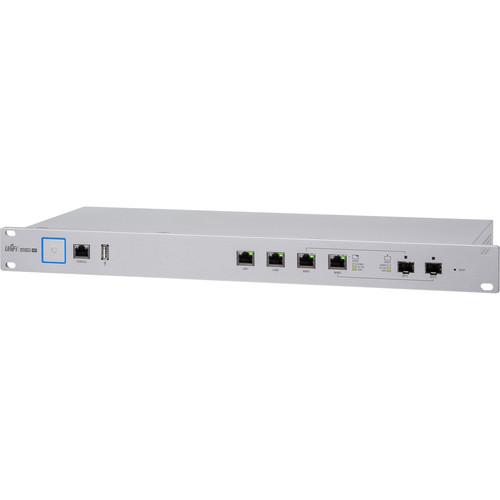

User Manual for Ubiquiti Networks USG-PRO-4 Enterprise Gateway Router with 2 Combination SFP RJ-45 Ports Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks USG-PRO-4 Enterprise Gateway Router
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
 |
User manual for the Ubiquiti Networks USG-PRO-4 Enterprise Gateway Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

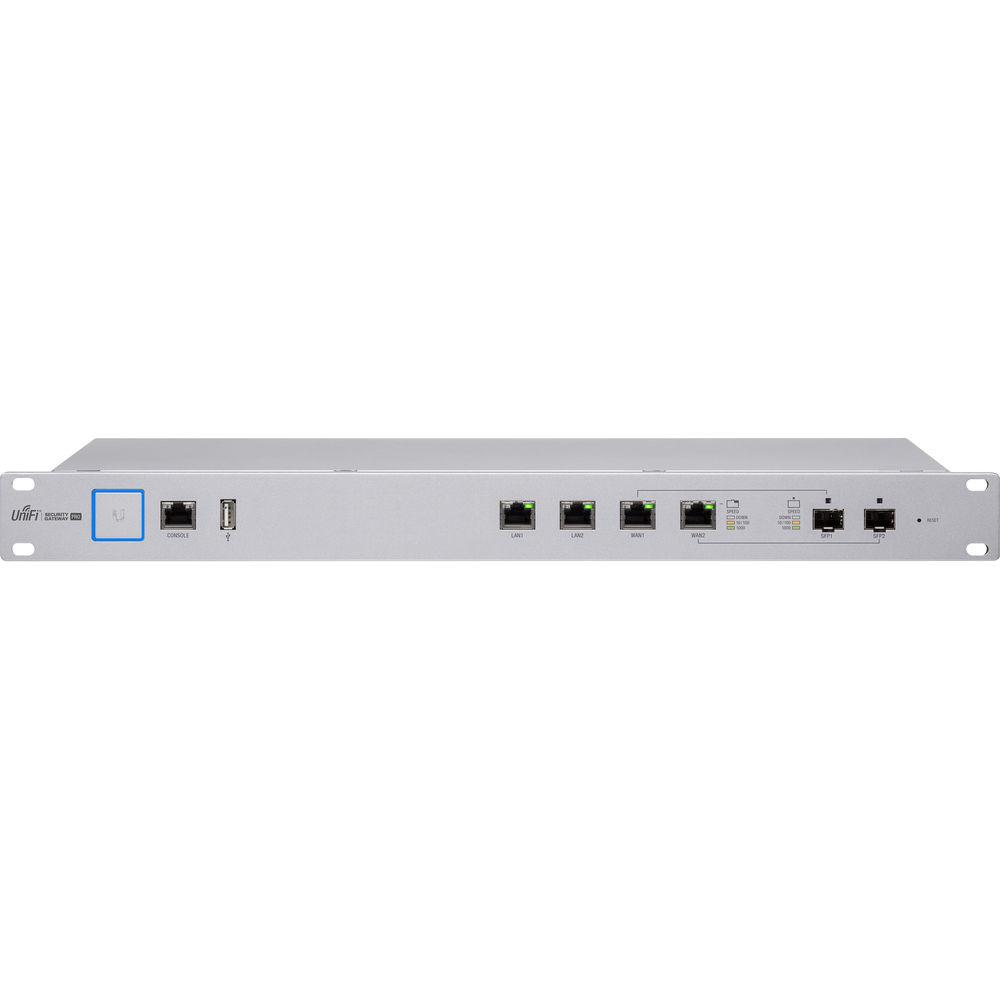

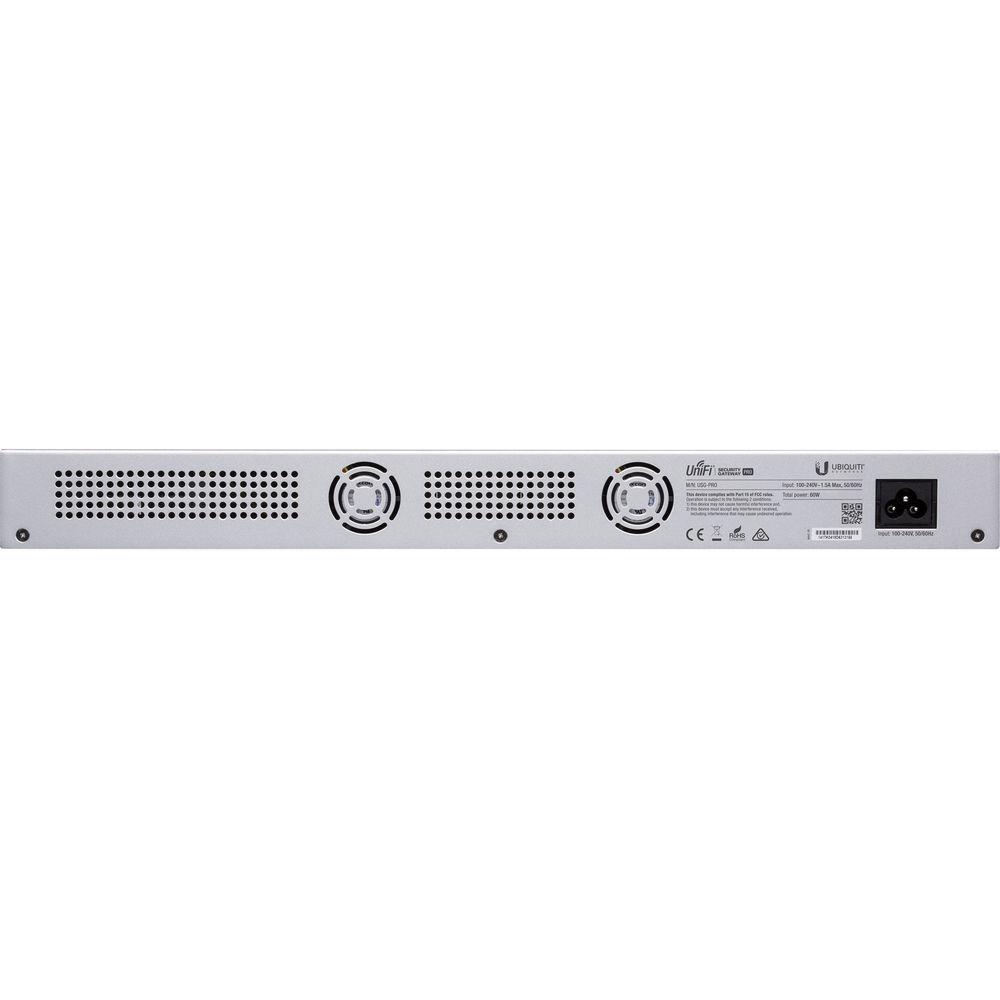

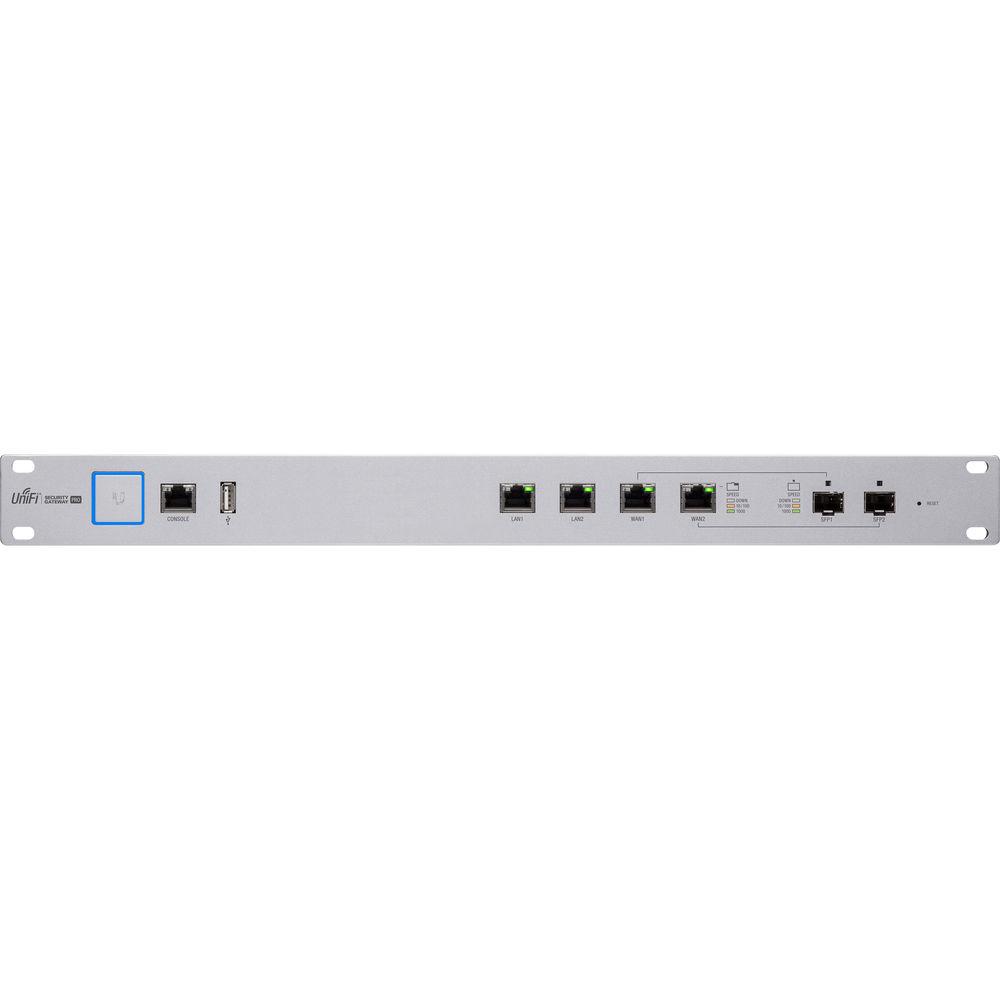

Product description With four Gigabit Ethernet ports and two SFP combination ports, the USG-PRO-4 Enterprise Gateway Router with 2 Combination SFP/RJ-45 Ports from Ubiquiti Networks is designed to be the backbone of a network. This gateway is designed to support multiple network switches which in turn can support a variety of networked devices such as access points, management stations, VoIP devices, and much more. The integrated SFP combination ports make it simple to connect fiber channel devices such as SAN servers and other local area networked devices. On the back of this rackmountable gateway you will find a single RJ-45 serial console port for command line interface management, two LAN ports, two WAN ports, and two SFP combination ports offering a diverse set of connection options. UPC: 810354021572 In the Box Ubiquiti Networks USG-PRO-4 Enterprise Gateway Router with 2 Combination SFP/RJ-45 Ports Power Cord 4 x Mounting Screws (#10-32 x 5/8") 4 x Cage Nuts (#10-32 x 5/8") Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks USG-PRO-4 Enterprise Gateway Router with 2 Combination SFP RJ-45 Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks USG-PRO-4 Specs | Processor | Dual-Core 1 GHz, MIPS64 with hardware acceleration for packet processing | | System Memory | 2 GB DDR3 RAM | | On-Board Flash Storage | 4 GB | | Max Power Consumption | 40 W | | Power Method | 110-240 VAC | | Power Supply | Internal AC/DC power adapter
60 W (24 V, 2.5 A) | | Certifications | CE, FCC, IC | | Rackmountable | Yes | | ESD/EMP Protection | Air: ± 24 kV
Contact: ± 24 kV | | Temperature & Humidity | Operating Temperature: 14 to 113°F / -10 to 45°C
Operating Humidity: 10 to 90% non-condensing | | Buttons | Reset | | LEDs | System: Status
Data Ports: Speed/Link/Activity | | Layer 3 Routing | Forwarding Performance
Packet Size: 64 Bytes; 1,000,000 pps
Packet Size: 512 Bytes or larger; 1 Gbps per port line rate | | Networking Interface | Console Port
1 x RJ-45 serial port
Data Ports
2 x Gigabit Ethernet ports
2 x Gigabit Ethernet/SFP combination ports | | System Requirements | • Linux, Mac OS X, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 10 (or above)
• UniFi Controller software v4.8 or higher | | | | Dimensions | 19.06 x 1.73 x 6.46" / 484 x 44 x 164 mm | | Weight | 5.07 lb / 2.30 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 23.2 x 8.6 x 3.8" |
