User Manual for Ubiquiti Networks USG-XG-8 8-Port 10G SFP XG Gateway Router Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks USG-XG-8 8-Port 10G SFP
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
|
User manual for the Ubiquiti Networks USG-XG-8 8-Port 10G SFP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description With eight Gb/s SFP+ ports, the USG-XG-8 8-Port 10G SFP+ XG Gateway Router from Ubiquiti Networks is capable of handling a large amount of network traffic from as many as 50,000 clients and 10,000 access points.
This gateway router features a firewall for enhanced network security, it supports extensive VLAN capabilities including site-to-site VPN functionality, and with automatic QoS functionality, bandwidth is allocated to ensure voice and video traffic is prioritized providing lag-free connections. Once installed, network administrators can manage the gateway using the built-in LCD touchscreen display eliminating the need to access the USG-XG-8 router via an additional console device. If that's not enough, this Ubiquiti Networks Gateway Router supports UniFi Controller software offering a plethora of features including the ability to see a full overview of your network, predictive maps, deep packet inspection, detailed analytics, and much more. - High-Capacity Performance

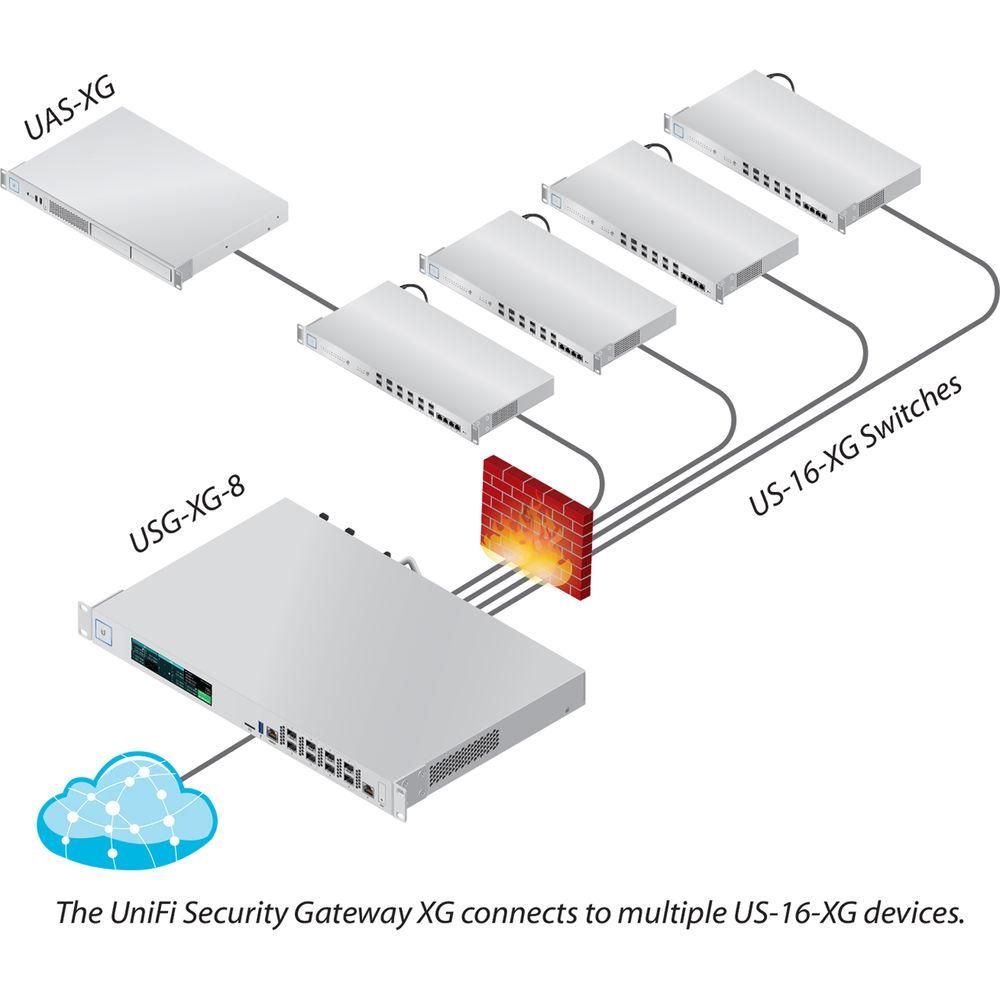

- Featuring Gb/s SFP+ interfaces, the Security Gateway XG supports up to 50,000 clients and 10,000 APs for enterprise-level businesses, stadiums, hotels, and large-scale deployments.
- Powerful Firewall Performance
- The UniFi Security Gateway XG offers advanced firewall policies to protect your network and its data.
- Unified Network Analytics and Visibility
- From a single pane of glass, view network topology and configuration, real-time switch statistics, and debugging metrics.

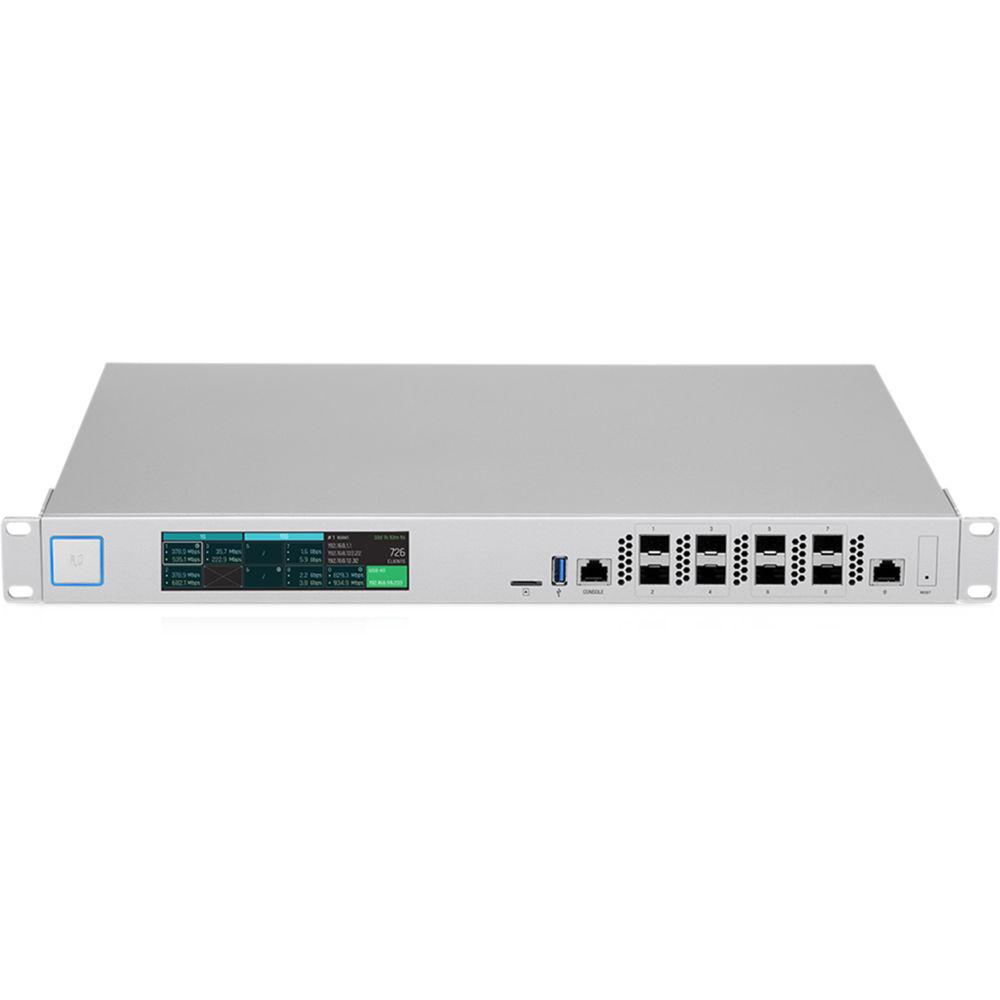

- LCD Touchscreen Display
- The built-in touchscreen display on the UniFi Security Gateway XG provides administrators with real‑time device and network monitoring without the need for a separate UI device.
- Convenient LAN Support
- The UniFi Security Gateway XG can create virtual network segments for security and network traffic management.
- VPN Server for Secure Communications
- A site-to-site VPN secures and encrypts private data communications traveling over the internet.
- Automatic QoS
- Top QoS priority is assigned to voice and video traffic for clear calls and lag‑free, video streaming
- UniFi Controller
- Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software features an intuitive UI and support for the next generation of UniFi devices. Important network details are logically organized for a simplified, yet powerful, interface.
Packed with Features Use the UniFi Controller to provision thousands of UniFi APs and UniFi Security Gateways, map out networks, quickly manage system traffic, and provision additional UniFi devices.
Network Overview A comprehensive overview of your network health is readily available in the new dashboard. Monitor your network's vitals and make on-the-fly adjustments as needed.
Predictive Maps Upload a map of your location(s) or use Google Maps to represent the areas where your UniFi devices are located. Starting with v5.6, you can also use the predictive map feature to get a preview of coverage, and to help you avoid dead spots.
Deep Packet Inspection Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Multi-Site Management A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
LAN/WLAN Groups The UniFi Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices. - Hardware Overview
-

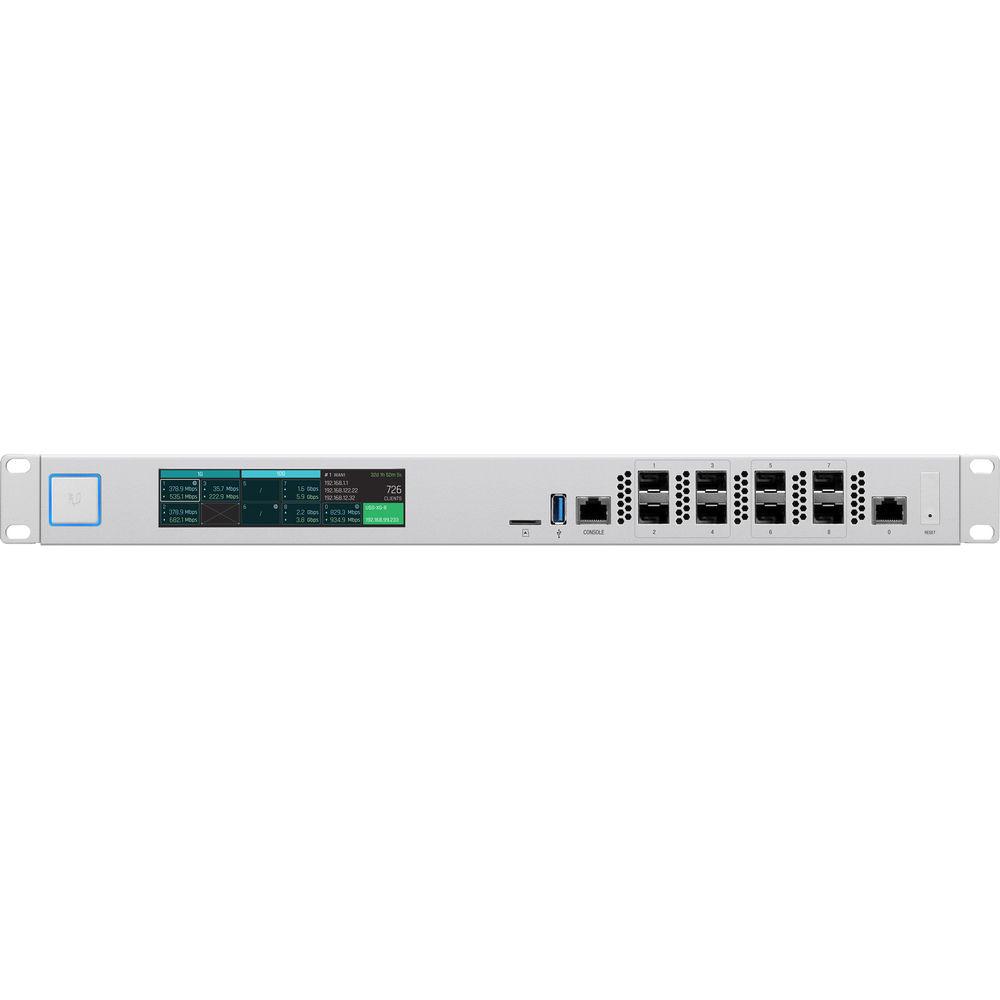

- 8 x 10 Gb/s SFP+ Ethernet ports
- 1 x Gigabit RJ45 Ethernet port

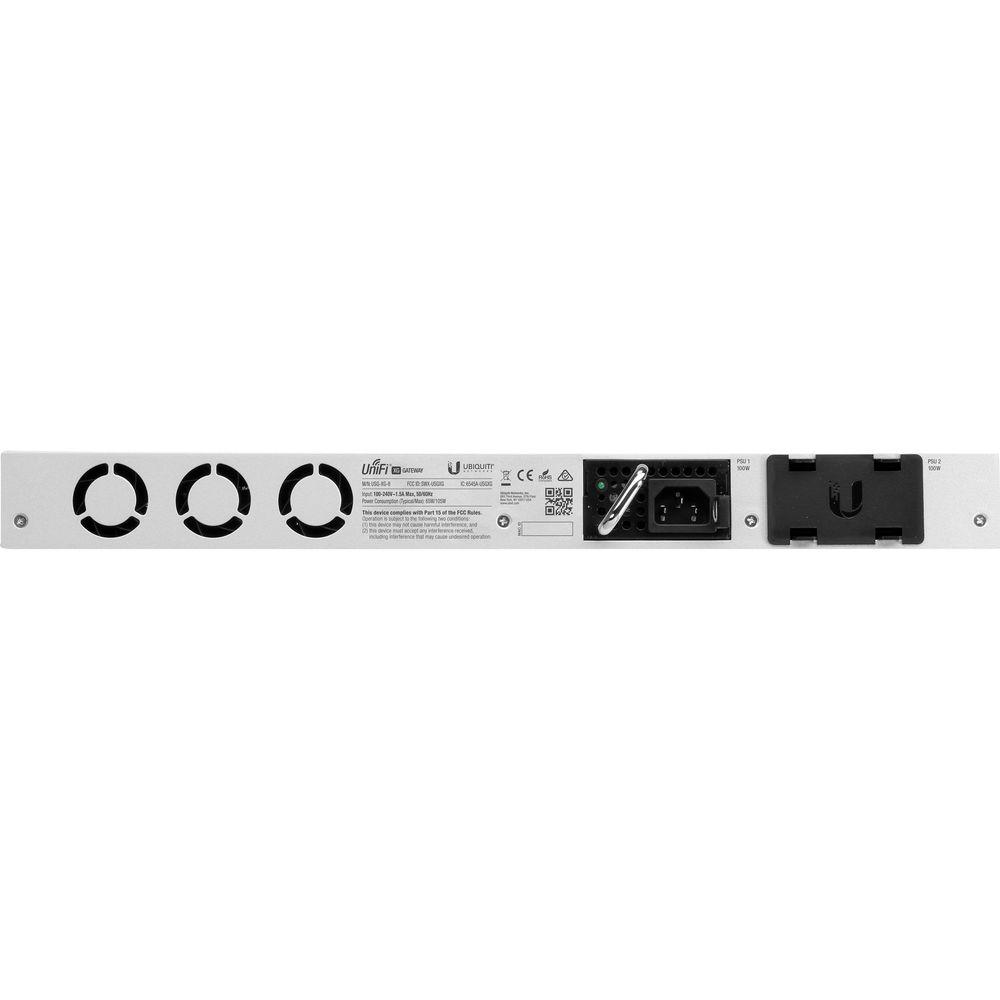

- 2 x Hot-swappable modular PSU bays
- 1 x 100 W AC/DC modular PSU
- 1U rack-mountable
- Bluetooth management interface
- Real-time intrusion protection at over 1 Gb/s throughput
- 50 Gb/s routing capability with deep packet inspection
UPC: 810354026591 In the Box Ubiquiti Networks USG-XG-8 8-Port 10G SFP+ XG Gateway Router Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks USG-XG-8 8-Port 10G SFP XG Gateway Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks USG-XG-8 Specs Max Power Consumption | AC/DC 100 W | Power Method | 100-240 VAC, 50-60 Hz universal input | Power Supply | 2 x hot-swappable AC/DC or DC/DC 100 W PSU 1 x AC/DC PSU included | Voltage Range | 100 to 240 VAC | LCD | 4.7" wide viewing angle true color TFT-LCD touch screen | System LEDs | Status | On-Board Flash Storage | 8 MB NOR flash 4 GB eMMC NAND flash | Interfaces | Networking 8 x 10 Gb/s SFP+ ports 1 x 1 Gb/s RJ45 Ethernet port Management 1 x RJ45 Ethernet in-band 1 x RJ45 serial out-of-band 1 x Bluetooth 4.0 | IPS Throughput | 1 Gb/s | Processor | MIPS64 16-Core, 1.8 GHz | System Memory | 16 GB DDR4 RAM | Rackmount | Yes, 1U | ESD/EMP Protection | Air/Contact:
