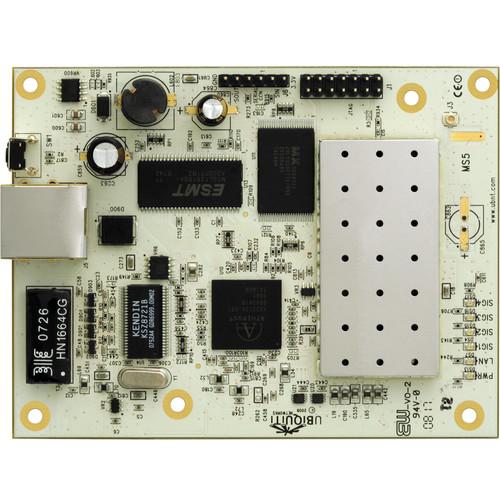

Product description The WispStation5 from Ubiquiti Networks is a long-range 5 GHz station with Atheros AR5312 SOC, MIPS 4KC, 180MHz processor. The high performance, open software, wireless platform offers an outdoor range of over 31 miles and provides up to 54 Mb/s of wireless transmission speed. It features airOS software, 16MB SDRAM, 4MB parallel flash, and two 10/100 BASE-TX (Cat5, RJ-45) networking interface. In the Box Ubiquiti Networks WispStation5 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks WispStation5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks WS5 Specs | | | Processor | 180 MHz Atheros AR5312 SOC MIPS 4KC | | Memory | 16 MB SDRAM, 4 MB parallel flash | | Serial Interface | 10-pin (5x2) (header available for RS232/DB9) | | Networking Interface | 2 x 10/100 BASE-TX (Cat5, RJ-45) Ethernet | | Adjustable Channel Size Support | 5/10/20 MHz and 40 MHz (turbo) | | Software | airOS | | | | Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) | | Power Consumption | 7 W maximum | | Voltage Rating | DC: 5 to 24 V
Maximum Recommended: 18 V | | ESD/EMP Protection | +/-15 kV at RF and Ethernet ports | | Operating Frequency | Radio: 5.200 to 5.825 GHz
TX Power Specifications
Modulation: 802.11a OFDM
Data Rate: Average TX: Tolerance
6 Mb/s: 22 dBm: +/-1.5 dB
9 Mb/s: 22 dBm: +/-1.5 dB
12 Mb/s: 22 dBm: +/- 1.5 dB
18 Mb/s: 22 dBm: +/- 1 dB
24 Mb/s: 22 dBm: +/-1.5 dB
36 Mb/s: 20 dBm: +/-1.5 dB
48 Mb/s: 19 dBm: +/-1.5 dB
54 Mb/s: 17 dBm: +/-1.5 dB
Modulation: 802.11a OFDM
RX Power Specifications:
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: +/-1.5 dB
9 Mb/s: -93 dBm: +/-1.5 dB
12 Mb/s: -91 dBm: +/-1.5 dB
18 Mb/s: -90 dBm: +/-1.5 dB
24 Mb/s: -86 dBm: +/-1.5 dB
36 Mb/s: -83 dBm: +/-1.5 dB
48 Mb/s: -77 dBm: +/-1.5 dB
54 Mb/s: -74 dBm: +/-1.5 dB | | | | Modes | Station, StationWDS, AP bridge | | Services | SNMP, DHCP, NAT | | Utilities | Site survey with preferred ESSID, antenna alignment tool, discovery utility | | Security | WEP/WPA | | QoS | 802.11e / WMM support | | Statistical Reporting | Ethernet active, uptime, packet success/errors | | Others | Logo/link customization | | Atheros Specific Features | 5/10/20 MHz channels, fast frames, compression, super frames | | System LEDs | Power, LAN, WAN | | Antenna Align/Sig Strength LED's | Software adjustable to correspond to custom RSSI levels | | Operating Temperature | -4 to +158°F (-20 to +70°C) | | | | Compliance | RoHS | | Approvals | FCC Part 15.247, IC RS210, CE ETSI EN301 489-17/893 | | | | Dimensions (L x W x H) | 4.0 x 0.6 x 3.2" (10.2 x 1.5 x 8.1 cm) | | Weight | 11.2 oz (317.51 g) |
