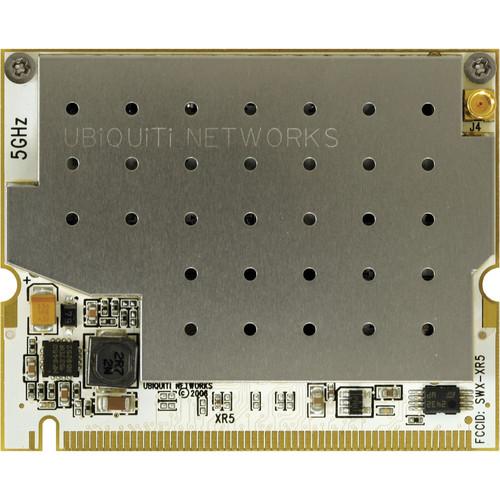

Product description The XtremeRange5 Carrier-Class 5 GHz 802.11a Radio Module from Ubiquiti Networks improves upon the original SuperRange series of high-performance 802.11 radio cards. The XtremeRange5 represents the first true carrier-class 802.11a based 5 GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring a high level of performance and reliability. In the Box Ubiquiti Networks XtremeRange5 Carrier-Class 5GHz 802.11a Radio Module Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks XtremeRange5 Carrier-Class 5GHz 802.11a Radio Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks XR5 Specs | | | Chipset | Atheros, 6th generation, AR5414 with SuperA/Turbo support | | Network Standards Compatibility | IEEE 802.11a | | Frequency | 5 GHz | | Interface | 32-bit mini-PCI Type IIIA | | Operating Voltage | 3.3 VDC | | Antenna Connector | Single MMCX | | Temperature Range | -40 to 176°F / -40 to 80°C | | Security | WPA, WPA2, AES-CCM & TKIP encryption, 802.1x, 64/128/152bit WEP | | Data Rates | 6 Mbps, 9 Mbps, 12 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps | | TX Channel Width Support | 5 MHz / 10 MHz / 20 MHz / 40 MHz | | RoHS Compliance | Yes | | | | Wireless Approvals | FCC Part 15.247 (23 dBi Antenna), IC RS210, CE with Notified Body Number | | | | TX Power Specifications | 802.11a OFDM
Data Rate Avg. Power Tolerance
6 Mbps 28 dBm +/-1.5 dB
9 Mbps 28 dBm +/-1.5 dB
12 Mbps 28 dBm +/-1.5 dB
18 Mbps 28 dBm +/-1.5 dB
24 Mbps 28 dBm +/-1.5 dB
36 Mbps 26 dBm +/-1.5 dB
48 Mbps 24 dBm +/-1.5 dB
54 Mbps 23 dBm +/-1.5 dB | | RX Specification | 802.11a OFDM
Data Rate Sensitivity Tolerance
6 Mbps -94 dBm +/-1.5 dB
9 Mbps -93 dBm +/-1.5 dB
12 Mbps -91 dBm +/-1.5 dB
18 Mbps -90 dBm +/-1.5 dB
24 Mbps -86 dBm +/-1.5 dB
36 Mbps -83 dBm +/-1.5 dB
48 Mbps -77 dBm +/-1.5 dB
54 Mbps -74 dBm +/-1.5 dB | | | | Adjustable Channel Size Support | 5 MHz, 10 MHz, 20 MHz, 40 MHz (turbo) | | | | TX Current Consumption | 802.11a OFDM
Data Rate Current Tolerance
6 Mbps 1.80 A +/-100 mA
9 Mbps 1.80 A +/-100 mA
12 Mbps 1.80 A +/-100 mA
18 Mbps 1.80 A +/-100 mA
24 Mbps 1.80 A +/-100 mA
36 Mbps 1.50 A +/-100 mA
48 Mbps 1.30 A +/-100 mA
54 Mbps 1.10 A +/-100 mA | | RX Current Consumption | 802.11a OFDM
Data Rate Current Tolerance
6 Mbps 300 mA +/-100 mA
9 Mbps 300 mA +/-100 mA
12 Mbps 300 mA +/-100 mA
18 Mbps 300 mA +/-100 mA
24 Mbps 300 mA +/-100 mA
36 Mbps 300 mA +/-100 mA
48 Mbps 300 mA +/-100 mA
54 Mbps 300 mA +/-100 mA | | | | Range Performance | Indoor (antenna dependent): Greater than 492 ft / 150 m
Outdoor (antenna dependent): Greater than 31 mi / 50 km | | Operating System Support | Linux MADWIFI, Windows XP, Windows 2000 | | Advanced Mobility / QuickHandoff | Windows XP / 2000 Utility with Enhanced Mobility Driver from Ubiquiti | | Cisco Support | CCX 4.0 Certified Driver / Utility also available from Ubiquiti | | | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.4 x 1.9 x 0.4" |
