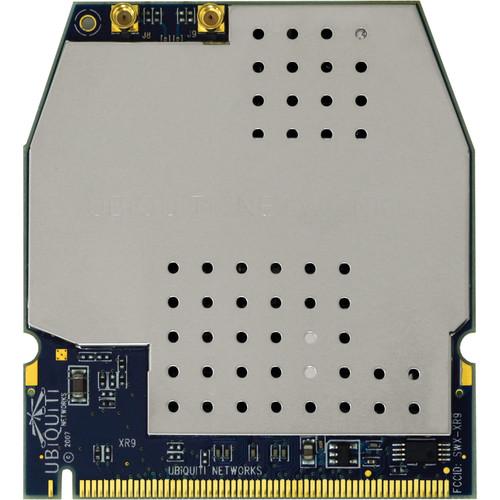

Product description The XtremeRange9 Wi-Fi Adapter from Ubiquiti Networks contains a 6th generation Atheros AR5414 chipset and it operates on the 900 MHz frequency. Installation is simple with a 32-bit mini-PCI type IIIA interface with dual MMCX antenna ports. Once configured, you can initiate security protocols with WPA, WPA2, AES-CCM and TKIP encryption, 802.1x, and 64/128/152 WEP encryption standards. Additionally, this Wi-Fi adapter provides an enhanced range performance of up to 1,312 ft (400 m) indoors and up to 31 mi (50 km) outdoors. In the Box Ubiquiti Networks XtremeRange9 Wi-Fi Adapter Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks XtremeRange9 Wi-Fi Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks XR9 Specs | | | Chipset | Atheros, 6th generation, AR5414 | | Radio Frequency | Proprietary 900 MHz | | Interface | 32-bit mini-PCI Type IIIA | | Operating Voltage | 3.3 VDC | | Antenna Connector | Dual MMCX | | Temperature Range | -40 to 194°F / -40 to 90°C | | Security | WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP | | Data Rates | 6 Mbps, 9 Mbps, 12 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps | | TX Channel Width Support | 5 MHz / 10 MHz / 20 MHz / 40 MHz | | RoHS Compliance | Yes | | | | Wireless Approvals | FCC Part 15.247, IC RS210 | | | | Operating Frequency | 907-922 MHz | | TX Power Specifications | DSSS
DataRate TX Power Tolerance
1 Mbps 28 dBm +/-1 dB
2 Mbps 28 dBm +/-1 dB
5.5 Mbps 28 dBm +/-1 dB
11 Mbps 28 dBm +/-1 dB
OFDM
DataRate TX Power Tolerance
6 Mbps 28 dBm +/-1 dB
9 Mbps 28 dBm +/-1 dB
12 Mbps 28 dBm +/-1 dB
18 Mbps 28 dBm +/-1 dB
24 Mbps 28 dBm +/-1 dB
36 Mbps 26 dBm +/-1 dB
48 Mbps 25 dBm +/-1 dB
54 Mbps 24 dBm +/-1 dB | | RX Specification | DSSS
DataRate Sensitivity Tolerance
1 Mbps -95 dBm +/-1 dB
2 Mbps -93 dBm +/-1 dB
5.5 Mbps -91 dBm +/-1 dB
11 Mbps -90 dBm +/-1 dB
OFDM
DataRate Sensitivity Tolerance
6 Mbps -92 dBm +/-1 dB
9 Mbps -91 dBm +/-1 dB
12 Mbps -91 dBm +/-1 dB
18 Mbps -88 dBm +/-1 dB
24 Mbps -84 dBm +/-1 dB
36 Mbps -81 dBm +/-1 dB
48 Mbps -75 dBm +/-1 dB
54 Mbps -72 dBm +/-1 dB | | | | Frequency | 907 MHz: 5 MHz / 10 MHz
912 MHz: 5 MHz / 10 MHz / 20 MHz
917 MHz: 5 MHz / 10 MHz
922 MHz: 5 MHz / 10 MHz / 20 MHz | | | | TX Current Consumption | DSSS
DataRate Current Tolerance
1 Mbps 1.10 A +/-100 mA
2 Mbps 1.10 A +/-100 mA
5.5 Mbps 1.10 A +/-100 mA
11 Mbps 1.10 A +/-100 mA
OFDM
DataRate Current Tolerance
6 Mbps 1.10 A +/-100 mA
9 Mbps 1.10 A +/-100 mA
12 Mbps 1.10 A +/-10 0mA
18 Mbps 1.10 A +/-100 mA
24 Mbps 1.10 A +/-100 mA
36 Mbps 1.00 A +/-100 mA
48 Mbps 0.90 A +/-100 mA
54 Mbps 0.80 A +/-100 mA | | RX Current Consumption | DSSS
DataRate Sensitivity Tolerance
1 Mbps 300 mA +/-100 mA
2 Mbps 300 mA +/-10 0mA
5.5 Mbps 300 mA +/-100 mA
11 Mbps 300 mA +/-10 0mA
OFDM
DataRate Sensitivity Tolerance
6 Mbps 300 mA +/-100 mA
9 Mbps 300 mA +/-100 mA
12 Mbps 300 mA +/-100 mA
18 Mbps 300 mA +/-100 mA
24 Mbps 300 mA +/-100 mA
36 Mbps 300 mA +/-100 mA
48 Mbps 300 mA +/-100 mA
54 Mbps 300 mA +/-100 mA | | | | Range Performance | Indoor (antenna dependent): Up to 1,312 ft / 400 m
Outdoor (antenna dependent): Over 31 mi / 50 km | | Operating System Support | Linux MADWIFI, Windows XP, Windows 2000 | | Advanced Mobility / QuickHandoff | Windows XP / 2000 Utility with Enhanced Mobility Driver from Ubiquiti | | Cisco Support | CCX 4.0 Certified Driver / Utility also available from Ubiquiti | | | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.5 x 2.4 x 0.2" |
