User Manual for Ultimate Support Nucleus 5 Modular Studio Desk with 24" Extensions, 2nd Tier, Keyboard Shelf, and Three Equipment Racks Click to enlarge the picture
Contents of the user manual for the Ultimate Support Nucleus 5 Modular Studio
- Product category: Workstation Desks & Consoles Ultimate Support
- Brand: Ultimate Support
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ultimate Support Workstation Desks & Consoles
 |
User manual for the Ultimate Support Nucleus 5 Modular Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ultimate Support product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ultimate Support user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ultimate Support product will considerably shorten its lifespan!
|

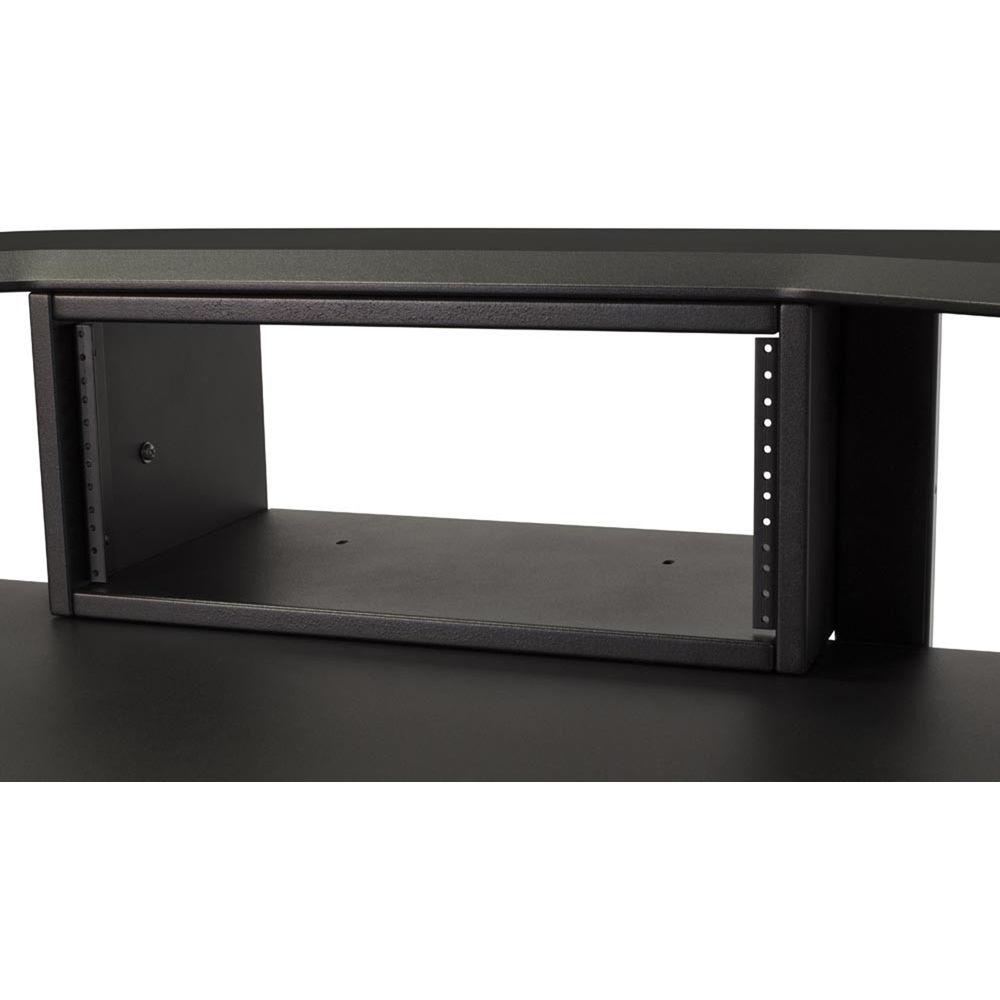

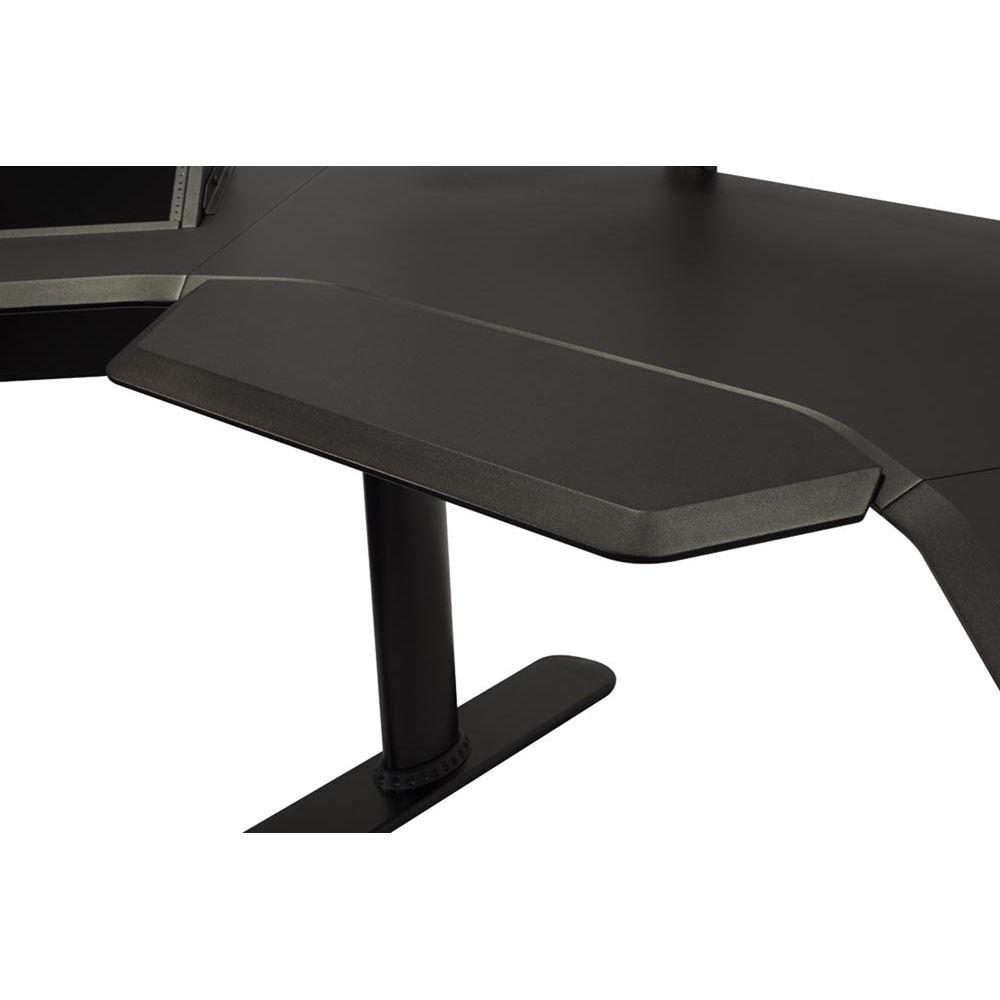

Product description The Ultimate Support Nucleus 5 is a modular studio desk designed to provide convenient and efficient equipment access for recording, editing, mixing, and mastering engineers in home, project, and commercial studios. It features a 29.5" high main worksurface with a 58" wide second tier, a pull-out shelf for your keyboard and mouse, and two 24" side extensions. Each extension houses a sunken 6 RU rack while a 4 RU rack is mounted in the center beneath the second tier. Powder-coated MDF construction ensures durability session after session. Sonic isolation and decoupling on the desk legs minimize the transfer of vibrations and resonance. Weight distribution is enhanced by channels in the legs. The modular design of the Nucleus 5 enables easy expansion and reconfiguration. - 4 RU equipment rack beneath second tier

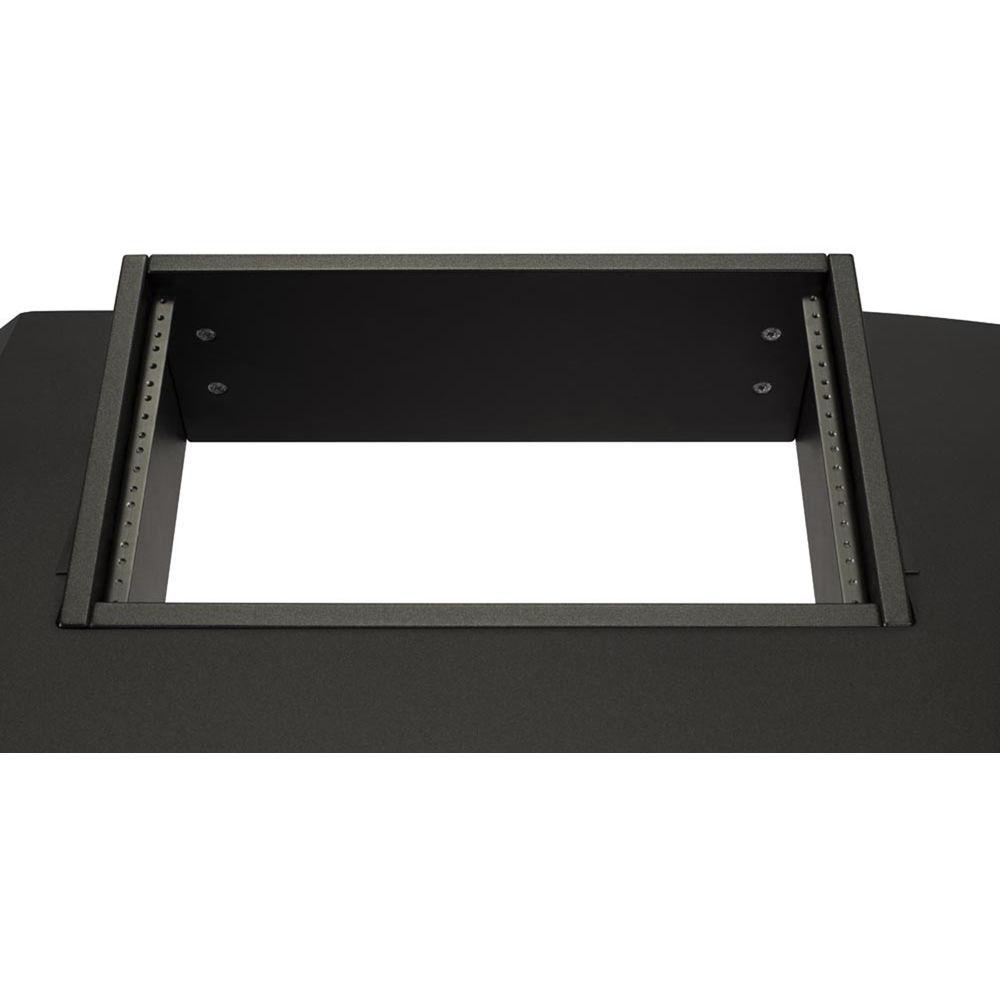

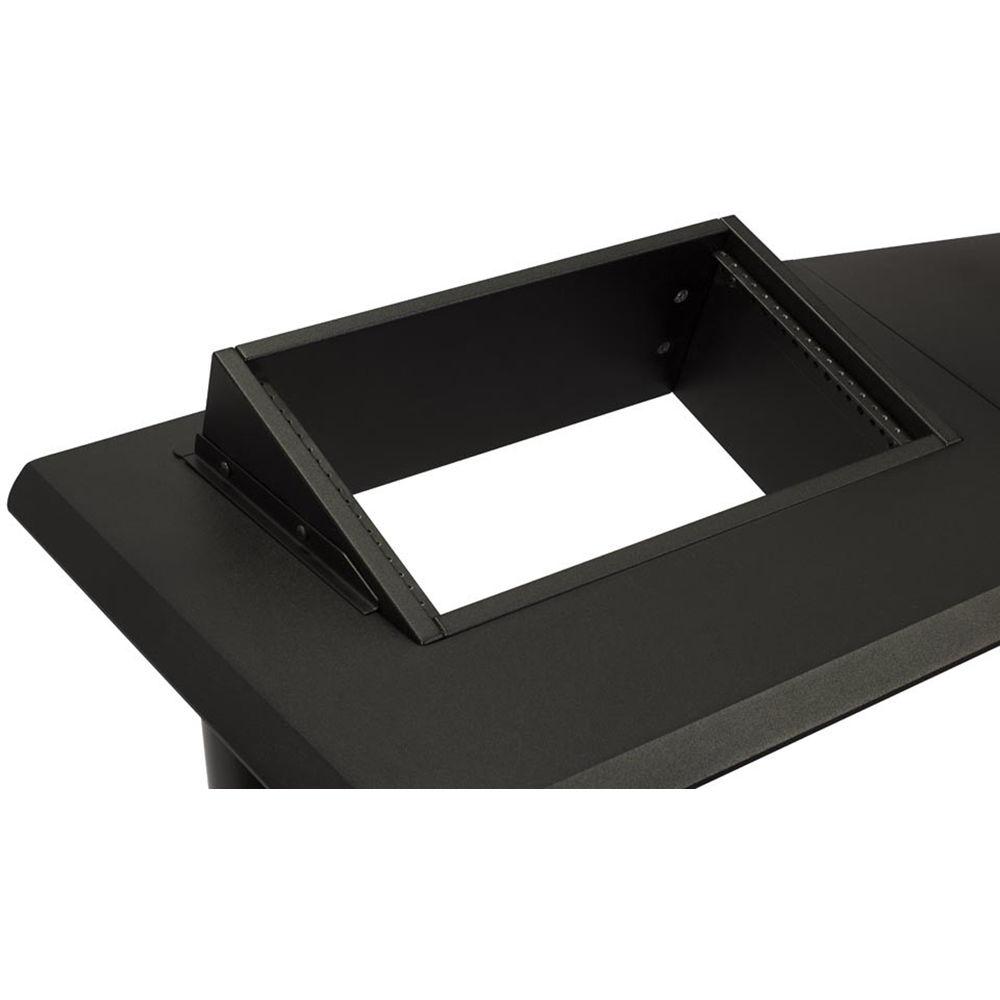

- Two sunken 6 RU equipment racks angled up for ergonomic access
- 58" wide second tier is ideal for a video monitor and speakers

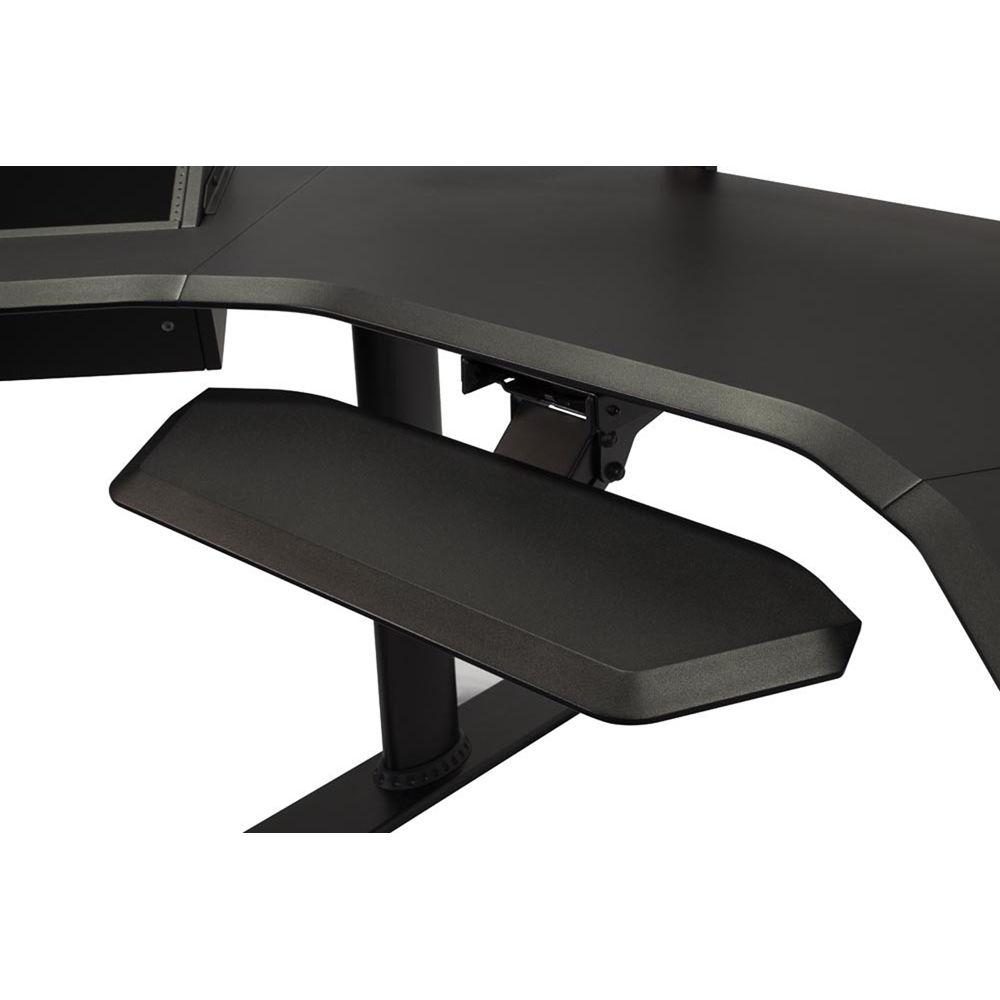

- Keyboard/mouse shelf is adjustable to accommodate different height preferences for comfortable typing

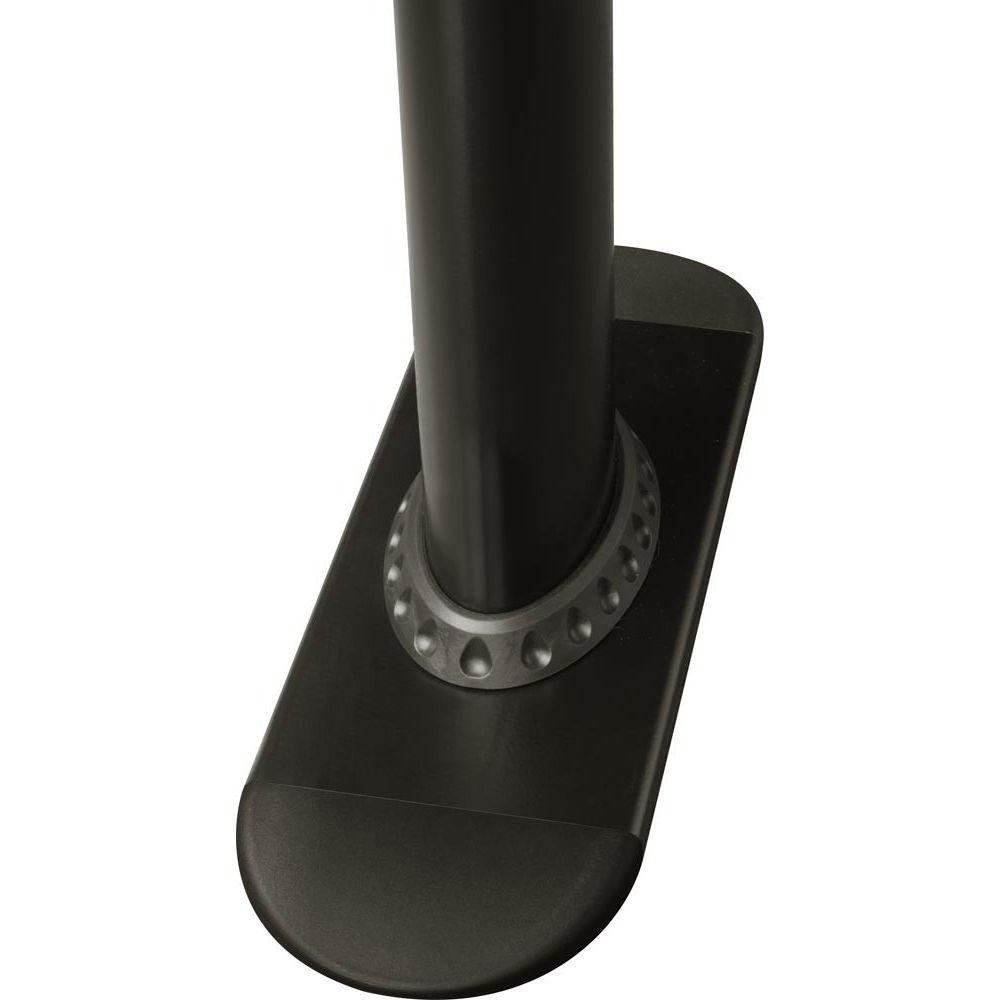

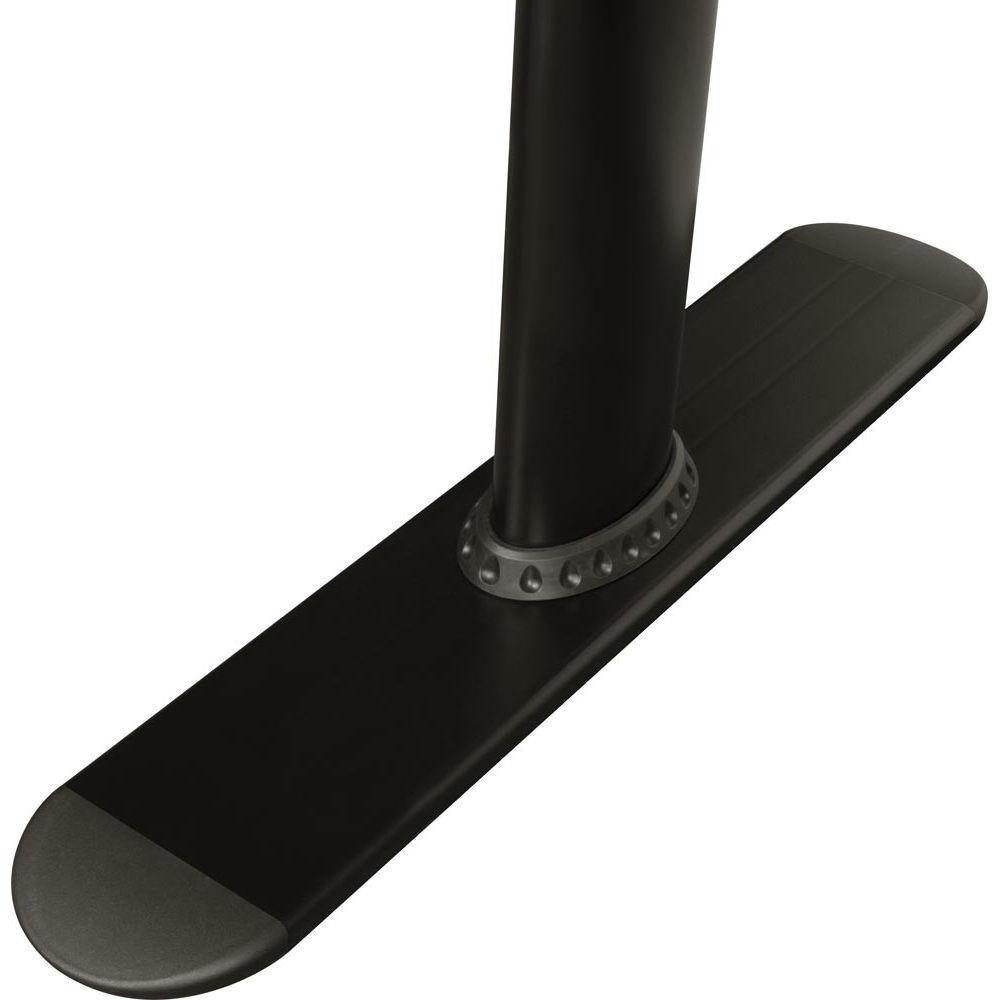

- Sonic isolation and decoupling on desk legs for minimized transfer of vibrations
- Channels in legs improve weight management and decoupling
- Modular design allows easy expansion with other Nucleus Series parts and accessories (available separately)
UPC: 784887181174 In the Box Ultimate Support Nucleus 5 Modular Studio Desk with 24" Extensions, 2nd Tier, Keyboard Shelf, and Three Equipment Racks Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ultimate Support Nucleus 5 Modular Studio Desk with 24" Extensions, 2nd Tier, Keyboard Shelf, and Three Equipment Racks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUltimate Support 18117 Specs | Desk Surface Size (W x D) | 101.8 x 24" / 258.5 x 61 cm | | Shelf Size (W x D) | 58.2 x 12.1" / 147.7 x 30.8 cm
30.6 x 9.8" / 77.7 x 24.8 cm (Keyboard) | | Surface Heights | 29.5" / 74.9 cm (Desk) | | Rack Form Factor | 4 RU (Center)
6 RU (Side)
16 RU (Total) | | Material of Construction | MDF | | Overall Dimensions (W x H x D) | 101.8 x 65.3 x 39.3" / 258.5 x 165.9 x 99.8 cm | | Weight | 198.3 lb / 89.9 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
