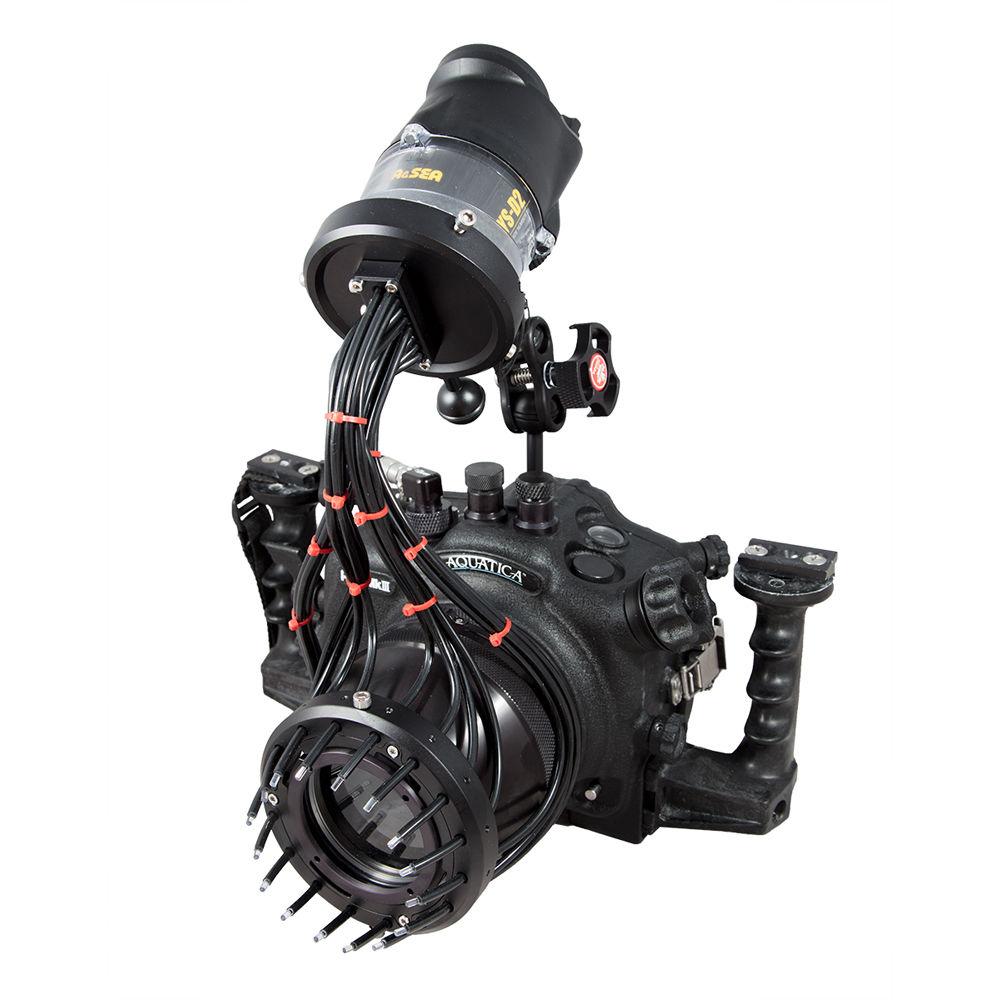

Product description Turn your underwater strobe into a ring light with ULTRAMAX's Fiber-Optic Ring Flash Head Kit, which can be mounted onto Aquatica camera housings that have the #18430 Mini Macro Port attached. This bayonet-style port accommodates the Canon EF 100mm and 60mm f/2.8 lenses, as well as Nikon's AF Micro 60mm and 105mm f/2.8 models and Sony's FE 90mm f/2.8 Macro G. The ring apparatus is useful for macro and super-macro shooting, and even allows for the attachment of accessory close-up lenses, such as Aquatica's +5 and +10 Wet Diopters, via the 67mm threads on the ring.
This kit is compatible with the ULTRAMAX ULTRAPOWER UXDS-1 strobe and the Sea&Sea YS-D1 and D2 models. Adding an optional adapter ring will allow you to use it with INON's Z220 and Z240 strobes, as well as others with front diameters of up to 105mm. Please be advised that the ring flash head ships without the required strobe.

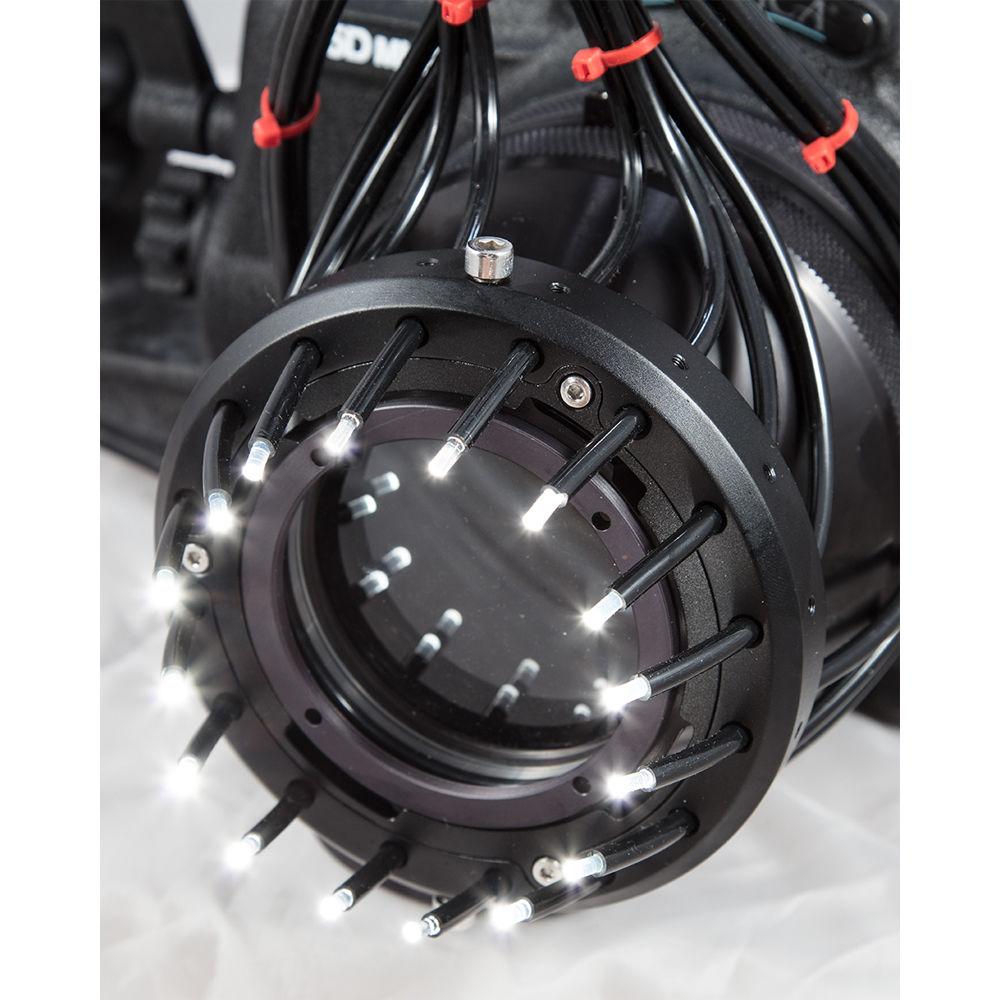

When the flash fires, sixteen coated, tightly-bundled fiber-optic cables transfer the light to the other end of the apparatus. There, the solid-core ends of the cables are arranged in a circle along the edge of the anodized aluminum ring that fits around your housing's lens port. The light comes through the ends of the cables, creating the ring flash effect.
Attached to the cap at the opposite end is a standard 1" ball mount, which can be connected to a cold shoe-to-ball adapter on top of the housing via the optional clamp. This setup will hold the strobe and the ring flash kit securely in place. When you want to use your flash as a regular external light source again, you'll be able to remove it from the fiber-optic ring apparatus with ease. In the Box ULTRAMAX Fiber-Optic Ring Flash Head Kit for Select Strobes and Aquatica Housing with Mini Macro Port Allen Key Set Pack of Cable Ties Set of Securing Screws for Ring Set of Securing Screws for Strobe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX Fiber-Optic Ring Flash Head Kit for Select Strobes and Aquatica Housing with Mini Macro Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXRFAQMINI-DS1 Specs | Material of Construction | Cap and Ring: Anodized aluminum alloy | | Cables | 16x Fiber-optic cables with solid-core ends
Cable Diameter: 3.0 mm | | Mounts | 1.0" / 25.4 mm ball mount for attachment to housing via clamp and cold shoe adapter
67 mm threads on ring for attachment of close-up lenses, such as Aquatica's +5 and +10 Wet Diopters |
