User Manual for ULTRAMAX Fiber-Optic Ring Flash Head Kit for Select Strobes and Fantasea FRX100 Housings Click to enlarge the picture
Contents of the user manual for the ULTRAMAX Fiber-Optic Ring Flash Head Kit
- Product category: Lighting Accessories ULTRAMAX
- Brand: ULTRAMAX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ULTRAMAX Lighting Accessories
|
User manual for the ULTRAMAX Fiber-Optic Ring Flash Head Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ULTRAMAX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ULTRAMAX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ULTRAMAX product will considerably shorten its lifespan!
|

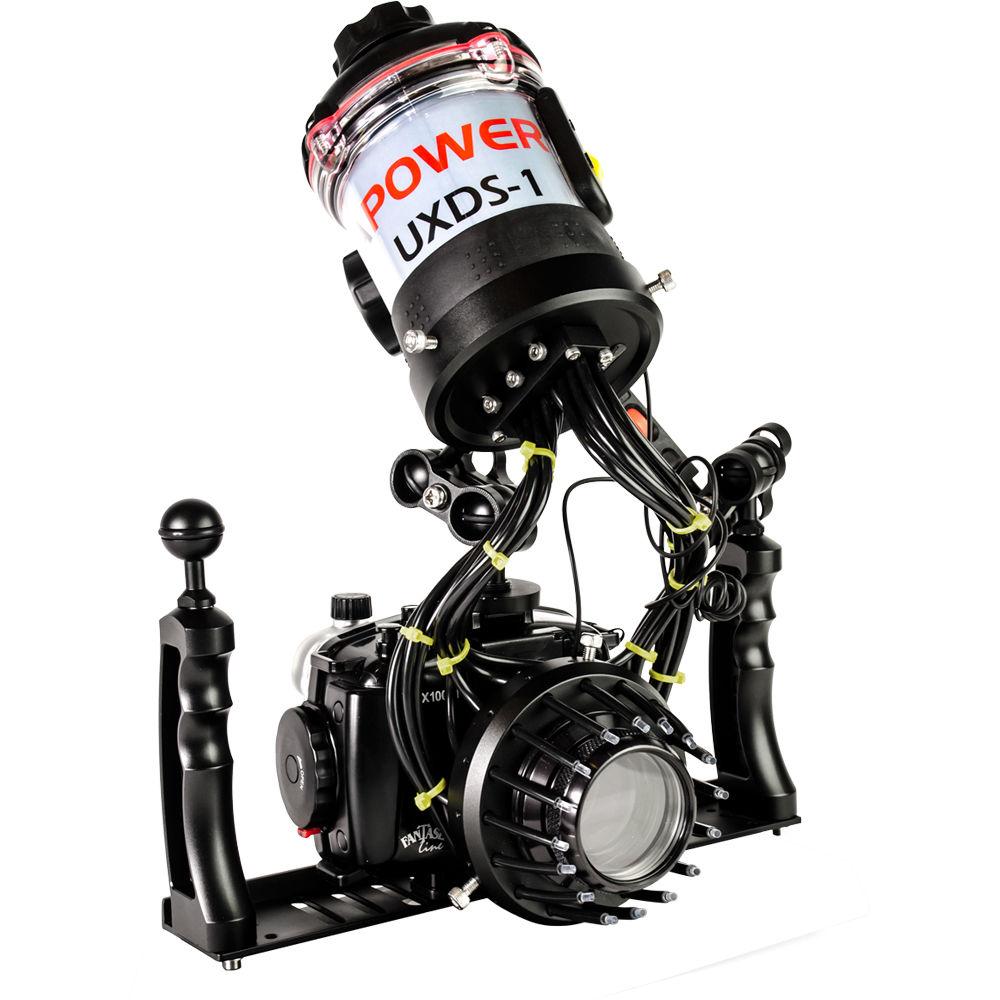

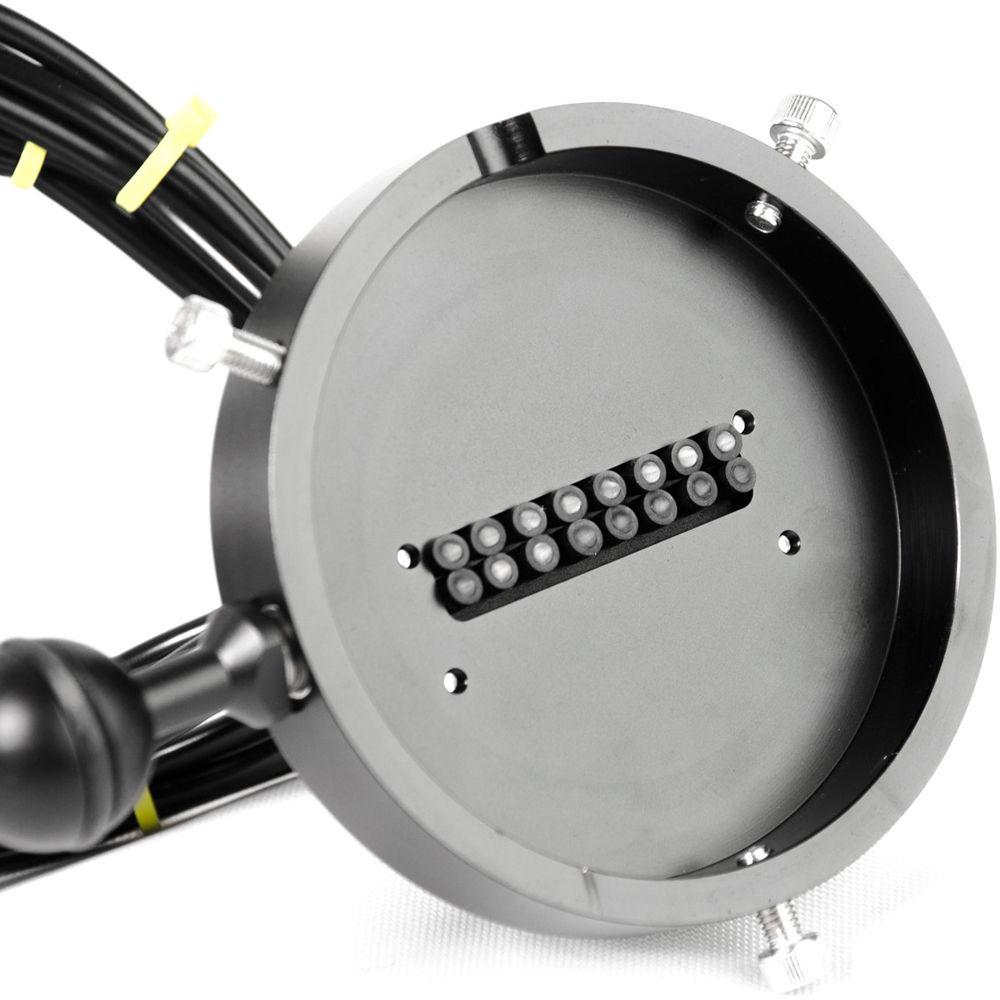

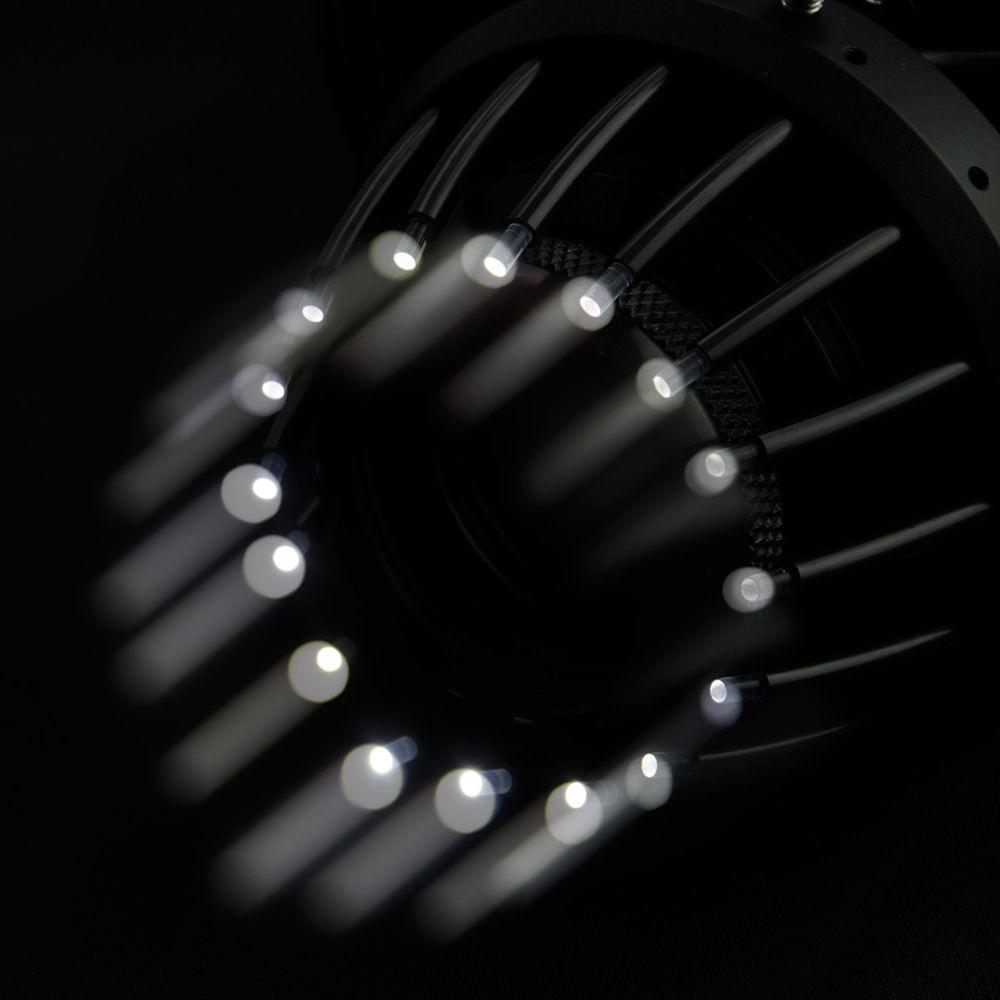

Product description Turn your underwater strobe into a ring light with ULTRAMAX's Fiber-Optic Ring Flash Head Kit, which can be mounted onto Fantasea FRX100-series housings for Sony Cyber-shot RX100 III, IV, and V cameras. It can also be attached to other housings that have lens ports measuring 80mm or less in diameter. The kit is compatible with the ULTRAMAX UXDS-1 and UXDS-3 strobes, as well as the Sea & Sea YS-D1 and D2 models. Adding an optional adapter ring will allow you to use it with INON's Z220 and Z240 strobes, too. Please be advised that the ring flash head apparatus ships without the required strobe. This kit is useful for macro and super-macro shooting, and even allows for the attachment of accessory close-up lenses via the 67mm threads on the ring. At one end of the unit is a large, anodized aluminum cap that fits over the front of your strobe. When the flash fires, sixteen coated, tightly-bundled fiber-optic cables transfer the light to the other end of the apparatus. There, the solid-core ends of the cables are arranged in a circle along the edge of the anodized aluminum ring that fits around your housing's lens port. The light comes through the ends of the cables, creating the ring flash effect. Attached to the cap at the opposite end is a standard 1" ball mount, which can be connected to a cold shoe-to-ball adapter on top of the housing via the optional clamp. This setup will hold the strobe and the ring flash kit securely in place. When you want to use your flash as a regular external light source again, you'll be able to remove it from the fiber-optic ring apparatus with ease. In the Box ULTRAMAX Fiber-Optic Ring Flash Head Kit for Select Strobes and Fantasea FRX100 Housings Allen Key Set Pack of Cable Ties Set of Securing Screws for Ring Set of Securing Screws for Strobe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX Fiber-Optic Ring Flash Head Kit for Select Strobes and Fantasea FRX100 Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXRF-1FRXDS1 Specs Material of Construction | Cap and Ring: Anodized aluminum alloy | Cables | 16x Fiber-optic cables with solid-core ends Cable Diameter: 3.0 mm | Mounts | 1.0" / 25.4 mm ball mount for attachment to housing via clamp and cold shoe adapter 67 mm threads on ring for attachment of close-up lenses |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
