User Manual for ULTRAMAX ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light Click to enlarge the picture
Contents of the user manual for the ULTRAMAX ULTRAPOWER-II 6W LED Wide-Angle Video
- Product category: Dive Lights ULTRAMAX
- Brand: ULTRAMAX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ULTRAMAX Dive Lights
 |
User manual for the ULTRAMAX ULTRAPOWER-II 6W LED Wide-Angle Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ULTRAMAX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ULTRAMAX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ULTRAMAX product will considerably shorten its lifespan!
|

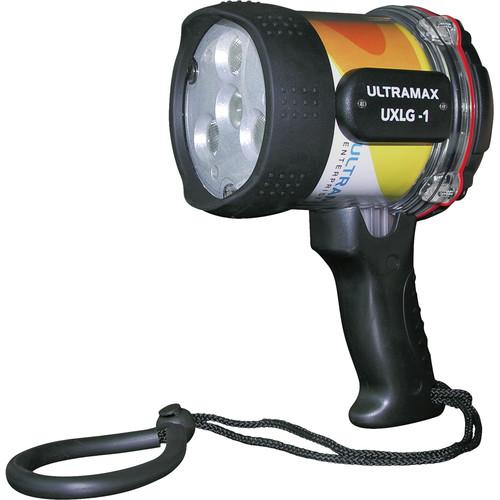

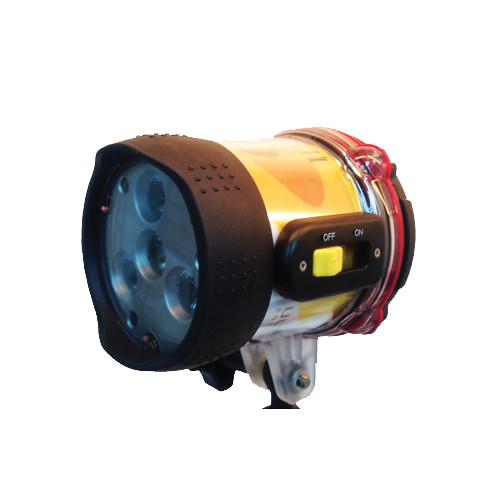

Product description The ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light from ULTRAMAX features a depth rating of 180'. It has three 1W LEDs and one 3W LED, for a total of 6W. Two power control buttons offer 8 output level selection settings ranging from 120-500 lumens. The light provides a beam angle of 55° and a daylight-balanced color temperature of 5700K. The one-touch on/off push-button control features an LED indicator that blinks when power is low. Built for durability, the ULTRAPOWER-II is enclosed in a corrosion-resistant polycarbonate housing and has a protective thermoplastic elastomer (TPE) jacket on the light head. A triple-ring seal provides maximum leak protection. Additionally, a double O-ring seal around the battery cap and a sealed battery compartment keep any moisture completely isolated from the electronic modules--ensuring that the light does not sustain damage if the battery compartment takes in water and making safe battery replacement a worry-free task. The light is powered by 4 AA alkaline or NiMH batteries, which are available separately and provide a run time of 1.5 hr at full power. A detachable handle offers a comfortable, secure grip, and is supplied with the required mounting screw. Also included is a soft wrist lanyard with a quick-release lock. - Light Performance
-
- Three 1W LEDs and one 3W LED, for a total of 6W
- 8 output level settings ranging from 120-500 lumens
- Provides a beam angle of 55° and a daylight-balanced color temperature of 5700K
- 4 AA alkaline or NiMH batteries are available separately and provide a run time of 1.5 hr at full power
- Switching
-
- Two buttons for output level selection

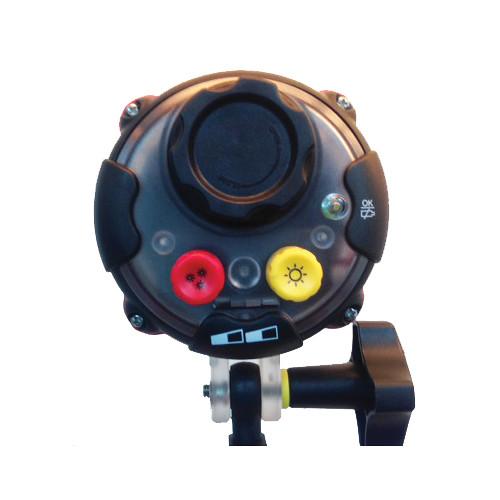

- One-touch on/off push-button with LED indicator that blinks when power is low
- Construction Details
-
- Depth rating of 180'. Triple-ring seal provides maximum leak protection
- Double O-ring seal around battery cap and a sealed battery compartment keep moisture isolated from electronics, ensuring that light does not sustain damage
- Enclosed in a corrosion-resistant polycarbonate housing
- Protective thermoplastic elastomer (TPE) jacket on light head
- Included Accessories
-
- Detachable handle offers a comfortable, secure grip, and is supplied with the required mounting screw
- Soft wrist lanyard with a quick-release lock
UPC: 838393001034 In the Box ULTRAMAX ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light Detachable Handle with Mounting Screw Wrist Lanyard with Quick-Release Lock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXLG-1 Specs | Depth Rating | 180' / 55 m | | Light Source | 3x 1.0 W LEDs and 1x 3.0 W LED | | Light Intensity | 8 outputs from 120-500 Lumens | | Beam Angle | 55° | | Color Temperature | 5700 K | | Run Time | 1.5 hr at full power | | Construction | Durable polycarbonate body
Thermoplastic elastomer (TPE) jacket on light head | | Buoyancy | Positive | | Mounting | Detachable handle with mounting screw (supplied) | | Power | 4x 1.5 V AA alkaline or 4x 1.2 V NiMH batteries (not included) | | Dimensions | 6.0 x 4.0 x 5.5" / 15.2 x 10.2 x 14 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.1 x 6.6 x 4.6" |
