ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe

User Manual for ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe and LED Dive Light Duo Pack

• Product category: Strobe Lights ULTRAMAX
• Brand: ULTRAMAX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ULTRAMAX Strobe Lights

Product description

• ULTRAPOWER UXDS-1 Digital Underwater Strobe Head The ULTRAPOWER UXDS-1 Digital Underwater Strobe Head from ULTRAMAX is a flash with a depth rating of 180'. It offers a guide number of 65.6' at ISO 100 (on land), a power rating of approximately 25 Watt-sec, a coverage angle of 60°, and a daylight-balanced color temperature of 5700K. There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Choose from power/brightness output levels of 10%, 25%, 50%, and 100%. The strobe also has slave functionality, allowing it to be triggered by the firing of another flash. Color-coded LED indicators tell you the selected pre-flash and flash output modes. The UXDS-1 runs on 4 AA batteries, which are available separately and are housed in a compartment that's completely isolated from the electronics in order to prevent water damage to the strobe if the compartment is accidentally opened or batteries are changed when the unit is still wet from a dive. Additionally, the strobe has a durable housing made of corrosion-resistant polycarbonate.
  Depth Rating
  • Safe to use at a maximum depth of 180'. The housing is secured via double O-ring seal, and the battery compartment is completely isolated from the electronics to prevent water damage if it's accidentally opened or batteries are changed when unit is still wet from a dive.
  Guide Number
  • 65.6' at ISO 100 (on land)
  Power Rating
  • Approximately 25 Watt-sec
  Coverage
  • Offers a coverage angle of 60°.
  Color Temperature
  • Daylight-balanced at 5700K.
  Modes
  • There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Additionally, there are 4 output levels: 10%, 25%, 50%, and 100%. The strobe also has a flash test button. Benefit from manual exposure control.
  Flash Triggering
  • Twin slave sensors allow strobe to be triggered wirelessly by another flash, such as the camera's built-in one. When either sensor detects light from a flash, the strobe fires instantly. You can also purchase an optional fiber-optic connector and cable for triggering.
  Color-Coded LED Indicators
  • Tell you the selected pre-flash and flash output modes. A blinking LED indicates low power.
  Power
  • Runs on 4 AA batteries, which are available separately, and features a magnetic on/off switch.
  Construction
  • Housed in a durable case made from corrosion-resistant polycarbonate.
  Mounting
  • Optional UXFA-1 9.5" Flex Arm with Foam Grip and UXST-1 Strobe Tray are available, giving you a mounting point for the strobe and a camera, and also providing improved handling.
  UPC: 838393001058
• Coiled Fiber-Optic Cable Kit (3.3') Connect your underwater housing and strobe with this 3.3' Coiled Fiber-Optic Cable Kit from ULTRAMAX. Standard-size plug-in connectors at both ends allow you to easily attach a wide variety of strobes, such as the ULTRAPOWER UXDS-1 or UXDS-3, to various underwater compact camera housings, such as the UXDV-3. The connectors are also compatible with Sea & Sea-type fiber-optic cable ports. The included 3M adhesive tape backing on the connector holders allows use on underwater housings and strobes without fiber-optic ports. UPC: 838393005186

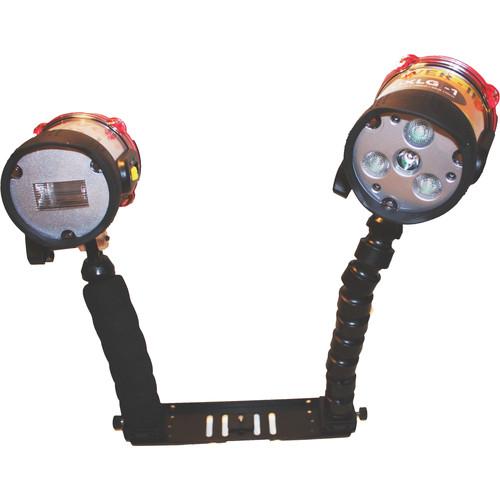

• ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light The ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light from ULTRAMAX features a depth rating of 180'. It has three 1W LEDs and one 3W LED, for a total of 6W. Two power control buttons offer 8 output level selection settings ranging from 120-500 lumens. The light provides a beam angle of 55° and a daylight-balanced color temperature of 5700K. The one-touch on/off push-button control features an LED indicator that blinks when power is low. Built for durability, the ULTRAPOWER-II is enclosed in a corrosion-resistant polycarbonate housing and has a protective thermoplastic elastomer (TPE) jacket on the light head. A triple-ring seal provides maximum leak protection. Additionally, a double O-ring seal around the battery cap and a sealed battery compartment keep any moisture completely isolated from the electronic modules--ensuring that the light does not sustain damage if the battery compartment takes in water and making safe battery replacement a worry-free task. The light is powered by 4 AA alkaline or NiMH batteries, which are available separately and provide a run time of 1.5 hr at full power. A detachable handle offers a comfortable, secure grip, and is supplied with the required mounting screw. Also included is a soft wrist lanyard with a quick-release lock.
  Light Performance
  • Three 1W LEDs and one 3W LED, for a total of 6W
  • 8 output level settings ranging from 120-500 lumens
  • Provides a beam angle of 55° and a daylight-balanced color temperature of 5700K
  • 4 AA alkaline or NiMH batteries are available separately and provide a run time of 1.5 hr at full power
  Switching
  • Two buttons for output level selection
  • One-touch on/off push-button with LED indicator that blinks when power is low
  Construction Details
  • Depth rating of 180'. Triple-ring seal provides maximum leak protection
  • Double O-ring seal around battery cap and a sealed battery compartment keep moisture isolated from electronics, ensuring that light does not sustain damage
  • Enclosed in a corrosion-resistant polycarbonate housing
  • Protective thermoplastic elastomer (TPE) jacket on light head
  Included Accessories
  • Detachable handle offers a comfortable, secure grip, and is supplied with the required mounting screw
  • Soft wrist lanyard with a quick-release lock
  UPC: 838393001034
• 9.5" Flex Arm with Foam Grip for Underwater Light or Strobe This 9.5" Flex Arm with Foam Grip from ULTRAMAX features a standard YS connector on the top for light connection and a C-1 type connector on the base for mounting onto a tray. It is compatible with their ULTRAPOWER UXDS-1 Digital Underwater Strobe Head and ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light. It allows you to mount your strobe above and to the side of the camera's lens to reduce or eliminate glare and the backscatter effect. The versatile arm is articulated for easy positioning of the strobe head or LED light, and the neoprene foam cover provides a comfortable grip. The flex arm can easily be installed on ULTRAMAX'S UXST-1 Strobe Tray.

  The arm's knuckles/joints are precision-formed out of acetal copolymer, allowing for stiffness coupled with maximum flexibility. The base is made of anodized, marine-grade aluminum and has a thumb screw connection for easy, secure mounting on the strobe tray. The foam grip can be easily removed for thorough rinsing after saltwater dives. UPC: 838393005056
• YS Mount Flex Arm for Underwater Lighting (11.8") Mount this 11.8" YS Mount Flex Arm from ULTRAMAX onto their UXST-1 and UXST-2 underwater camera housing trays to enable versatile, creative lighting. The arm is also compatible with other trays equipped with T-1 connectors. Its flexible design allows strobes, focus lights, or video lights to be positioned at a wide variety of angles to help you get the best results and achieve different effects. The arm features a standard YS mount on top for attaching many strobes and lights. UPC: 838393005063
• Strobe Tray for Two Flex Lighting Arms Improve the handling of your underwater gear with this 10" Strobe Tray from ULTRAMAX. Constructed of lightweight anodized marine-grade aluminum for strength and durability, the tray features T-1 connectors for mounting two optional flex lighting arms, which will accommodate many different brands of strobe or video lights. Flex arm installation is easy and secure via a knurled lock screw. An included 1/4"-20 threaded stud fits most optional underwater camera housings. UPC: 838393005131

• Limited 1-Year Warranty

• Hex-Key

• 2 x Replacement Double-Side Adhesive Ring-Shaped Tapes

• Limited 1-Year Warranty

• Detachable Handle with Mounting Screw

• Wrist Lanyard with Quick-Release Lock

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ULTRAPOWER UXDS-1 Digital Underwater Strobe Head

  Configuration	Strobe head only
  Guide No.	65.6' / 20 m at ISO 100 (on land)
  Power Rating	Approx. 25 Watt-sec
  Coverage Angle	60°
  Depth Rating	180' / 55 m
  Flash Modes	5 pre-flash settings Flash test Output levels: 10%, 25%, 50% and 100%
  Exposure Control	Manual
  Slave	Yes, twin sensors for wireless slave functionality
  Color Temperature	5700 K
  Recycle Time	7.0 sec between full-power flashes
  Flashes	Approx. 120 per set of non-rechargeable batteries or per charge with rechargeables
  Indicators	Color-coded LEDs indicate selected pre-flash and flash output modes Low power indicated by blinking LED
  Connector	Wireless slave connection to camera's flash by default Optional fiber-optic connector and cable set available separately
  Buoyancy	Positive
  Power	4 AA rechargeable/non-rechargeable batteries (1.5 V or 1.2 V, not included) Magnetic on/off switch
  Material of Construction	Polycarbonate housing
  Dimensions	6.0 x 4.0 x 5.5" / 15.2 x 10.2 x 14 cm
  Weight	1.3 lb / 0.6 kg without batteries

  Box Dimensions (LxWxH)	9.7 x 7.6 x 4.9"

• Coiled Fiber-Optic Cable Kit (3.3')

  Length

  3.3' / 1.0 m

  Box Dimensions (LxWxH)	4.0 x 3.0 x 1.0"

• ULTRAPOWER-II 6W LED Wide-Angle Video Dive Light

  Depth Rating	180' / 55 m
  Light Source	3x 1.0 W LEDs and 1x 3.0 W LED
  Light Intensity	8 outputs from 120-500 Lumens
  Beam Angle	55°
  Color Temperature	5700 K
  Run Time	1.5 hr at full power
  Construction	Durable polycarbonate body Thermoplastic elastomer (TPE) jacket on light head
  Buoyancy	Positive
  Mounting	Detachable handle with mounting screw (supplied)
  Power	4x 1.5 V AA alkaline or 4x 1.2 V NiMH batteries (not included)
  Dimensions	6.0 x 4.0 x 5.5" / 15.2 x 10.2 x 14 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	9.1 x 6.6 x 4.6"

• 9.5" Flex Arm with Foam Grip for Underwater Light or Strobe

  Connectors	Standard YS on top for light connection C-1 type on base for mounting onto tray
  Material of Construction	Joints: Acetal copolymer Base: Anodized, marine-grade aluminum Grip: Neoprene foam
  Length	9.5" / 24 cm

  Box Dimensions (LxWxH)	9.5 x 2.0 x 1.5"

• YS Mount Flex Arm for Underwater Lighting (11.8")

  Connector	Standard YS mount on top for strobes and lights Base fits into tray's T-1 connector
  Length	11.8" / 30 cm

  Box Dimensions (LxWxH)	8.9 x 3.1 x 1.5"

• Strobe Tray for Two Flex Lighting Arms

  Mounting Stud	1/4"-20 threaded
  Connector	T-1 connector for optional flex arms
  Material of Construction	Anodized marine-grade aluminum
  Dimensions	10.0 x 2.0 x 0.5" / 25.0 x 5.0 x 1.3 cm
  Weight	5.3 oz / 150 g

  Box Dimensions (LxWxH)	9.764 x 2.0 x 0.472"
