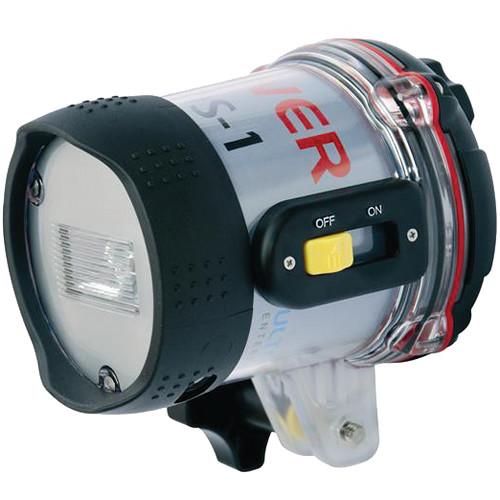

User Manual for ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe Head Click to enlarge the picture
Contents of the user manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe
- Product category: Strobe Lights ULTRAMAX
- Brand: ULTRAMAX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ULTRAMAX Strobe Lights
|
User manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ULTRAMAX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ULTRAMAX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ULTRAMAX product will considerably shorten its lifespan!
|
Product description The ULTRAPOWER UXDS-1 Digital Underwater Strobe Head from ULTRAMAX is a flash with a depth rating of 180'. It offers a guide number of 65.6' at ISO 100 (on land), a power rating of approximately 25 Watt-sec, a coverage angle of 60°, and a daylight-balanced color temperature of 5700K. There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Choose from power/brightness output levels of 10%, 25%, 50%, and 100%. The strobe also has slave functionality, allowing it to be triggered by the firing of another flash. Color-coded LED indicators tell you the selected pre-flash and flash output modes. The UXDS-1 runs on 4 AA batteries, which are available separately and are housed in a compartment that's completely isolated from the electronics in order to prevent water damage to the strobe if the compartment is accidentally opened or batteries are changed when the unit is still wet from a dive. Additionally, the strobe has a durable housing made of corrosion-resistant polycarbonate. - Depth Rating
- Safe to use at a maximum depth of 180'. The housing is secured via double O-ring seal, and the battery compartment is completely isolated from the electronics to prevent water damage if it's accidentally opened or batteries are changed when unit is still wet from a dive.
- Guide Number
- 65.6' at ISO 100 (on land)
- Power Rating
- Approximately 25 Watt-sec
- Coverage
- Offers a coverage angle of 60°.
- Color Temperature
- Daylight-balanced at 5700K.
- Modes
- There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Additionally, there are 4 output levels: 10%, 25%, 50%, and 100%. The strobe also has a flash test button. Benefit from manual exposure control.
- Flash Triggering
- Twin slave sensors allow strobe to be triggered wirelessly by another flash, such as the camera's built-in one. When either sensor detects light from a flash, the strobe fires instantly. You can also purchase an optional fiber-optic connector and cable for triggering.
- Color-Coded LED Indicators
- Tell you the selected pre-flash and flash output modes. A blinking LED indicates low power.
- Power
- Runs on 4 AA batteries, which are available separately, and features a magnetic on/off switch.
- Construction
- Housed in a durable case made from corrosion-resistant polycarbonate.
- Mounting
- Optional UXFA-1 9.5" Flex Arm with Foam Grip and UXST-1 Strobe Tray are available, giving you a mounting point for the strobe and a camera, and also providing improved handling.
UPC: 838393001058 In the Box ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXDS-1-HED Specs | Configuration | Strobe head only | | Guide No. | 65.6' / 20 m at ISO 100 (on land) | | Power Rating | Approx. 25 Watt-sec | | Coverage Angle | 60° | | Depth Rating | 180' / 55 m | | Flash Modes | 5 pre-flash settings
Flash test
Output levels: 10%, 25%, 50% and 100% | | Exposure Control | Manual | | Slave | Yes, twin sensors for wireless slave functionality | | Color Temperature | 5700 K | | Recycle Time | 7.0 sec between full-power flashes | | Flashes | Approx. 120 per set of non-rechargeable batteries or per charge with rechargeables | | Indicators | Color-coded LEDs indicate selected pre-flash and flash output modes
Low power indicated by blinking LED | | Connector | Wireless slave connection to camera's flash by default
Optional fiber-optic connector and cable set available separately | | Buoyancy | Positive | | Power | 4 AA rechargeable/non-rechargeable batteries (1.5 V or 1.2 V, not included)
Magnetic on/off switch | | Material of Construction | Polycarbonate housing | | Dimensions | 6.0 x 4.0 x 5.5" / 15.2 x 10.2 x 14 cm | | Weight | 1.3 lb / 0.6 kg without batteries | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.7 x 7.6 x 4.9" |
