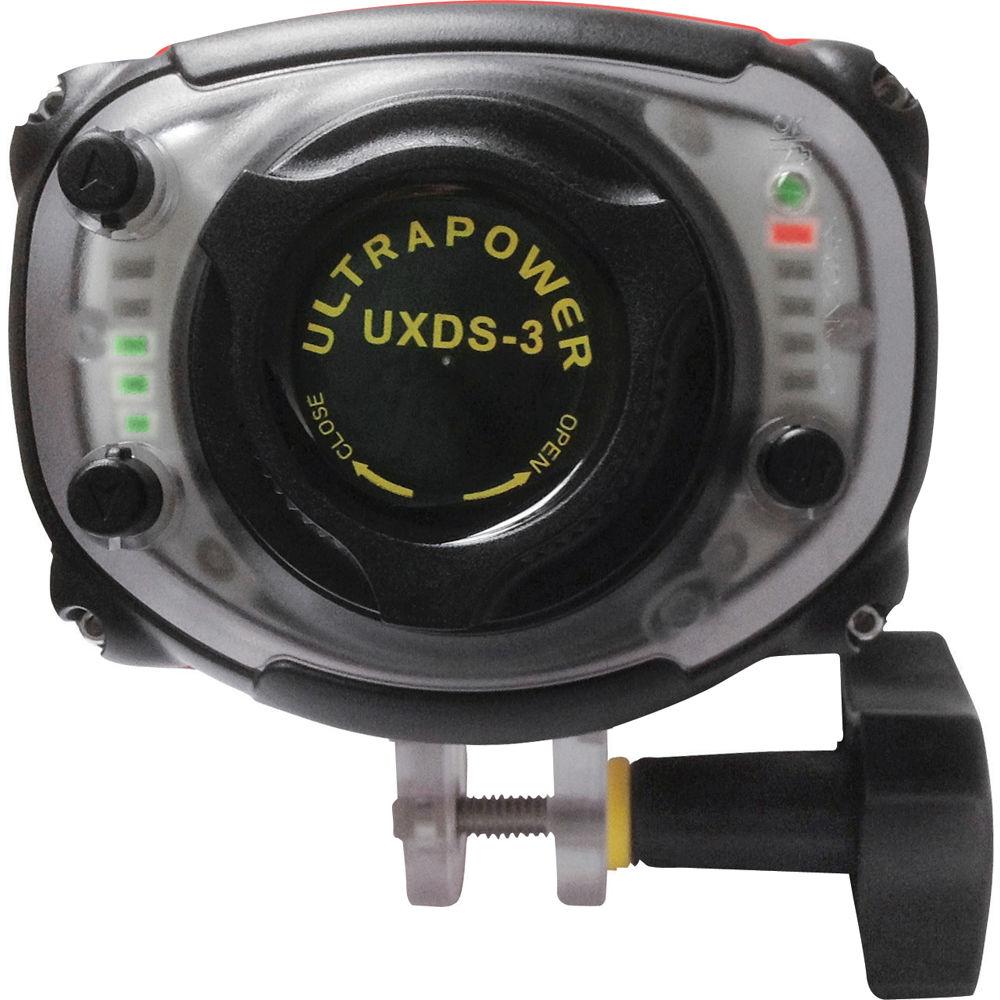

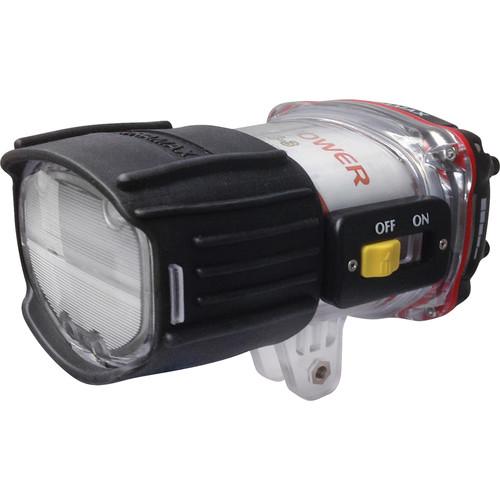

User Manual for ULTRAMAX ULTRAPOWER UXDS-3 Digital Underwater Strobe Head with Diffuser Click to enlarge the picture
Contents of the user manual for the ULTRAMAX ULTRAPOWER UXDS-3 Digital Underwater Strobe
- Product category: Strobe Lights ULTRAMAX
- Brand: ULTRAMAX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ULTRAMAX Strobe Lights
 |
User manual for the ULTRAMAX ULTRAPOWER UXDS-3 Digital Underwater Strobe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ULTRAMAX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ULTRAMAX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ULTRAMAX product will considerably shorten its lifespan!
|
Product description The ULTRAPOWER UXDS-3 Digital Underwater Strobe Head from ULTRAMAX is a flash with a depth rating of 197'. It offers a guide number of 66' at ISO 100 on land, as well as a power rating of approximately 25 watt-sec. It also has a coverage angle of 90° and a daylight-balanced color temperature of 5700K. There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Choose from power/brightness output levels from 20-100%. The strobe offers manual exposure control and has slave functionality, allowing it to be triggered by the firing of another flash.

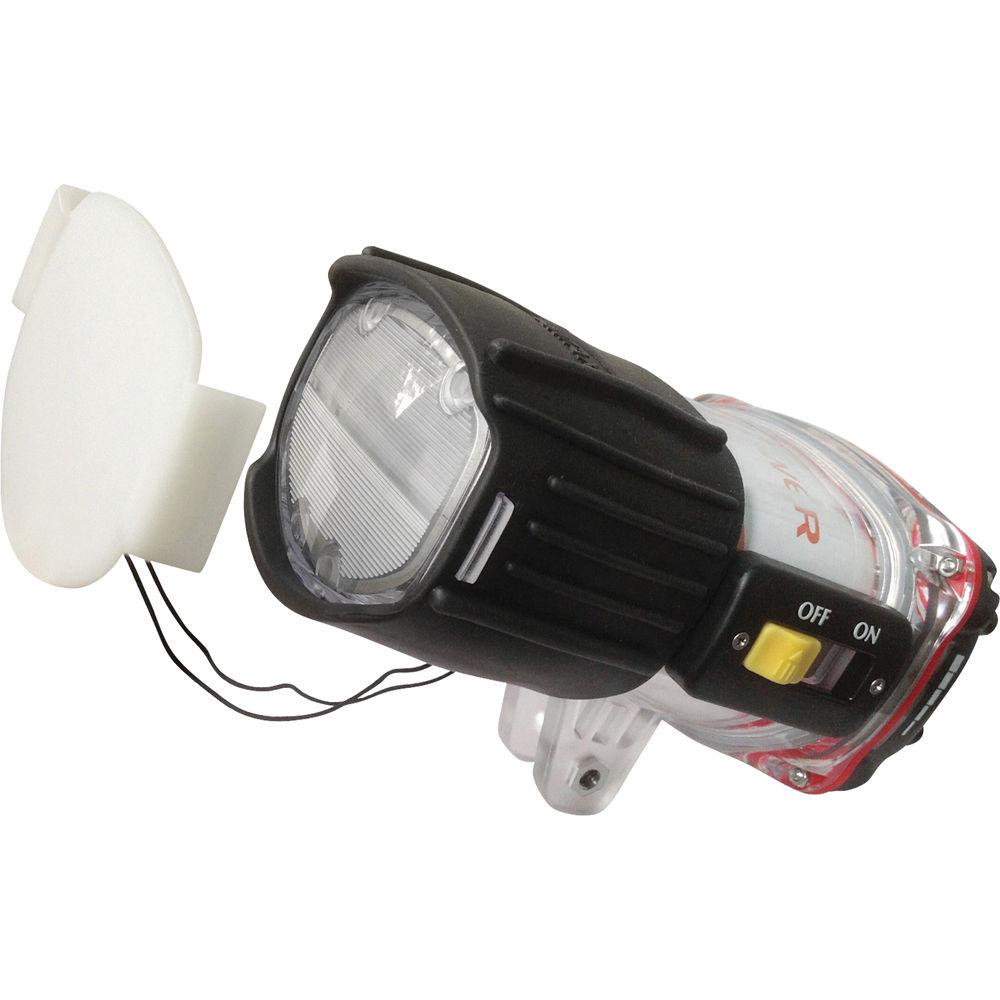

LEDs indicate power level, low battery, and whether or not the flash is ready. The UXDS-3 runs on 4 AA alkaline or NiMH batteries, which are available separately and are housed in a compartment that's completely isolated from the electronics in order to prevent water damage to the strobe if the compartment is accidentally opened or batteries are changed when the unit is still wet from a dive. Additionally, the strobe has a durable housing made of corrosion-resistant polycarbonate. The supplied diffuser widens the UXDS-3's angle of coverage to 100° and softens its light to prevent backscatter, glare, and hard shadows. The strobe head is equipped with a standard YS connector for mounting onto an optional lighting arm. - Waterproofing
- Safe to use at a maximum depth of 197'. The battery compartment cap is secured via double o-ring seal as is the main body of the housing which also has a gasket as an enhanced barrier against water penetration. To eliminate possible leakage through the housing, Ultramax has used a simple reed switch controlled by a powerful external magnet. The battery compartment is completely isolated from the electronics in order to prevent water damage to the strobe if the compartment is accidentally opened or batteries are changed when the unit is still wet from a dive.
- Guide Number
- Features a GN of 66' at ISO 100 on land.
- Power Rating
- Features a power rating of approximately 25 watt-sec.
- Coverage
- Offers a coverage angle of 90°, which is 50% wider than Ultramax's previous model and can be increased to 100° using the supplied diffuser. The diffuser also softens the light to prevent backscatter, glare, and hard shadows.
- Color Temperature
- Daylight-balanced at 5700K.
- Modes and Triggering
- Offers manual exposure control. There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Choose from 5 power/brightness output levels ranging from 20-100%. The strobe also has slave functionality, allowing it to be triggered by the firing of another flash. An optional Fiber Optic Cable Kit (#UXDS-FOC) is also available.
- LED Indicators
- There are five LEDs that indicate power level, along with a green LED power ready light featuring a blinking function that indicates low battery.
- Power
- Runs on 4 AA alkaline or NiMH batteries, which are available separately.
- Construction Details
- Durable housing made of corrosion-resistant polycarbonate.
- Mounting
- Standard YS connector for attachment to a lighting arm with a YS mount, such as Ultramax's UXFA-1 or UXFA-2 Flex Arm. This arm can then be mounted onto their UXST-1 single or UXST-2 dual lighting arm tray or another tray with standard T-1 connectors. These trays also give you a mounting point for your camera housing and provide improved handling and balance beneath the water's surface.
UPC: 838393001041 In the Box ULTRAMAX ULTRAPOWER UXDS-3 Digital Underwater Strobe Head with Diffuser Diffuser Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX ULTRAPOWER UXDS-3 Digital Underwater Strobe Head with Diffuser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXDS-3-HED Specs | Configuration | Strobe head only | | Guide No. | 66' / 20 m at ISO 100 on land | | Power Rating | Approx. 25 watt-sec | | Coverage Angle | 90°
100° with supplied diffuser | | Depth Rating | 197' / 60 m | | Flash Modes | 5 pre-flash settings to synchronize with camera's built-in flash
5 power/brightness output levels from 20-100% | | Exposure Control | Manual | | Slave | Yes | | Fiber Optic Connector | Optional Fiber Optic Cable Kit (#UXDS-FOC) | | Color Temperature | 5700 K | | Recycle Time | Approx. 3.0 sec with fresh alkaline batteries | | Flashes | Approx. 150 with alkaline batteries | | Indicators | 5 LEDs for power level
Green LED power ready light with blinking function for low battery | | Connector | Standard YS connector | | Buoyancy | Neutral | | Power | Runs on 4 AA alkaline or NiMH batteries (not included) | | Switch | Magnetic on/off switch | | Material of Construction | Polycarbonate housing
Thermo-elastomer gasket seal | | Dimensions | 6.9 x 3.9 x 3.9" / 175 x 100 x 100 mm | | Weight | 1.5 lb / 0.7 kg without batteries | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 9.3 x 6.6 x 4.6" |
