Product description The UXDV-3-DIVE HD 720p Digital Video Camera and Underwater Housing Package from ULTRAMAX bundles their UXDV-3 HD Digital Video Camera with its compatible waterproof enclosure, the UXDV-3 Underwater Video Camera Housing. Enjoy the ability to shoot beneath the surface at a maximum depth of 180'.

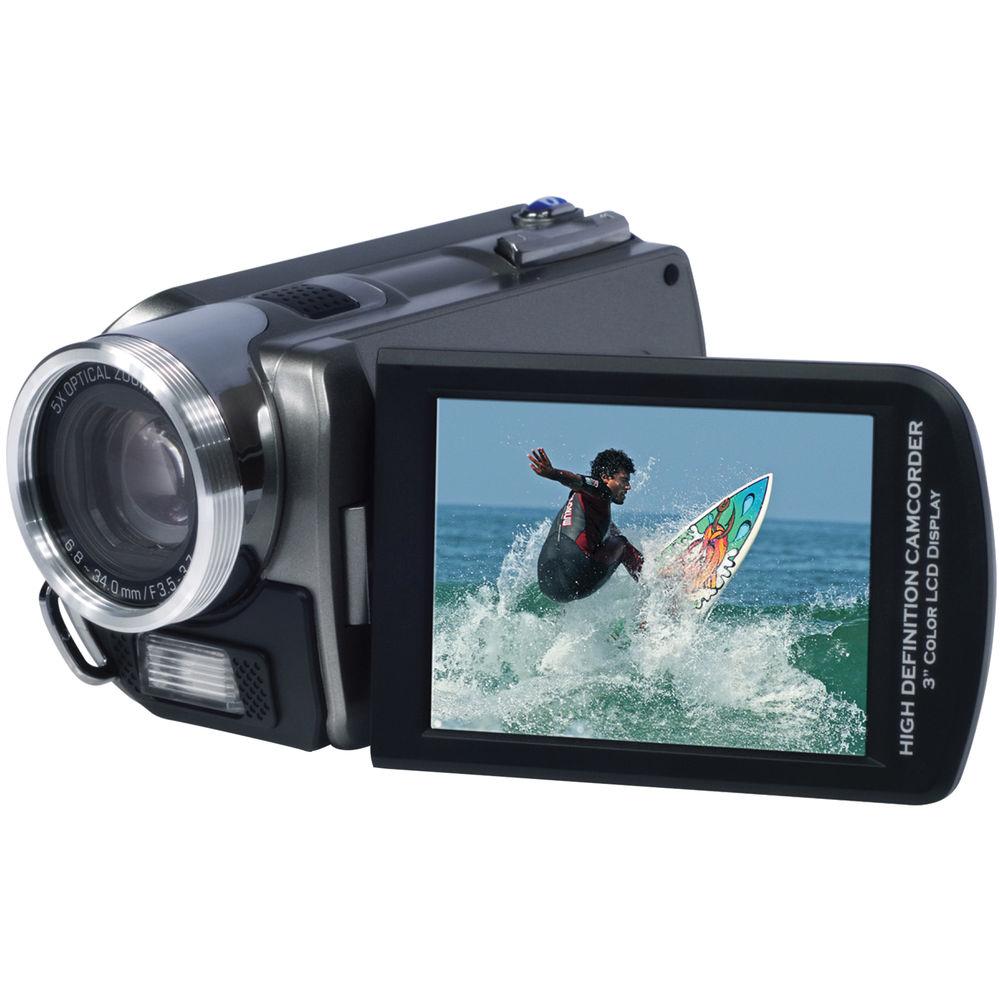

The UXDV-3 HD Digital Video Camera features a 5MP, 1/2.5" CMOS image sensor that delivers 1280 x 720p HD video at up to 30 fps. It can switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation. It has a 5x optical zoom lens with a 35mm- equivalent focal length range of 40.8-204mm and auto and manual focus selection. The camera records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity. It also has a 3.0" TFT LCD monitor with 270° rotation. A built-in flash aids in still shooting in low-light conditions. The camera also has image stabilization to reduce the effects of camera shake for clear, blur-free shots. The HDMI output and included cables enable you to view your HD videos on an HDTV. Additionally, the included lithium-ion battery provides approximately 1 hr of continuous recording time and is recharged by the supplied AC adapter. A USB cable is also provided.

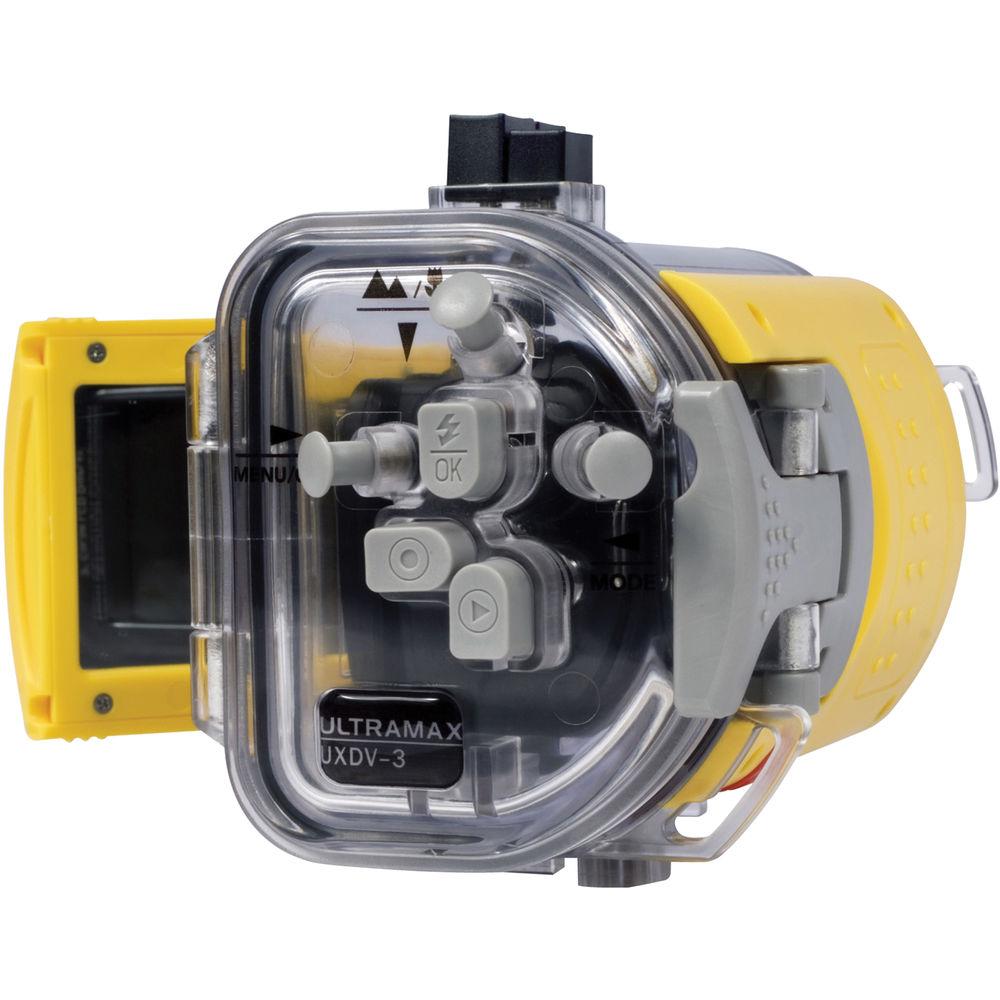

The yellow/clear UXDV-3 Underwater Video Camera Housing is constructed from corrosion-resistant polycarbonate and has a built-in, 3.0mm-thick tempered glass lens port. This port has a flat front element and a 46mm threaded ring for the attachment of an optional wide-angle conversion lens or color-correction filter. Clearly-marked buttons offer full control of the camera's functions. The housing also features a mirrored panel that flips out to display a reflected image of the camera's monitor. The housing permits the use of the camera's built-in flash, and you can use this to fire an optional, external wireless slave strobe. You can also purchase the optional # UXDS-FOC Fiber-Optic Cable Kit to trigger a strobe that way. An adjustable, touch-fastened hand strap with neoprene-wrapped padding is supplied. Camera - Resolution
- A 5MP, 1/2.5" CMOS image sensor records 1280 x 720p HD video at up to 30 fps. Switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation.
- Lens
- Features a 5x optical zoom lens with auto and manual focus and a 35mm-equivalent focal length range of 40.8-204mm.
- Display
- Equipped with a 3.0" TFT LCD monitor with 270° rotation.
- Night Mode
- Allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs in a dark place, the use of tripod is recommended to eliminate blur from shaking hands. The stabilizer function is disabled when NightShot is enabled.
- Macro
- For capturing extreme close-up pictures. Focus as close as 0.4" from your subject.
- Flash
- A built-in flash with auto and force modes aids in still shooting in low-light conditions.
- Memory
- Records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity.
- Playback
- Slide show of stills or videos
- Auto Off
- Set the length of the period of inactivity after which the camera will automatically shut down. You can select 1, 3 or 5min, or turn the feature off.
- Power
- Included lithium-ion battery provides approximately 1 hr of continuous recording time or 2 hr of operation in standby mode, and is recharged by the supplied AC adapter.
- Connectivity
- HDMI output and included cables enable you to view your HD videos on an HDTV. There's also a Composite AV-out (NTSC / PAL) connector. Additionally, the camera features a USB 2.0 port and a USB cable is provided.
Underwater Housing - Waterproofing
- Safe to use at a maximum depth of 180'. The Z-LOCK latch system with safety lock and the lens port shroud with seal ensure that the housing remains secure against water ingress.
- Controls and Operation
- Access to all camera functions is provided by the clearly-marked buttons on the housing. There's also a mirrored panel that flips out to display a reflected image of the camera's monitor. The camera's installed Diving Mode program flips the image on the monitor so that when it is reflected off the viewing panel, it appears normal and not as a flipped mirror image.
- Construction Details
- Built for durability, the housing's body is made from corrosion-resistant polycarbonate, and its flat, built-in lens port is crafted from 3.0mm-thick tempered glass.
- Flash Use
- Housing permits the use of the camera's built-in flash, which can trigger an optional, external wireless slave strobe or a wired strobe connected via the optional # UXDS-FOC Fiber Optic Cable Kit.
- Conversion Lens and Filter Attachment
- The lens port's 46mm threaded ring allows for the attachment of an optional wide-angle conversion lens or color-correction filter with the same thread diameter.
- Accessories
- An adjustable, touch-fastened hand strap with neoprene-wrapped padding is supplied.
UPC: 838393001027 In the Box ULTRAMAX UXDV-3-DIVE HD 720p Digital Video Camera and Underwater Housing Package UXDV-3 HD 720p Digital Video Camera UXDV-3 Underwater Video Camera Housing Set of Video Cables for TV Connection AC Adapter USB Cable Wrist Strap for Camera Hand Strap with Neoprene-Wrapped Padding for Housing Soft Padded Carrying Case CD-ROM with Driver Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX UXDV-3-DIVE HD 720p Digital Video Camera and Underwater Housing Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXDV-3-DIVE Specs | | | Sensor | 5.0 MP 1/2.5" CMOS | | Resolution | Still images:
5.0 MP: 2592 x 1944 (4:3), 2560 x 1920 (4:3)
2.0 MP: 1600 x 1200 (4:3)
8.0 MP (3200 x 2400 at 4:3), 12 MP (4000 x 3000 at 4:3) or 16 MP (4608 x 3456 at 4:3) available by interpolation | | File Format | Still image: JPEG
Movie: MP4 (H.264)
Audio: WAV | | Image Stabilization | Yes | | | | Focal Length | 6.8-34 mm
35 mm equivalent: 40.8-204 mm | | Maximum Aperture | f/3.5-3.7 | | Focusing Distance | Normal: 31.5" / 80 cm - infinity
Macro: 0.4 - 31.5" / 1.0 - 80 cm | | Zoom | Digital: 4x | | | | Resolution | 1280 x 720 at up to 30 fps
640 x 480 at up to 30 fps
320 x 240 at up to 30 fps | | System | NTSC, PAL | | Recording Media | SD/SDHC card up to 32 GB, or MMC card | | Audio Recording | Yes, with video or voice memo via built-in microphone | | | | Display Type | LCD | | Screen Size | 3.0" / 7.6 cm | | | | Exposure Modes | Auto, manual | | Exposure Compensation | -2 to +2 | | Shooting Modes | Auto, night mode, macro | | White Balance | Auto, Sunny, Cloudy, Fluorescent, Tungsten | | Effect | Normal / natural color
Black and white
Classic sepia tone | | Self-Timer Delay | 10 sec | | Continuous Shooting | Yes | | | | Flash Modes | Auto, force, off | | | | Frequency | Set flicker frequency to 50 Hz or 60 Hz | | Date | Date stamp on/off | | | | Connectors | HDMI out, Composite AV-out (NTSC / PAL), USB 2.0 | | | | Power | NP60 lithium-ion rechargeable battery (3.7 V, 1000 mAh)
DC input: 5.0 V, 1.0 A | | System Requirements | Operating system: Windows XP SP2, Vista or Windows 7
CPU: AMD or Intel CPU with 3.2 GHz, or multi-core CPU
System RAM: 1.0 GB (2.0 GB recommended)
Graphic card: 256 MB memory
CD-ROM speed: 4X or above
Software: H.264 decoder (Quick Time Player 7.4.1 or above)
Other: 1 free USB port, 1 optical drive | | Operating Environment | Temperature: 0 to 45°C
Humidity: up to 85% RH | | Dimensions | 4.6 x 2.3 x 2.5" / 117 x 59 x 63 mm | | Weight | 10.6 oz / 300 g | | | | Depth Rating | 180' / 55 m | | Controls | Access to all camera functions | | Material of Construction | Polycarbonate body
3.0mm-thick tempered glass lens port | | Lens Port | Flat, built-in port
46 mm threaded ring for attachment of optional wide-angle conversion lens or color-correction filter | | External Flash Connector | Camera's built-in flash triggers optional, external wireless slave strobe, or wired strobe using optional # UXDS-FOC Fiber Optic Cable Kit | | Type of Closure | Z-LOCK latch system with safety lock | | Dimensions | 7.0 x 4.5 x 5.0" / 178 x 114 x 127 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 16.0 x 10.23 x 6.5" |
