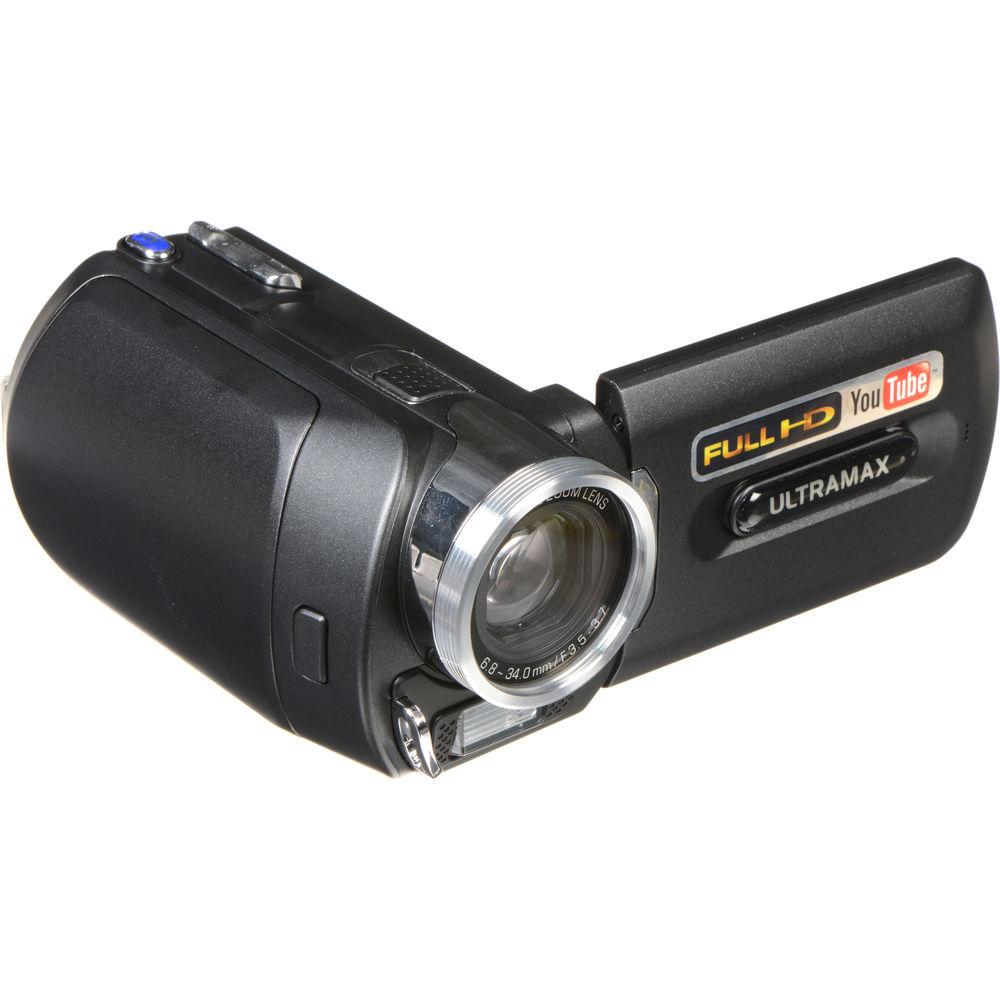

Product description The UXDV-3HD-CAM 1080p Digital Video Camera is an HD camera that supports both NTSC and PAL television signals, and features a 5MP, 1/2.5" CMOS image sensor that delivers 1920 x 1080p HD video at up to 30 fps. It can switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation. It has a 5x optical zoom lens with a 35mm- equivalent focal length range of 40.8-204mm and auto and manual focus selection. The camera records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity. It also has a 3.0" TFT LCD monitor with 270° rotation. A built-in flash aids in still shooting in low-light conditions. The camera also has image stabilization to reduce the effects of camera shake for clear, blur-free shots. The HDMI output and included cables enable you to view your HD videos on an HDTV. Additionally, the included lithium-ion battery provides approximately 1 hr of continuous recording time and is recharged by the supplied AC adapter. A USB cable is also provided. The camera fits into an Ultramax UXDV-3HD-HSE underwater housing. - Resolution
- A 5MP, 1/2.5" CMOS image sensor records 1920 x 1080p HD video at up to 30 fps. Switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation.
- Lens

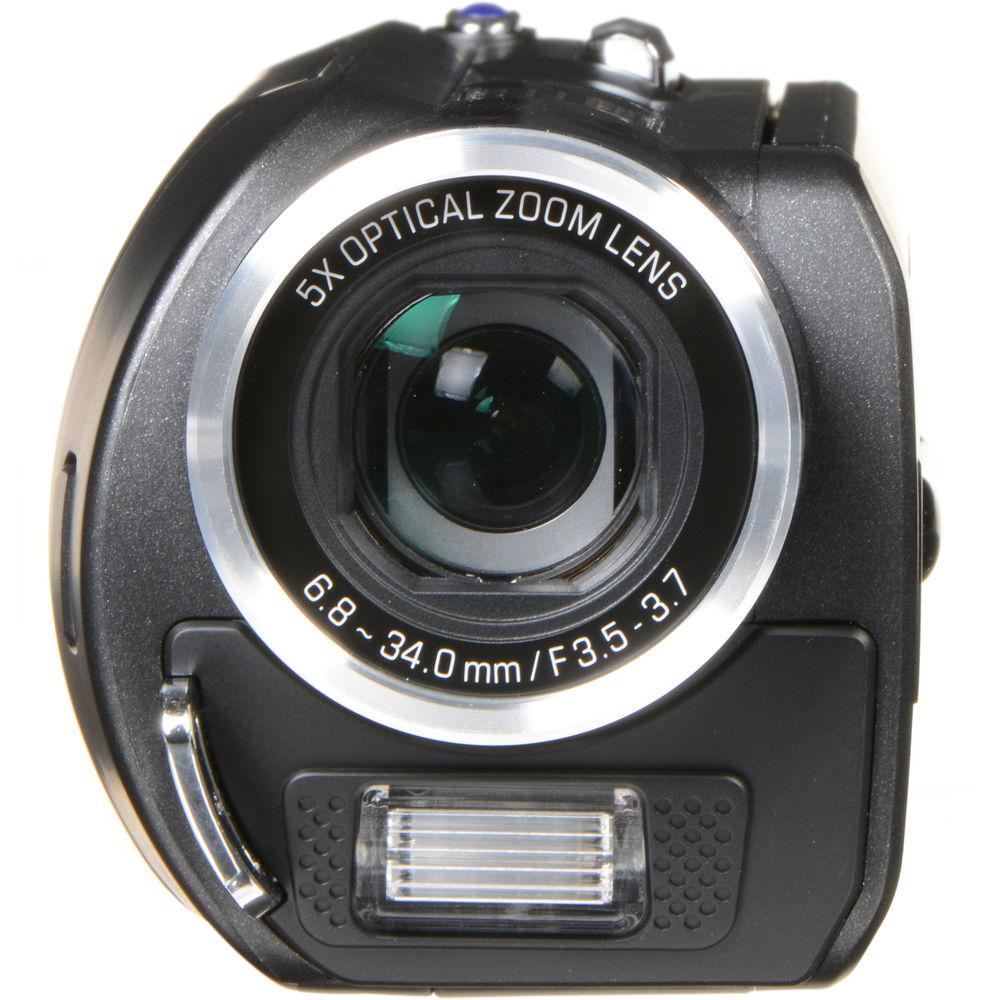

- Features a 5x optical zoom lens with auto and manual focus and a 35mm-equivalent focal length range of 40.8-204mm.
- Display

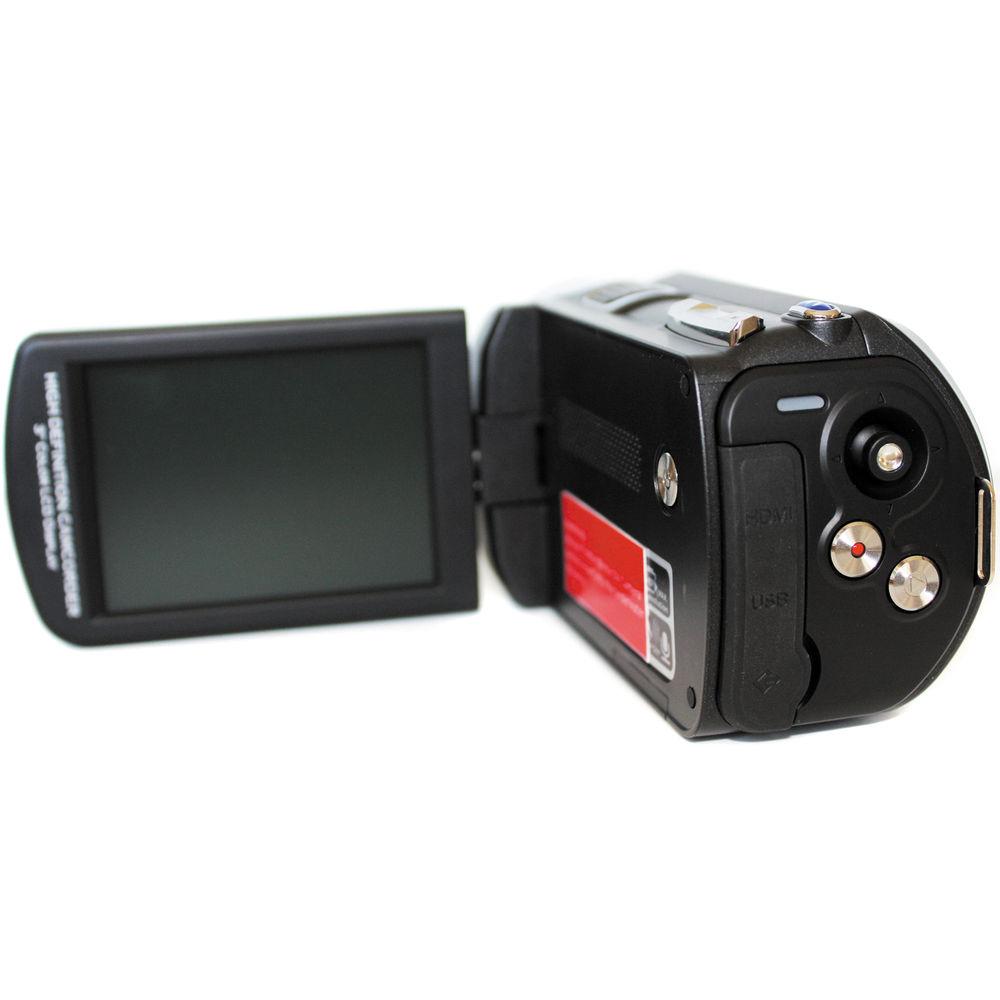

- Equipped with a 3.0" TFT LCD monitor with 270° rotation.
- Night Mode
- Allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs in a dark place, the use of tripod is recommended to eliminate blur from shaking hands. The stabilizer function is disabled when NightShot is enabled.
- Macro
- For capturing extreme close-up pictures. Focus as close as 0.4" from your subject.
- Flash
- A built-in flash with auto and force modes aids in still shooting in low-light conditions.
- Memory
- Records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity.
- Playback
- Slide show of stills or videos
- Auto Off
- Set the length of the period of inactivity after which the camera will automatically shut down. You can select 1, 3 or 5min, or turn the feature off.
- Power
- Included lithium-ion battery provides approximately 1 hr of continuous recording time or 2 hr of operation in standby mode, and is recharged by the supplied AC adapter.
- Connectivity

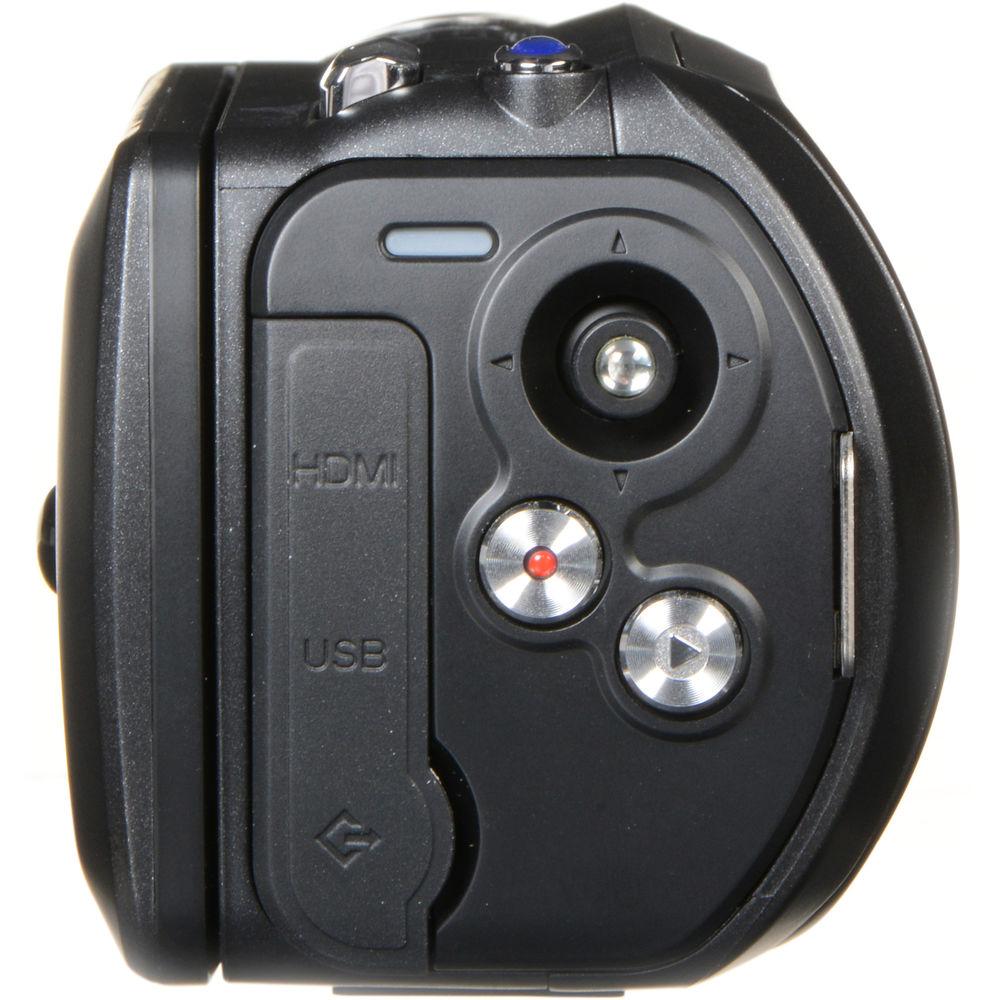

- HDMI output and included cables enable you to view your HD videos on an HDTV. There's also a Composite AV-out (NTSC / PAL) connector. Additionally, the camera features a USB 2.0 port and a USB cable is provided.
UPC: 838393005018 In the Box ULTRAMAX UXDV-3HD-CAM 1080p Digital Video Camera Set of Video Cables for TV Connection AC Adapter USB Cable HDMI Cable NP-60 Type Battery CD-ROM with Driver Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ULTRAMAX UXDV-3HD-CAM 1080p Digital Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersULTRAMAX UXDV-3HD-CAM Specs | | | Sensor | 1-Chip 1/2.5" CMOS | | Sensor Resolution | 5 MP | | | | Focal Length | 6.8 to 34mm | | 35mm-Equivalent Focal Length | 40.8 to 204 | | Maximum Aperture | f/3.5 - f/3.7 | | Minimum Focusing Distance | 31.5" / 80.0 cm | | Zoom | Optical: 5x
Digital: 4x | | Filter Size | 46 mm | | | | System | NTSC/PAL | | Recording Media | x MMC, SD/SDHC (32 GB Maximum) | | Video Format | 1920 x 1080p at 30 fps (MP4)
1280 x 720p at 30 fps (MP4)
640 x 480p at 30 fps (MP4)
320 x 240p at 30 fps (MP4) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | JPEG: 16 Megapixel, 4608 x 3456 (4:3)
JPEG: 12 Megapixel, 4000 x 3000 (4:3)
JPEG: 8 Megapixel, 3200 x 2400 (4:3)
JPEG: 5 Megapixel, 2560 x 1920 (4:3)
JPEG: 2 Megapixel, 1600 x 1200 (4:3) | | Audio Format | WAV | | | | Display Type | LCD | | Screen Size | 3.0" | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | | | Image Stabilization | Digital | | Scene Modes | Preset: YesCustom: Yes | | White Balance Modes | Auto
Cloudy
Fine
Fluorescent
Tungsten | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - Yes | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x HDMI (Unspecified)
1 x Composite Video | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1000 mAh
Max Runtime: 2 Hours per Charge | | Charging Method | AC Adapter | | Operating Temperature | 32 to 113°F / 0 to 45°C
Humidity: 65% | | Dimensions (W x H x D) | 4.6 x 2.3 x 2.5" / 116.8 x 58.4 x 63.5 mm | | Weight | 10.6 oz / 300.5 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.7 x 6.7 x 3.4" |
