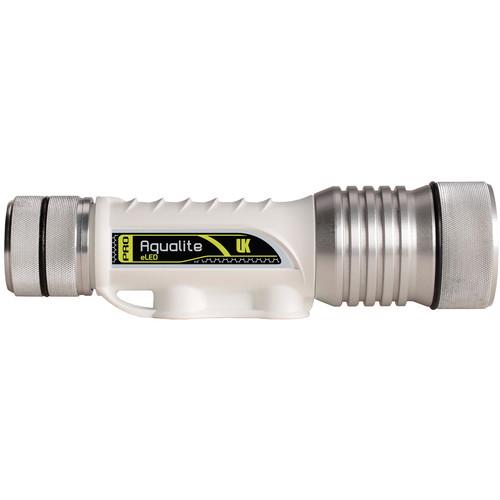

User Manual for Underwater Kinetics Aqualite eLED Pro Dive Light Click to enlarge the picture
Contents of the user manual for the Underwater Kinetics Aqualite eLED Pro Dive
- Product category: Dive Lights Underwater Kinetics
- Brand: Underwater Kinetics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Underwater Kinetics Dive Lights
|
User manual for the Underwater Kinetics Aqualite eLED Pro Dive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Underwater Kinetics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Underwater Kinetics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Underwater Kinetics product will considerably shorten its lifespan!
|
Product description Illuminate the beauty of the underwater world at a maximum depth of 492' with the 20° UKPro Aqualite eLED Pro Dive Light from Underwater Kinetics. It has a 20° spot beam head, which is interchangeable with the optional 100° wide and 90° wide UV beam heads. Most effective as a primary dive light or focusing light, it offers four outputs ranging from 160-750 lumens for a run time of 1.6-12 hr. The Aqualite Pro's color temperature is daylight-balanced at approximately 5500-6500K.
Made in the USA and built to last, the light has an anodized, machined aluminum Hydralum head. Its durable ABS plastic body is also corrosion-resistant, so you can rest assured knowing this light has been crafted to withstand the harshness of seawater. Two 1/4"-20 mounts enable connection to virtually any ball or flex arm on the market. Additionally, the Aqualite Pro includes an adjustable, ambidextrous hand mount, which lets you attach the light to the back of your hand to free up your palm and fingers for swimming or holding gear. An optional ball mount for a ball clamp is available, as are optional fixed and swiveling mounts for the UKPro Flex Grip and GoPro-style mounts. The light runs on the supplied, rechargeable lithium-ion battery and also includes a USB charger with a cable and wall adapter. - Light Performance
-
- Four selectable outputs from 160-750 lumens
- Run Time: 1.6-12 hr
- Coverage: Narrow, concentrated 20° spot beam makes Aqualite Pro 20° a good choice for a primary dive light or a focusing light for photography or video recording
- Spot beam reduces backscatter, the reflection of light off particles in water
- Spot beam head interchangeable with optional 100° wide and 90° wide UV beam heads
- Color temperature is daylight-balanced at approximately 5500-6500K, so light can bring out colors that get lost due to absorption underwater
- S.O.S function for emergency signaling
- Switching
-
- Adjustable power dial on rear of light permits easy toggling through output levels and S.O.S mode
- Construction Details
-
- Depth Rating: 492'
- Complies with IP68 specification, so it is suitable for continuous immersion in water
- Made in USA
- Anodized, machined aluminum Hydralum head
- Durable ABS plastic body is also corrosion-resistant
- Two 1/4"-20 mounts enable connection to virtually any ball or flex arm
- 20° spot head can be removed from body and used on the Aqualite-S or Classic dive lights instead
- Included Accessories
-
- Adjustable, ambidextrous hand mount lets you attach light to back of your hand to free up your palm and fingers for swimming or holding gear
- Rechargeable, user-replaceable 3400mAh lithium-ion battery and USB charger with a cable and wall adapter
- Optional Accessories
-
- Ball mount for a ball clamp
- Fixed and swiveling mounts for UKPro Flex Grip and GoPro-style mounts
UPC: 032705124347 In the Box Underwater Kinetics Aqualite eLED Pro Dive Light (20
|
Upload User Manual
Have you got an user manual for the Underwater Kinetics Aqualite eLED Pro Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUnderwater Kinetics 12434 Specs | Depth Rating | 492' / 150 m
IP68 rated for continuous immersion in water | | Light Source | 4 eLED lamps | | Light Intensity | 25%: 160 lumens
40%: 300 lumens
60%: 430 lumens
100%: 750 lumens | | Beam Angle | 20° with supplied spot beam head
Interchangeable head system enables attachment of optional 100° wide and 90° UV heads as alternatives | | Color Temperature | Approximately 5500-6500 K | | Run Time | 1.6-12 hr | | Switching System | Adjustable power dial on rear | | Material of Construction | Anodized, machined aluminum Hydralum head
ABS plastic body | | Mounting | Two 1/4"-20 mounts for ball or flex arm connection
Included hand/wrist mount
Optional ball mount for a ball clamp
Optional fixed and swiveling mounts for UKPro Flex Grip and GoPro-style mounts | | Power | 12 W (average) | | Power Source | Rechargeable, user-replaceable 3400 mAh lithium-ion battery
USB charger with cable and wall adapter | | Charge Time | 2.0-5.0 hr | | Operating Temperature | Not specified by manufacturer | | Dimensions | 5.0 x 1.5" / 12.7 x 3.8 cm | | Weight | 6.4 oz / 181.4 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.9 x 6.7 x 2.4" |
