User Manual for Underwater Kinetics Aqualite eLED Pro Video Dive Light Click to enlarge the picture
Contents of the user manual for the Underwater Kinetics Aqualite eLED Pro Video
- Product category: Continuous Lights Underwater Kinetics
- Brand: Underwater Kinetics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Underwater Kinetics Continuous Lights
|
User manual for the Underwater Kinetics Aqualite eLED Pro Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Underwater Kinetics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Underwater Kinetics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Underwater Kinetics product will considerably shorten its lifespan!
|

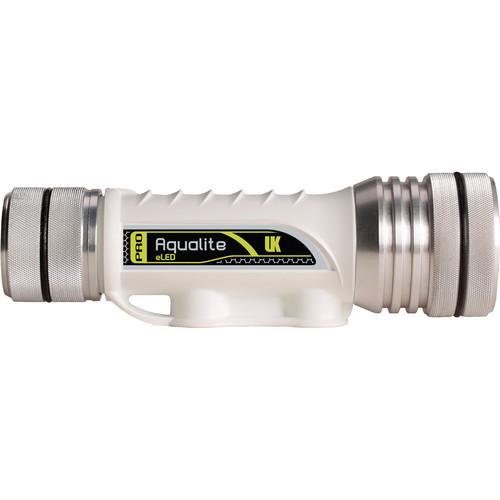

Product description Illuminate the beauty of the underwater world at a maximum depth of 492' with the UKPro Aqualite eLED Pro Video Dive Light from Underwater Kinetics. It has a 100° wide beam head, which can be removed and replaced by the optional 20° spot and 90° wide UV heads, making it a versatile tool that's effective as both a video light and a primary dive light. The Aqualite Pro offers four outputs ranging from 300-1200 lumens. Its 18650 rechargeable li-ion battery gives it a run time of 1.1-12 hours, depending on the output level. Additionally, the beam's color temperature is daylight-balanced at 5500-6500K, enabling it to restore hues that are absorbed underwater.
Made in the USA and built to last, the Aqualite eLED Pro has an anodized, machined aluminum Hydralum head and a durable ABS plastic body, both of which are corrosion-resistant. Two 1/4"-20 mounts enable a connection to almost any ball or flex arm on the market. The Aqualite Pro includes a ball mount for a connection to a ball-joint clamp, as well as both a swivel mount and fixed mount for use with the optional UKPro Flex Grip and GoPro-style mounts. It also includes an Aqualite Travel Grip that improves balance and handling, while providing a tray for a GoPro action cam or small point-and-shoot with a 1/4"-20 mount. - Light Performance
-
- Four Outputs: 300, 500, 680, and 1200 lumens
- Run Time: 1.1-12 h with the supplied 18650 rechargeable lithium-ion battery
- Coverage: Smooth 100° beam with the included wide head, which can be replaced by the optional 20° spot and 90° wide UV heads
- Color temperature is daylight-balanced at 5500-6500K, allowing the light to bring out hues that are lost due to absorption underwater
- S.O.S. function is available for emergency signaling
- Switching
-
- Adjustable power dial on the rear permits easy toggling through output levels
- Construction Details
-
- Depth rating: 492'
- Meets IP68 specifications, meaning it is suitable for continuous immersion in water
- Made in the USA
- Head is made of an anodized, machined aluminum alloy known as Hydralum, which has excellent resistance to corrosion
- Durable ABS plastic body is also corrosion-resistant
- Light head can be removed from the body and used on the Aqualite-S and Classic dive lights instead
- Included Accessories
-
- Rechargeable, user-replaceable, 3400mAh 18650 lithium-ion battery
- Two 1/4"-20 mounts enable a connection to virtually all ball and flex arms on the market
- Ball mount allows for a connection to a ball-joint clamp
- Both a swivel mount and a fixed mount make it possible to use the optional UKPro Flex Grip and GoPro-style mounts
- Aqualite Travel Grip improves balance and handling, while providing a tray for a GoPro action cam or small point-and-shoot with a 1/4"-20 mount
- Optional Accessories
-
- Hand mount lets you attach the light to the back of your hand, freeing up your palm and fingers for swimming or holding gear
UPC: 032705124309 In the Box Underwater Kinetics Aqualite eLED Pro Video Dive Light (100
|
Upload User Manual
Have you got an user manual for the Underwater Kinetics Aqualite eLED Pro Video Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUnderwater Kinetics 12430 Specs | Depth Rating | 492' / 150 m
IP68 rated for continuous immersion | | Light Source | 4 eLED lamps | | Light Intensity | 25%: 300 lumens
40%: 500 lumens
60%: 680 lumens
100%: 1200 lumens | | Beam Angle | 100° with included wide beam head
Accepts optional, interchangeable 20° and 90° heads as alternatives | | Color Temperature | Approx. 5500-6500K | | Run Time | 1.1-12 h | | Switching System | Adjustable power dial on rear | | Material of Construction | Anodized, machined aluminum Hydralum head
ABS plastic body | | Mounting | 2x 1/4"-20 mounts for connection to virtually any ball or flex arm
Ball mount for ball-joint clamp
Swiveling and fixed mounts for UKPro Flex Grip and GoPro-style mounts
Aqualite Travel Grip with tray for GoPro or small point-and-shoot camera with 1/4"-20 mount | | Power | Wattage: 12 W (average)
Charger Input Power: 100-240 VAC, 50-60 Hz from wall converted to 4.8-5.2 VDC for USB port | | Power Source | Supplied 18650 rechargeable lithium-ion battery (3400 mAh)
Included charger with indicator light | | Charge Time | 2.0-5.0 h | | Operating Temperature | Not specified by manufacturer | | Dimensions | 5.0 x 1.5" / 12.7 x 3.8 cm | | Weight | 6.4 oz / 181.4 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.9 x 6.7 x 2.5" |
