User Manual for Underwater Kinetics Light Cannon eLED Dive Light with Lantern Grip Click to enlarge the picture
Contents of the user manual for the Underwater Kinetics Light Cannon eLED Dive
- Product category: Dive Lights Underwater Kinetics
- Brand: Underwater Kinetics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Underwater Kinetics Dive Lights
|
User manual for the Underwater Kinetics Light Cannon eLED Dive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Underwater Kinetics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Underwater Kinetics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Underwater Kinetics product will considerably shorten its lifespan!
|

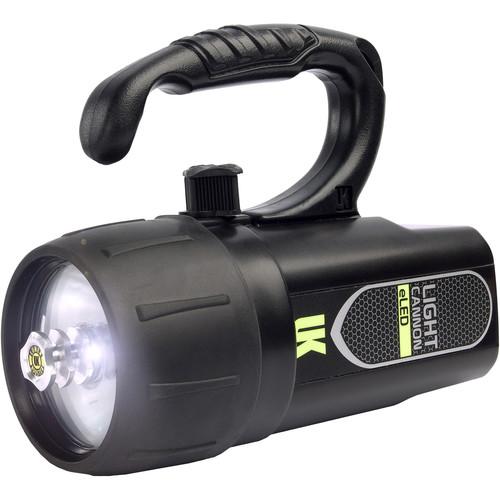

Product description The black Light Cannon eLED with Lantern Grip from UKPro is a primary dive light that illuminates underwater to depths up to 500' and has an output of up to 825 lumens. It features two high-intensity LED arrays that are attached to a Lumen Booster heat sink, which is directly in contact with the water through the front lens. This system cools the LEDs and allows them to remain brighter underwater than in air. In addition, an electronic circuit monitors the LEDs and prevents overheating and allows the selection of full power or battery saving mode.The white color of the LED light penetrates underwater better than light from conventional incandescent lamps to allow greater visibility. A reflector combines the beams of the two LEDs into a single beam which is twice as bright. The beam is wide enough for scanning a reef at night or explorating the interior of a shipwreck. The dovetail handle attachment allows you to attach the lantern grip as well as a video arm. - A pair of water-cooled high-intensity LEDs delivers over 10W of power
- High color temperature gives the beam the same color as sunlight
- Brightness remains even higher underwater than in air with the UKPro's LED water cooling design
- Full- or half-power switch extends battery life
- Power circuit control maintains almost constant brightness with alkaline or rechargeable batteries (available separately)
- Light from the eLED is close to sunlight in color and travels farther through water for maximum visibility
- Non-breakable locking switch prevents accidental actuation
- Dovetail slot for lantern grip and photo arm
- Front lens features a heavy rubber boot for drop protection
- Tough, non-corroding ABS and polycarbonate plastic construction
- Rubber sleeve lanyard included
- Powered by disposable alkaline batteries (included) or rechargeable NiCad and NiMH C-size batteries (not included)
In the Box Underwater Kinetics Light Cannon eLED Dive Light with Lantern Grip (Black) 8 x Alkaline Battery Rubber Sleeve Lanyard Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Underwater Kinetics Light Cannon eLED Dive Light with Lantern Grip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUnderwater Kinetics 44654 Specs | Type | Primary dive light
Waterproof / search and rescue | | Depth Rating | 500' (150 m) | | Lamp | 44710 eLED module | | LED Array | Twin high-intensity LED array | | Input Voltage | 9.6 V (nominal) | | Light Intensity | 530 to 825 lumens (using alkaline batteries) | | Beam Distance | 431 to 520' (131.37 to 158.50 m) | | Burn Time | 9 hours at 825 lumens
14 hours at 530 lumens | | Reflector | Medium penetrating beam | | Sealing | Nitrile rubber O-ring seals | | Switch | Rotary switch (Full-Off-Half) with push to lock safety | | Battery Type | Alkaline Disposable: 8 x C-Alkaline (included)
Rechargeable: UK 8C Nicad Pack or UK 8C NiMH Pack (available separately) | | Catalyst | 4 x Platinum on alumina pellets | | Polarization | Light only operates with cells inserted properly | | Material of Construction | ABS, polycarbonate, polypropylene, nylon | | IP Rating | IP68 | | Dimensions | ø3.2 x 7.3" (ø81 x 183 cm) | | Weight | 2.25 lb (1.02 kg) in air including the alkaline batteries |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
