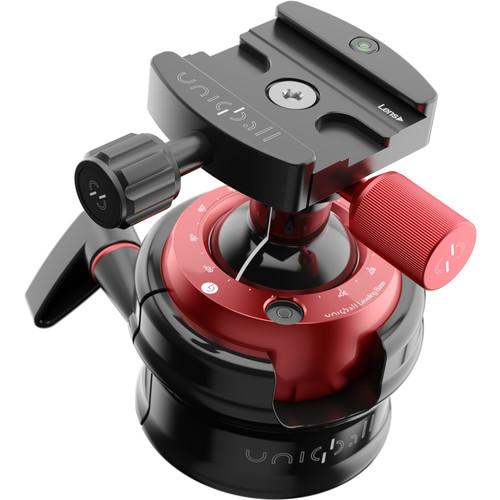

User Manual for UniqBall UBH 45X Ball Head with Bidirectional Clamp Click to enlarge the picture
Contents of the user manual for the UniqBall UBH 45X Ball Head with
- Product category: Tripod Heads UniqBall
- Brand: UniqBall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for UniqBall Tripod Heads
|
User manual for the UniqBall UBH 45X Ball Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any UniqBall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official UniqBall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a UniqBall product will considerably shorten its lifespan!
|
Product description The UBH 45X Ball Head with Bidirectional Clamp from Uniqball is a combination leveling base, pan/tilt head, and ball head. It has a unique design that incorporates an outer ball with a bubble to level the clamp, and an inner ball for panning and tilting. Once the outer ball has been leveled and locked, the inner ball will only move on the Y-axis, maintaining level pans. The head can also be used as a conventional ball head with a full range of movement by locking the inner ball and only using the outer ball.
The UBH 45X stands 4.1" high, and can hold up to 88.2 lb. It has an Arca-type compatible clamp that works with quick-release plates, as well as most other Arca-type plates. The head's clamp is oriented on the Y-axis so that you can slide the plate front-to-back to balance your camera when using a long lens. A hex key is included to allow you rotate the clamp 90°. The head comes with a carrying case to protect the head when it is not in use. UPC: 857642005258 In the Box UniqBall UBH 45X Ball Head with Bidirectional Clamp UC45X Dovetail Clamp for UBH 35 Ball Head Soft Case Hex Key Limited 1-Year Warranty, Extendable to 2-Years with Product Registration User Manual PDF 555.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the UniqBall UBH 45X Ball Head with Bidirectional Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniqBall UBH45X Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | Load Capacity | 88.2 lb / 40 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | No | | | | Base Diameter | 2.7" / 69 mm | | Dimensions | H: 4.1" / H: 10.5 cm | | Weight | 1.6 lb / 724.0 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 6.3 x 5.4 x 4.9" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
