User Manual for Unique Product Solutions Dual 7" Rack Mount Monitor with Loop Through Click to enlarge the picture
Contents of the user manual for the Unique Product Solutions Dual 7" Rack
- Product category: Production Monitors Unique Product Solutions
- Brand: Unique Product Solutions
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Unique Product Solutions Production Monitors
|
User manual for the Unique Product Solutions Dual 7" Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Unique Product Solutions product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Unique Product Solutions user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Unique Product Solutions product will considerably shorten its lifespan!
|

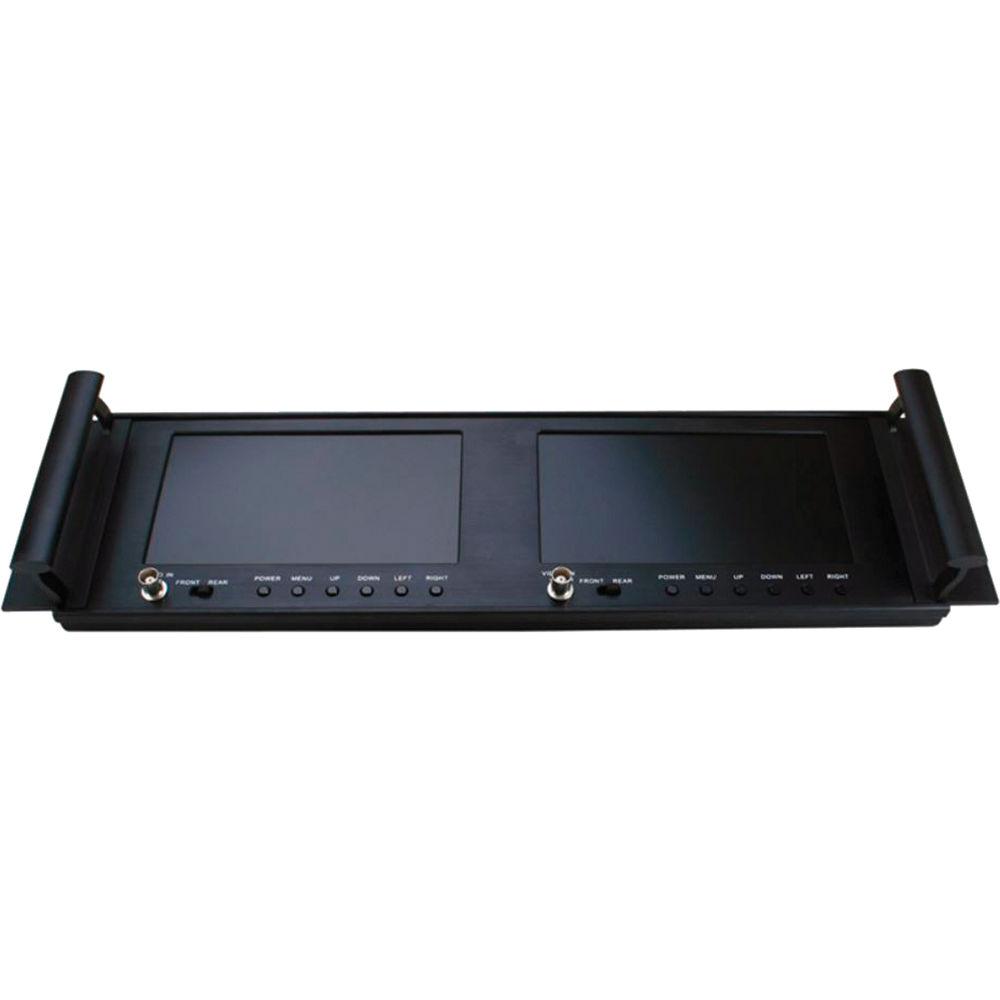

Product description The Dual 7" Rack Mount Monitor with Loop Through from Unique Product Solutions is as cost-effective solution for monitoring composite video signals. It features two 7", 800x480 resolution 16:9 monitors that are housed in a 19" rack-mountable 3U frame. Each monitor has front and rear BNC video inputs, and well as a BNC loop-output in the rear. A toggle switch lets you select the video input displayed on each monitor, with adjustments made via an on-screen display menu. The unit can be powered from 12 VDC sources. Please note: A 12 VDC power adapter is required to power the monitors. -
- Dual 7" LCD monitors, 800 x 480 resolution (16:9)

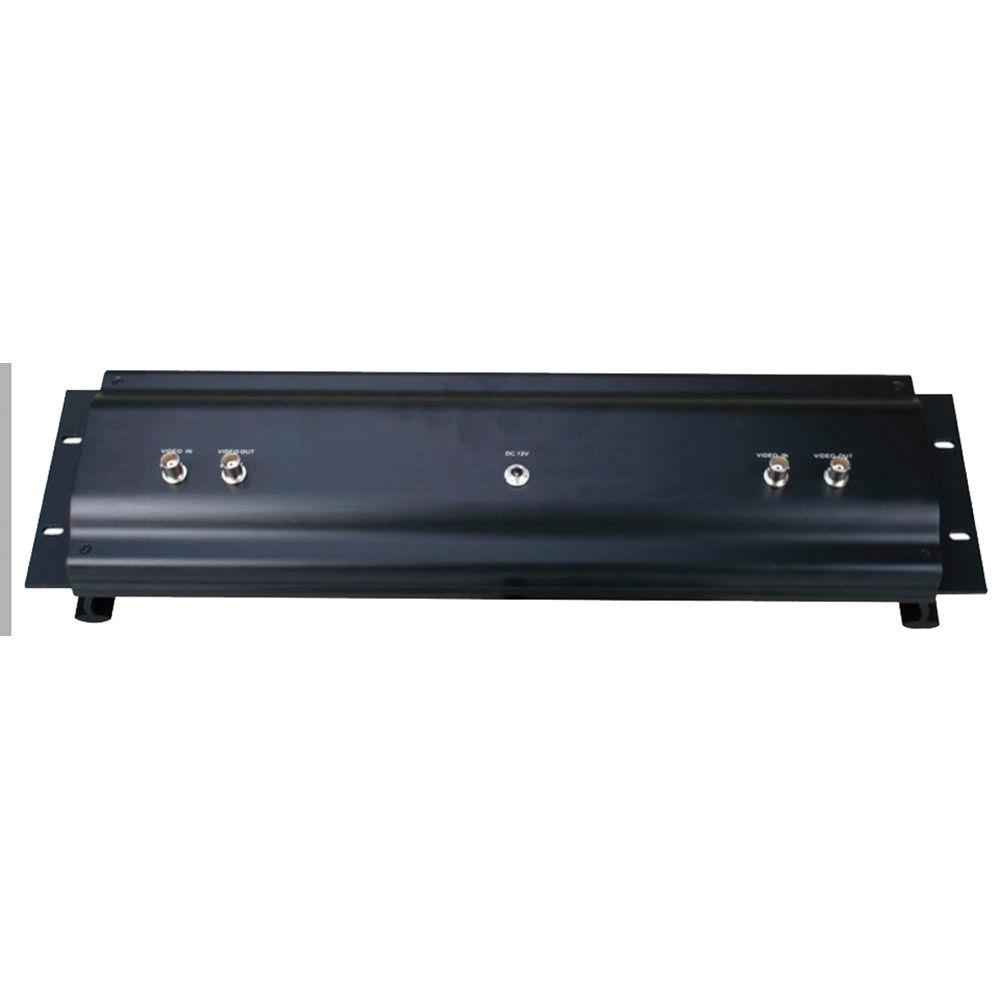

- Each monitor has two BNC inputs (front and rear) and one BNC loop-out (rear)
- Toggle switch for video input
- OSD menu for video adjustments
- Front On/Off buttons
- Recommended power adapter (12 VDC, 1000mA)
- 3U height (19" rack)
In the Box Unique Product Solutions Dual 7" Rack Mount Monitor with Loop Through Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Unique Product Solutions Dual 7" Rack Mount Monitor with Loop Through in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUnique Product Solutions DUAL-7-RM-LCD Specs | Panel Type | TFT LCD | Display Size | 7.0" / 17.8 cm | Active Area | 2.1 x 3.6" / 52.40 x 91.44 mm | Screen Resolution | 800 x 480 | Aspect Ratio | 16:9 | Dot Pitch | 190.5 x 190.5 µm | | Video | 4 x BNC (Composite) Input 2 x HDMI Type A Input 1 x DE-15/DB-15 (VGA) Input 4 x BNC (Composite) Output | Audio | None | Built-In Speaker | None | Card Slot | None | | DC Input Power | 12 VDC at 1 A | Battery Type | None | | Operating Altitude | 10,000' / 3048 m | Storage Humidity | 10 to 95% | Storage Temperature | -4 to 185°F / -20 to 85°C | Storage Altitude | 50,000' / 15,240 m | | Dimensions (W x H x D) | 19 x 5.25 x 3.3" / 48.26 x 13.34 x 8.38 cm | | Package Weight | 3.4 lb | Box Dimensions (LxWxH) | 20.7 x 6.9 x 3.8" |
