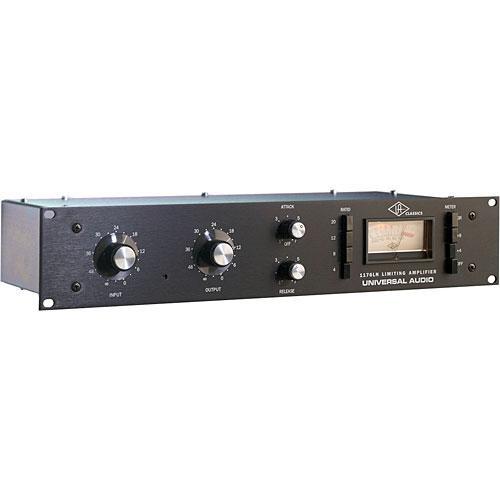

User Manual for Universal Audio 1176LN - Dynamics Processor Click to enlarge the picture
Contents of the user manual for the Universal Audio 1176LN - Dynamics Processor
- Product category: Dynamics Processors Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Dynamics Processors
 |
User manual for the Universal Audio 1176LN - Dynamics Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

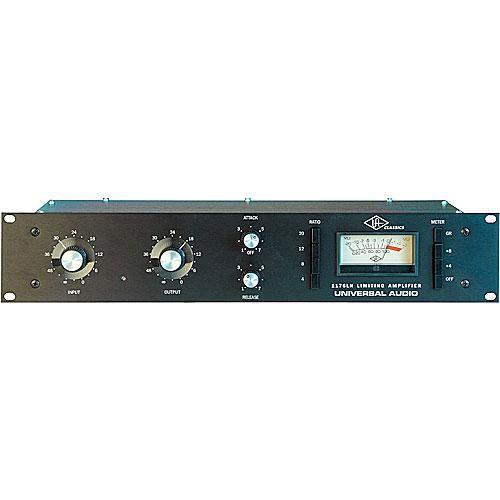

Product description The original Universal Audio 1176 limiting amplifier designed by Bill Putnam was a major breakthrough in limiter technology. It was the first true peak limiter with all transistor circuitry, offering superior performance and a signature sound. Evolved from the popular Universal Audio 175 and 176 vacuum tube limiters, the original retained the proven qualities of these industry leaders and set the standard for all limiters to follow. The 1176LN is a recreation of the original classic. And while it would have been possible (and much simpler) to modernize and "improve" on the original, every effort was made to remain faithful to Putnam's design and intentions. Modeled after the D and E revisions, each 1176LN is hand-wired and thoroughly tested, allowing the limiter to reproduce all the nuance of the original, while delivering its trademark sound. - Recreation of Bill Putnam's analog limiting amplifier, modeled after the 1176LN Blackface model, D and E revisions
- True to the original in design, manufacturing and performance
- Class A line level output amplifier
- Custom built Putnam-designed output transformer
UPC: 819937000010 In the Box Universal Audio 1176LN - Dynamics Processor AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio 1176LN - Dynamics Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

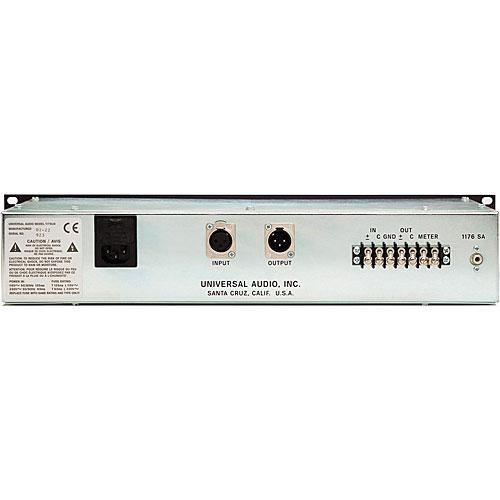

Technical parametersUniversal Audio 1176 Specs | Function | Limiting Amplifier | | Number of Channels | One | | Inputs | 1 x XLR
Jones Barrier terminal | | Outputs | 1 x XLR
Jones Barrier terminal | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | Program Dependent | | Compression Ratio | 4:1, 8:1, 12:1, 20:1
Extreme limiting when all four front panel switches are engaged | | Attack Time | 20µSec to 800µSec | | Release Time | 50mSec to 1.1Sec | | Gate Threshold | Not Applicable | | Gate Rate | Not Applicable | | Maximum Output Level | Not specified by manufacturer | | Make-up Gain | 50dB | | Frequency Response | 20Hz to 20kHz, +/-1.0dB | | Dynamic Range | Not specified by manufacturer | | Noise | SNR: Greater than 70dB at +10dBm | | Power Requirements | 115/230V | | Dimensions | 19 x 12.25 x 3.5" (483 x 311 x 89mm) | | Weight | 11 lbs (5kg) | | Specialties | Optional 1176SA allows two 1176s to be ganged for stereo operation | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 22.6 x 13.0 x 8.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
