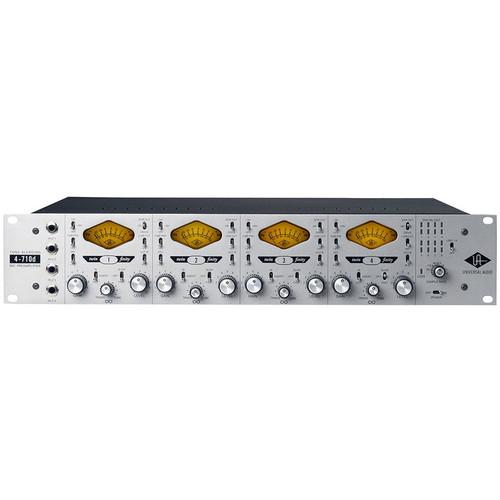

Product description The 4-710d from Universal Audio is a high-end, 4-channel microphone/line preamplifier with tube and solid-state tone blending capabilities. The dual signal path is perfect for a wide range of microphone and instrument sources, with each channel offering selectable 1176-style compression circuitry. Four additional line inputs feed 8-channels of pristine analog-to-digital conversion. The 1176-style compression include specially tuned "fast" and "slow" settings, and can be completely switched out of the signal chain. Each of the microphone preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access. The 8 analog inputs are digitized via ultra high-quality 24-bit analog to digital converters at selectable sample rates up to 192kHz. Digital output is available via dual ADAT Lightpipe connectors (SMUX supported), or via a 25-pin D-sub connector for 8-channels of AES/EBU, allowing for easy integration with most popular audio interfaces. - Preamplifiers
-
- Four TEC Award-winning 710 Twin-Finity microphone/line preamps

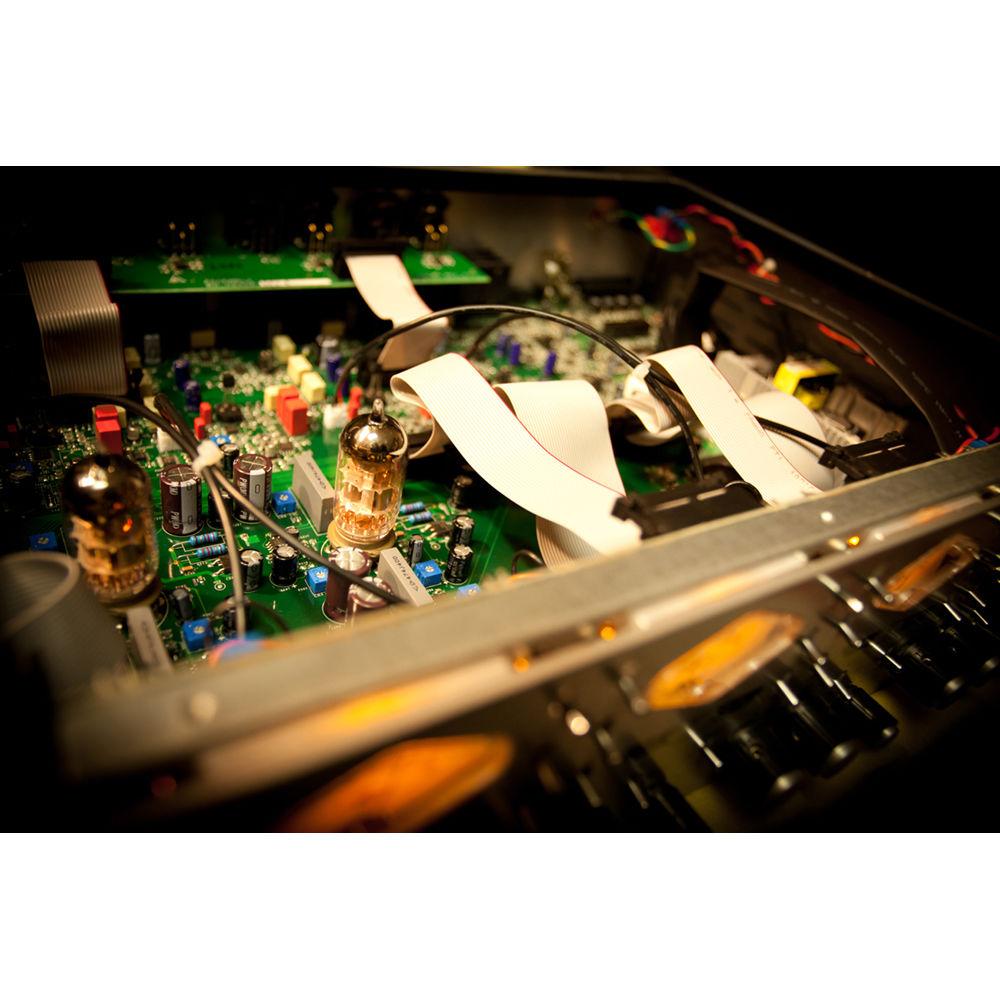

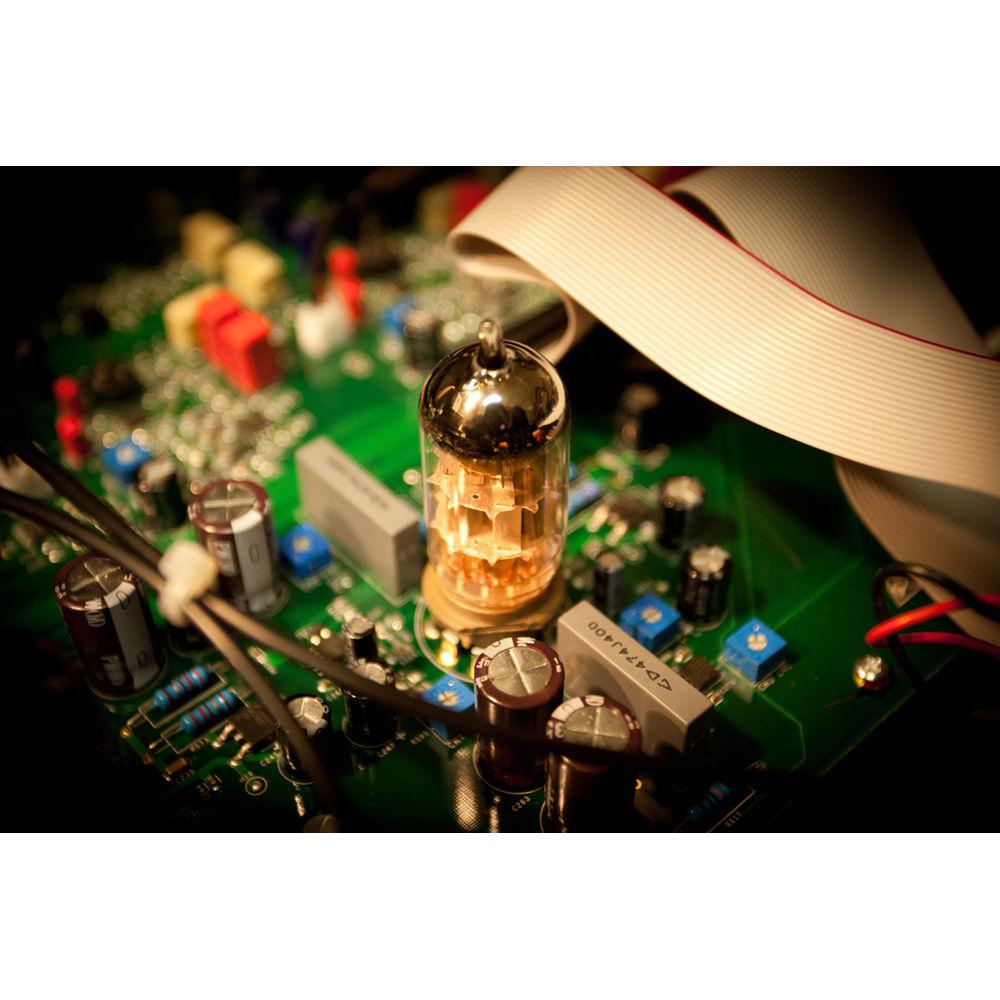

- Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
- Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
- Newly designed 1176-style compression circuit per preamp channel
- JFET Direct Input with 2.2MΩ ultra Hi-Z impedance with auto input override
- Large backlit VU meters for flexible metering of input drive, gain level and gain reduction
- Balanced send/return inserts (half-normalled)
- 48V phantom power individually switchable
- 75Hz low-cut filter
- Polarity switch
- Monolithic balanced output stage
- Analog-to-Digital Conversion
-
- Eight channels of high quality 24-bit analog to digital conversion
- Selectable sample rates up to 192kHz
- Digital output via dual ADAT optical and AES/EBU DB-25 connectors
- 8-channel soft limiter (switchable for all channels)
- Ultra-low jitter clock subsystem
- LED metering array with clip/hold indicators
- 75Ω BNC work clock I/O
- Digital outputs anti-pop protection on power-up
- Other
-
- Universal voltage internal power supply
- Heavy-duty metal construction, two-space rack unit
UPC: 819937000621 In the Box Universal Audio 4-710D - Tone Blending Twin-Finity Microphone Preamp and DI AC Power Cable One (1) Year Warranty User Manual PDF 2mbcyseqrffbdtrycdcactbwvqcb Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio 4-710D - Tone Blending Twin-Finity Microphone Preamp and DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniversal Audio 4-710D Specs | Number of Channels | 4 microphone inputs

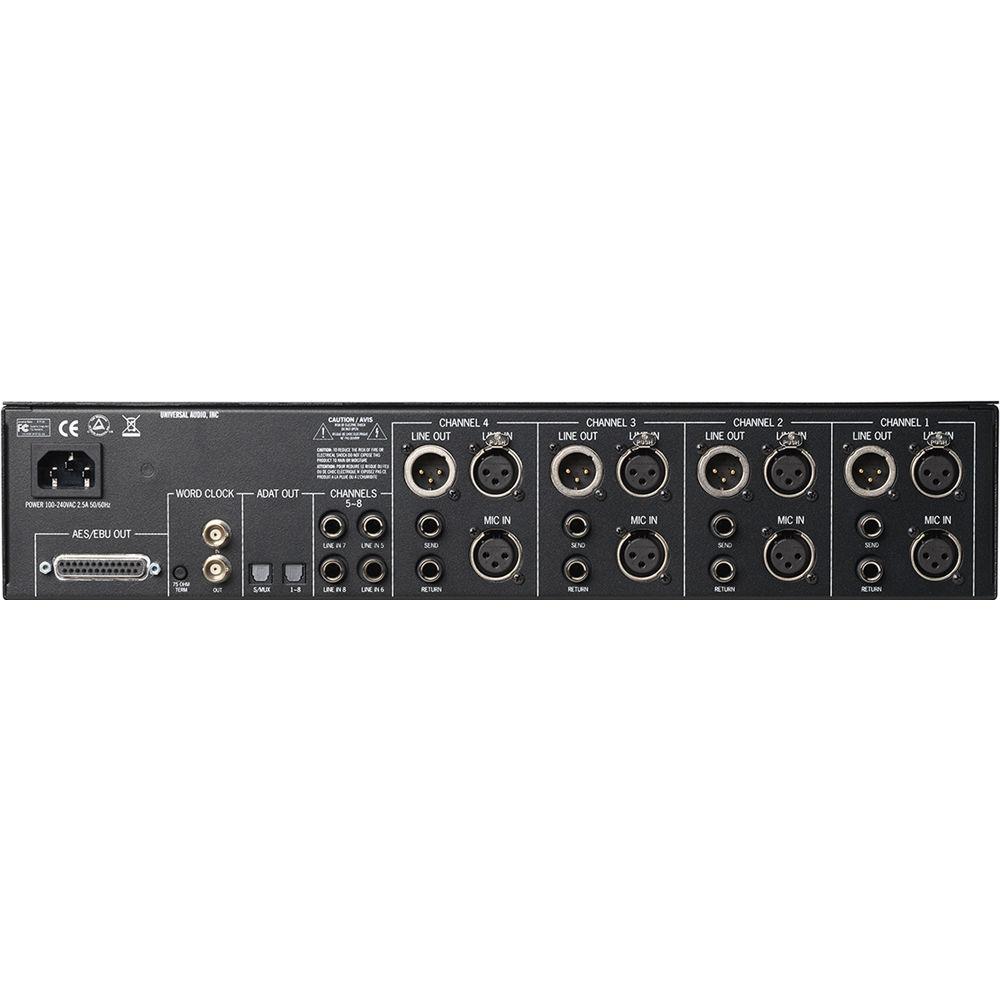

8 inputs for AD conversion | | Inputs | 4 x XLR Microphone
4 x XLR Line
4 x 1/4" TRS phone (ch 5-8)
4 x 1/4" TRS phone Return
1 x 1/4" TS phone Instrument (front panel) | | Output | 4 x XLR
4 x 1/4" TRS phone Send | | Other Connectors | 1 x 25-pin D-sub AES/EBU output (8-channels)
2 x TOSLink ADAT optical output (SMUX supported)
2 x BNC Wordclock I/O | | Phantom Power | +48V switchable | | Multi Function | 8-channel analog to digital converter | | Gain Range | Gain Range for Unit: -Infinity to 70dBu
Mic Range Gain: 10 to 60dBu
Line Range Gain: -10 to 40dBu
Hi-Z Range Gain: -10 to 40dBu | | Maximum Input Level | Microphone, gain @ minimum solid state: +18dBu
Microphone, gain @ minimum tube 1% THD: -7dBu, +8dBu w/pad Line, gain @ minimum solid state: +30dBu
Line, gain @ minimum tube 1% THD: +8dBu Hi-Z, gain @ minimum solid state: +18dBu
Hi-Z, gain @ minimum tube 1% THD: +8dBu | | Maximum Output Level | +18dBu into 600Ω
+28dBu into 100kΩ | | Frequency Response | 20Hz to 100kHz, +/-0.2dBu | | THD + N | Tube: 0.1% @ +4dBU
Solid-State: 0.005% @ +4dBU | | Power Requirements | 100~240VAC, 2.5A, 50/60Hz | | Dimensions (WxDxH) | 2U 19" rack mount | | Weight | Not specified by manufacturer | | Specialties | -15dB pad
75Hz high-pass filter | | | | Package Weight | 15.85 lb | | Box Dimensions (LxWxH) | 23.0 x 17.0 x 8.0" |
