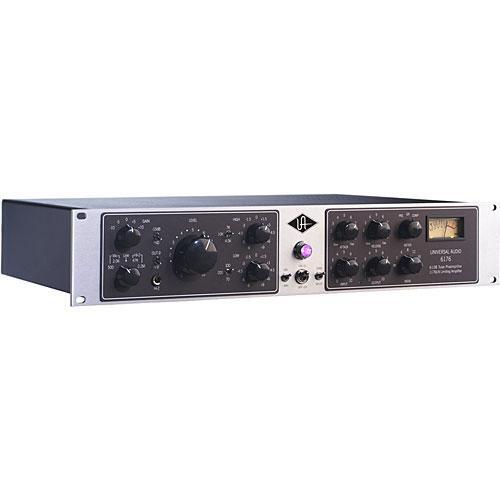

User Manual for Universal Audio 6176 Channel Strip with 610B Vacuum Tube Microphone Preamp and 1176LN Compressor Click to enlarge the picture
Contents of the user manual for the Universal Audio 6176 Channel Strip with
- Product category: Channel Strips Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Channel Strips
 |
User manual for the Universal Audio 6176 Channel Strip with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

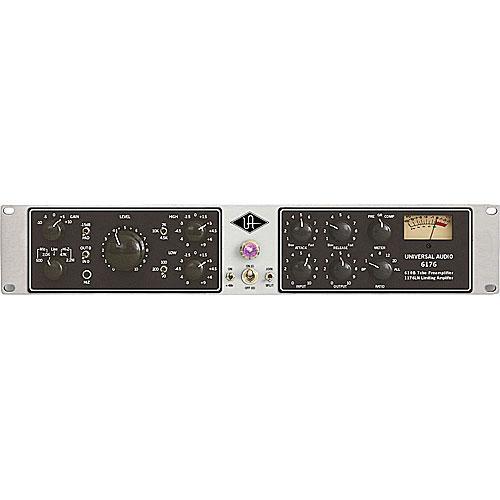

Product description The Universal Audio 6176 is a tube channel strip comprised of the classic 610 Microphone Preamp and legendary 1176 Compressor. With its tremendously flexible tone, function and ultra-quiet operation, the 6176 is the perfect analog front-end for digital audio recording. - Tone Quality
- Classic sound of the legendary 610 modular console
- Class-A Circuitry
- Ultra quiet operation with microphone, balanced line and Hi-Z inputs
- Independent Channel Functionality
- Join/Split switch allows for complete independent operation of each unit
- Compression
- Classic 1176LN compression
- Shelving EQ's
- Stepped high and low frequency filters
- Power Supply
- Internal switching power supply
UPC: 819937000225 In the Box Universal Audio 6176 Channel Strip with 610B Vacuum Tube Microphone Preamp and 1176LN Compressor One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio 6176 Channel Strip with 610B Vacuum Tube Microphone Preamp and 1176LN Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

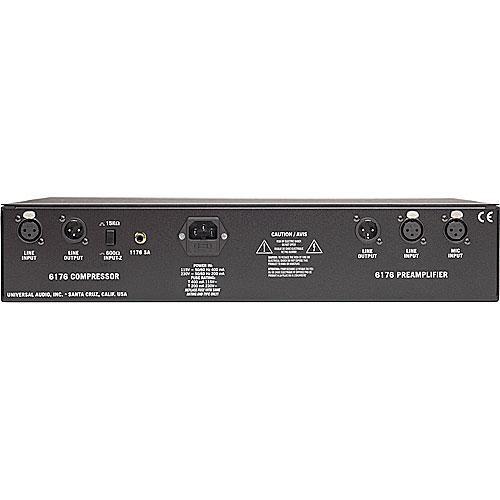

Technical parametersUniversal Audio 6176 Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone In
1 x XLR Line In
1 x 1/4" TS phone Instrument In
1 x XLR Compressor In | | Outputs | 1 x XLR Line Out
1 x XLR Compressor Out | | Frequency Response | 20Hz to 20kHz (+0, -1dB) | | Noise | Preamp: SNR > 90dB @ maximum gain
Compressor: SNR > 75dB | | | | Gain Range | 65dB (500 Ohm input impedance) | | Maximum Output | +20dBm | | Input Impedance | 500 ohms or 2K ohms | | Phantom Power | +48V | | | | Threshold Range | Not specified by manufacturer | | Ratio | 1:1
4:1
8:1
12:1
20:1
"All Button" mode | | Attack Time | 20 to 800 mS, adjustable | | Release Time | 50 mS to 1.1 Sec, adjustable | | Slope | Not specified by manufacturer | | Sidechain | No | | | | Filter Type | Low and high shelf | | Frequency Bands | HF Shelf: 4.5, 7 and 10kHz
LF Shelf: 70, 100 and 200Hz | | Bandwidth | Not applicable | | Range (Boost/Cut) | 1.5, 3, 4.5, 6, 9dB, switchable boost/cut | | Light Indication | | | Threshold Range | Not applicable | | Ratio | Not applicable | | Attack Time | Not applicable | | | | Threshold Range | Not applicable | | Frequency Range | Not applicable | | | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | | | Dimensions (WxDxH) | 2U, 19" rack | | Weight | 12 lbs | | Specialties | A center section toggle switch labeled JOIN/SPLIT allows separate use of the 610B preamp and the 1176LN limiter
Two 6176s can be ganged together for stereo operation using the optional 1176-SA kit | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 22.7 x 18.0 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
