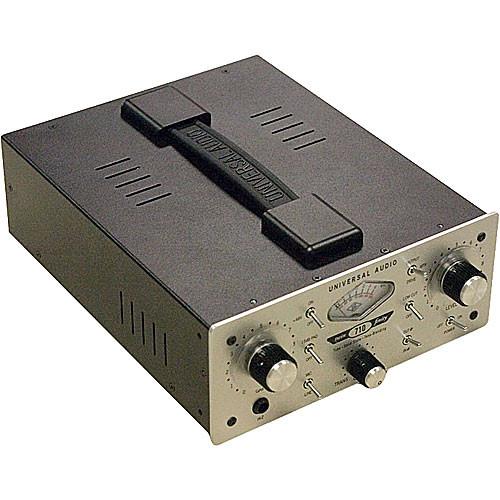

User Manual for Universal Audio 710 Twin-Finity - Microphone Line Preamplifier Click to enlarge the picture
Contents of the user manual for the Universal Audio 710 Twin-Finity - Microphone
- Product category: Microphone Preamps Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Microphone Preamps
 |
User manual for the Universal Audio 710 Twin-Finity - Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

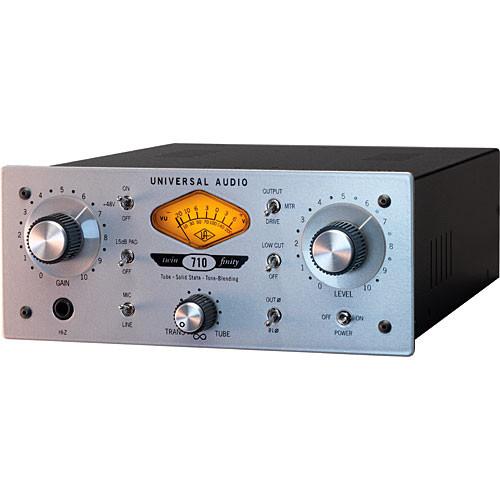

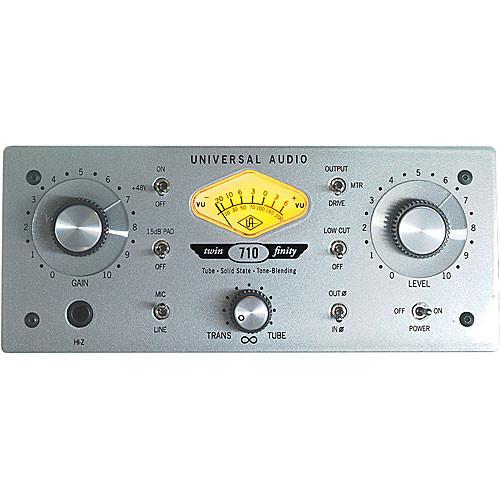

Product description The 710 Twin-Finity from Universal Audio is a single channel, dual path microphone preamplifier that includes an instrument direct inject (DI) input. The dual path design combines the "warmth" of a high-voltage vacuum tube design with the clarity of a solid-state circuit. A blend control allows the dialing-in of either circuit or a combination of both in varying degrees. The tube circuit utilizes a 310V single ended, Class-A triode tube stage, which is phased aligned with a solid-state gain stage. Both stages are fed from a variable gain solid-state transimpedance input amplifier, and are summed to a single output according to the setting of the blend knob. Along with the variable input and output controls, this design allows for an almost infinite range of tones to be dialed-in. The discrete JFET DI input circuit can handle virtually any electric instrument, including guitars and basses with both active and passive pickups. The VU meter can switch between displaying standard output levels and a "Drive" mode that allows for seeing how hard the input stage is being driven. Phantom power, low pass filter and a polarity flip switch add full functionality to a versatile preamplifier. - Single channel, dual topography microphone/line preamplifier with instrument DI
- High voltage Class-A tube circuit paired with phase-aligned solid-state path
- Dual gain stages and blend control provide either "wire with gain" or tube based "creamy to crunchy" sonics with any combination in between
- Discrete JFET direct inject input with ultra high 2.2MΩ impedance
- Hi-Z input automatically switches from microphone/line via "Jack Detect" feature when a guitar or bass are plugged-in
- Backlit output and "Drive" VU metering
- Portable, rack-mountable design for studio, desktop or stage
UPC: 819937001208 In the Box Universal Audio 710 Twin-Finity - Microphone/Line Preamplifier AC Power Cable 19" Rack-Mount Kit One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio 710 Twin-Finity - Microphone Line Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

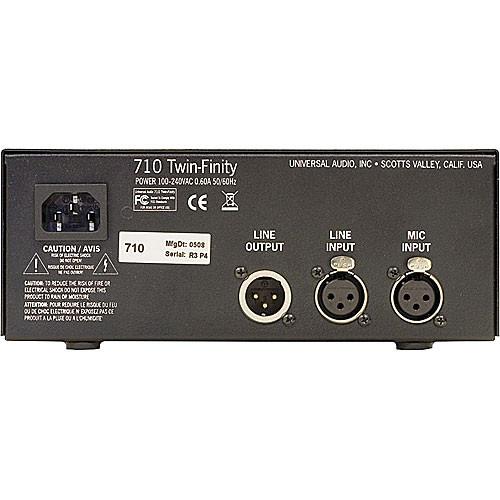

Technical parametersUniversal Audio 710 Twin-Finity Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone (2-pin hot)
1 x XLR Line (2-pin hot) | | Output | 1 x XLR Line (pin hot switchable with phase switch) | | Phantom Power | +48V | | Multi Function | No | | Gain Range | Infinity to 70dB | | Maximum Output Level | +18dBu into 600Ω
+28dBu into 100kΩ | | Frequency Response | 20Hz to 100kHz, +/-0.2dBu | | THD + Noise | Tube @ +4dBu: 0.1%
Solid-State @ +4dBu: 0.005% | | Power Requirements | 100V to 240V, auto-sensing power supply | | Dimensions (WxDxH) | 8.45 x 10.25 x 3.5" (215 x 260 x 89mm) | | Weight | 5.25 lbs (2.4kg) | | Specialties | -15dB pad
75Hz Bessel low-cut filter | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 14.8 x 11.5 x 5.8" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
