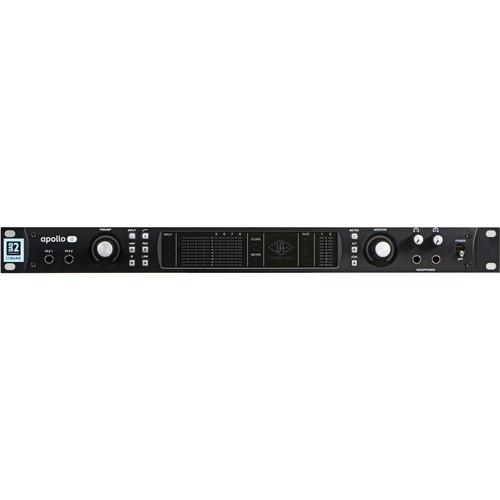

Product description Hands-On Review: The Universal Audio Apollo Thunderbolt 2 Interfaces Read More cbvewqedusbzyeacxvfyxvttascddtq The Apollo 8 QUAD from Universal Audio is an 18 x 24 Thunderbolt-ready computer audio interface that improves upon the original Apollo with better total harmonic distortion, dynamic range, and signal-to-noise specifications. Delivering the sound, feel and flow of analog recording, the interface combines high-resolution analog design with onboard UAD Processing, allowing music producers and performers to track audio through a range of classic UAD analog emulation plug-ins in real-time.
Designed to perform a central role in a modern studio, the unit delivers 24-bit / 192 kHz resolution, which ultimately translates into high-resolution analog audio. The interface features four premium microphone preamps with Unison integration for UAD preamp and pedal plug-ins, which allows true-to-life performance including impedance matching, gain staging, and component-level circuit behaviors. Each mic pre features a switchable low cut filter, 48V phantom power, pad, polarity inversion, and stereo linking.
While the converters are open and transparent, the unit can quickly deliver a wide range of classic analog tones and color via its built-in UAD Processing. The onboard QUAD Core processing provides up to a sub-2 millisecond latency that allows for quickly monitoring, auditioning, and printing audio using classic analog emulations from Ampex, Lexicon, Manley, Neve, Roland, SSL, Studer, and more.

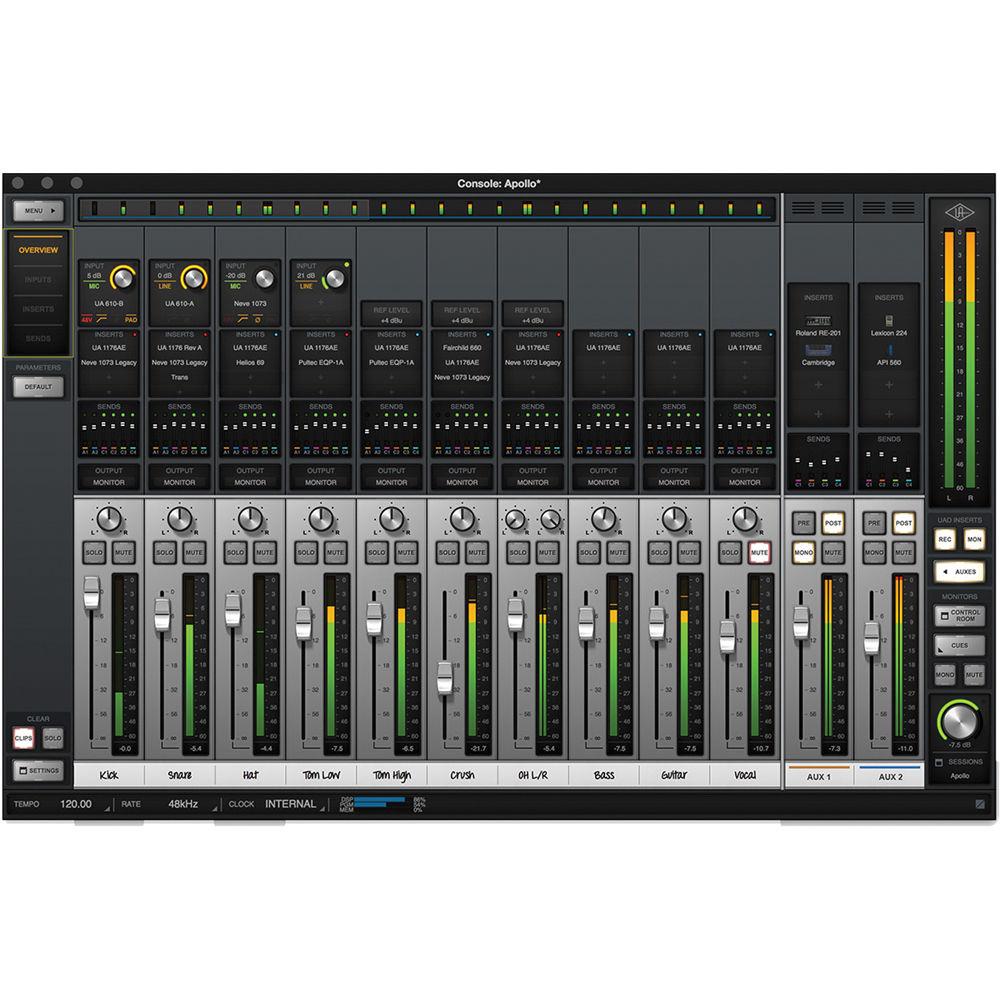

Apollo's Core Audio and Windows drivers ensure compatibility with all major DAWs, including Pro Tools, Logic Pro, Cubase, Live, and more. The included Console 2.0 application provides control and recall of all interface and UAD plug-in settings including channel-strip presets, drag-and-drop functionality, and dynamically resizable windows.

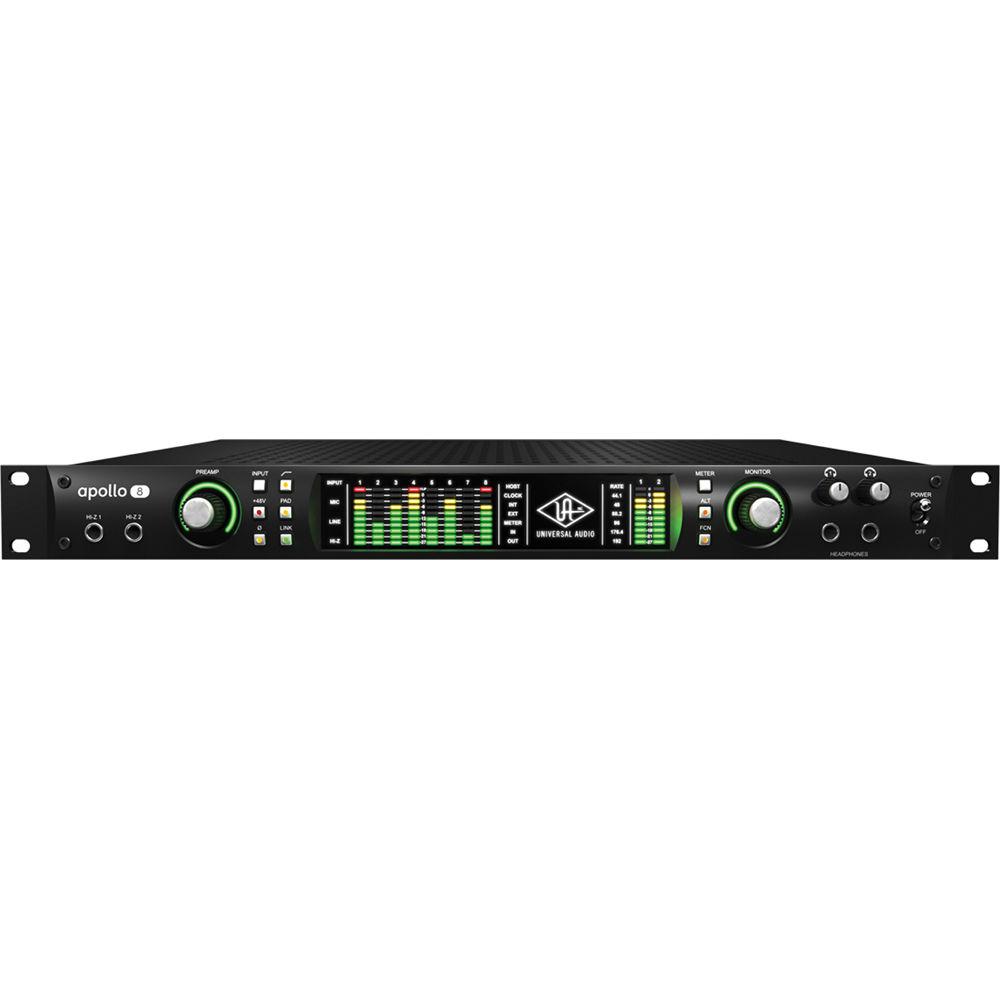

The Apollo 8 offers a comprehensive monitor solution with dedicated front panel controls for Alt Speakers, Dim, and Mono functions, as well as input and output metering capabilities. A total of four Apollos and six total UAD-2 devices can be combined via the included Apollo Expanded software, allowing Thunderbolt users the ability to expand their I/O and DSP. The Apollo 8 ships with a power supply, IEC power cord, and four rack-mount screws. - Audio Interface
-
- Sample rates up to 192 kHz at 24-bit word length
- 18 x 24 simultaneous input/output channels:
- Eight channels of analog-to-digital conversion via mic, line, or high-impedance inputs
- 14 channels of digital-to-analog conversion via:
- Eight mono line outputs
- Stereo monitor outputs (switchable to fixed line outputs)
- Two stereo headphone outputs
- 10 channels of digital I/O via:
- Eight channels ADAT Optical Lightpipe I/O with SMUX for high sample rates
- Two channels coaxial S/PDIF I/O with sample rate conversion
- Two Thunderbolt 2 ports facilitates daisy-chaining of other Thunderbolt devices
- Cascade up to 4 Apollo interfaces and 6 UAD devices total over Thunderbolt (Mac)
- Microphone Preamps
-
- Four high-resolution, ultra-transparent, digitally-controlled analog mic preamps
- Unison technology for deep integration with UAD preamp and pedal plug-ins
- Front panel and software control of all preamp parameters
- Switchable low cut filter, 48V phantom power, pad, polarity inversion, and stereo linking
- Monitoring
-
- Stereo monitor outputs (independent of the eight line outputs)
- Digitally-controlled analog monitor outputs maintain highest fidelity
- Front panel control of monitor levels and muting
- Two stereo headphone outputs with independent mix buses
- Independent front-panel volume controls for headphone outputs
- Front panel pre-fader metering of monitor bus levels
- S/PDIF outputs can be set to mirror the monitor outputs
- Up to two alternate stereo monitor outputs selectable via front panel or Console software
- Assignable front panel monitor function switch for alternate speakers, dim, & mono
- Processing
-
- QUAD model features four SHARC processors
- Real-time UAD Processing on all analog and digital inputs
- Same features and functionality as other UAD-2 devices when used with DAW
- Can be combined with other UAD-2 devices for increased mixing DSP
- Includes UAD Powered Plug-Ins Real-Time Analog Classics Plus bundle
- Complete UAD plug-ins library is available at the UA online store
- Software
-
- Console Application:
- Analog-style control interface for realtime monitoring and tracking
- Enables Real-time UAD Processing with UAD plug-ins
- Remote control of Apollo 8p features and functionality
- Virtual I/O for routing DAW tracks through Console
- Console Recall Plug-In:
- Saves Console configurations inside DAW sessions for easy recall
- Convenient access to Console’s monitor controls via DAW plug-in
- VST, RTAS, AAX 64, and Audio Units plug-in formats
- UAD Meter & Control Panel Application:
- Configures global UAD settings and monitors system usage
- Other
UPC: 819937001925 In the Box Universal Audio Apollo 8 QUAD - Thunderbolt 2 Audio Interface with Real-Time UAD Processing External Power Supply IEC Power Cord 4 x Rack-Mount Screws Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio Apollo 8 QUAD - Thunderbolt 2 Audio Interface with Real-Time UAD Processing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

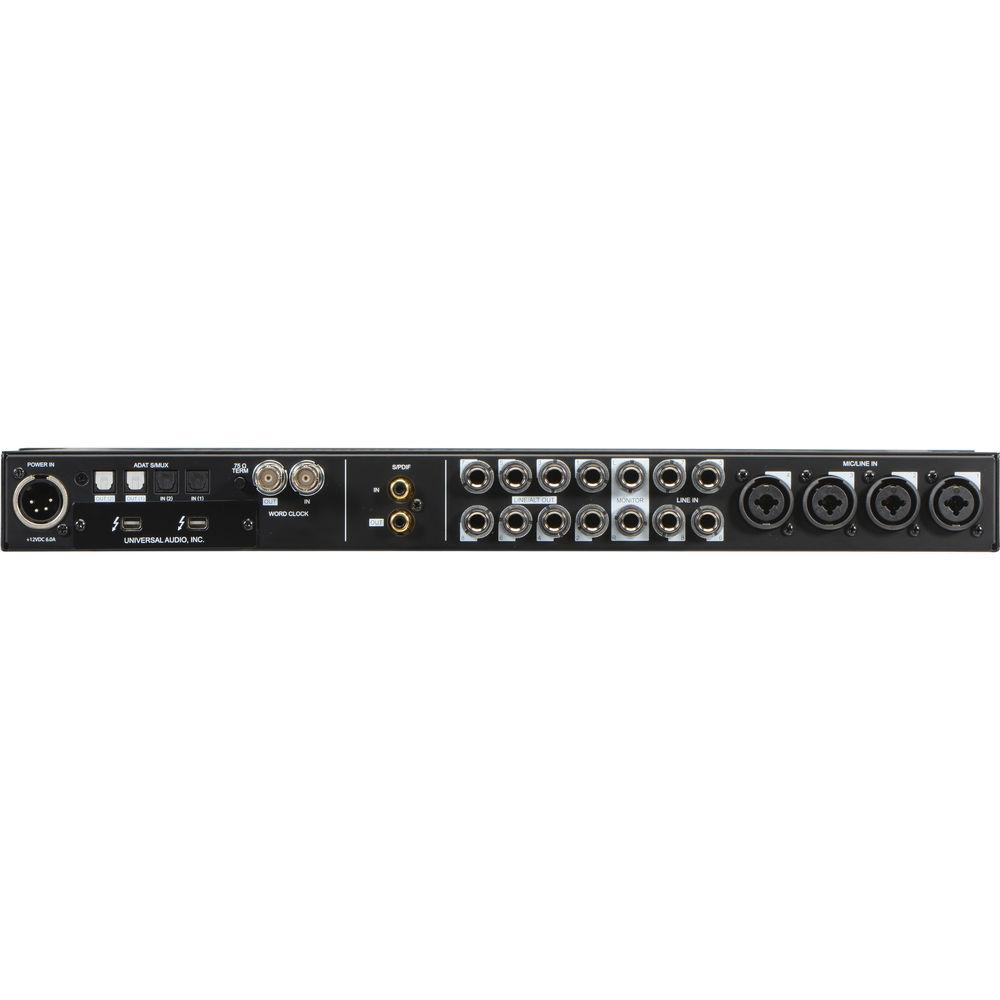

Technical parametersUniversal Audio APL8Q Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 2 x Thunderbolt (MDP) (Thunderbolt 2) | | Analog I/O | 4 x Combo XLR / 1/4" Mic/Line Input
2 x 1/4" (6.3 mm) TS Hi-Z Input
4 x 1/4" (6.3 mm) TRS Line Input
8 x 1/4" (6.3 mm) TRS Line Output
2 x 1/4" (6.3 mm) TRS Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output
1 x RCA Coaxial / AES/EBU, S/PDIF Input
1 x RCA Coaxial / AES/EBU, S/PDIF Output
2 x TOSLINK / ADAT, S/MUX Input
2 x TOSLINK / ADAT, S/MUX Output | | MIDI I/O | None | | | | Frequency Response | 20 Hz to 20 kHz
