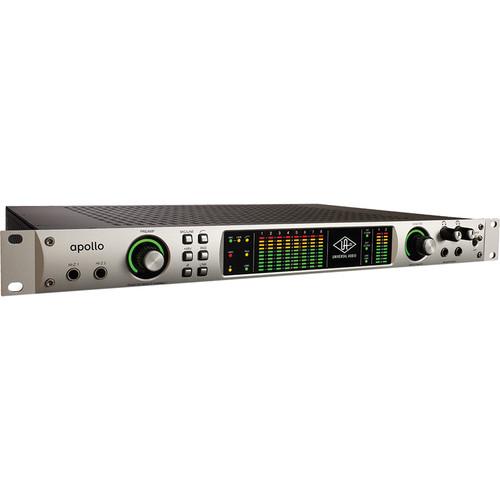

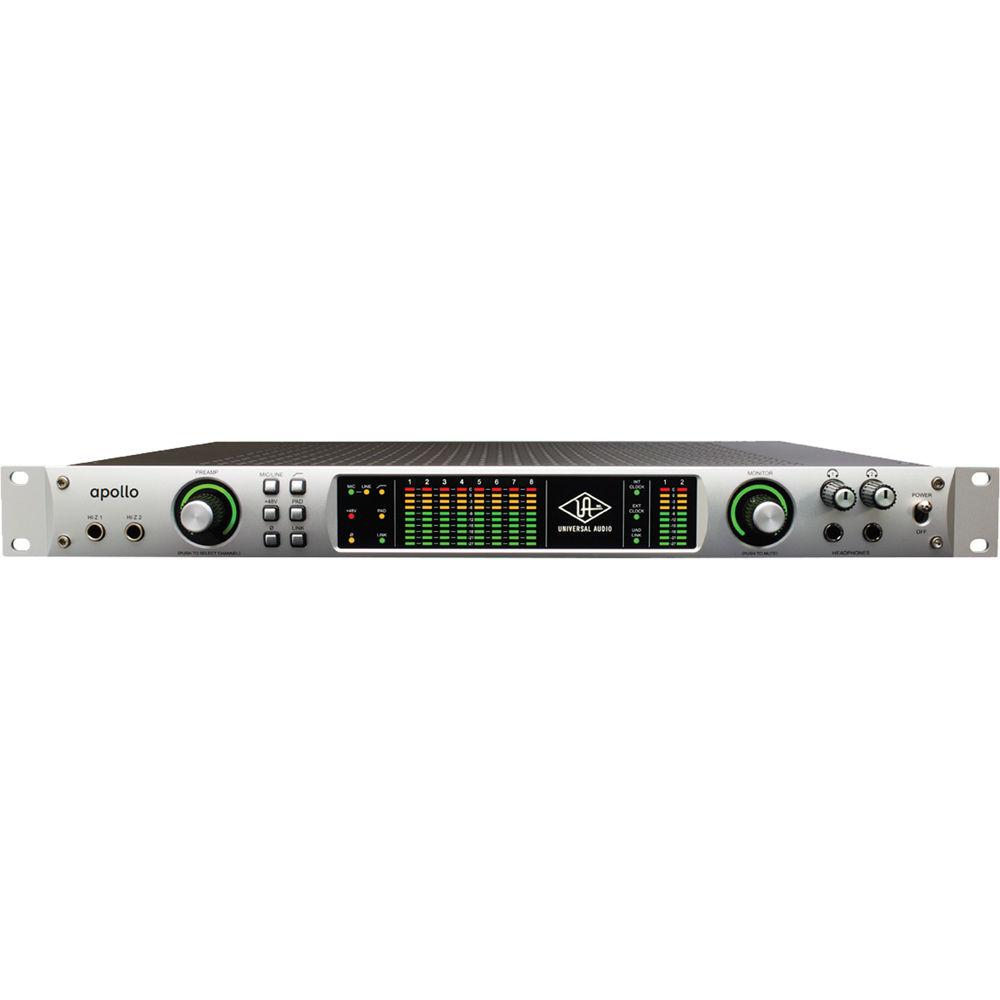

Product description The Apollo FireWire from Universal Audio is an 18 x 24 computer audio interface that delivers the sound, feel and flow of analog recording. The interface combines high-resolution analog design with on-board UAD Processing, allowing music producers and performers to track audio through a range of classic UAD analog emulation plug-ins in real-time.
Designed to perform a central role in a modern Mac- or Window-based studio, the unit delivers 24-bit/192 kHz resolution, which ultimately translates into high-resolution analog audio, with low THD and high dynamic range. The interface features four premium Unison-enabled microphone preamps for tracking through preamp emulations from Neve, API, and Universal Audio. Each preamp offers switchable phantom power, 20dB pad, polarity inversion, and stereo link.
While the converters are open and transparent, the unit can quickly deliver a wide range of classic analog tones and color via its built-in UAD Processing. The on-board QUAD Core processing provides up to a sub-2 millisecond latency that allows for quickly monitoring, auditioning, and "printing" audio using classic analog emulations from Ampex, Lexicon, Manley, Neve, Roland, SSL, Studer, and more.

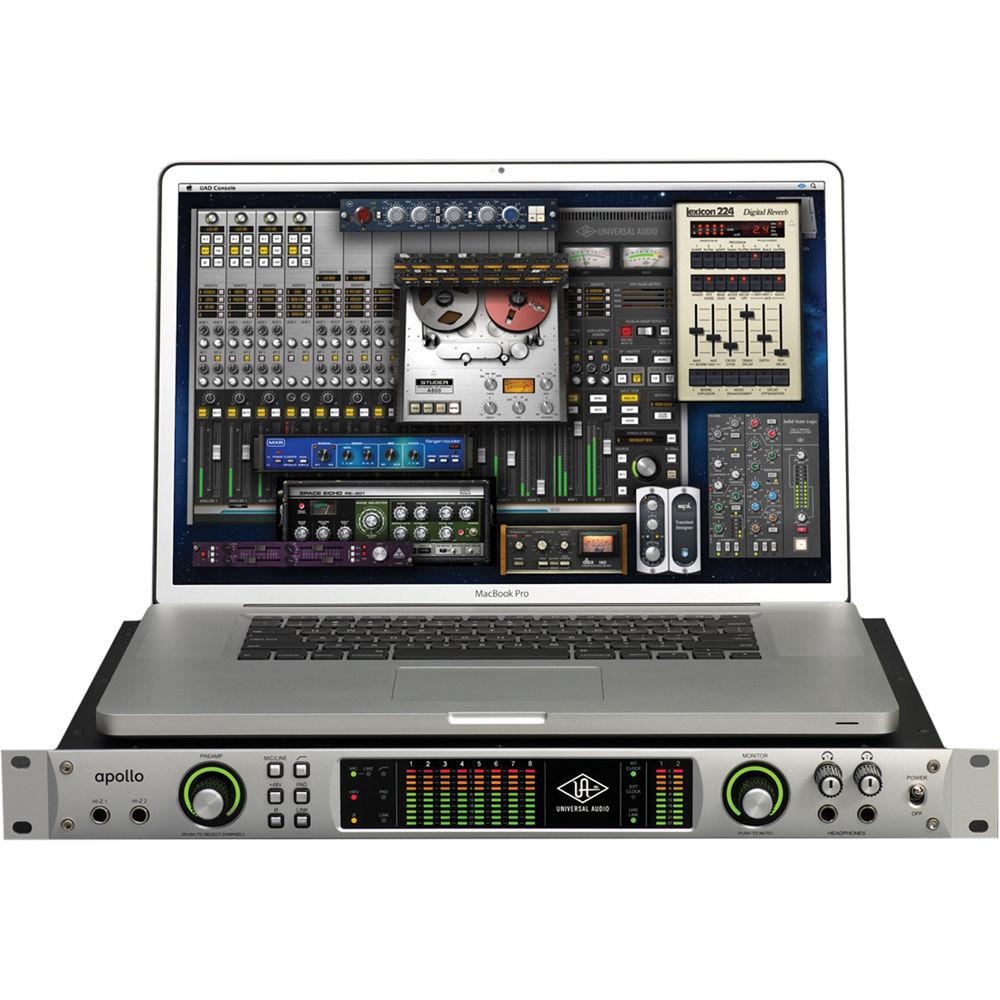

Apollo's Core Audio and ASIO drivers ensure compatibility with all major DAWs, including Pro Tools, Logic Pro, Cubase, Live, and more. The included Console application and companion Console Recall plug-in provide control and recall of all interface and UAD plug-in settings within the individual DAW sessions, for exact recall months or even years later.
The Apollo FireWire can be upgraded with the optional Thunderbolt 2 I/O option card, which lowers latency, reduces audio buffer size, improves performance, and offers greater UAD plug-in instances versus FireWire. Additionally, a total of four Apollos and six total UAD-2 devices can be combined using the available Apollo Expanded software, allowing Thunderbolt users to expand their I/O and DSP as their studio grows. The Apollo FireWire ships with a power supply, a IEC power cord, a FireWire 800 cable, and four rack-mount screws. - Audio Interface
-
- Sample rates up to 192 kHz at 24-bit word length
- 18 x 24 simultaneous input/output channels:
- Eight channels of analog-to-digital conversion via mic, line, or high-impedance inputs
- 14 channels of digital-to-analog conversion via:
- Eight mono line outputs
- Stereo monitor outputs
- Two stereo headphone outputs
- 10 channels of digital I/O via:
- Eight channels ADAT Optical I/O with S/MUX for high sample rates
- Two channels coaxial S/PDIF I/O with sample rate conversion
- Two FireWire 800 ports for daisy-chaining other FireWire devices
- Microphone Preamps
-
- Four high-resolution, ultra-transparent, digitally-controlled analog mic preamps
- Unison technology for deep integration with UAD preamp and pedal plug-ins
- Front panel and software control of all preamp parameters
- Switchable low cut filter, 48V phantom power, 20 dB pad, polarity inversion, and stereo linking
- Monitoring
-
- Stereo monitor outputs (independent of eight line outputs)
- Digitally-controlled analog monitor outputs maintains highest fidelity
- Front panel control of monitor levels and muting
- Two stereo headphone outputs with independent mix buses
- Independent front panel analog volume controls for headphone outputs
- Front panel pre-fader metering of monitor bus levels
- S/PDIF outputs can be set to mirror the monitor outputs
- Processing
-
- QUAD model featuring four SHARC processors
- Realtime UAD Processing on all of Apollo’s analog and digital inputs
- Same features and functionality as other UAD-2 products when used with DAW
- Can be combined with other UAD-2 devices for increased mixing DSP
- Complete UAD Powered Plug-Ins library is available online
- Software
-

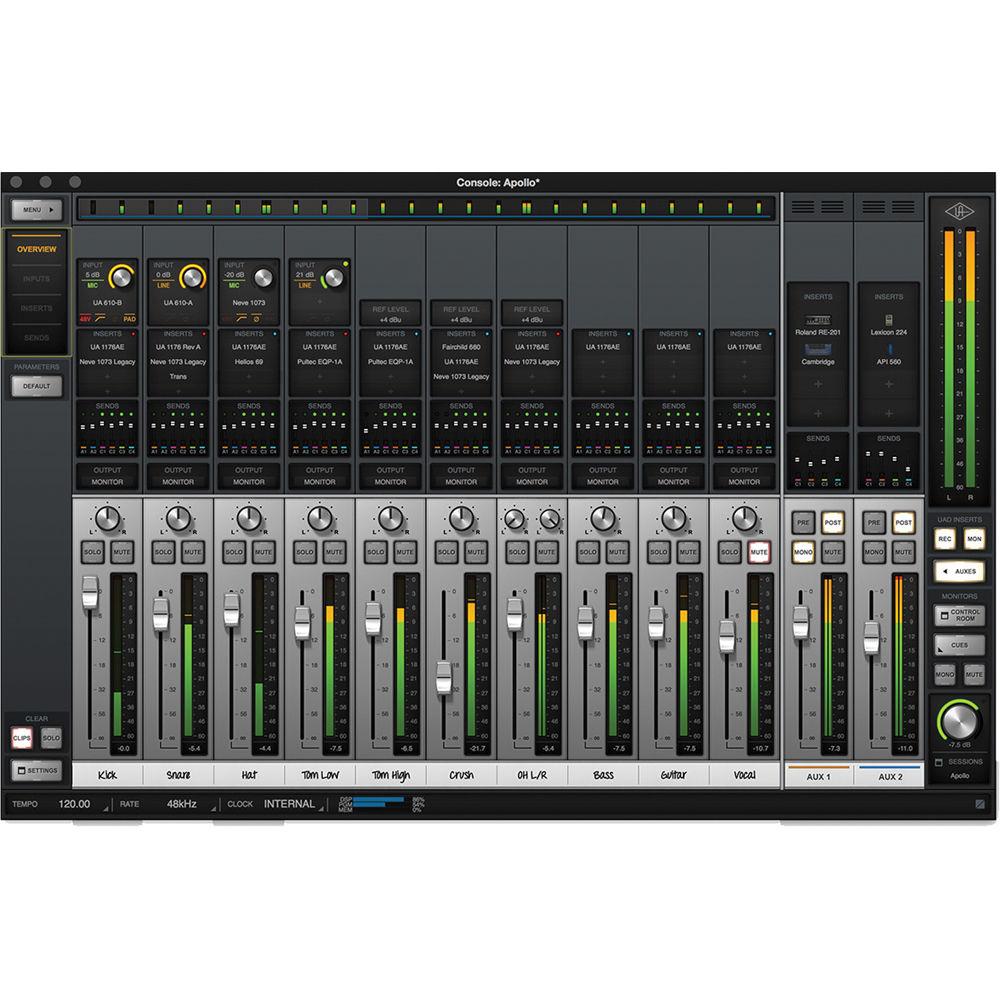

- Console application:
- Enables Realtime UAD Powered Plug-Ins processing
- DSP mixer for realtime monitoring and tracking
- Remote control of all Apollo features and functionality
- Console Recall plug-in:
- Saves Apollo configurations inside DAW sessions for easy recall
- Enables control of all front panel parameters from within the DAW
- VST, RTAS, and Audio Units plug-in formats
- UAD Meter & Control Panel application:
- Configures global UAD-2 and Powered Plug-Ins settings and monitors system usage
- Realtime Analog Classics Plus Bundle
-
- UA 610-B Tube Preamp and EQ
- Pro-Co Rat Raw Distortion Plug-In
- Softube Amp Room Essentials
- Fairchild 670
- UA Precision Enhancer Hz
- 1176SE/LN Classic Limiting Amplifiers
- Pultec Pro Equalizers
- Teletronix LA-2A Classic Leveling Amplifier
- CS-1 Precision Channel
- RealVerb Pro
UPC: 819937002052 In the Box Universal Audio Apollo FireWire with Real-Time UAD Processing External Power Supply IEC Power Cord FireWire 800 Cable (6') 4 x Rack Mount Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio Apollo FireWire with Real-Time UAD Processing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniversal Audio APLQF Specs | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192 kHz | | Analog Input | 4 x XLR Microphone
2 x 1/4" TS phone Hi-Z
8 x 1/4" TRS phone Line | | Analog Output | 8 x 1/4" TRS phone Line
2 x 1/4" TRS phone Monitor
2 x 1/4" TRS phone Headphone | | Digital Input/Output | S/PDIF
Jack Type: Phono (RCA)
Format: IEC958
ADAT
Jack Type: Optical TOSLINK JIS F05
Format: ADAT Digital "Lightpipe" with S/MUX
Channel Assignments @ 44.1 kHz, 48 kHz Port 1 = Channels 1 - 8, Port 2 = 1 - 8 (mirrored)
Channel Assignments @ 88.2 kHz, 96 kHz Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8
Channel Assignments @ 176.4 kHz, 192 kHz Port 1 = Channels 1 - 2, Port 2 = Channels 3 - 4 | | Other Connectors | 2 x BNC Wordclock I/O
2 x 1394 FireWire 800 ports
2 x Thunderbolt (via option card) | | MIDI In/Out | No | | Word Clock | Jack Type: BNC
Lock Range: ±0.5% of any supported sample rate
Word Clock Input Termination: 75 Ohms, switchable
Synchronization Sources: Internal, Word Clock, S/PDIF, ADAT | | Headphone Output | Dual independent | | Dynamic Range | Microphone: 118 dB, A-weighted
Hi-Z Inputs: 117 dB, A-weighted
Line Inputs: 117 dB, A-weighted
Line Outputs: 118 dB, A-weighted
Monitor Out: 115 dB, A-weighted
Headphone: 113 dB, A-weighted | | Signal to Noise Ratio | Microphone: 118 dB, A-weighted
Hi-Z Inputs: 117 dB, A-weighted
Line Inputs: 117 dB, A-weighted
Line Outputs: 118 dB, A-weighted
Monitor Out: 114 dB, A-weighted
Headphone: 113 dB, A-weighted | | THD + N | Microphone: -110 dB
Hi-Z Inputs: -103 dB
Line Inputs: -107 dB
Line Outputs: -106 dB
Monitor Out: -103 dB
Headphone: -102 dB | | Frequency Response | Line Outputs: 20 Hz to 20 kHz, +/-0.1 dB
Monitor Out: 20 Hz to 20 kHz, +/-0.1 dB
Headphone: 20 Hz to 20 kHz, +/-0.1 dB | | Power | Power Supplies: External AC to DC power supply brick, internal DC to DC power supply
AC Connector Type: IEC Male
AC Requirements: 100 to 240 VAC, 50/60 Hz
DC Connector Type: XLR 4-Pin locking male (Neutrik P/N NC4MDM3-H)
DC Requirements: 12 VDC, ±5%
Maximum Power Consumption: 6.5 A | | System Requirements | FireWire Systems (UAD Powered Plug-Ins version 8)
(Win) Windows 7 64-Bit Edition w/SP1
(Mac) OS X 10.8.5 Mountain Lion, 10.9.x Mavericks, or 10.10.x Yosemite
Available FireWire 800 port*
4 GB available disk space
Internet connection to download software and authorize UAD plug-ins
Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host DAW software *On Windows systems, a qualified PCIe-to-FireWire adapter card is required | | Specialties | Analog Round Trip Latency: 1.1 mS @ 96 kHz (including 4 serial UAD-2 plug-ins via Console application)
S/MUX assignment allows for 8-channels @ 88.2/96kHz and 4-channels @ 176.4/192 kHz
32- and 64-bit device drivers | | Dimensions (WxDxH) | 19 x 12.1 x 1.75" (483 x 307 x 45 mm) | | Weight | Unit only - 9.1 lb (4.1 kg) | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 23.0 x 17.0 x 8.0" |
