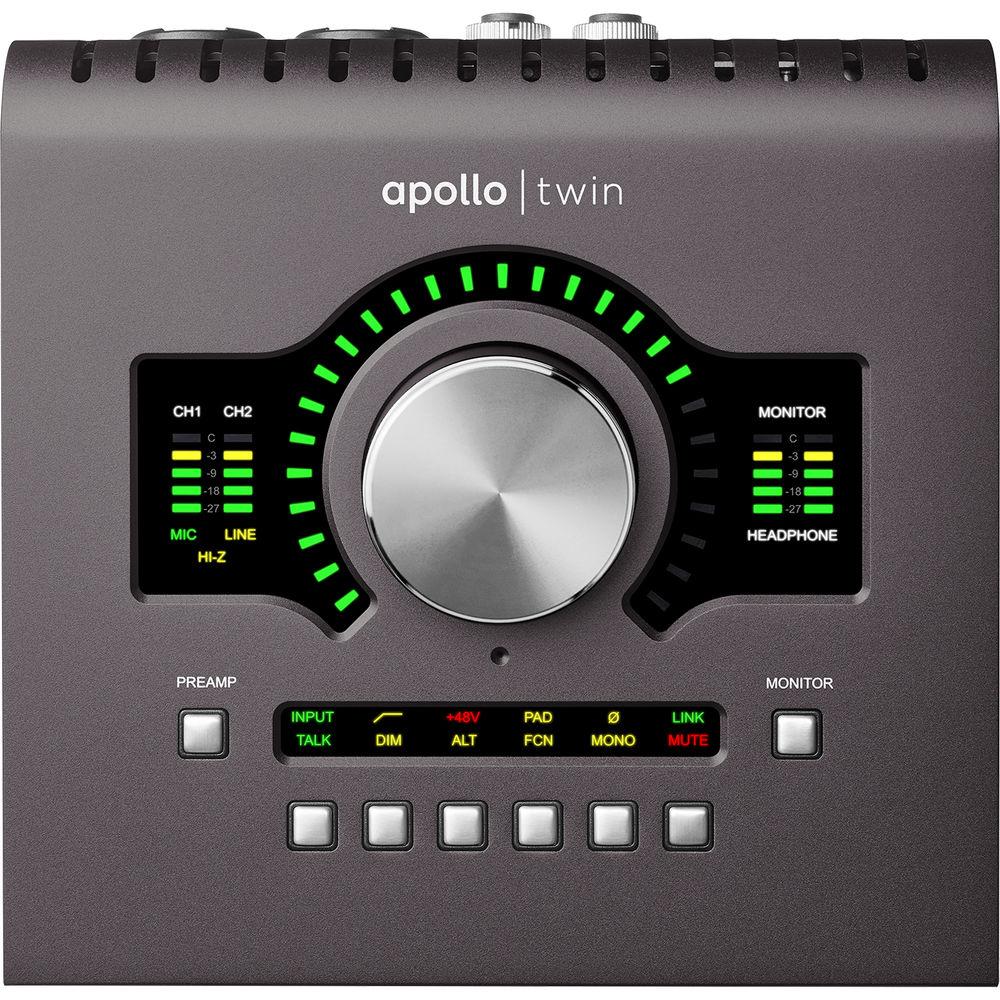

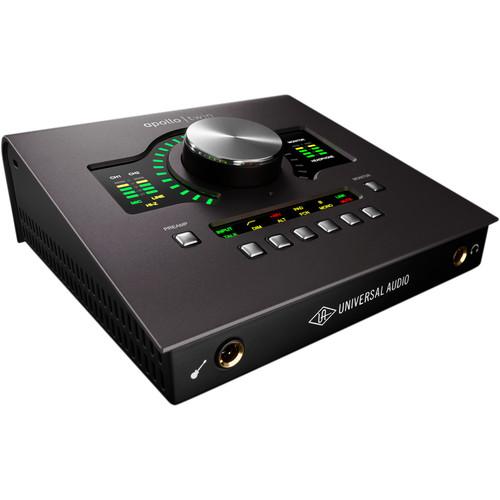

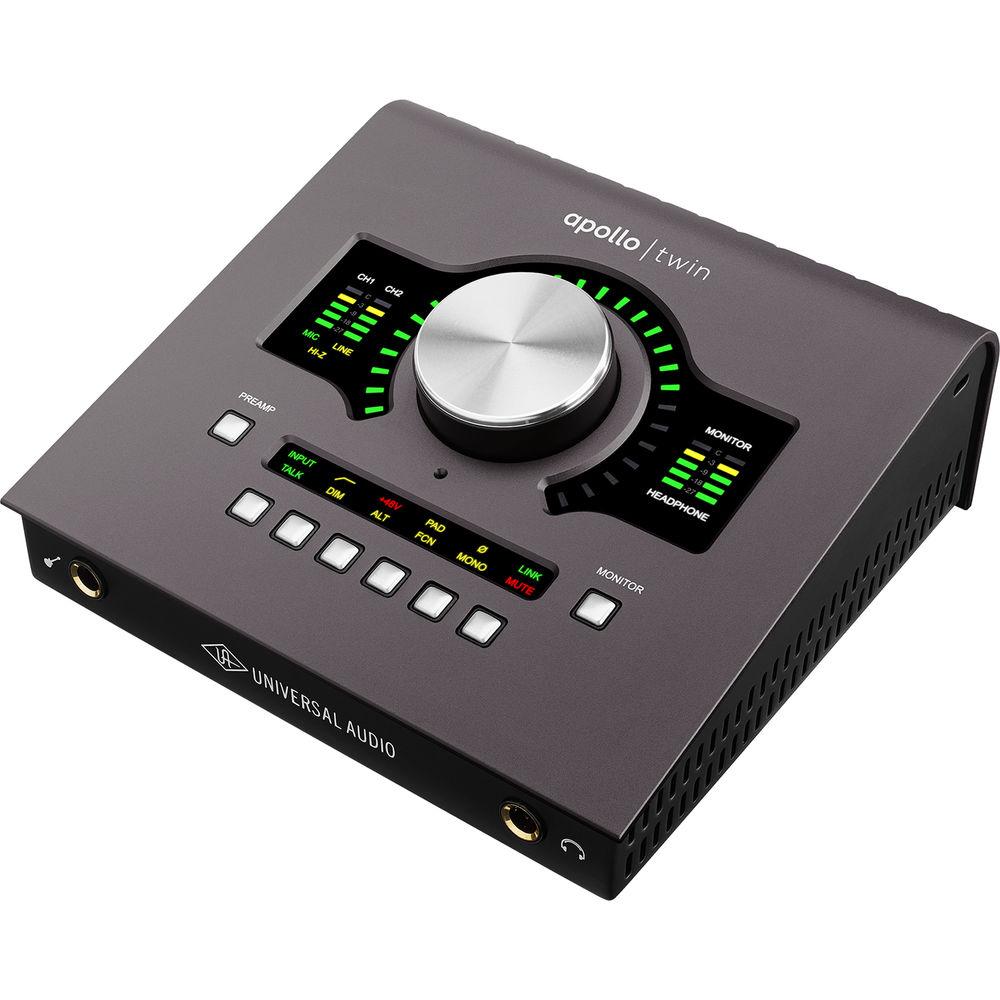

User Manual for Universal Audio Apollo Twin MKII DUO Desktop Interface with Realtime UAD Processing for Mac and Windows Click to enlarge the picture
Contents of the user manual for the Universal Audio Apollo Twin MKII DUO
- Product category: Audio Interfaces & Systems Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Audio Interfaces & Systems
 |
User manual for the Universal Audio Apollo Twin MKII DUO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|
Product description NAMM 2017: Universal Audio Releases Apollo Twin MkII Audio Interfaces Read More The Apollo Twin MKII DUO Desktop Interface with Realtime UAD Processing from Universal Audio is a Thunderbolt audio interface capable of capturing your audio in up to 24-bit/192 kHz with real-time, low-latency UAD plug-in processing. Building upon the success of the original, the Twin MKII offers a ground-up redesign of the A/D and D/A converters, as well as increased dynamic range and ultra-low THD. Other enhancements include improved monitor functionality with Mute, Dim, Mono, and ALT speaker switching, as well as monitor remote controls and a built-in talkback mic for easy communication with talent and/or recording slate cues.
Like the original, the Twin MKII features Universal Audio's Unison technology, which, in conjunction with their UAD plug-ins, is capable of emulating a range of tube and solid-state microphone preamps, including their impedance and gain-stage sweet spots. The interface includes the Realtime Analog Classics UAD plug-in bundle, featuring legacy editions of the LA-2A Classic Audio Leveler, the 1176LN Limiting Amplifier, and Pultec EQP-1A Program Equalizer, plus Softube Amp Room Essentials, and the 610-B Tube Preamp. -
- Desktop 2x6 Thunderbolt audio interface for Mac and Windows with next-generation 24-bit/192 kHz audio conversion
- UAD-2 DUO Core Processing for tracking through vintage compressors, EQs, tape machines, mic preamps, and guitar amp plug-ins with near-zero latency
- Unison technology offers stunning models of classic tube and transformer-based preamps, guitar amps, and stompboxes
- Built-in talkback mic for communication with studio talent and recording slate cues
- Improved monitor functionality including monitor remote functions and Mono, Mute, DIM, and ALT monitor controls
- Two premium Unison mic/line preamps
- Two line outputs
- Front-panel Hi-Z instrument input
- Headphone output
- Two digitally controlled analog monitor outputs for full resolution at all listening levels
- Up to eight channels of additional digital input via optical TOSLINK connection
- Includes Realtime Analog Classics UAD plug-in bundle
- Runs UAD Powered Plug-Ins via VST, RTAS, & AAX 64 in all major DAWs
- Uncompromising analog design, superior components, and premium build quality
- Included in the Realtime Analog Classics Bundle
-
- UA 610-B
- Marshall Plexi Classic Amplifier
- Teletronix LA-2A Legacy
- UA 1176LN Legacy
- UA 1176SE Legacy
- Pultec EQP-1A Legacy
- Pultec Pro Legacy
- Precision Channel Strip
- Precision Reflection Engine
- Precision Delay Modulation
- Precision Delay Modulation L
- Raw Distortion
- Softube Bass Amp Room 8X10
- RealVerb-Pro
UPC: 819937002335 In the Box Universal Audio Apollo Twin MKII DUO Desktop Interface with Realtime UAD Processing for Mac and Windows External Power Supply 4 x Changeable AC Connectors, Supporting USA, Europe, UK, Australia, and China Limited 1-Year Limited Warranty User Manual PDF 1.6mbueeftwsfrx Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio Apollo Twin MKII DUO Desktop Interface with Realtime UAD Processing for Mac and Windows in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniversal Audio APLTWDII Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-C (Thunderbolt 3) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Balanced Mic/Line Input
1 x 1/4" (6.3 mm) TS Unbalanced Hi-Z Input
1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output
2 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 1 x TOSLINK / ADAT, S/MUX, S/PDIF Input | | MIDI I/O | None | | | | Frequency Response | Headphone Outputs:
20 Hz to 20 kHz
