User Manual for Universal Audio Arrow 2x4 Thunderbolt 3 Audio Interface with Realtime UAD-2 SOLO Core Processing Click to enlarge the picture
Contents of the user manual for the Universal Audio Arrow 2x4 Thunderbolt 3
- Product category: Audio Interfaces & Systems Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Audio Interfaces & Systems
 |
User manual for the Universal Audio Arrow 2x4 Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

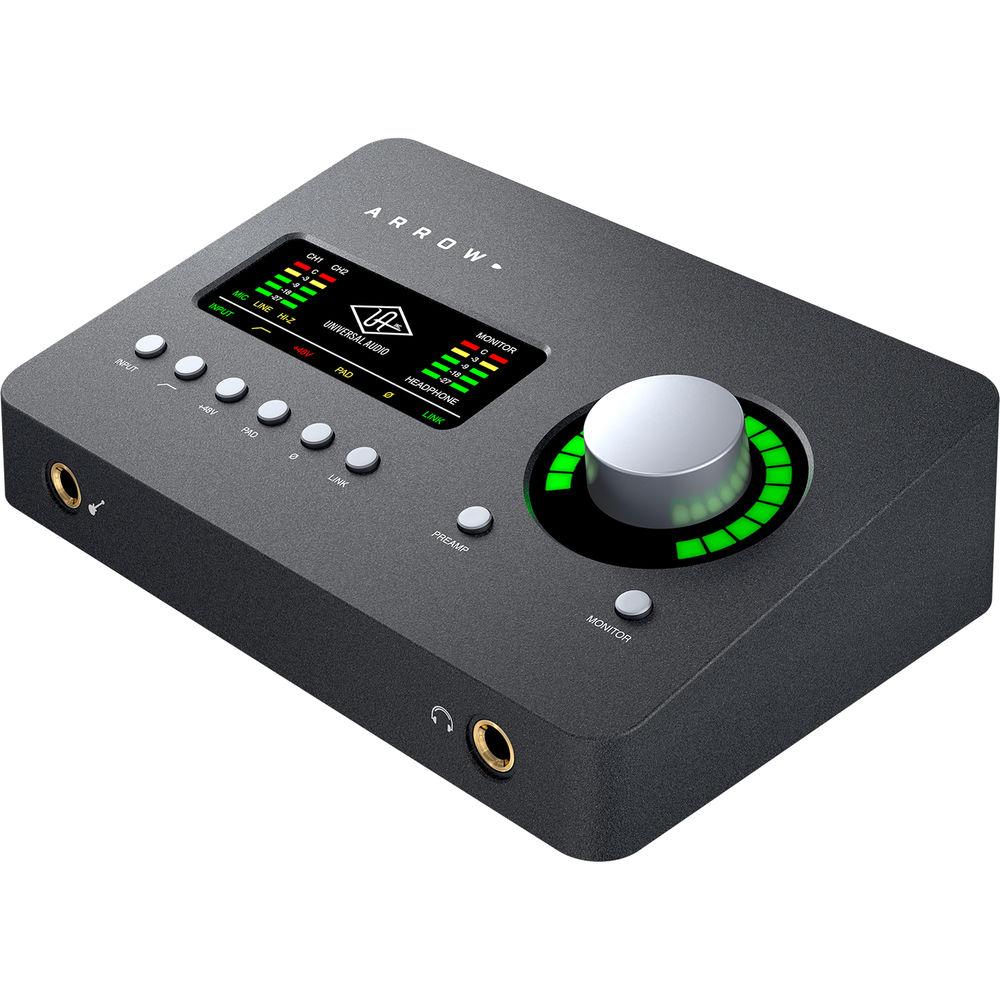

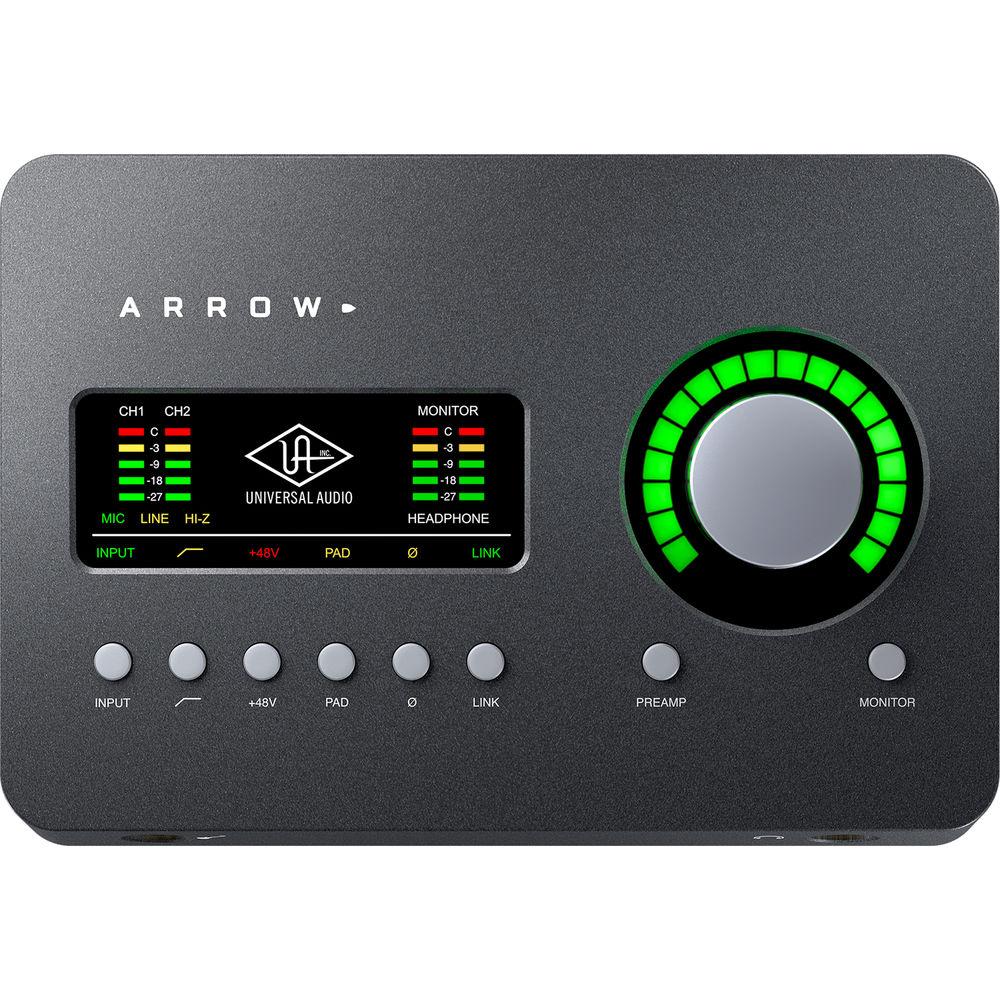

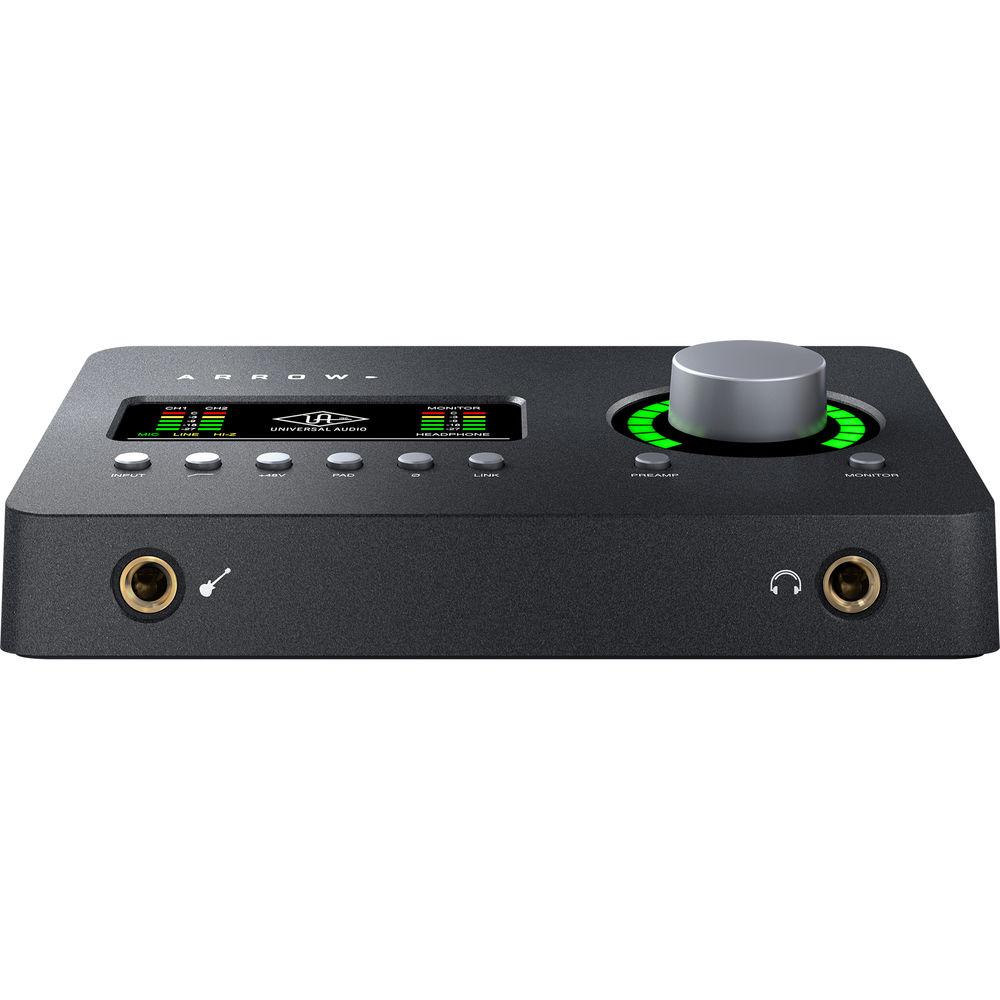

Product description NAMM 2018, Now at B&H: Take Aim with the Universal Audio Arrow Read More The Universal Audio Arrow is an interface designed for project-studio, home studio use, and on-the-road use. Connecting to your computer over Thunderbolt 3, the unit provides two combination XLR-1/4” connections for mic/line sources, as well as a 1/4" input specifically tailored for electric guitars and basses. Two Unison preamps are on hand, each of which lets you color the incoming sound through Universal Audio’s preeminent modeling plug-ins; so, if you want the sound of a Neve or an API on your guitar or vocal, you can purchase one of the company’s appropriate plug-ins and use them as you record, committing their sound to the resulting audio capture.The Arrow sports two 1/4" output connections for your monitors, as well as a dedicated headphone output. Whether you monitor through your speakers or through headphones, you’ll experience a near-zero latency performance, meaning you can play through UAD emulations without the processing interfering with your performance or timing.The interface, which is bus-powered over Thunderbolt, features a UAD-2 SOLO Core processor, giving you some dedicated DSP for operating the plug-ins. This unit is designed to be portable, with its all-metal construction and aforementioned bus-powering. Included with the Arrow is the Realtime Analog Classics bundle from UAD, whose specific plug-ins can be perused in the features section.Please note, the Arrow requires a powered Thunderbolt 3 port on your computer in order to operate. To see whether or not your computer is compatible with the Arrow, refer to the manufacturer website for compatibility information. Note: Please note, the Arrow requires a powered Thunderbolt 3 port on your computer in order to operate. To see whether or not your computer is compatible with the Arrow, please click this link. - Key Features at a Glance
-
- Desktop 2x4 Thunderbolt 3 audio interface with 24-bit / 192 kHz audio conversion
- Unison mic preamp and guitar amp emulations from Neve, API, Manley, Marshall, Fender, and more
- Realtime UAD Processing for near-zero latency tracking with classic UAD plug-in effects, regardless of software buffer settings
- Includes studio compressors, EQs, reverbs, guitar amp emulations, and more as part of Realtime Analog Classics bundle

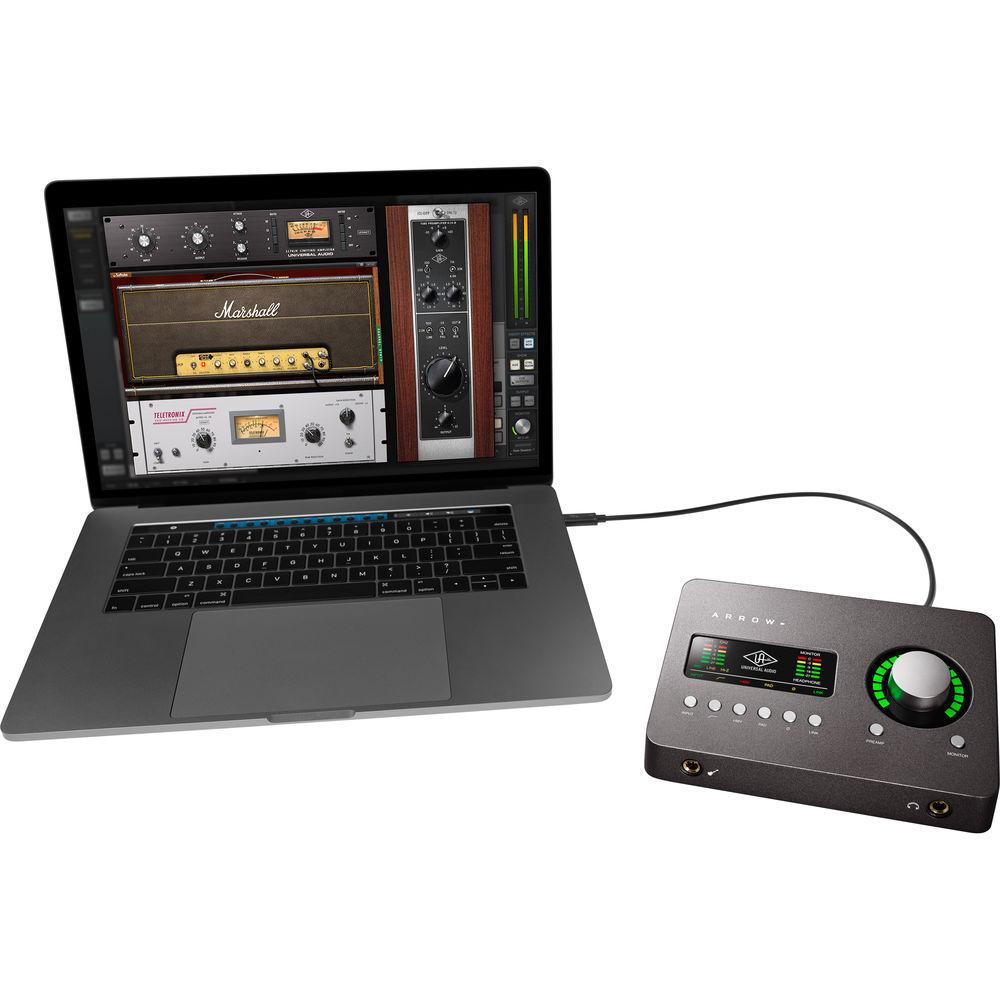

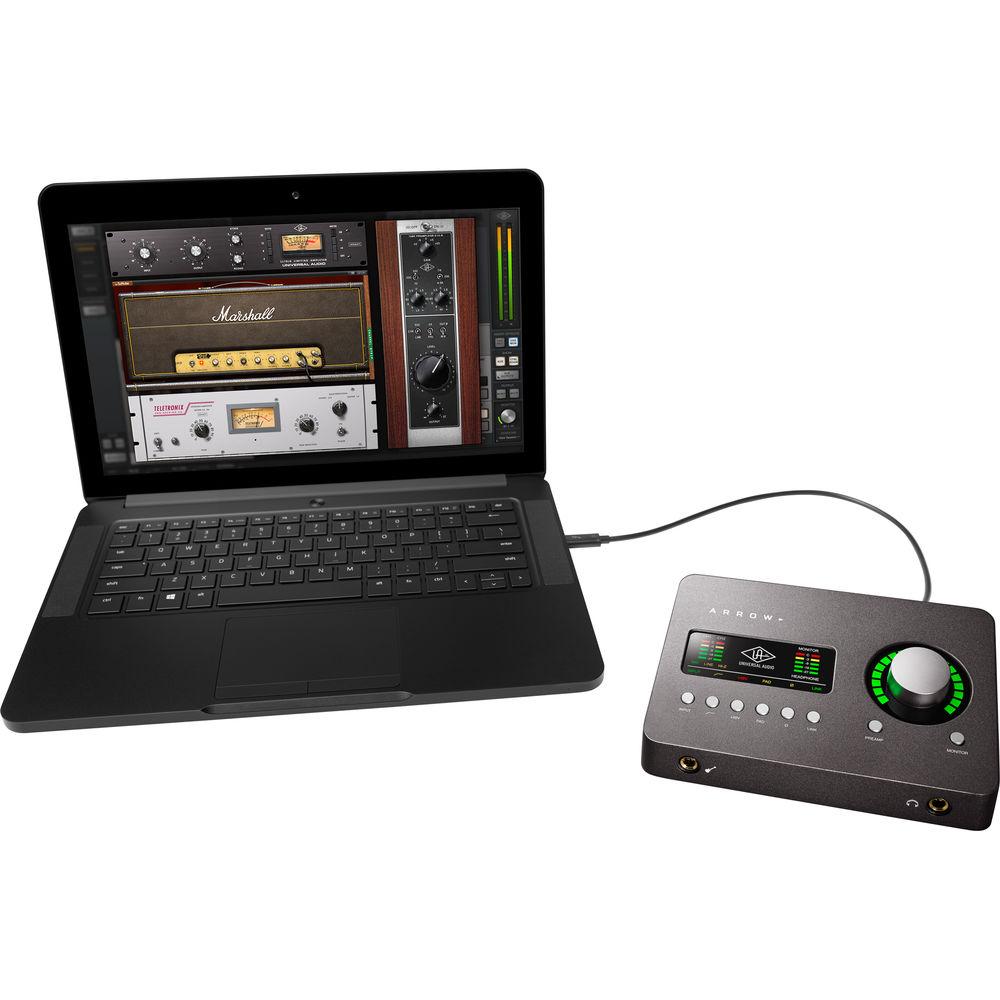

- Bus-powered connection to Mac and Windows systems for easy portability and reduced cable clutter

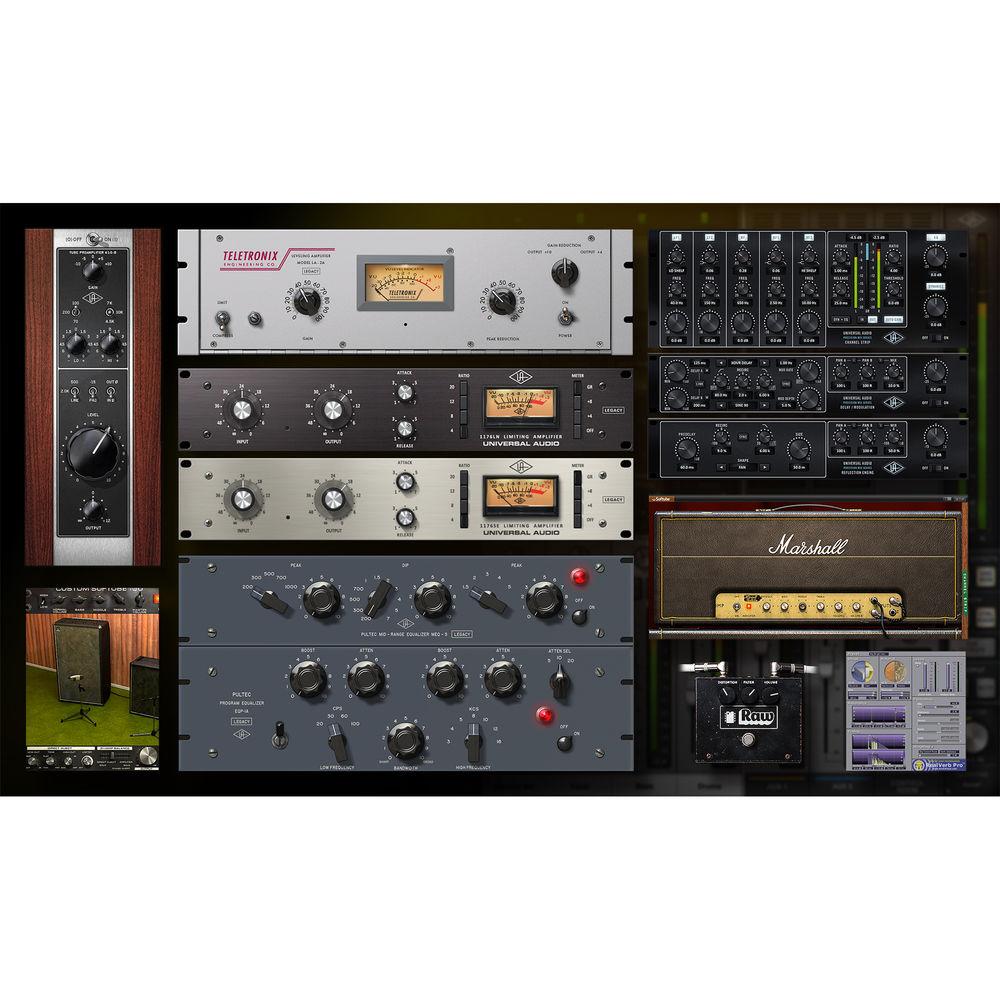

- Included Plug-Ins
-
- UA 610-B Tube Preamp and EQ
- Marshall Plexi Classic Amplifier
- Precision Delay Modulation
- Precision Delay Modulation L
- Precision Reflection Engine
- Precision Channel Strip
- Pultec EQP-1A EQ (Legacy)
- Pultec Pro EQ (Legacy)
- Raw Distortion Guitar Pedal
- Realverb Pro
- Softube Bass Amp Room 8x10
- Teletronix LA-2A Compressor (Legacy)
- UA 1176LN Compressor (Legacy)
- UA 1176SE Compressor (Legacy)
UPC: 819937002441 In the Box Universal Audio Arrow 2x4 Thunderbolt 3 Audio Interface with Realtime UAD-2 SOLO Core Processing Limited 1-Year Warranty User Manual PDF 23.3mbxqtxaywcbzxtcvteaxwxbsyfbr Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio Arrow 2x4 Thunderbolt 3 Audio Interface with Realtime UAD-2 SOLO Core Processing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniversal Audio Arrow Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x Thunderbolt (MDP) | | Analog I/O | 1 x 1/4" (6.3 mm) Hi-Z Input
2 x Combo XLR / 1/4" Input
2 x 1/4" (6.3 mm) Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | None | | MIDI I/O | None | | | | Sample Rates | Up to 192 kHz | | Bit Depth | 24-Bit | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.5 x 6.3 x 2.6" |
