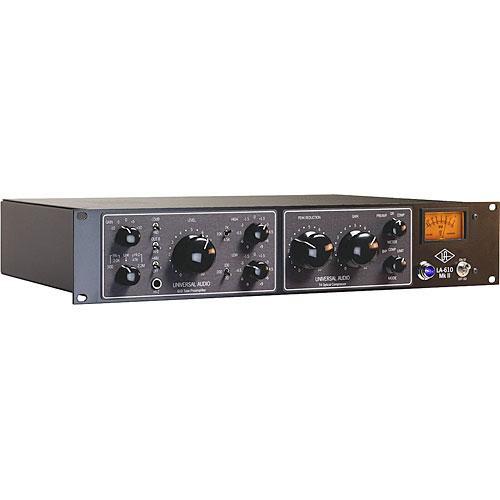

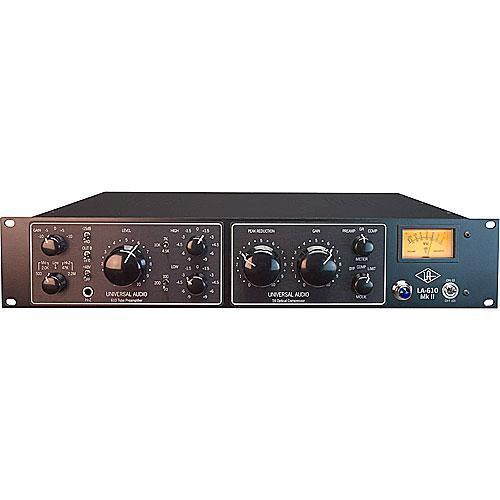

Product description The LA-610 Mk II from Universal Audio brings vintage, "all tube" sound to the modern channel strip format. The unit combines a 610 Mic-Pre/EQ/DI section, based on the console modules developed by Bill Putnam in the 1960s, with a T4 Opto-compressor, and houses them in a 2U rack-mount enclosure. The 610-tube preamp, DI and EQ deliver a sound that is as timeless as it is legendary, and a hallmark of many classic recordings. The simple operation and program dependent nature of the T4 compressor provides extremely musical control. The LA-610 MkII is sonically very versatile and can function as an ideal front-end for tracking into a digital audio workstation. The preamp is augmented with two bands of shelving EQ, followed a T4 based optical compressor. Although not an exact LA-2A clone, the compressor circuitry nevertheless shares its signature sound by utilizing its unique combination of an electro-luminescent panel and photo-resistors. Three 12AX7A tubes, a single 6072A and 6AQ5 tube combine to provide "warmth" and overall even tonal balance. The Mk II delivers several enhancements over the original LA-610. A true compressor bypass switch is now available which completely avoids the compressor circuitry. Other changes improve the performance of the output signal, improved consistency with input gain values and feedback-style shelving EQ improves the EQ stability. An auto-sensing, universal power supply is included, along with larger and better lit metering. - Single-channel vintage channel-strip
- Design based on legendary Bill Putnam's 610 tube microphone preamp and EQ console modules, used on countless classic recordings
- Microphone preamp features Gain and Level controls, variable impedance switching, and Instrument DI for recording tone "color"
- Improved stability with feedback-style shelving EQ
- Authentic Teletronix LA-2A-style T4 opto-compressor with continuous peak reduction and makeup gain
- Compressor circuitry can be fully bypass with the inclusion of a true bypass switch
- 15dB pad switch and polarity reverse switch
- Improved metering with meter source selector switch
- LED jewel "power on" indicator light never needs replacement
- Auto sensing universal power supply
- UA build quality and heritage, audiophile components and hand-assembled in the USA
UPC: 819937000072 In the Box Universal Audio LA-610 MKII - Recording Channel AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio LA-610 MKII - Recording Channel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

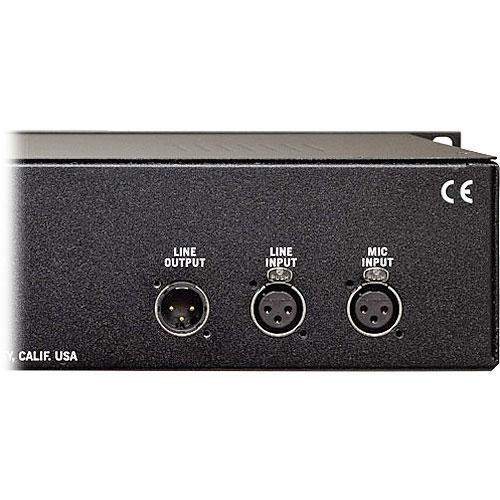

Technical parametersUniversal Audio LA610 MKII Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x XLR Line | | Outputs | 1 x XLR | | Frequency Response | 20Hz to 20kHz, +/-0.5dB | | Noise | -72dBu (20Hz to 20kHz, line in/unity gain) | | | | Gain Range | +77dB (microphone)
40dB Line | | Maximum Output | +23dBu (120VAC line) | | Input Impedance | 500Ω or 2kΩ, selectable | | Phantom Power | +48V | | | | Threshold Range | Program dependent | | Ratio | ~3:1, soft knee, program dependent | | Attack Time | ~10mSec, program dependent | | Release Time | Dual stage: ~60mSec for 50% release, followed by 1 to 15Sec, program dependent | | Slope | Not specified by manufacturer | | Sidechain | No | | | | Filter Type | Low and high shelf | | Frequency Bands | HF: 4.5, 7 and 10kHz
LF: 70, 100 and 200Hz | | Bandwidth | Not applicable | | Range (Boost/Cut) | 1.5, 3, 4.5, 6, 9dB, switchable boost/cut | | Light Indication | | | Threshold Range | Program dependent | | Ratio | ~Infinity:1, soft knee, program dependent | | Attack Time | ~10mSec, program dependent | | | | Threshold Range | Not applicable | | Frequency Range | Not applicable | | | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | | | Power Requirements | 100/120/240V
30W power consumption | | Dimensions (WxDxH) | 19 x 12.25 x 3.5" (483 x 311 x 89mm) | | Weight | 12 lbs (5.4kg) | | Specialties | Custom Altran and Cinemag transformers
Auto sensing universal power supply | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 22.2 x 17.4 x 7.3" |
