User Manual for Universal Audio SOLO 610 - Classic Vacuum Tube Microphone Preamplifier and DI Box Click to enlarge the picture
Contents of the user manual for the Universal Audio SOLO 610 - Classic
- Product category: Microphone Preamps Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Microphone Preamps
 |
User manual for the Universal Audio SOLO 610 - Classic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

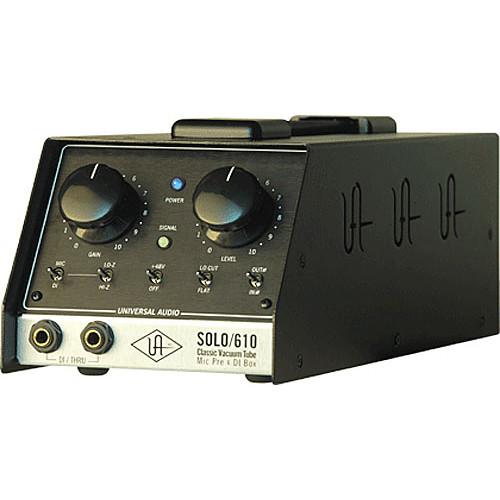

Product description The SOLO/610 from Universal Audio is a microphone preamplifier that delivers the classic Putnam 610 console sound to the single channel format in a rugged, highly versatile form factor, at a price every project studio can afford. The unit provides the silky vintage warmth of the original UA 610 console used by artists ranging from Sinatra to Van Halen.It offers microphone and DI inputs and features Gain and Level control for a wide variety of clean to colored tonal shaping. Unlike its predecessors, the Gain control has an even greater gain range, allowing for more precise gain structuring while also doubling as input signal padding. Additional features include a DI Thru for when the unit is used in conjunction with an amplifier, plus a ground lift switch.Unlike stationary rack gear, the SOLO 610 can be conveniently used in the control room or recording room, on stage or desktop due to its portable go-anywhere design. It has the same solid build and audiophile components from its more expensive siblings like the 2-610 and M610 and includes all the essential features like 48V phantom power, low cut filtering, phase reverse and flexible dual impedance selection for both the microphone and DI inputs. - Classic Putnam 610 console microphone preamplifier and DI
- Legendary all-tube sound at a project studio price
- Gain, level and impedance selection for maximum tonal variety
- Rugged construction, steel chassis in a portable design for studio, desktop, or stage
- DI features include Thru and Mic/Line level output
UPC: 819937001000 In the Box Universal Audio SOLO/610 - Classic Vacuum Tube Microphone Preamplifier and DI Box AC Power Cable One (1) Year Warranty User Manual PDF 2.7mbcfusqatusssvyyzfuwafuzbqayrc Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio SOLO 610 - Classic Vacuum Tube Microphone Preamplifier and DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniversal Audio Solo/610 Specs | Number of Channels | 1 | | Inputs | 1 x XLR
1 x 1/4" TS phone (front panel) | | Output | 1 x XLR
1 x 1/4" TS phone (front panel) | | Phantom Power | Yes | | Multi Function | No | | Gain Range | 64dB | | Maximum Output Level | +20dBm | | Frequency Response | 20Hz to 20kHz, +/-0.5dB | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | Portable enclosure | | Weight | Not specified by manufacturer | | Specialties | Selectable impedance on both microphone and instrument input | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 19.3 x 10.9 x 10.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
