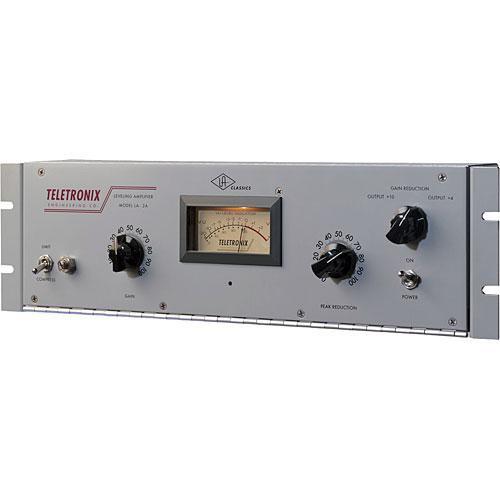

User Manual for Universal Audio Teletronix LA-2A Classic Leveling Amplifier - Exacting Recreation of Original LA-2A Hardware Unit Click to enlarge the picture
Contents of the user manual for the Universal Audio Teletronix LA-2A Classic Leveling
- Product category: Dynamics Processors Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio Dynamics Processors
 |
User manual for the Universal Audio Teletronix LA-2A Classic Leveling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

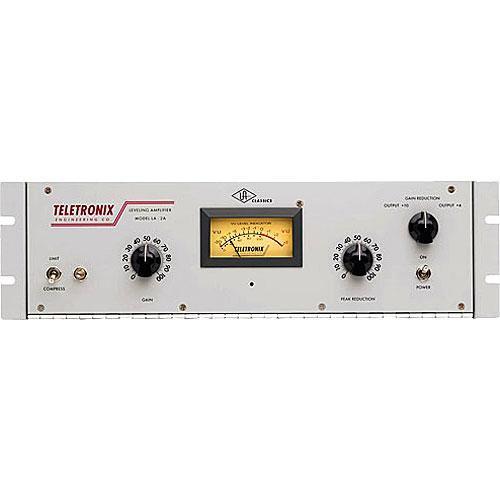

Product description By today's standards, the Teletronix LA-2A Leveling Amplifier from Universal Audio appears to be a rather primitive compression device. It has only two rotary controls, one for "Gain" and one for "Peak Reduction." However, behind this plain facade lies a unique electro-optical attenuator system that allows for instantaneous gain reduction with no increase in harmonic distortion.A tube-based compressor, the original LA-2A featured hand-wired components and an electro-luminescent optical gain reduction device that provided the fast attack necessary for broadcast applications. Additionally, the cadmium-sulfide photo-cells provided a very natural "two-stage" release which resulted in a compression characteristic more transparent than the other compressors of its day. To this day, the LA-2A delivers a trademark sound treasured by engineers worldwide.Painstaking care has been taken to ensure that every new Teletronix LA-2A Leveling Amplifier provides the performance and characteristics of the original. Each unit is hand built and each component carefully evaluated for authenticity. - True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Balanced stereo interconnection
UPC: 819937000034 In the Box Universal Audio Teletronix LA-2A Classic Leveling Amplifier - Exacting Recreation of Original LA-2A Hardware Unit AC Power Cable One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio Teletronix LA-2A Classic Leveling Amplifier - Exacting Recreation of Original LA-2A Hardware Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

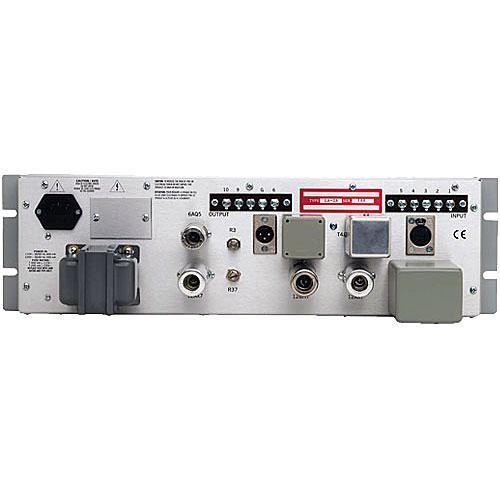

Technical parametersUniversal Audio LA-2A Specs | Function | Compressor | | Number of Channels | Single | | Inputs | 1x XLR
Jones Barrier Terminal | | Outputs | 1x XLR
Jones Barrier Terminal | | Maximum Input Level | +16 dB | | Compression Threshold | Dependent on "Gain Reduction" control | | Compression Ratio | Dependent on "Gain Reduction" control | | Attack Time | 10 milliseconds | | Release Time | Approximately 0.06 seconds for 50% release, 0.5 to 5 seconds for complete release depending upon the amount of previous reduction | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | +16 dBm peaks | | Make-up Gain | Not specified by manufacturer | | Frequency Response | 30 Hz to 15 kHz, +0/-1 dB | | Dynamic Range | Not specified by manufacturer | | Noise | 75 dB below +10 dBm output level | | Dimensions (LxWxH) | 19" x 7 1/4" x 5 1/4" (3U) | | Specialties | True to the original in design, manufacturing and performance | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 24.0 x 12.205 x 10.236" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
