User Manual for Universal Audio UAD-2 Quad - PCIe DSP Card Click to enlarge the picture
Contents of the user manual for the Universal Audio UAD-2 Quad - PCIe
- Product category: DSP Accelerators Universal Audio
- Brand: Universal Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Universal Audio DSP Accelerators
 |
User manual for the Universal Audio UAD-2 Quad - PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Universal Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Universal Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Universal Audio product will considerably shorten its lifespan!
|

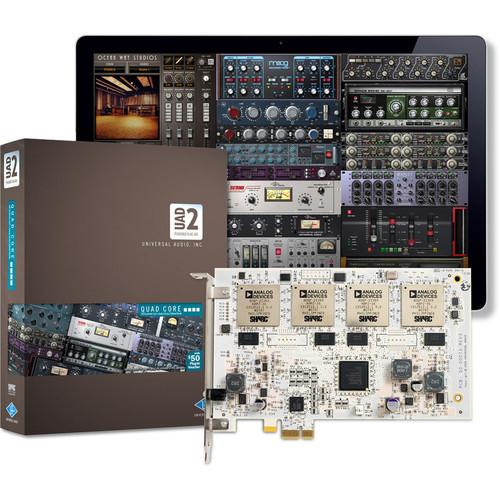

Product description The UAD-2 Quad from Universal Audio consists of a short form PCIe (Express) card for use in either Mac or Windows based native audio workstations. The card supplements the DSP processing of these systems, giving the computer's CPU more headroom and freeing resources for other functions that can include additional tracks, heavier mix automation or the ability to use more native effects. "Analog Classics" is a new software bundle included with the UAD-2 Quad, a collection of the company's best-selling and most-popular plug-ins that truly captures the quality of their analog hardware emulations, and brings classic "analog" sound to the digital domain. The Pultec EQ and the RealVerb Pro Room Modeler have always been included with the card. But now, two classics that were previously only available for purchase, have been added. The LA-2A Classic Audio Leveler is an emulation of the revered, electro-optical, analog compressor, while the 1176LN Classic Limiting Amplifier is the most accurate emulation of UA's legendary, FET-based, hardware classic. Also part of the bundle is the 1176SE Limiting Amplifier, a DSP-optimized version of the 1176LN, yielding higher instance counts with its own unique characteristics. An included voucher allows the user to purchase from Universal Audio (via the Internet) further plug-ins of their choice. Additionally, the UAD-2 Quad supports the use of other manufacturers' Audio Units, RTAS or VST plug-ins when using the appropriate host software. Note: To obtain the LA-2A and 1176LN plug-ins, the purchaser needs to register their card. The plug-ins will then be automatically added to their my.uaudio.com account and available for immediate download and use. - Hardware
-
- Cross-platform (Mac/PC), high-bandwidth PCIe (Express) card provides dedicated DSP for native DAW applications

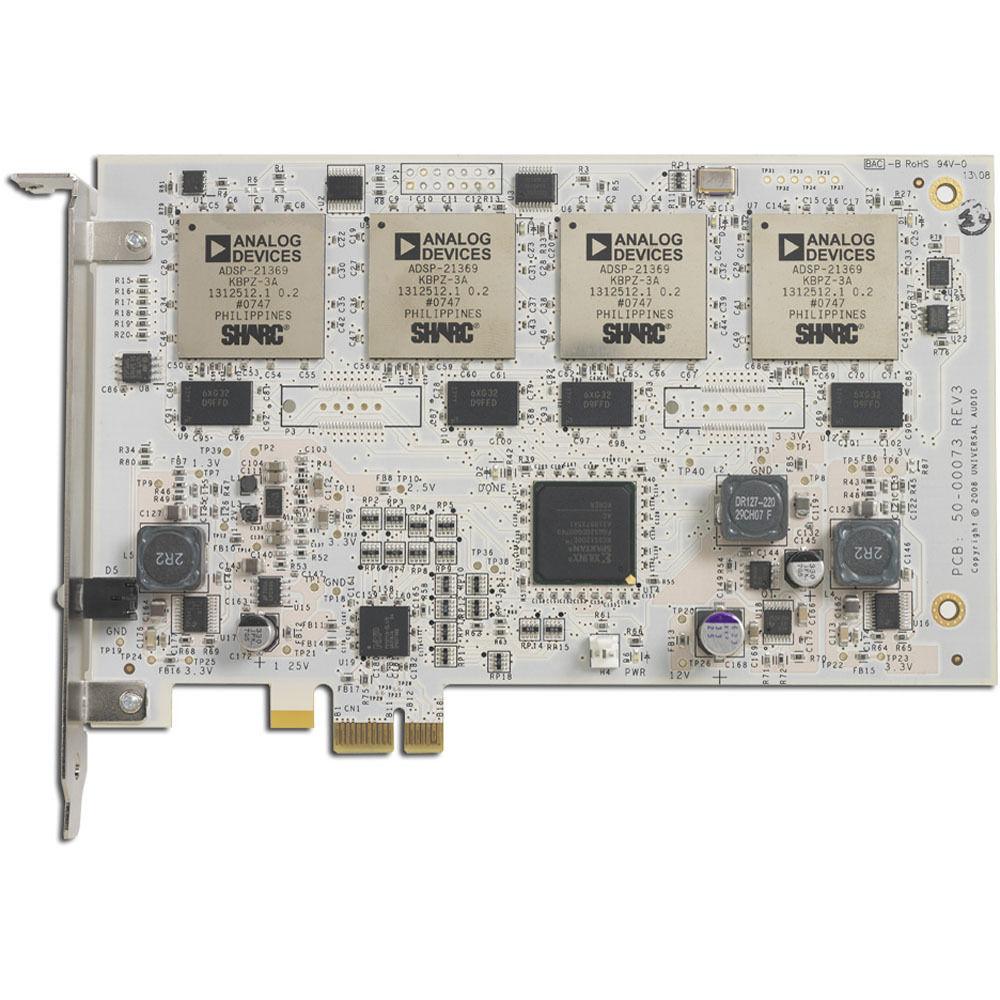

- Card features 4 Analog Devices SHARC 21369 floating-point processor that delivers 2.5 times the DSP power of the original UAD-1
- Fully PCIe 2.0 compliant x1 card that can be used in x1, x4, x8 and x16 slots
1 Please Note: Placing the card in higher speed slots does not provide added performance close - Functioning
-
- Real-time and faster than real-time mix bounce processing supported
- High-speed memory bus improves the running of reverb/delay type effects
- Live Track (low latency mode) induces no added latency and allows the card to behave like a host based plug-in for monitoring, tracking and processing
- L.O.D.E. (live Optimizing DSP Engine) automatically balances plug-in instantiation to deliver maximum DSP allocation
- Load Lock reserves DSP for guaranteed plug-in loading
- Sampling rates from 44.1kHz to 192kHz supported
- Software
-

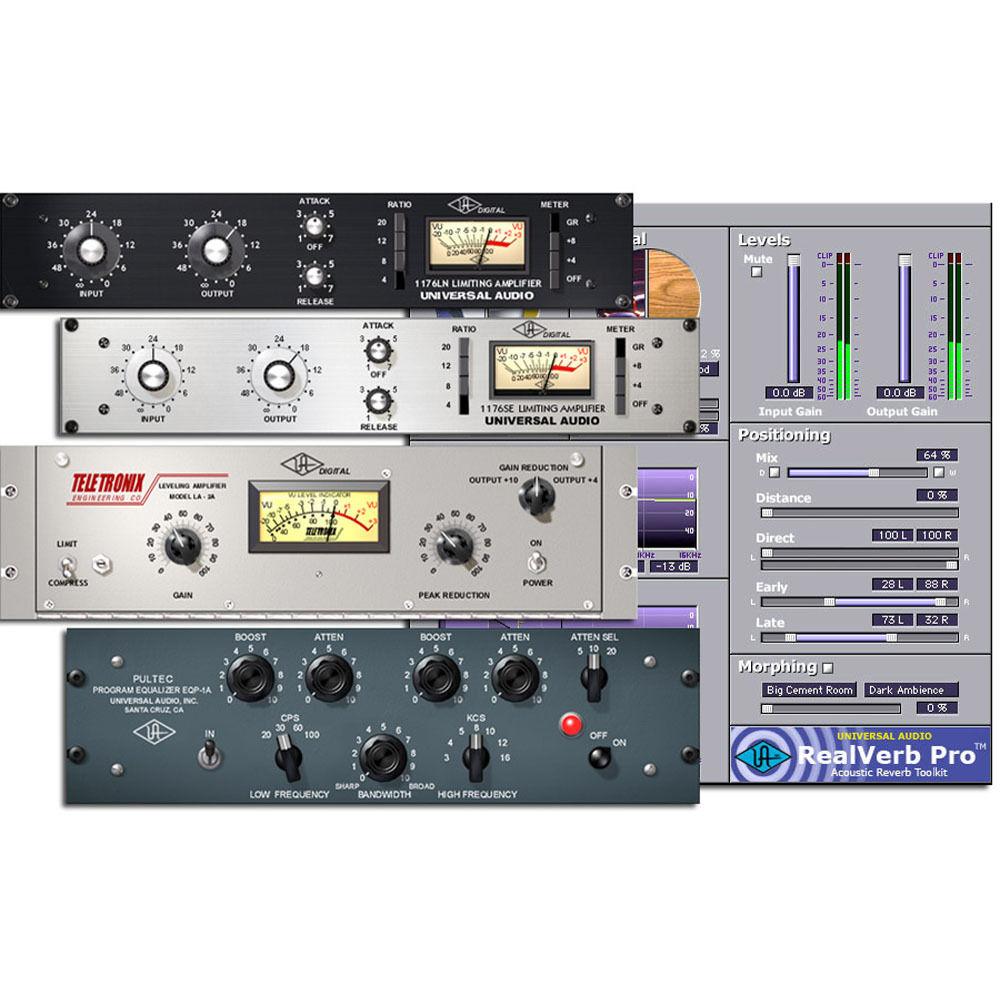

- "Analog Classics" plug-ins covering dynamics, EQ, reverb and processing
- Supports the use of third-party Audio Units, RTAS and VST plug-ins
- Further plug-ins can be obtained from UA's web site using an included voucher that has an equivalent value of fifty dollars
UPC: 819937005022 In the Box Universal Audio UAD-2 Quad - PCIe DSP Card UAD-2 PCIe Card LA-2A Audio Leveler Plug-In 1176LN Limiting Amplifier Plug-In Pultec EQP-1A Plug-In Realverb Pro Plug-In 1176SE Compressor Plug-In CS-1 Channel Strip Plug-In Installation CD-ROM QuickStart DVD (Video Tutorials) Voucher (Fifty Dollar Value) for Purchase of Additional Plug-Ins One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Universal Audio UAD-2 Quad - PCIe DSP Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUniversal Audio PCI2Q-C Specs | Form | PCIe (Express) card - low-profile, half-height, short card | | DSP | 4 Analog Devices SHARC 21369 DSP Chip | | Expansion Chassis Support | Not tested | | Plug-In Support | VST
Audio Units
RTAS | | Included Plug-Ins | LA-2A Audio Leveler
176LN Limiting Amplifier
Pultec EQP-1A Program Equalizer
RealVerb Pro
1176SE Limiting Amplifier
CS-1 Channel Strip | | System Requirements | Mac:
Mac computer with available PCIe slot for each UAD-2 card (processor upgrade cards are not officially supported)
OS X 10.4.x or 10.5.x
256MB RAM (512MB strongly recommended)
125MB hard disk space
CD ROM drive or Internet connection for software installation
Internet connection for registration and obtaining optional plug-ins
1024 x 768 or higher resolution monitor
AGP or PCI Express graphics video adapter (PCI graphics not supported)
Audio Unit, RTAS or VST compatible host software
PC:
Windows computer with available PCIe slot for each UAD-2 card
Windows XP (Home, Pro or x64 Edition)/Server 2003/Vista (x86 or x64), Windows 7 (32- or 64-bit)
256MB RAM (512MB strongly recommended)
125MB hard disk space
CD ROM drive or Internet connection for software installation
Internet connection for registration and obtaining optional plug-ins
1024 x 768 or higher resolution monitor
AGP or PCI Express graphics video adapter (PCI graphics not supported)
VST or RTAS compatible host software | | Specialties | Multi-card support for up to 8 cards - up to 4 UAD-1 or 4 UAD-2 may be used simultaneously in one host computer | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 3.0" |
