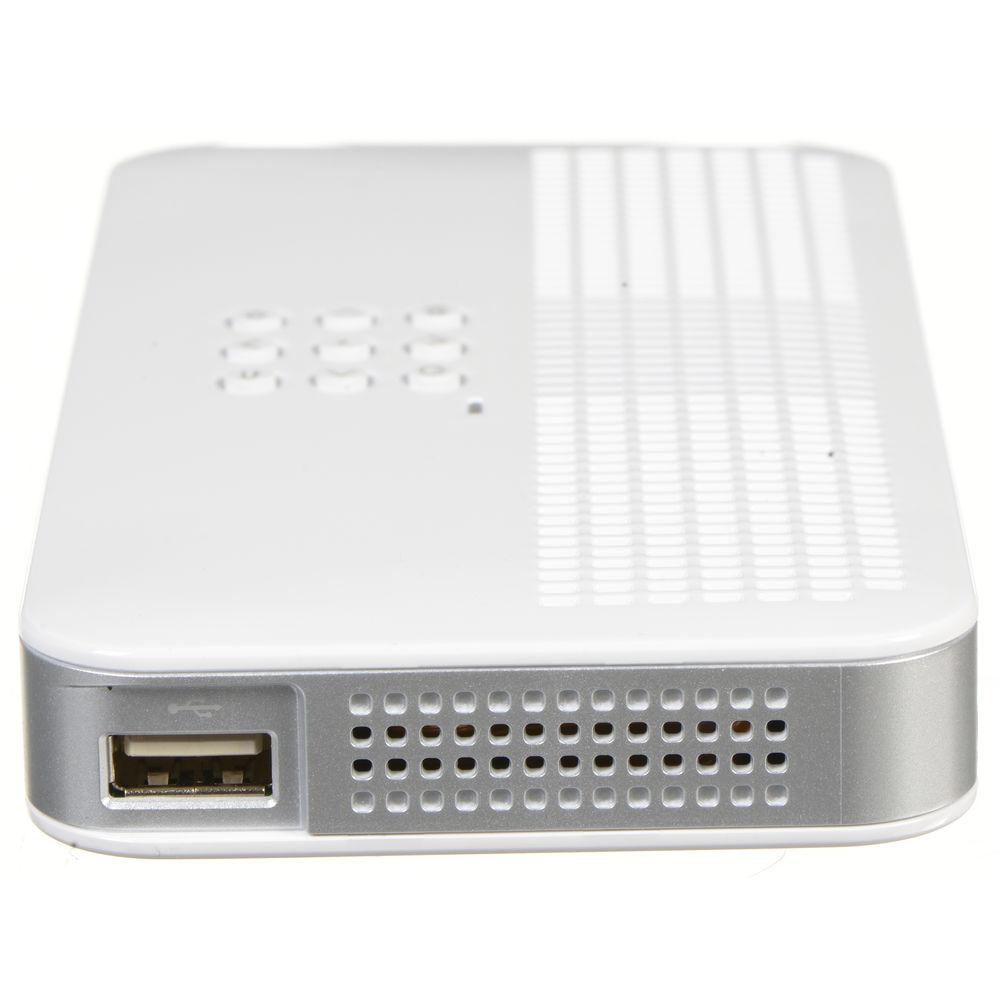

User Manual for UO Smart Beam Laser Beam Pro C200 200-Lumen WXGA Pico Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the UO Smart Beam Laser Beam Pro
- Product category: Pico Projectors UO Smart Beam
- Brand: UO Smart Beam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for UO Smart Beam Pico Projectors
 |
User manual for the UO Smart Beam Laser Beam Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any UO Smart Beam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official UO Smart Beam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a UO Smart Beam product will considerably shorten its lifespan!
|

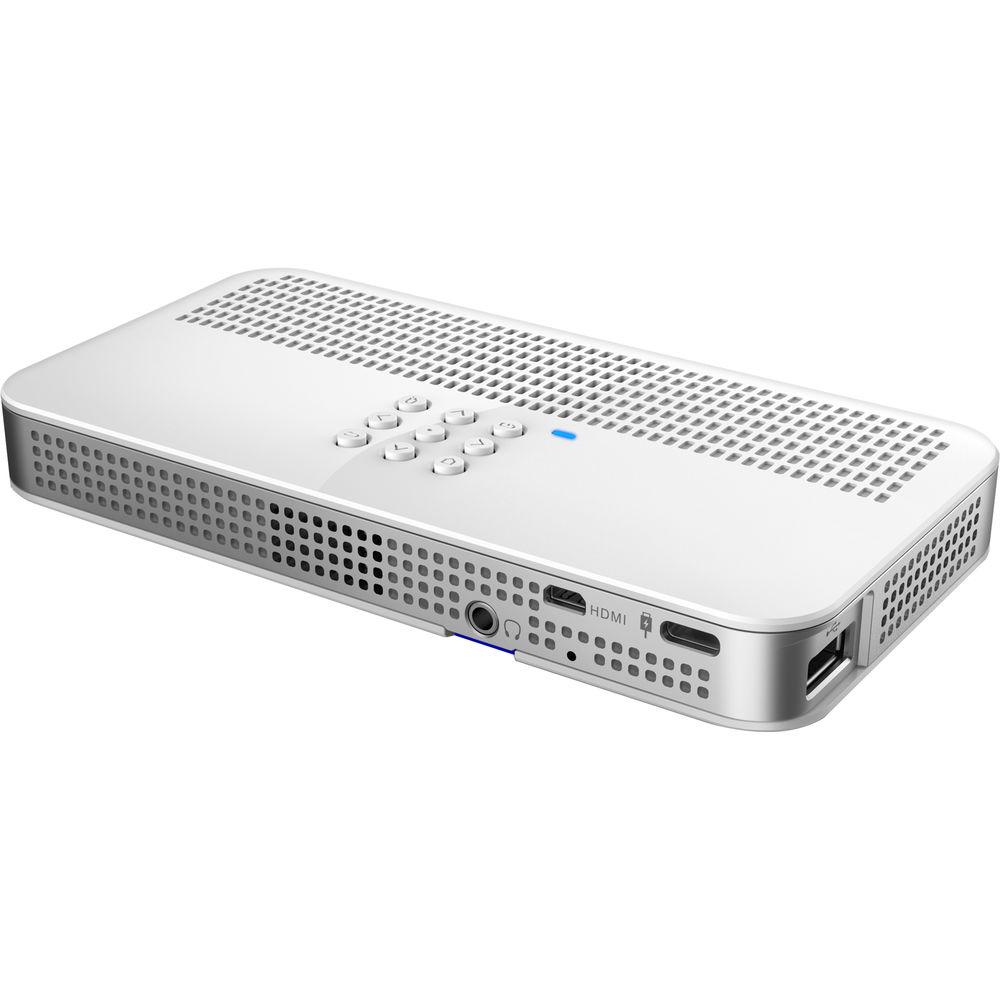

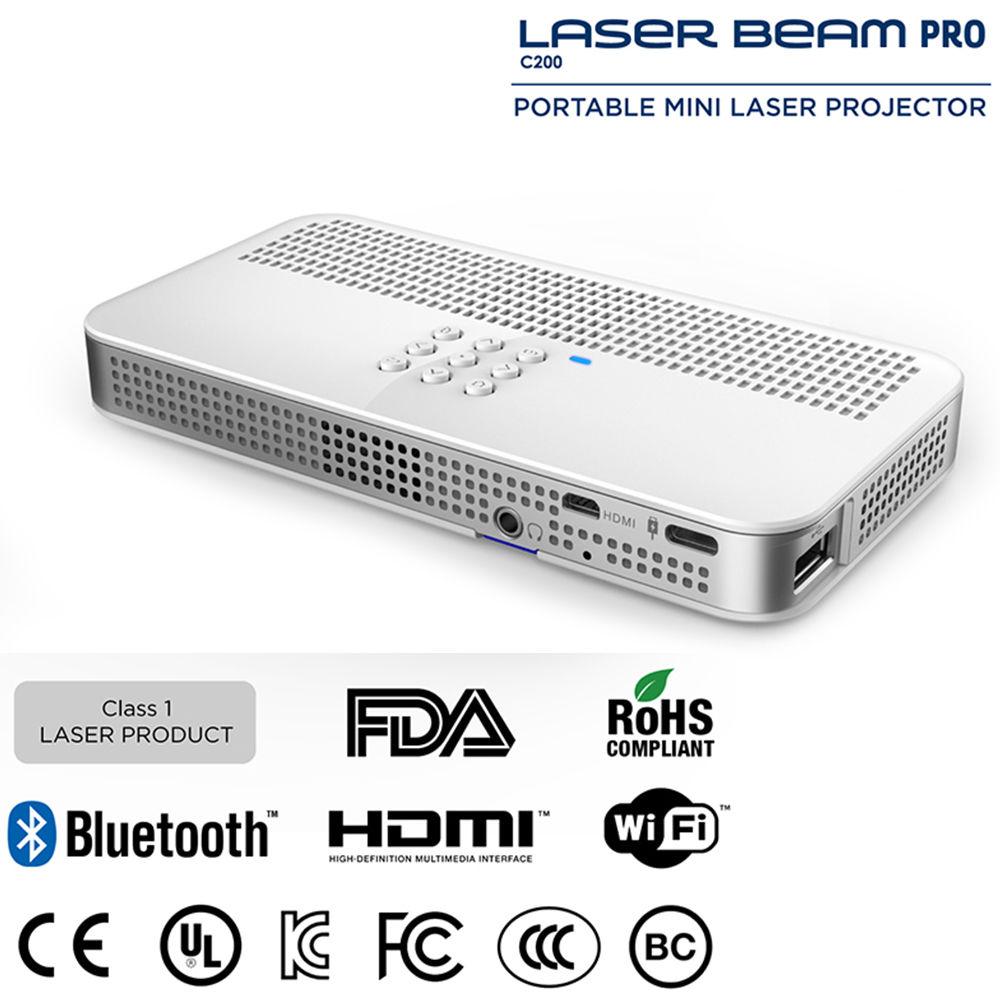

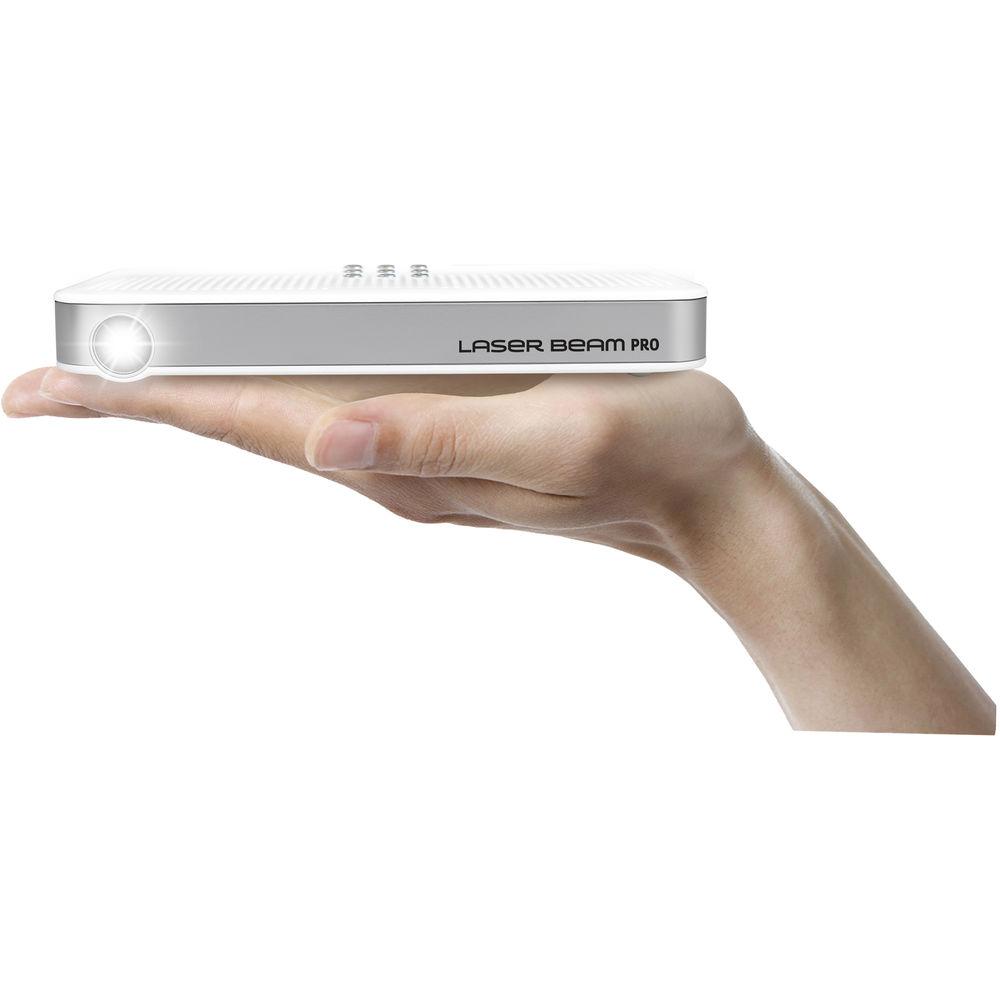

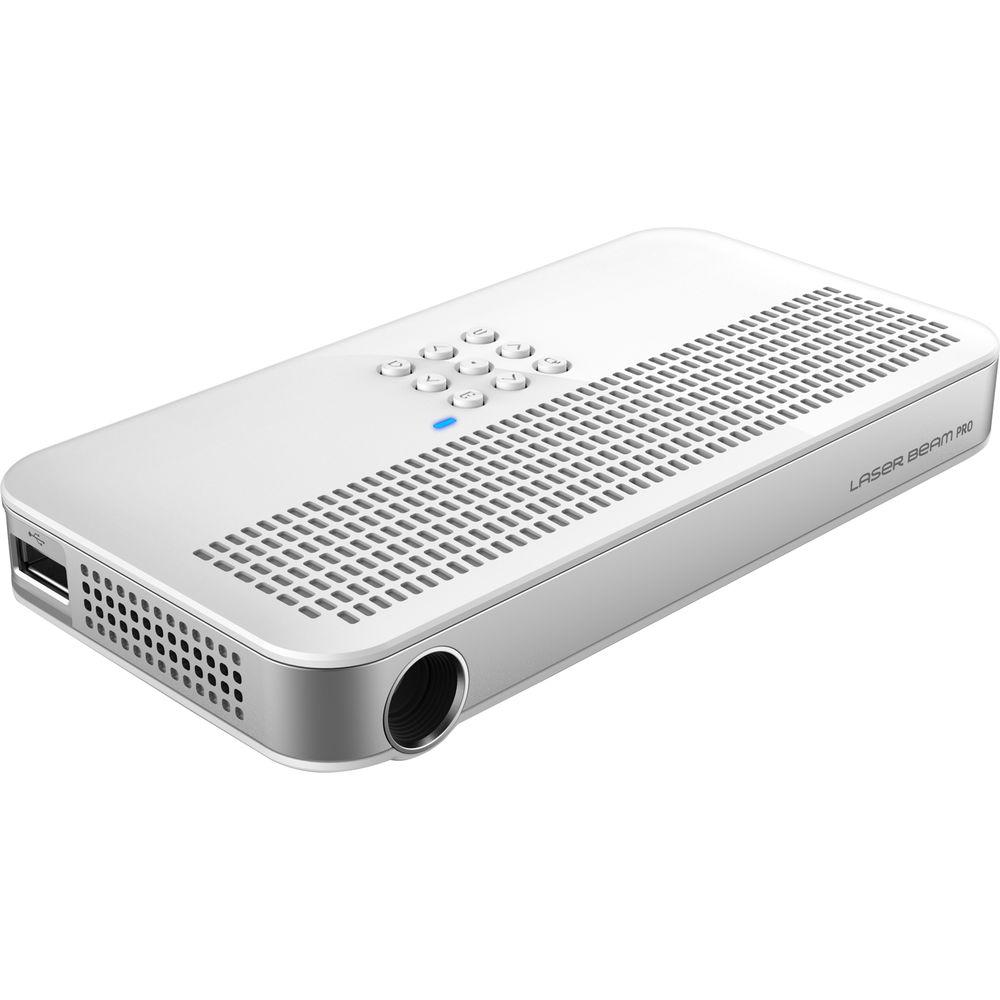

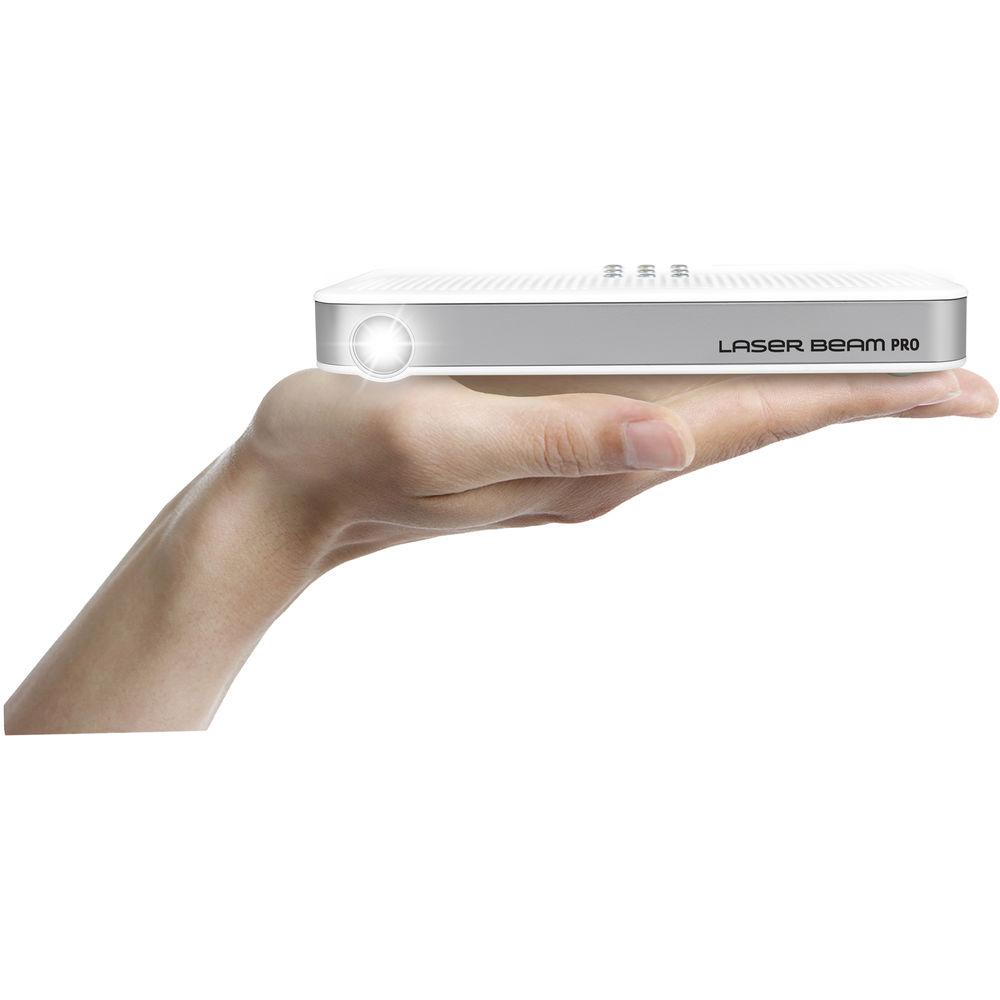

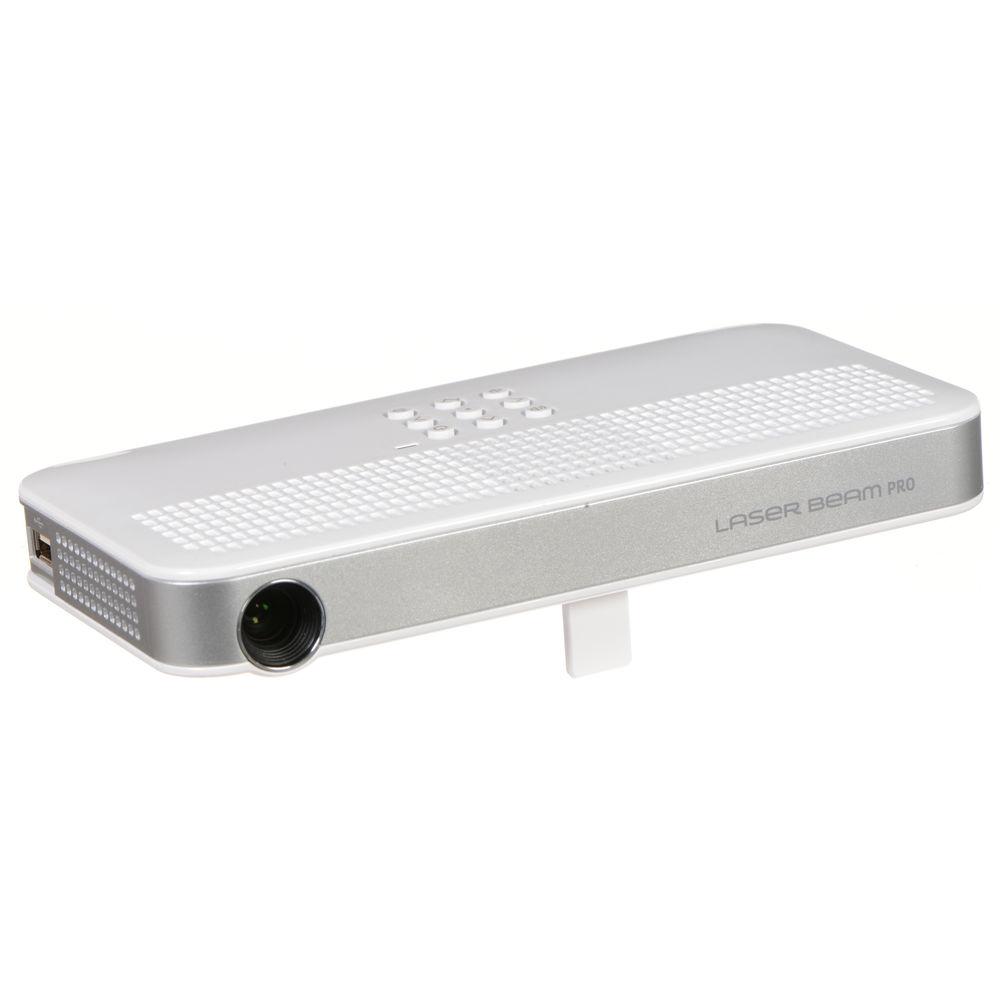

Product description Take your presentation with you using the Cremotech Laser Beam Pro C200 200-Lumen WXGA Pico Projector. It features a compact 5.5 x 0.7 x 2.8" design that weighs only 8.67 oz to allow ease of portability. The projector uses a laser light source to create up to 200-lumen images that will be visible even with some ambient light. You can connect the Laser Beam Pro C200 via Wi-Fi or through its micro-HDMI input, or to a USB drive via its USB host port. Its built-in 2-hour battery will allow you to project nearly anywhere you like. - Focus-free thanks to its laser.
- Enjoy video streaming from YouTube & Netflix.
- Integrated Bluetooth 4.0 allows you to connect to an optional external speaker.
- iOS & Android wireless connectivity.
- USB slot to connect keyboard or mouse.
- Enjoy nearly any content using an optional USB drive or SD card.
- Battery life of 120 minutes, or use the included micro-USB charger.
- 8GB internal storage to download nearly any type of content.
- Up to 23° adjustable keystone function.
- Accepts resolutions up to 4K and downscales to 1366 x 768.
- Android Lollipop OS and 1GB of RAM.

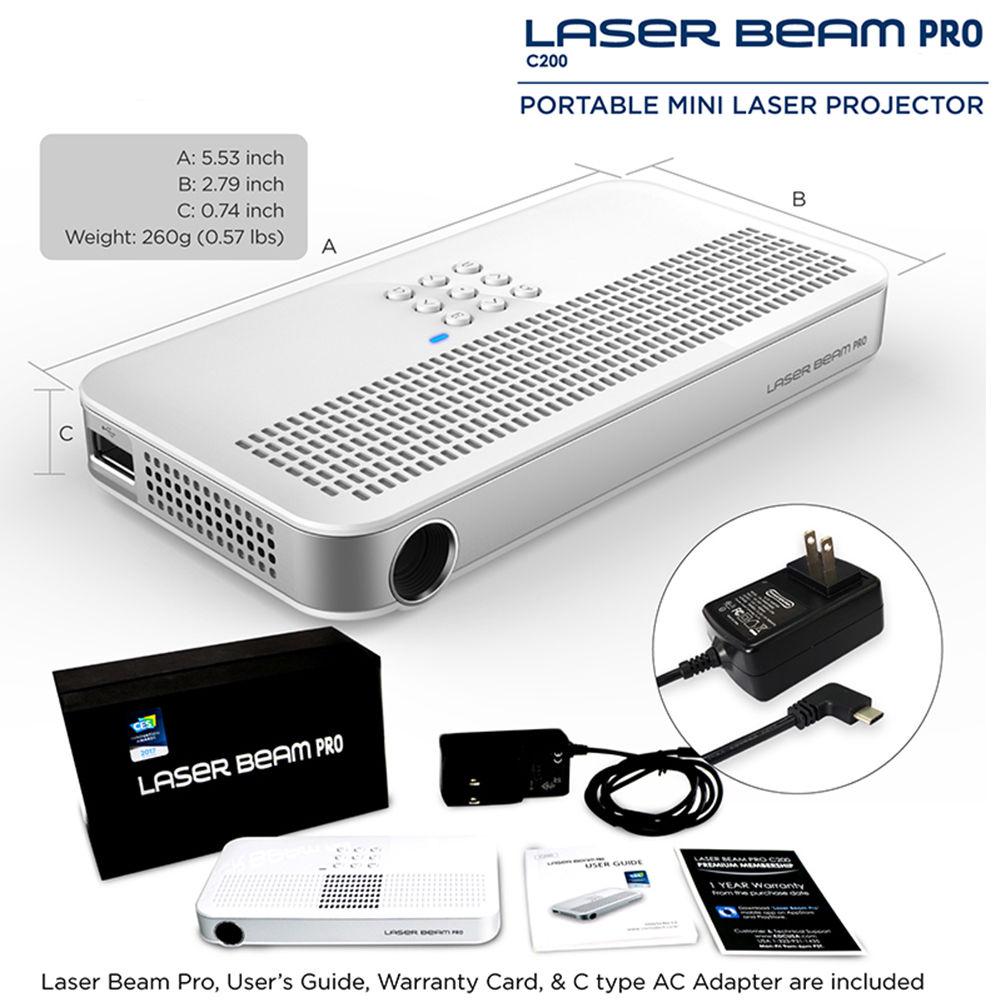

UPC: 889927000023 In the Box UO Smart Beam Laser Beam Pro C200 200-Lumen WXGA Pico Projector with Wi-Fi Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UO Smart Beam Laser Beam Pro C200 200-Lumen WXGA Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

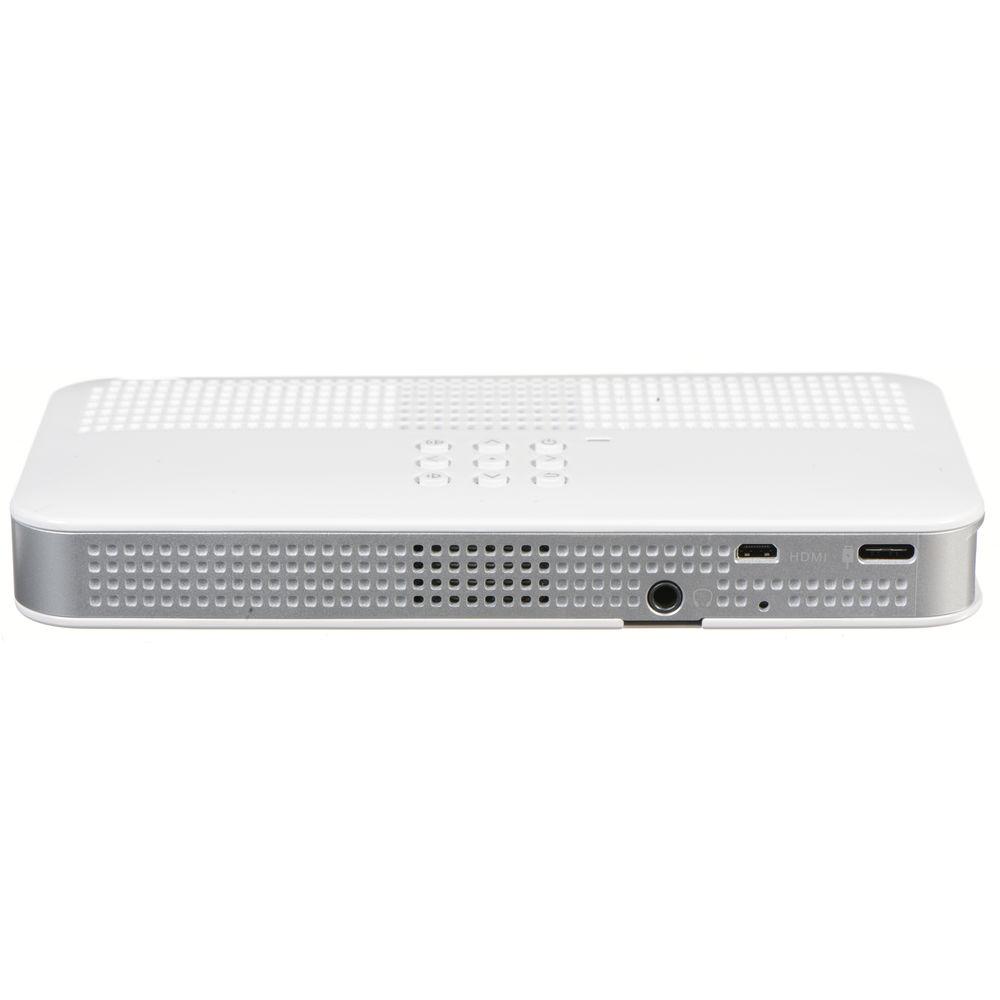

Technical parametersUO Smart Beam C200 Specs | | | Native Chip Resolution | 1366 x 768 (WXGA) | | Supported Resolutions | Maximum: 3840 x 2160 | | Max Brightness | 200 Lumens | | Aspect Ratio | Native: 16:9 | | | | Focus | None | | Throw Ratio | 1.39:1 | | Projection Size | 30 - 100" / 76.20 - 254.00 cm | | | | Keystone Correction | Manual: ± 23° | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x Micro-HDMI Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Control (Input) | | Memory Card Slot | 1 x microSD (Unspecified Type) | | Internal Storage | 8.0GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Expected Lamp Life | Medium Brightness: 10,000 Hours | | Dimensions (W x H x D) | 5.5 x 0.7 x 2.8" / 14.0 x 1.8 x 7.1 cm | | Weight | 8.67 oz / 245.79 g | | | | Package Weight | 1.525 lb | | Box Dimensions (LxWxH) | 6.95 x 4.0 x 3.25" |
